U.S. Solid Motorized Ball Valve- 1/4" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

Overview

• Material : Stainless Steel
• Brand : U.S. Solid

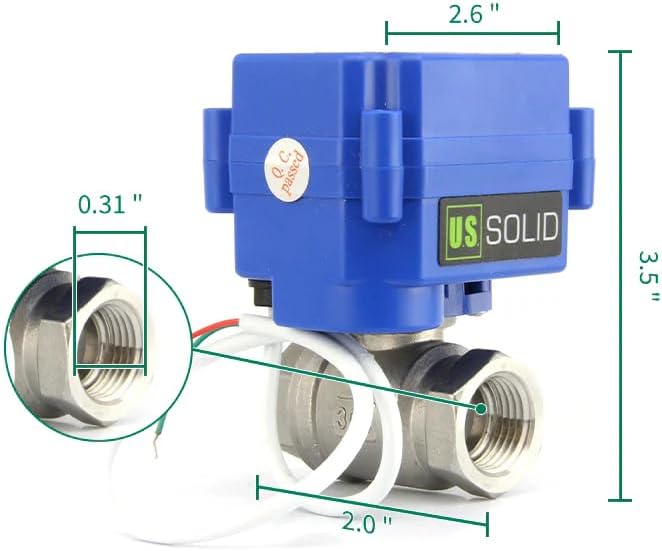

• Item dimensions L x W x H : 3.35 x 2.68 x 2.28 inches
• Exterior Finish : Stainless Steel,Steel
• Inlet Connection Size : 1/4 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : NPT
• Maximum Operating Pressure : 1000 Kilopascal
• Number of Ports : 2
• Outlet Connection Size : 0.25 Inches

About this item

• SAFE AND RELIABLE – Made from SS304 stainless steel and NSF certified, this ball valve is safe for drinking water. It has a lifespan of 80,000 to 100,000 cycles.
• NPT THREADING – ¼" stainless steel threading, manufactured and measured according to National Pipe Thread (NPT) standards. This standard-port electrical ball valve features a bore slightly less than ¼”, minimizing pressure loss—ideal for home automation projects.
• 9V-24V AC/DC – Operates effectively across the entire voltage range; opens or closes the valve in 3-5 seconds. The limit switch reduces power consumption once the valve is fully open, making it ideal for projects requiring automatic return.
• 2-WIRE AUTOMATIC RETURN SETUP – Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed if power is removed.
• ALTERNATIVE TO SOLENOID VALVES – Automatically cuts off power once fully open or closed, reducing the risk of overheating. Ideal for projects requiring a valve to remain open for extended periods. OUTDOOR INSTALLATION TIP – If permanently installed outdoors, it is recommended to place the valve under a shelter or inside a protective box to prevent prolonged exposure to rain.
