uxcell

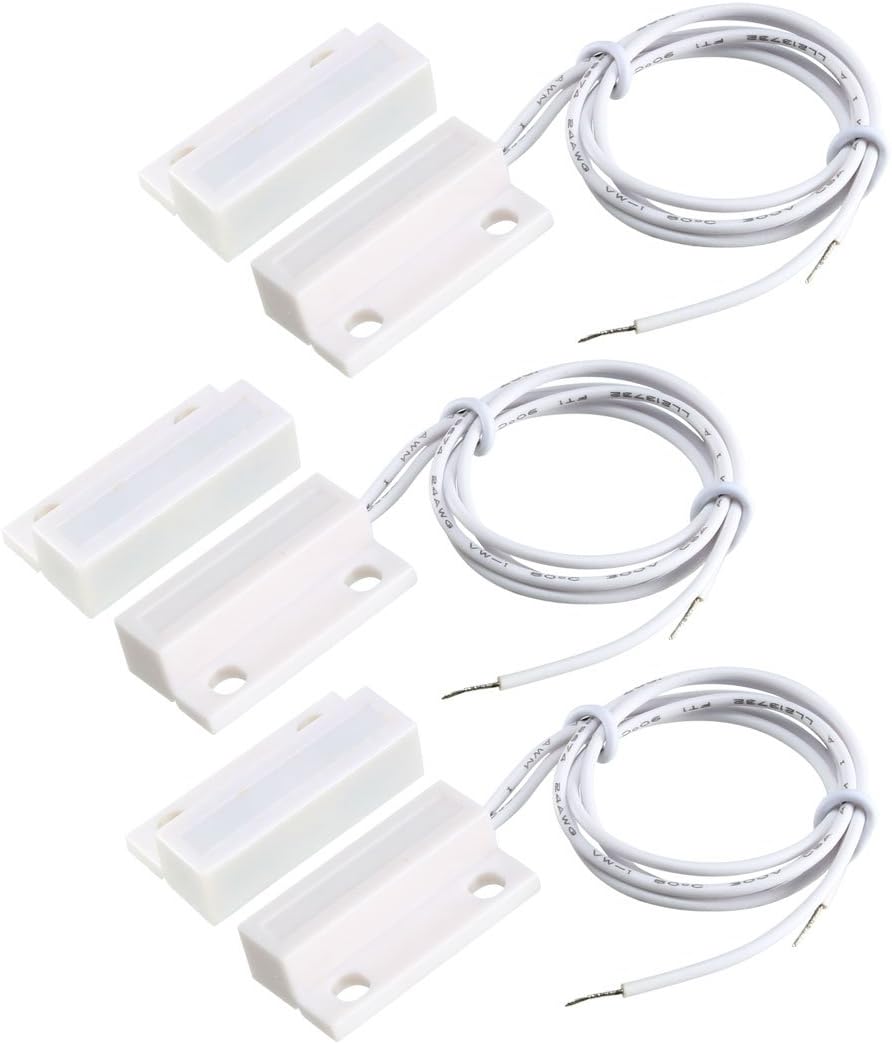

uxcell Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White MC-38
uxcell Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White MC-38
Regular price
$11.18 USD
Regular price
$11.18 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
- Operation Mode : ON-NONE-OFF
- Current Rating : 0.5 Amps
- Operating Voltage : 100 Volts (DC)
- Contact Type : Normally Closed
- Connector Type : Wire Leads
- Brand : uxcell
- Switch Type : Magnetic Reed Switch (Normally Closed)
- Terminal : Screw
- Material : Acrylonitrile Butadiene Styrene
- Item dimensions L x W x H : 5.51 x 3.94 x 0.39 inches
About this item
- [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm

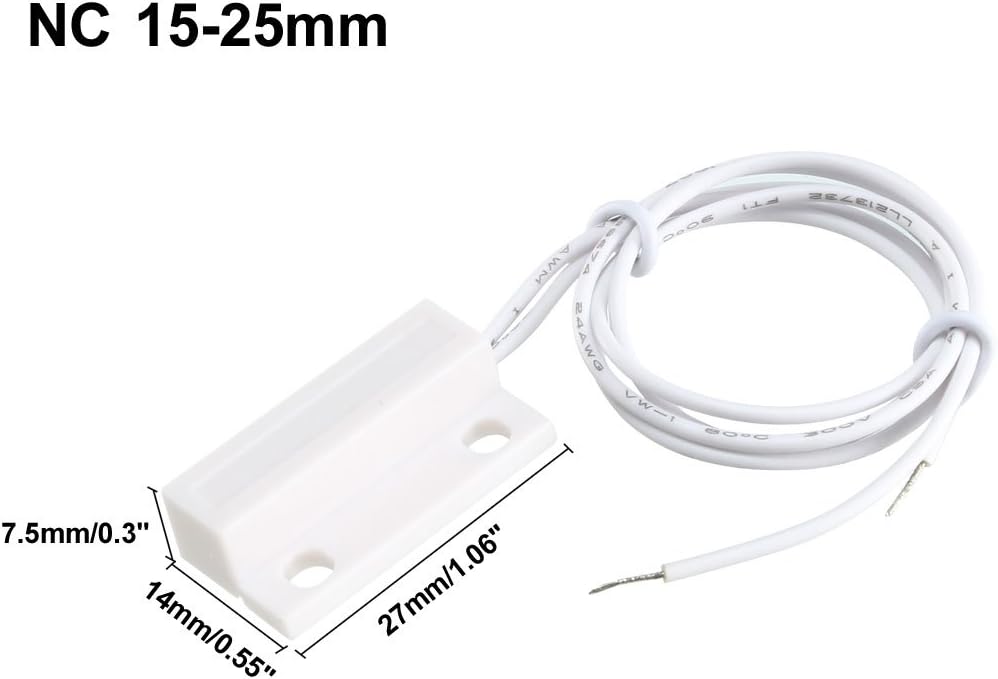

- [Dimension] - Cable Length: 26cm/10.24"; Total Size: 27 x 14 x 7.8mm / 1.06" x 0.55" x 0.31" (L*W*H)
- [Material] - The magnetic switch alarm is with durable ABS housing for better rust resistance
- [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
- [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
