Electronics-Salon Arduino Screw Terminal Block Breakout Module, for Arduino UNO R3.

Overview

• Item Pitch : 3.5 Millimeters
• Gauge : 26.0
• Connector Type : Screw
• Number Of Contacts : 40
• Mounting Type : PCB Mount
• Material : Copper
• Brand : Electronics-Salon
• Voltage : 5 Volts
• Number Of Poles : 40
• Manufacturer : Electronics-Salon

About this item

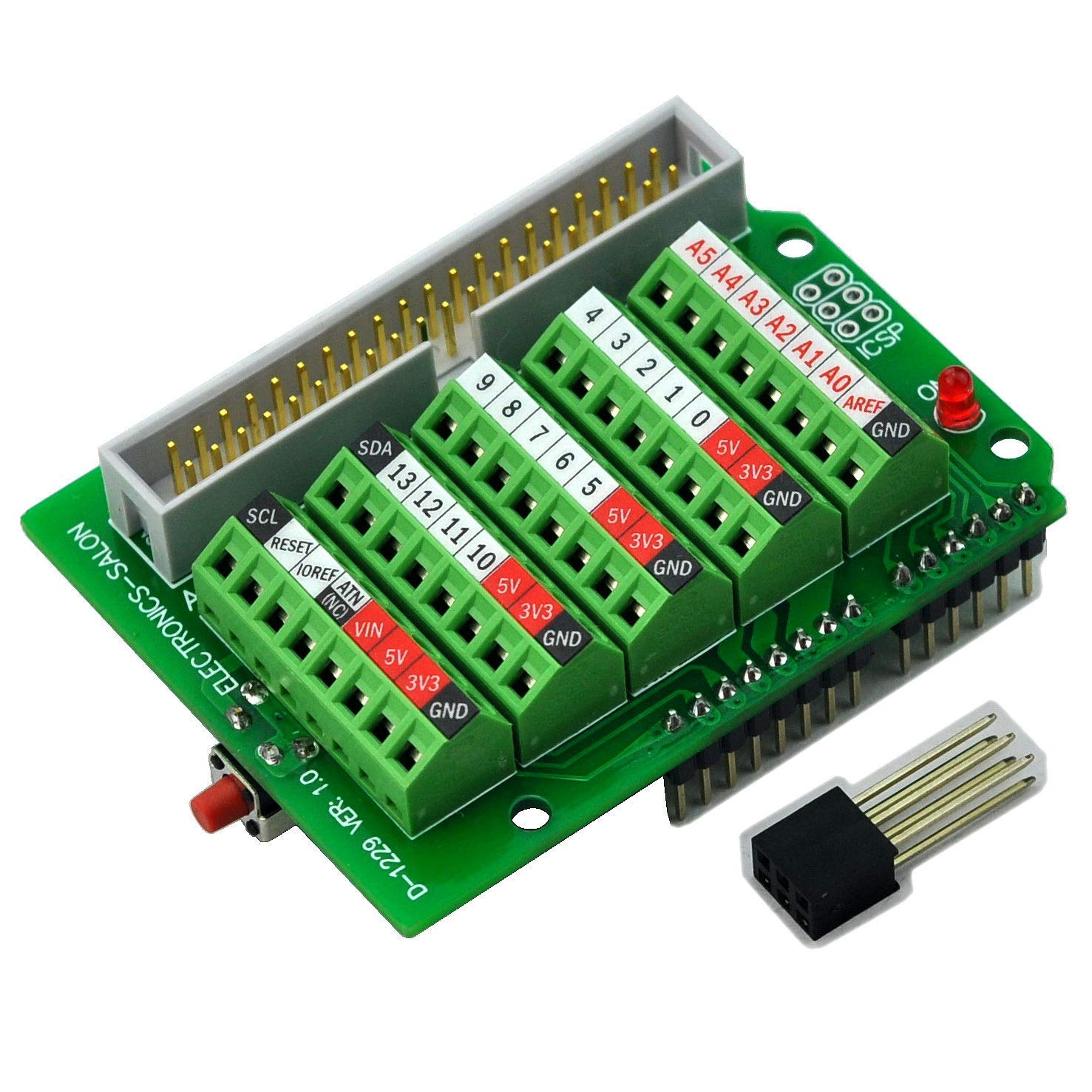

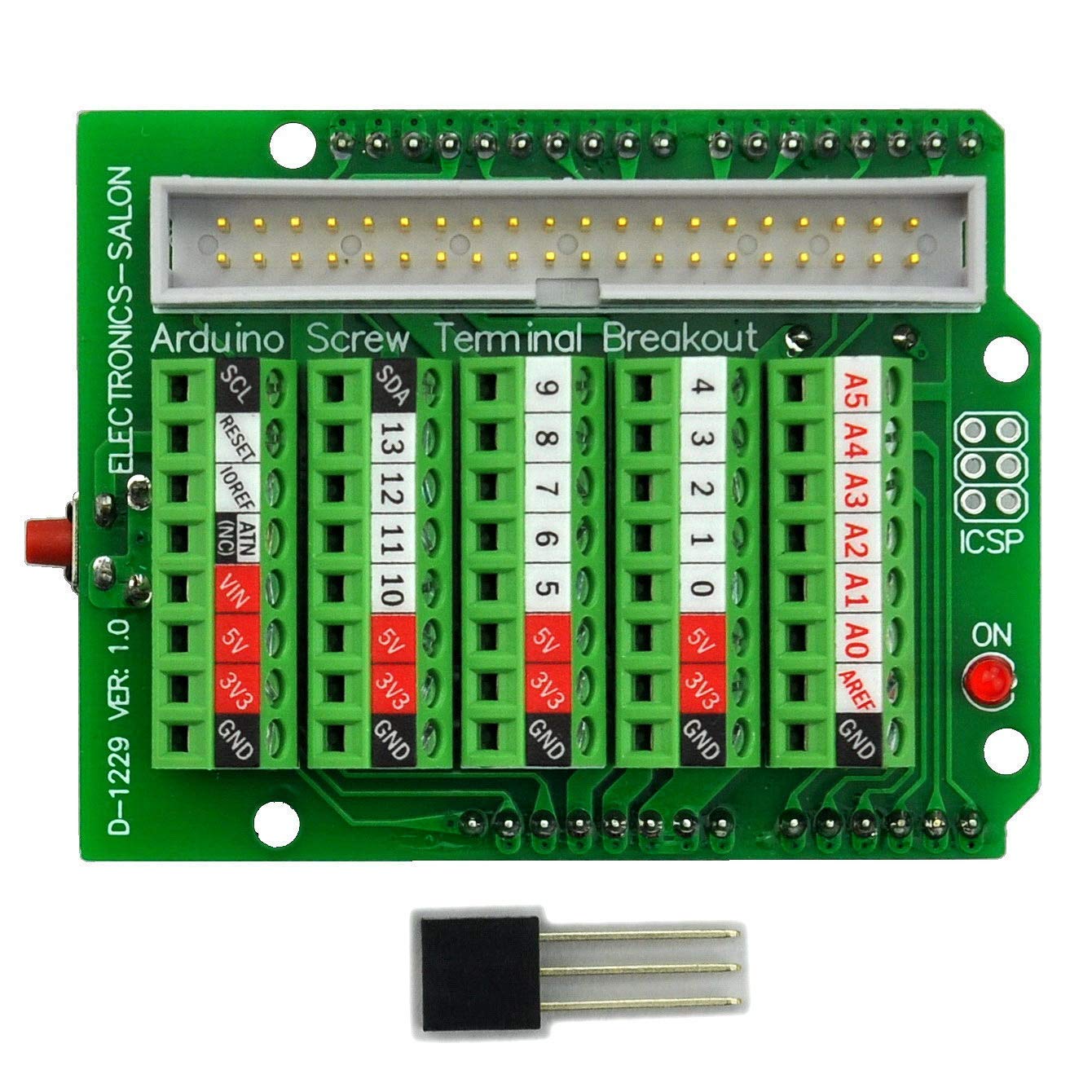

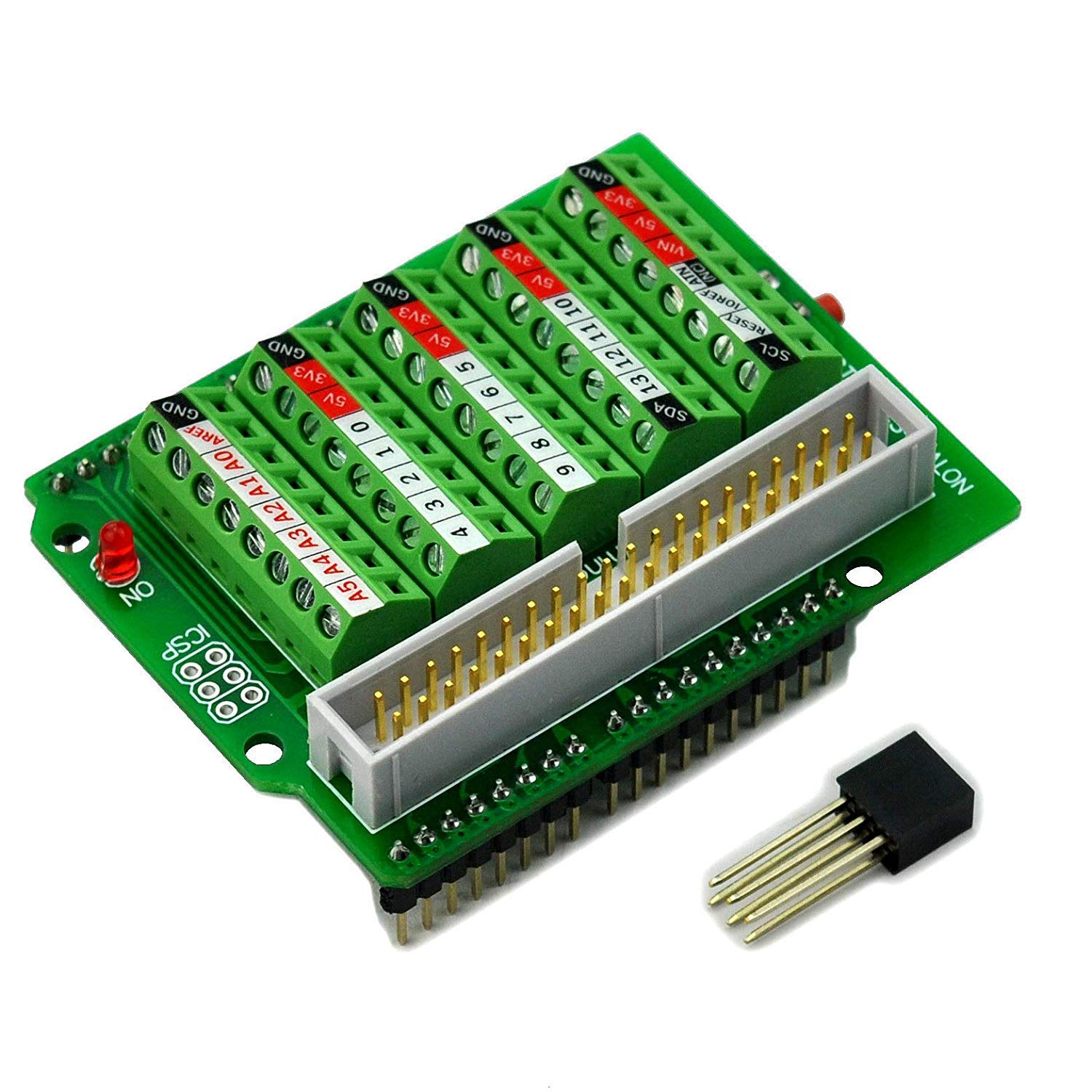

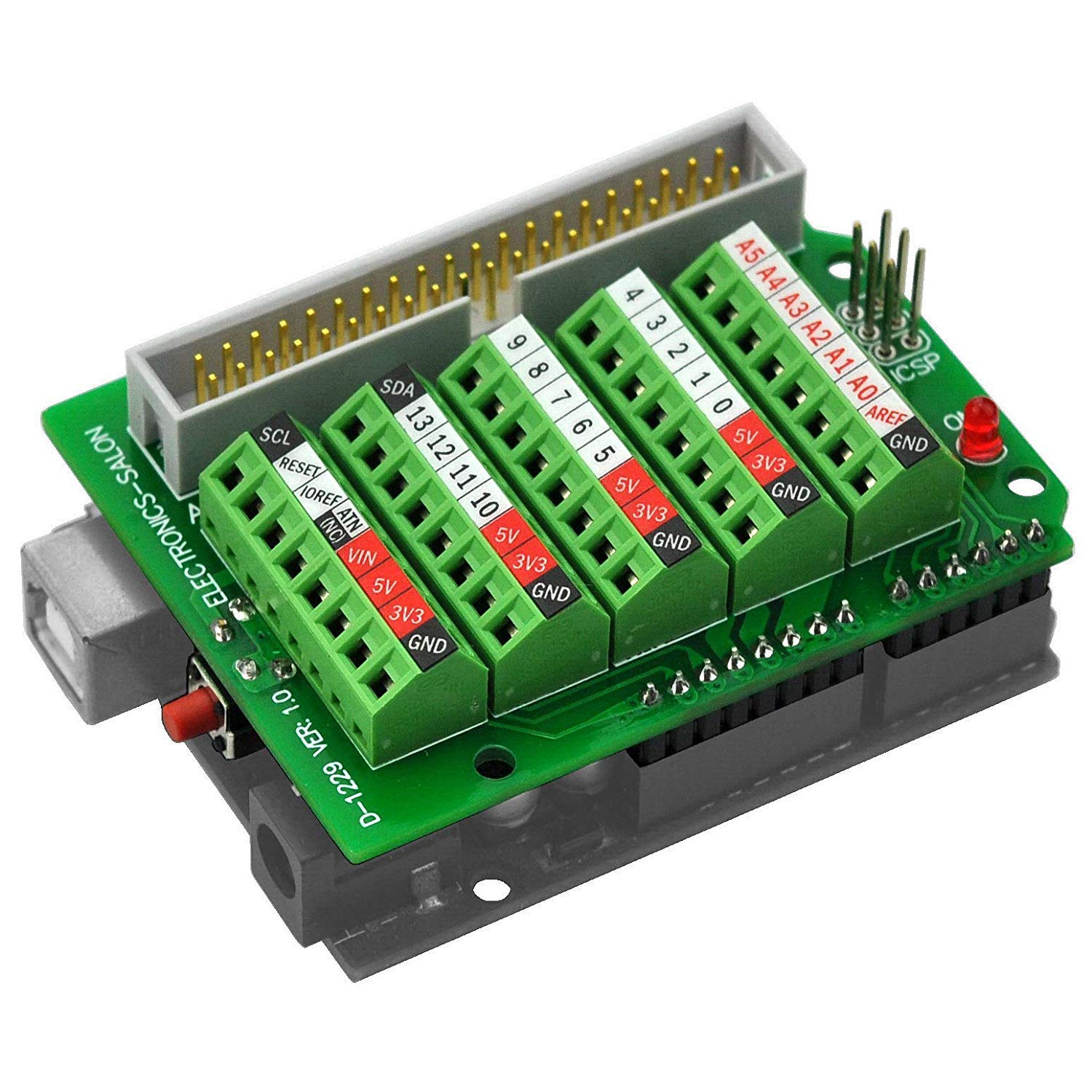

• Terminal Block Breakout Module - for Arduino UNO R3. the item has been soldered and assembled.
• Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
• Standard IDC40 pitch 0.1" header, you can use 40pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.

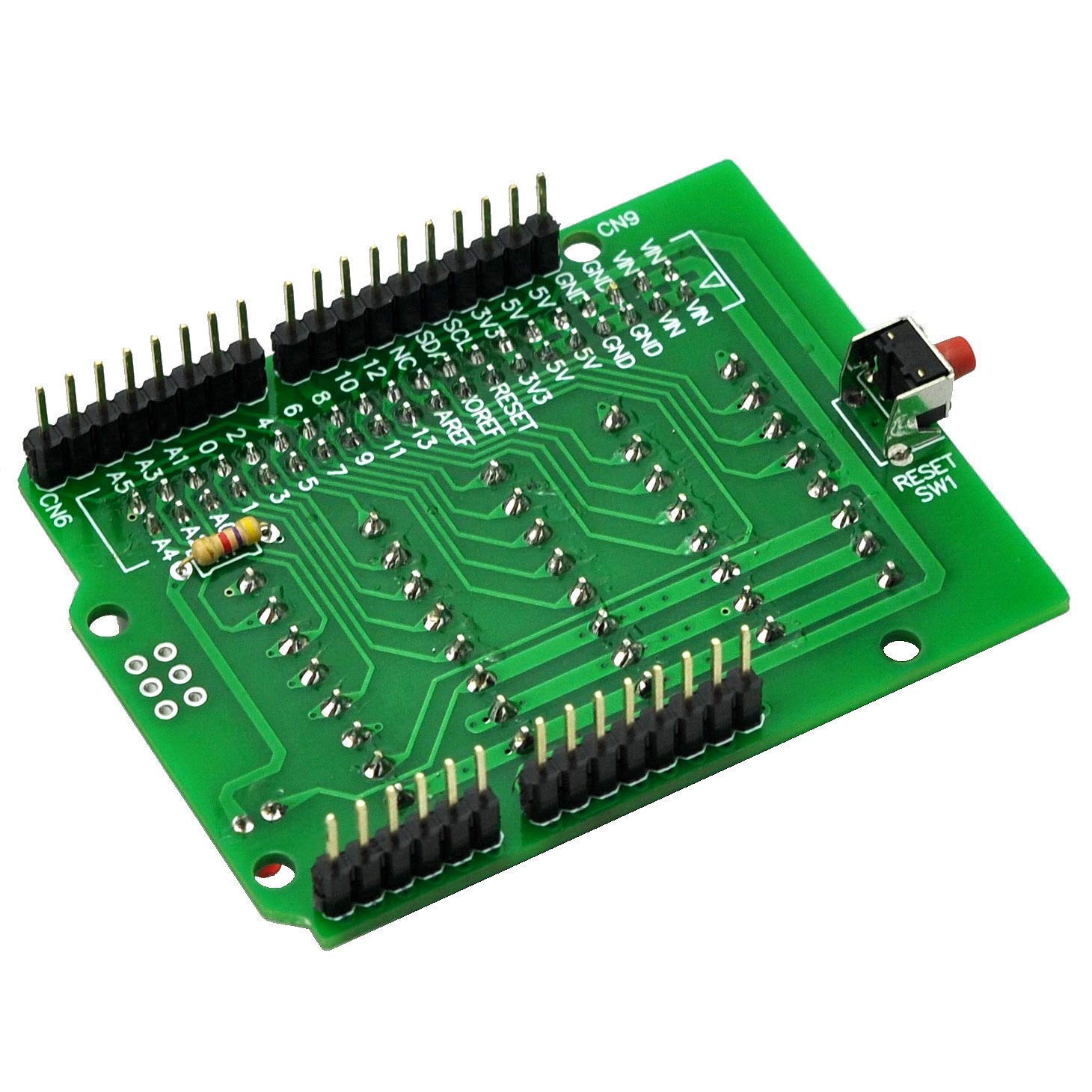

• With power on LED indicating. red reset button on the side. with a ICSP adapter connect header. FR-4 fiber glass PCB, dual copper layers.
• NOTE: the item not include Arduino Uno module
