USB Logic Analyzer LA5032 32 Channels 500MHz 10G Samples for MCU ARM FPGA Debug Tool MIPI Analyzer with English Software Compatible with Windows Mac Linux

Overview

• Brand : innomaker
• Power Source : Corded Electric
• Style : LA5032
• Color : silver
• Item Weight : 10 Grams

About this item

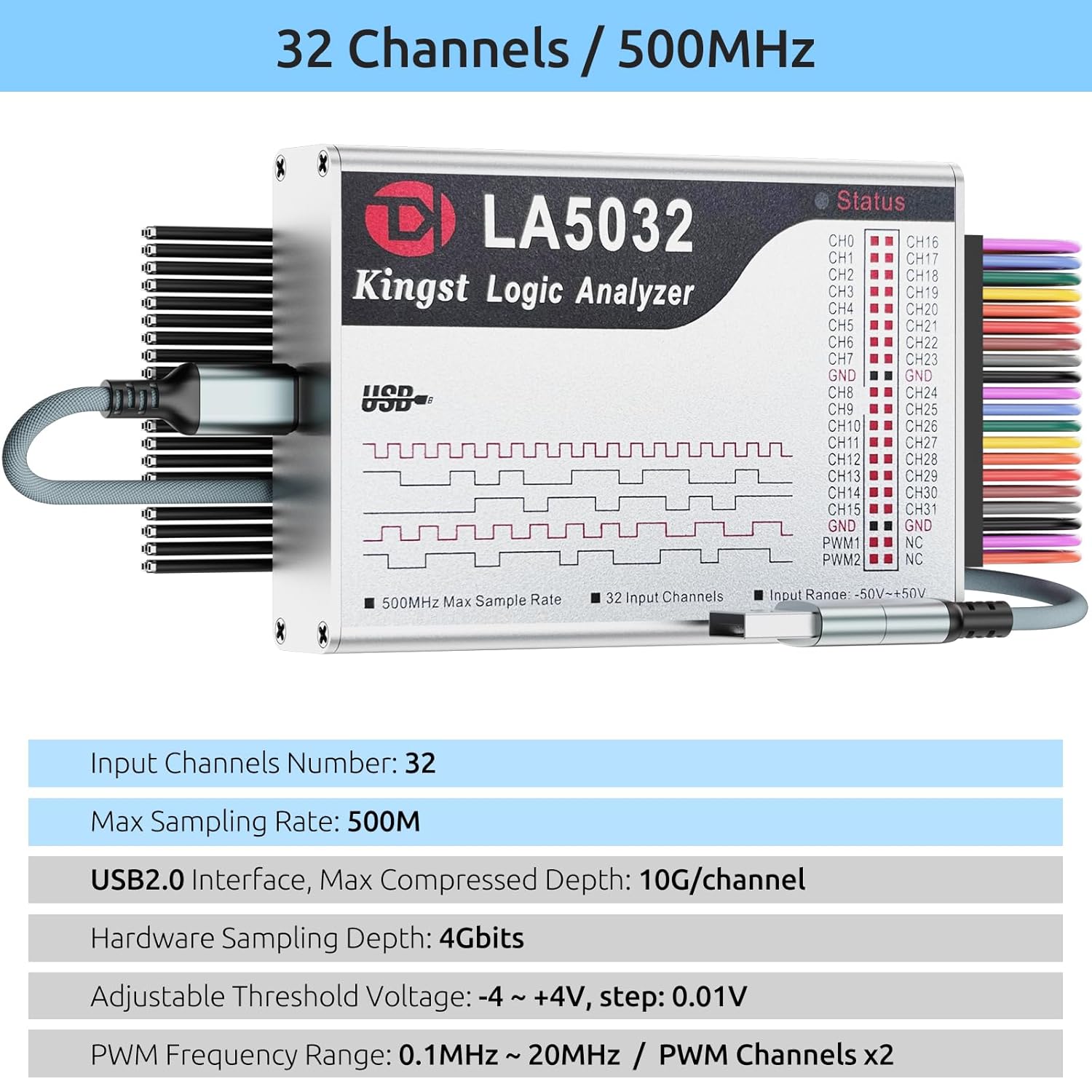

• 【High-Speed 32-Channel Analysis】The LA5032 USB Logic Analyzer captures complex signals with 32 synchronous channels at 500MHz sampling rate, delivering precise timing analysis with 6.25ns glitch detection for advanced MCU, ARM and FPGA debugging applications.
• 【Deep Memory with Compression】Utilize massive 10G sample depth per channel with advanced compression technology, supported by 5Gbit hardware memory to capture long-duration data streams without missing critical events in embedded system development.

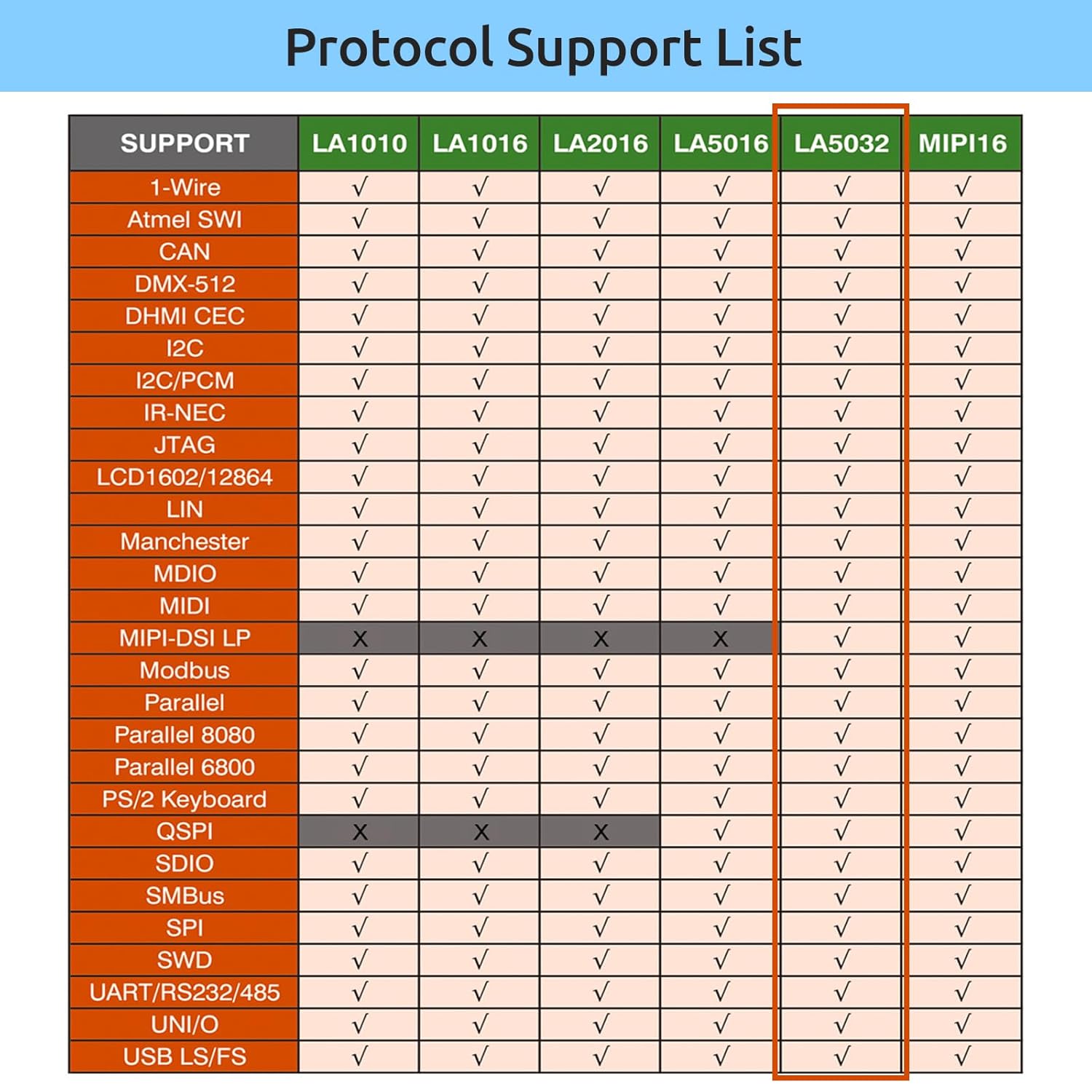

• 【Automated Protocol Decoding】Decode over 20 protocols instantly including MIPI DSI LP, I2C, SPI, UART, CAN and JTAG with intuitive software that translates raw data into readable bus traffic, dramatically accelerating your debugging workflow.

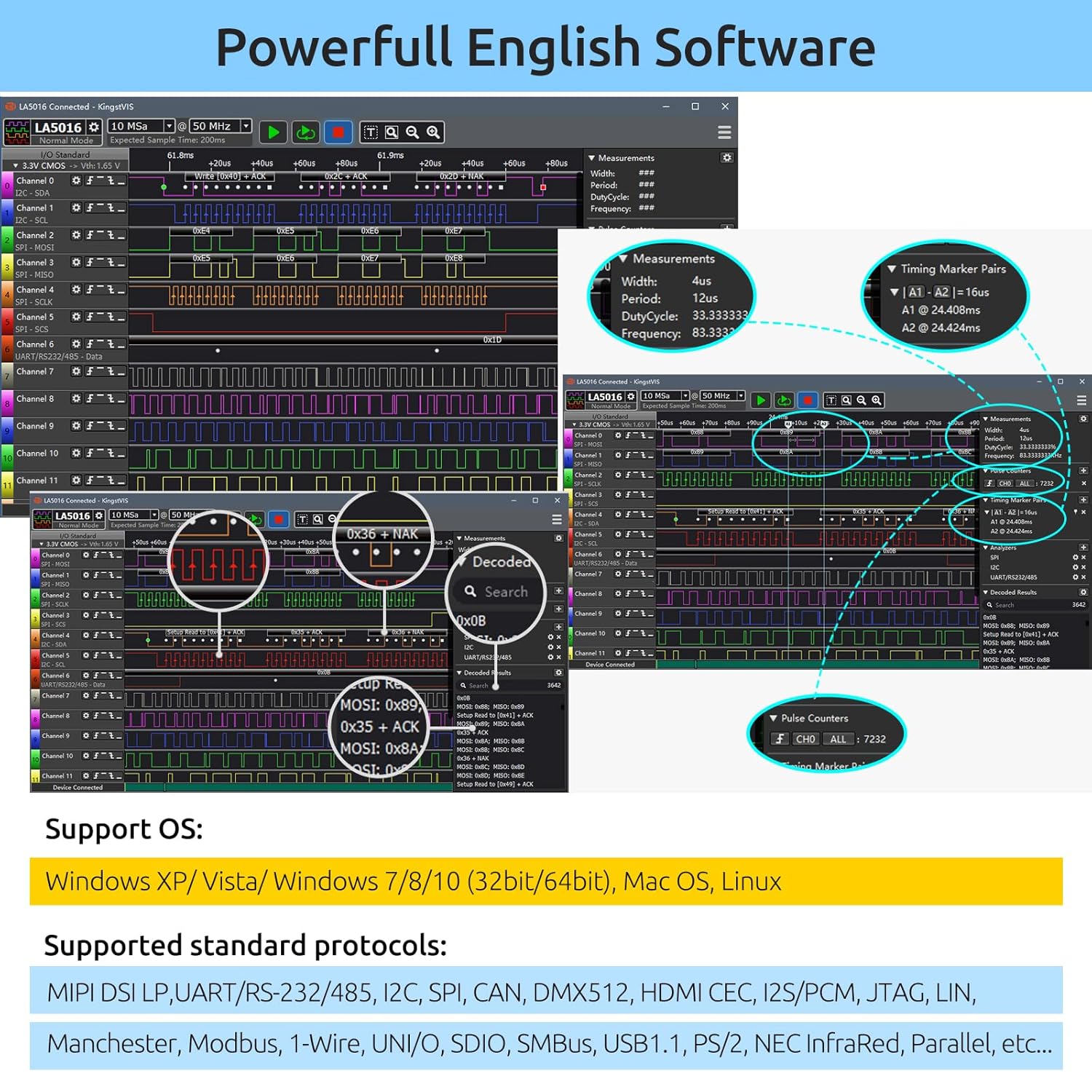

• 【Cross-Platform Compatibility】This USB logic analyzer offers seamless compatibility with Windows, Mac OS and Linux systems, featuring automatic software updates and a user-friendly interface suitable for all skill levels.

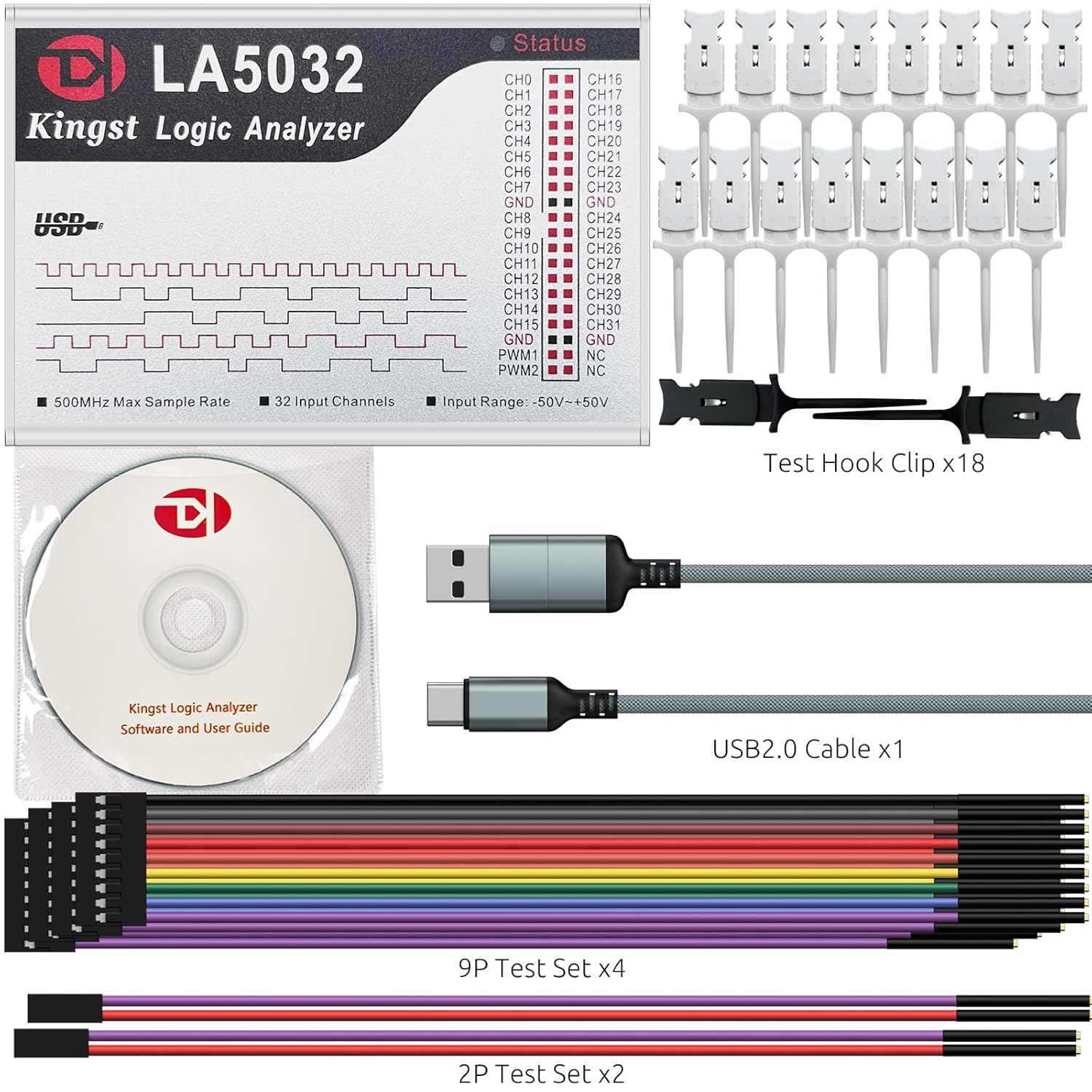

• 【Complete Debug Solution】Generate test signals with the integrated PWM generator (0.1-20MHz) and begin debugging immediately with the complete kit containing all necessary probes, test leads and connection accessories.
