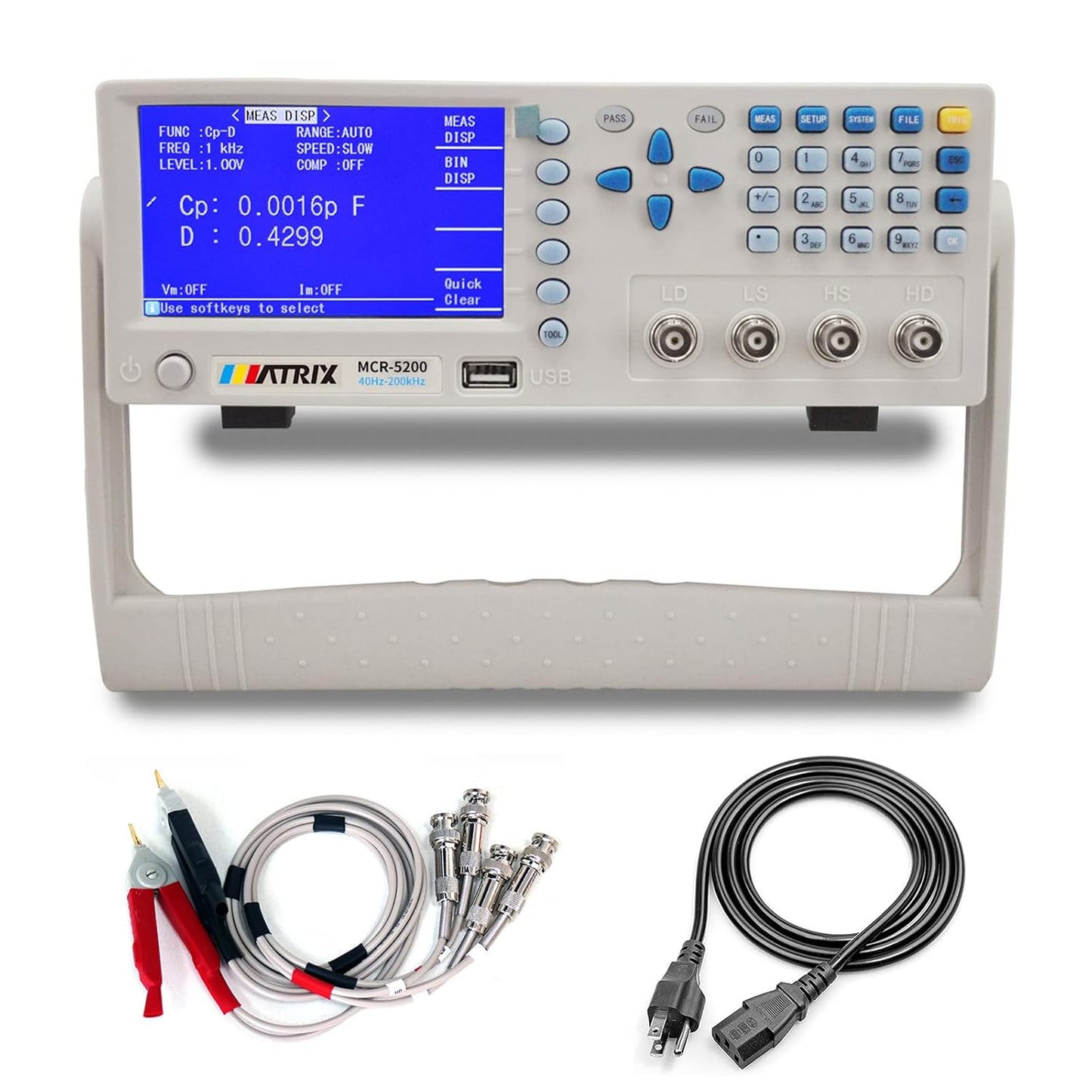

MATRIX MCR5200 Benchtop LCR Meter, 40Hz-200kHz 0.1%, Digital LCR Bridge Measures Inductance/Capacitance/Resistance, USB/RS232C, Calib-Clear, Data Save

Overview

• Brand : MATRIX
• Power Source : Corded Electric
• Style : 40Hz-200kHz
• Color : White
• Item Weight : 7.7 Pounds

About this item

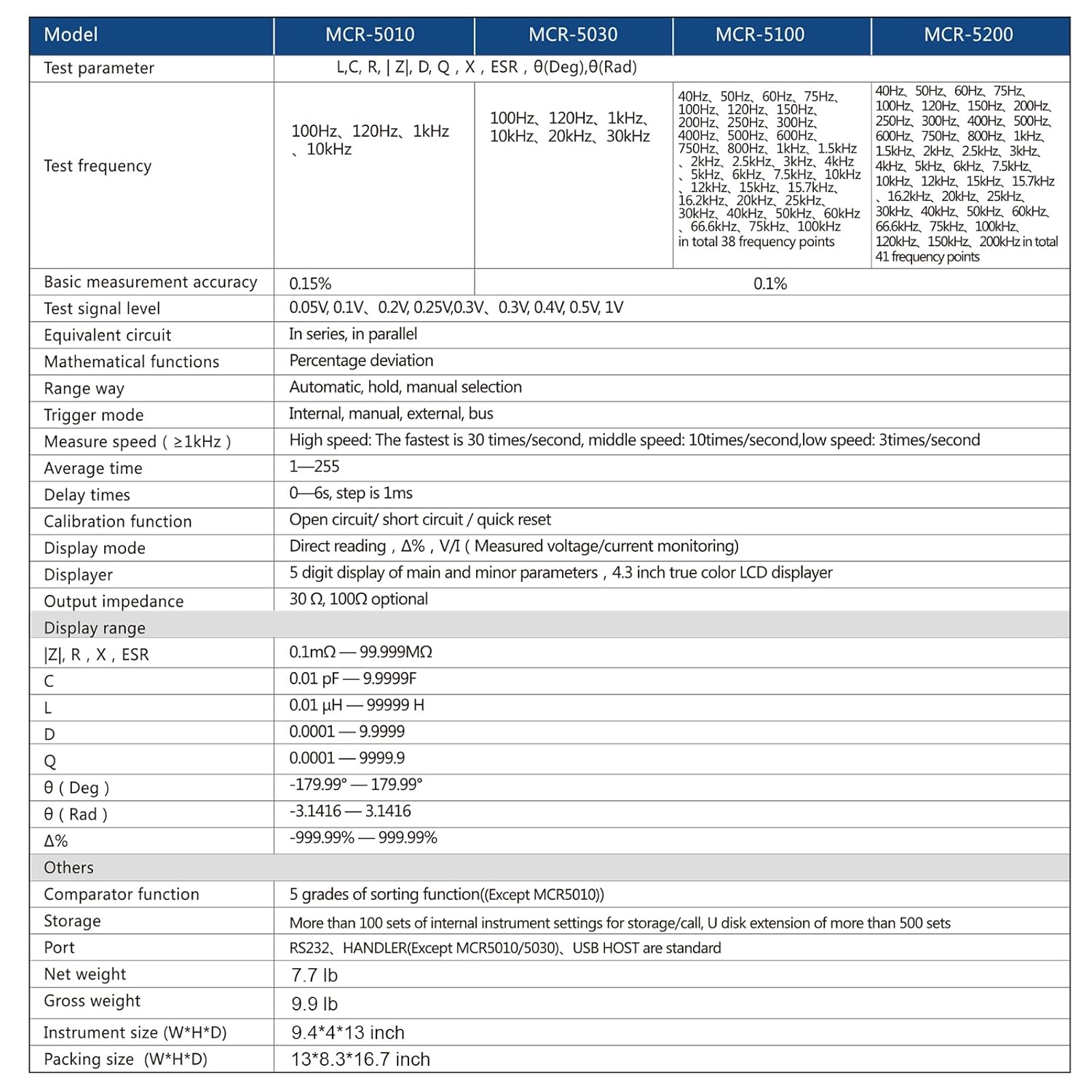

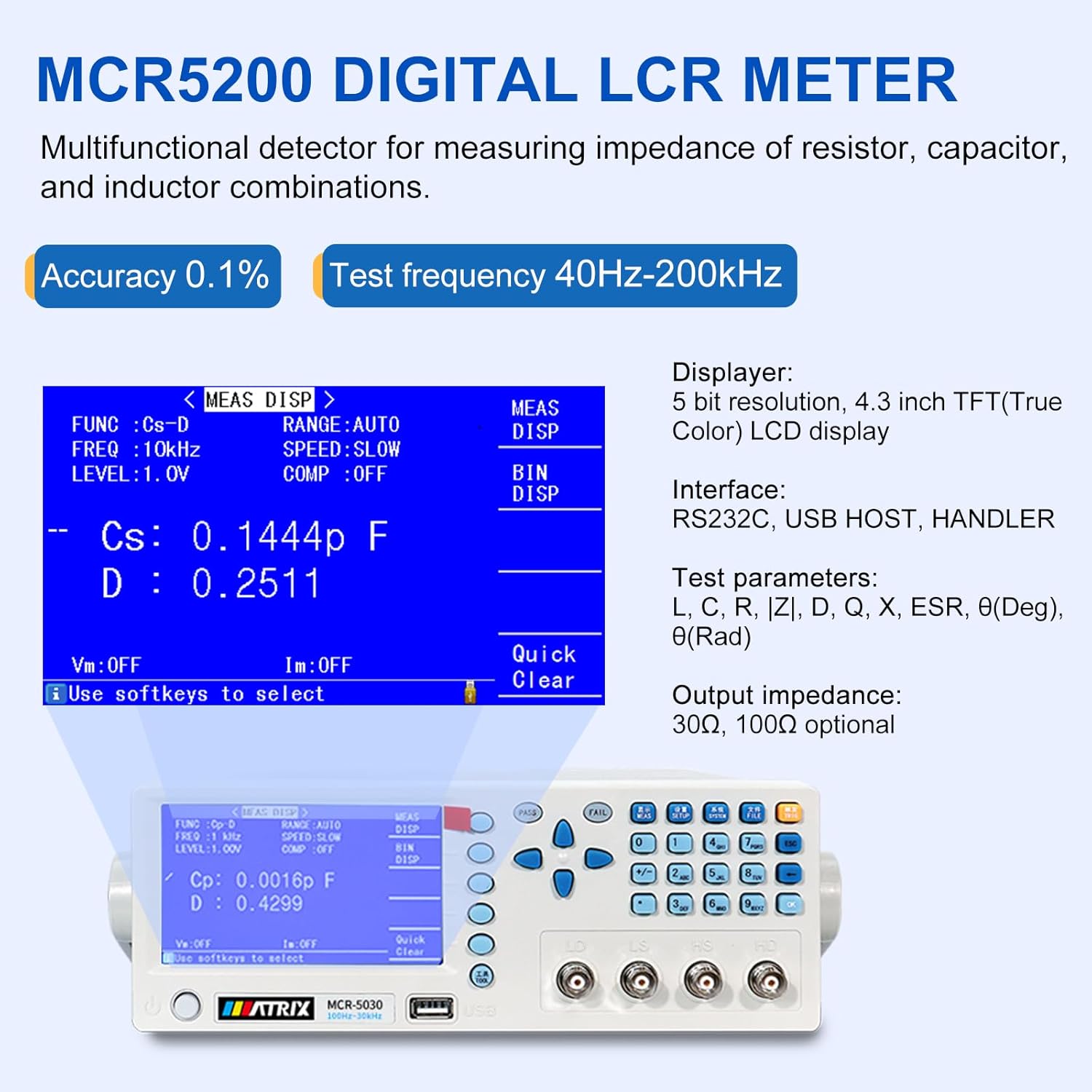

• Specs: Basic accuracy 0.1%. Measurement frequency from 40Hz to 200kHz, in total 41 frequency points. 4.3 inch TFT LCD displayer, 5 digit display. 30Ω/100Ω 2 optional signal source output resistance
• Measurement Range: L (0.01 μH - 99999 H). C (0.01 pF-9.9999 F). R, |Z|, X, ESR (0.1mΩ-99.999 MΩ). D (0.0001-9.9999). Q (0.0001-9999.9). θ(Deg) (-179.99°-179.99°). θ(Rad) (-3.1416-3.1416)
• Accurate and Speed: Inductance meter with 32-bit core processor, high-precision computing power. 3 measure speed 30 times/s, 10 times/s and 3 times/s. Delay time 0-6s, step is 1ms. Average time 1-255

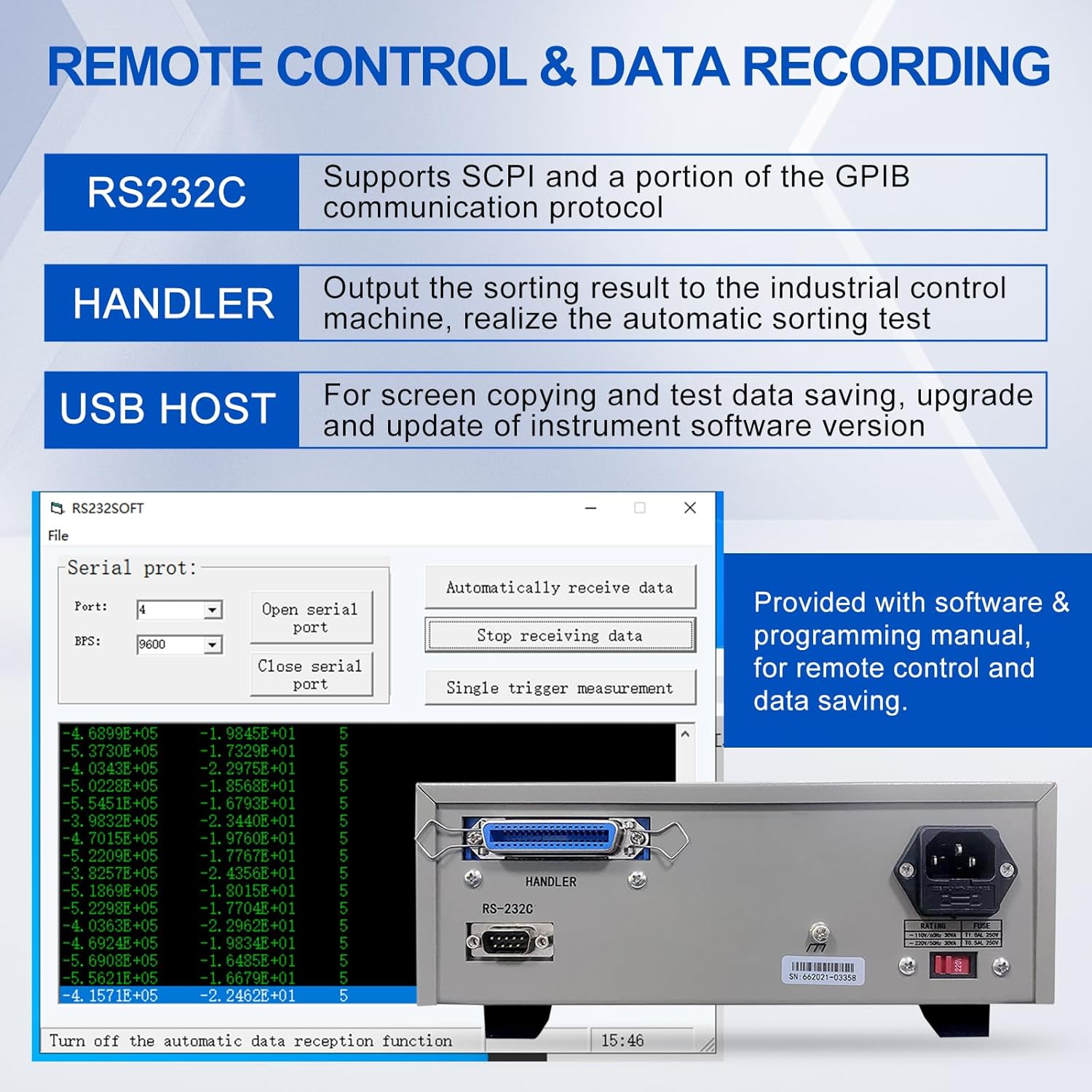

• Data Saving: Digital LCR meter with RS232C, USB Host, Handler ports, support SCPI and GPIB. Software is provided to save the data to pc/usb stick. And the U disk copy screen function supports FAT16/32
• Calibration: Manual, hold and automatic range. The capacitance meter is equipped with open circuit and short circuit calibration and quick clear. Fewer measurement errors and improved stability
• Humanized Operation: Built-in comparator, 5 grade flexible qualified and defective alarming modes shutdown automatically save test conditions. Makes troubleshooting and repairs easier and faster
• Applications: Measures inductance, capacitance, resistance, impedance. Widely used in R&D, production, quality control, repair of electronic components, ensuring circuit performance & troubleshooting

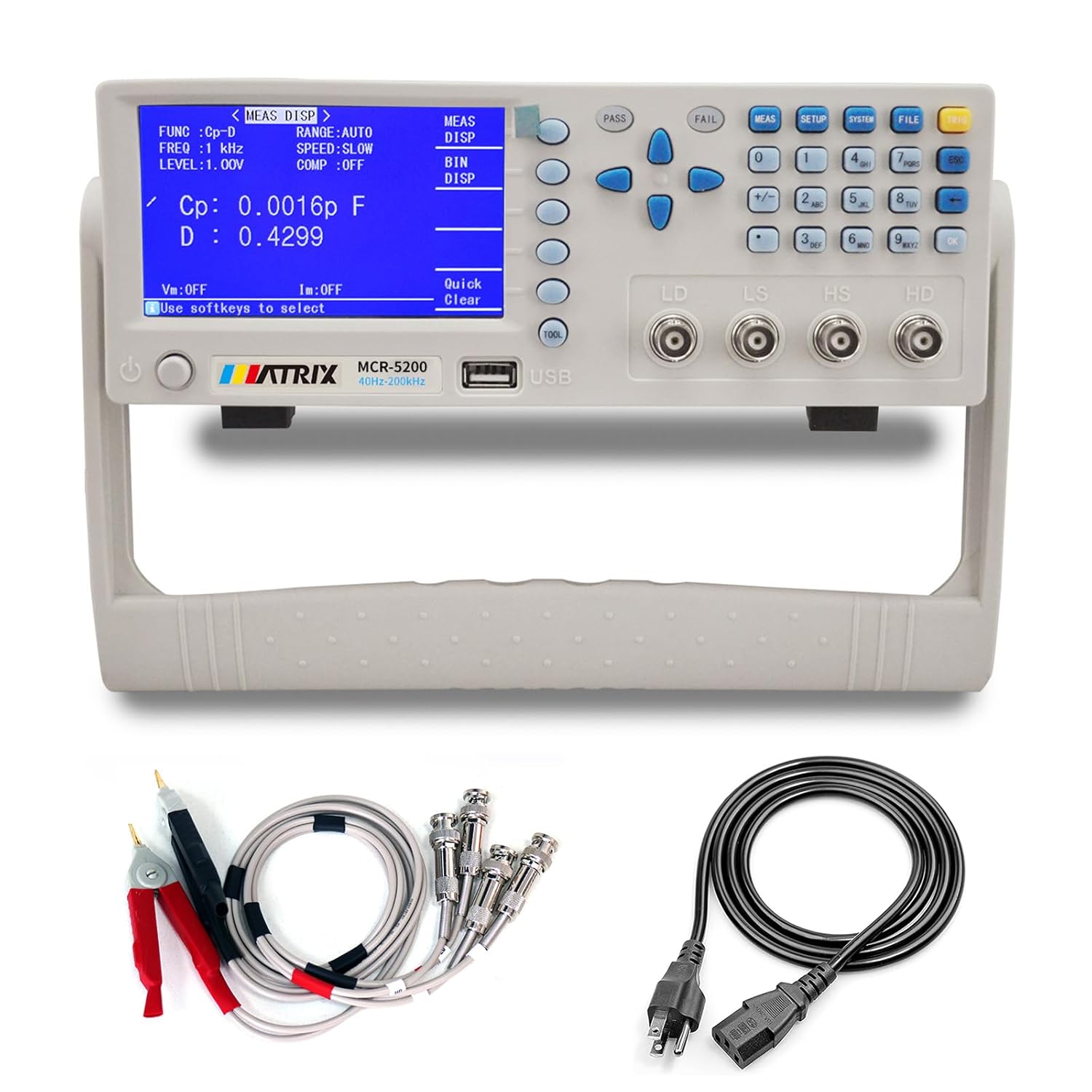

• Package: 1 Benchtop LCR Meter, 1 Power Cord, 1 4-terminal Test Cord, 1 CD, 1 Test Report, 1 User Manual, 1 Fuse table
