Upgraded NanoVNA-F V2 Vector Network Analyzer 50kHz-3000MHz HF VHF UHF VNA Antenna Analyzer 4.3 inch with 5000mA-h,Measuring S-Parameter Voltage SWR, Phase, delay, Smith Chart

Overview

• Antenna : Radio
• Brand : Seesii
• Color : Black
• Number of Channels : 1
• Impedance : 20 Ohms
• Maximum Range : 1000 MHz
• Product Dimensions : 5.51"L x 2.95"W x 0.79"H
• Manufacturer : Seesii
• Number of Items : 1

About this item

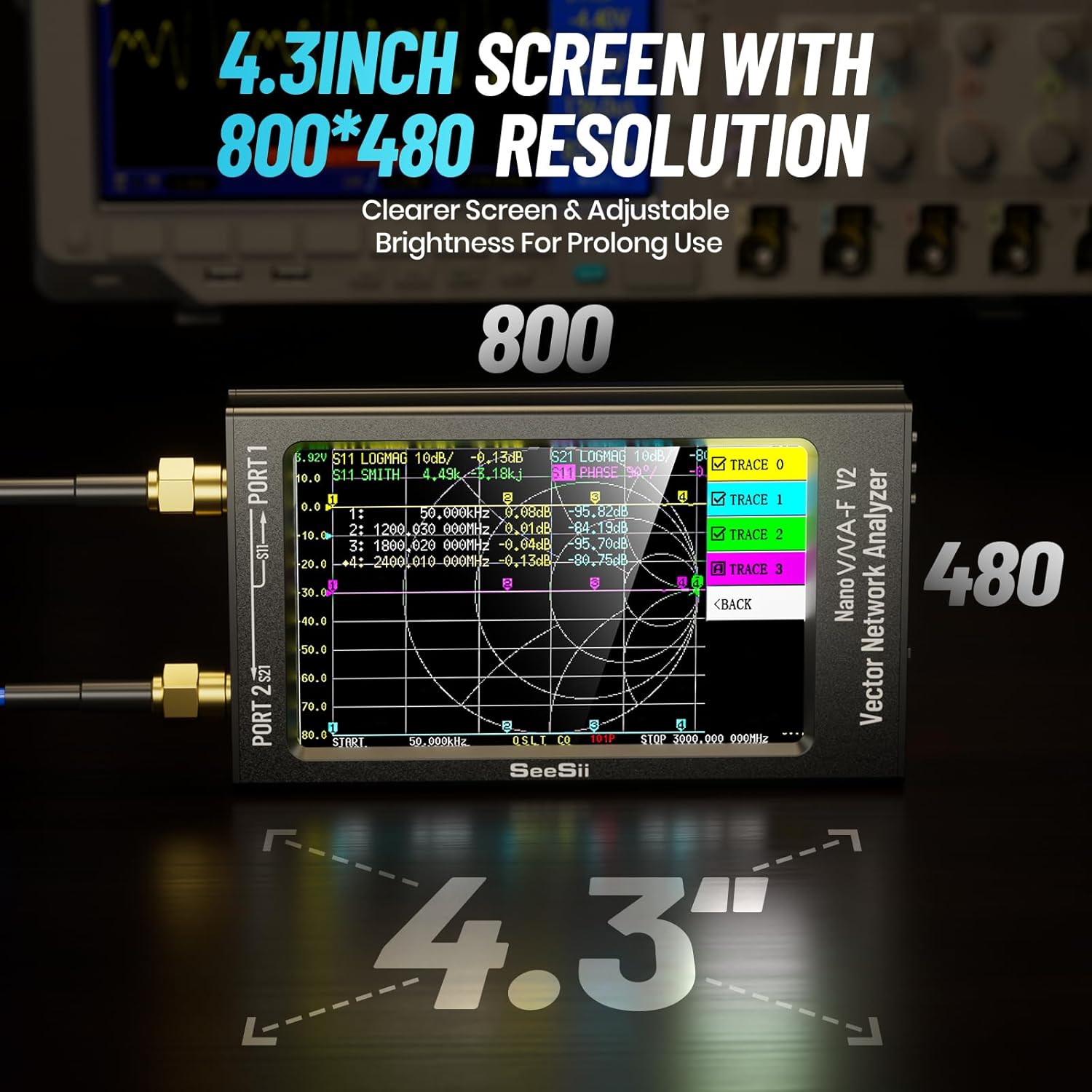

• 4.3 inch Large Touch screen and powerful function:Handheld Vector Network Analyzer using 4.3-inch IPS TFT LCD screen, with a larger view angle and can be seen clearly in strong outdoor light.which can measure S-parameter, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on

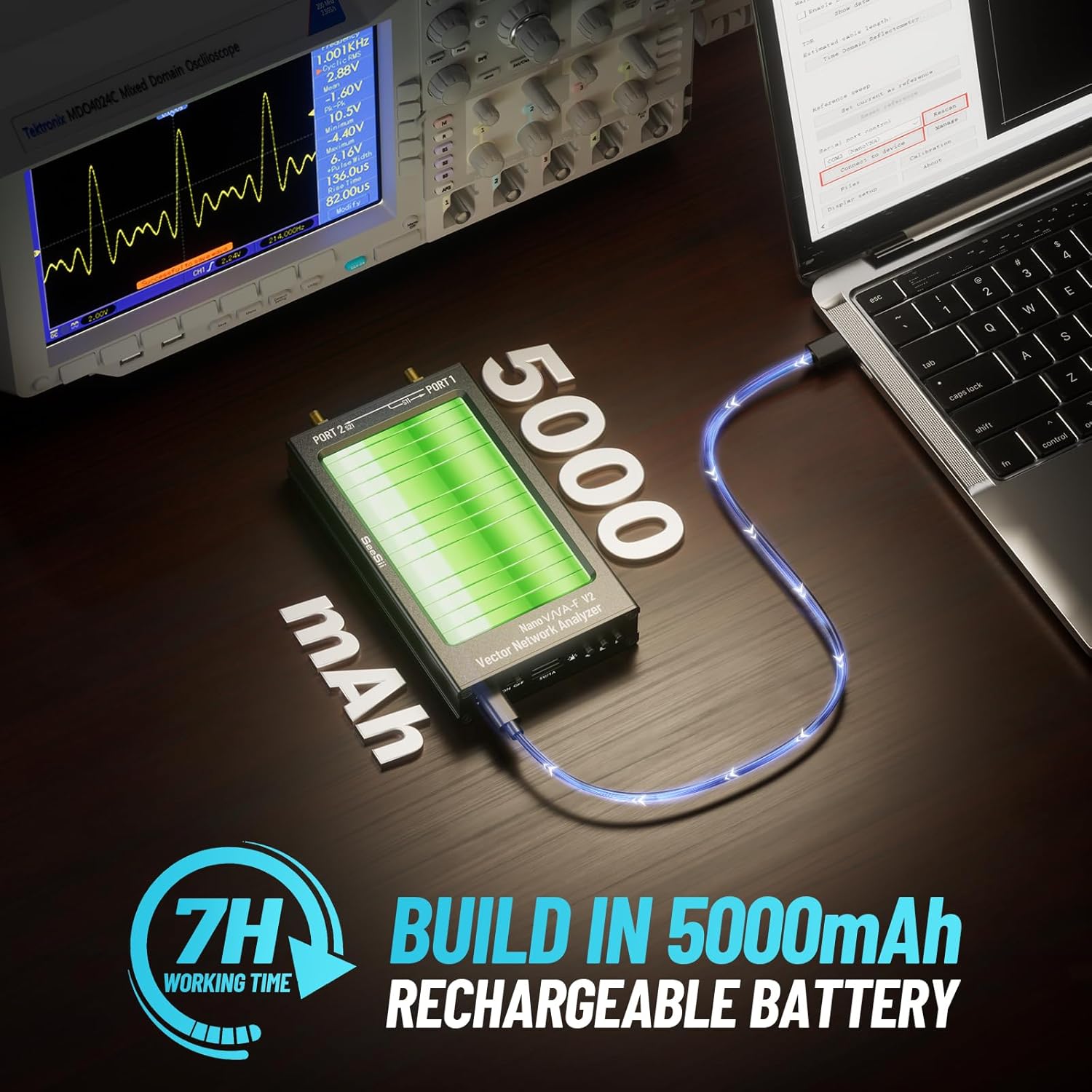

• Higher Capacity Battery,and Longer Standby time: Upgraded the large capacity 5000mA-h 3.7V battery, longer standby time, and extended USB interface. Typically, it can be used as a mobile power source to charge Android or Apple phones when not in use. The IC is charged by high current 2A, and the charging time is shorter
• Upgraded Aluminium Housing : Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument

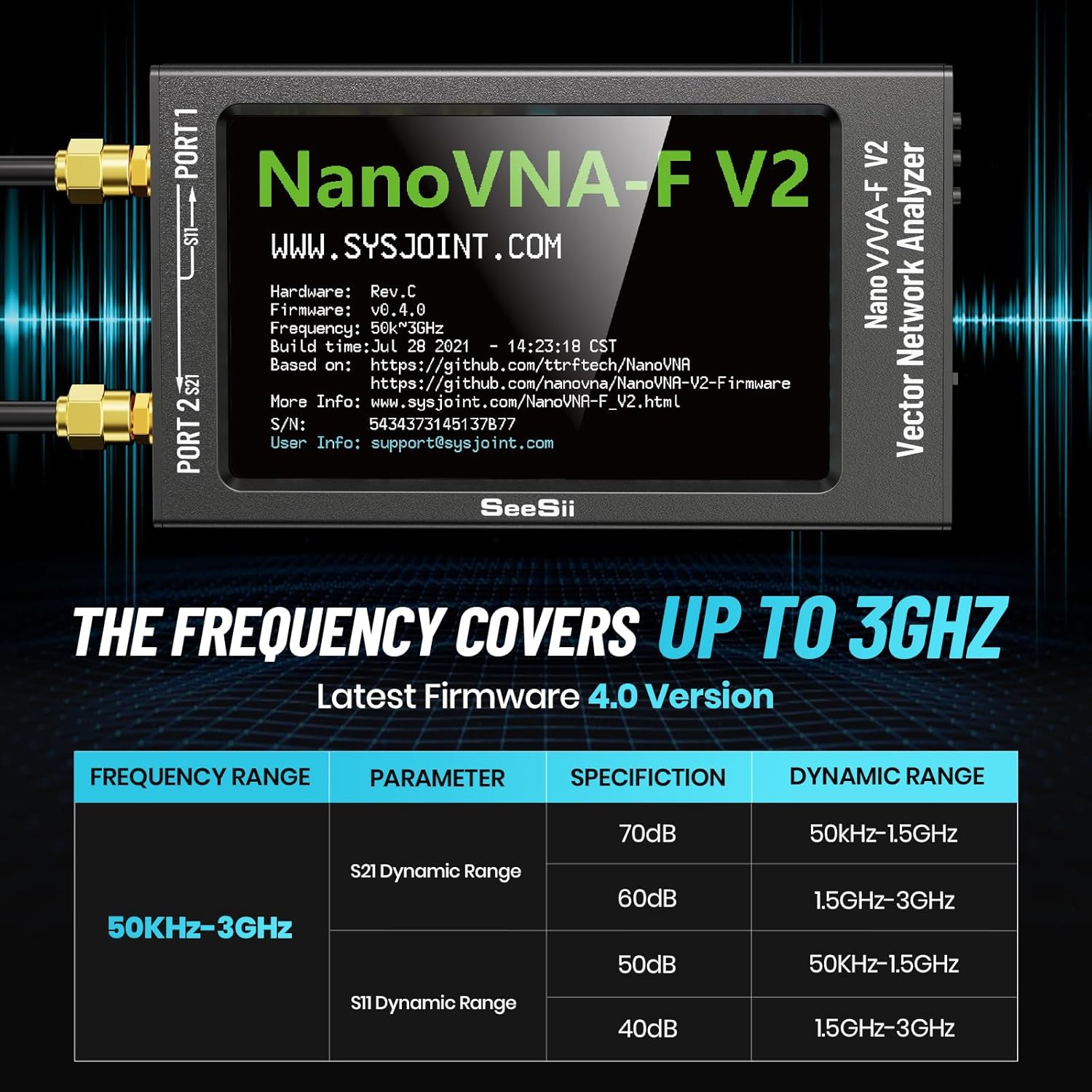

• Measurement Range: The NanoVNA-F measurement range is 50k-3GHz. You can go to the official website to update and expand the frequency to 10Khz-1.5Ghz.The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02)
• Compact and Powerful:: Upgrade the user program by virtual U disk.Switch to a power switch with a greater sense of operation and a better sense of operation.Support Chinese and English menu switching

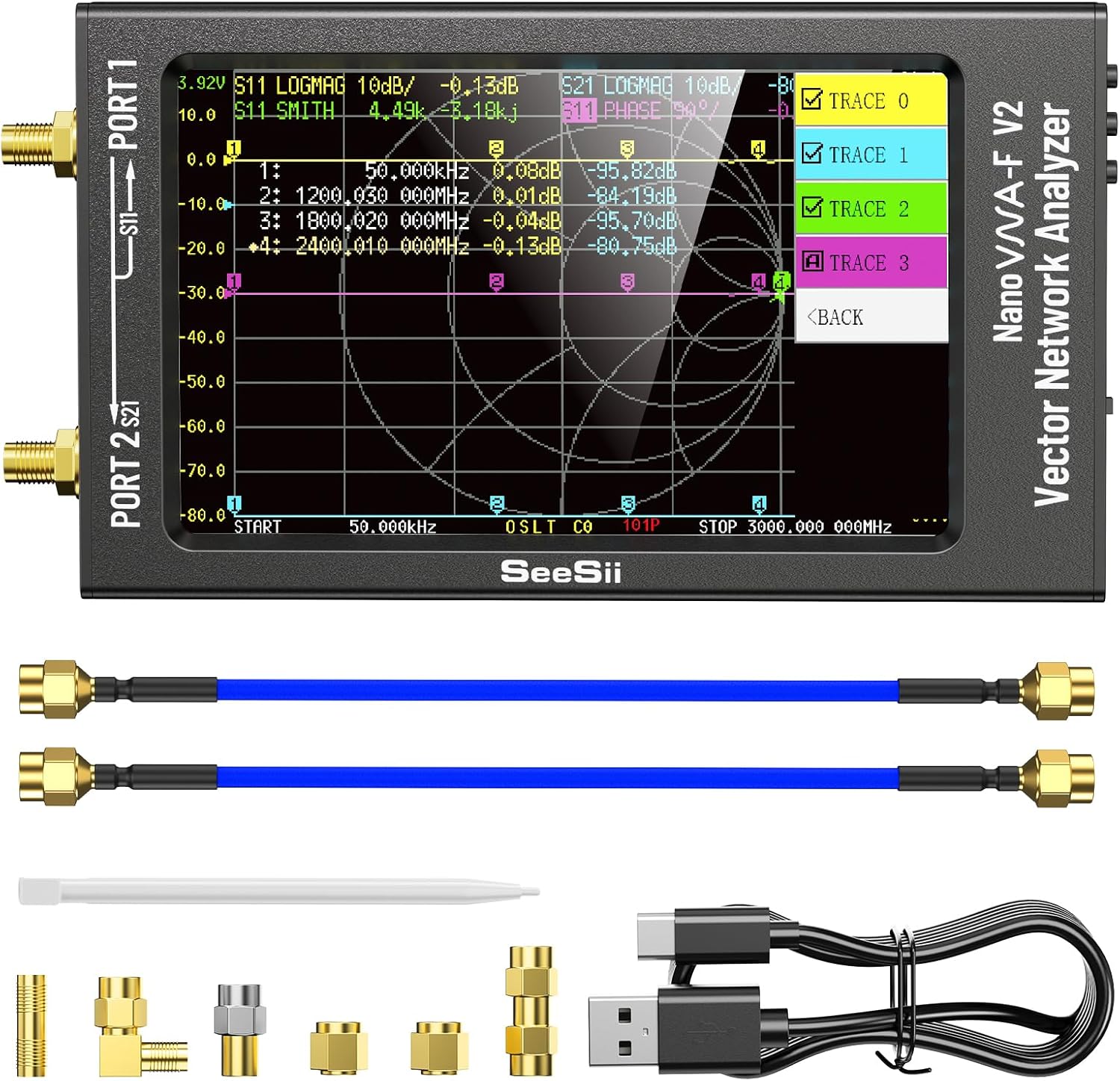

• Abundant Accessories: All the accessories are packaged in a sophisticated box.This is a nice vna analyzer for your own use or as a gift for your friend
