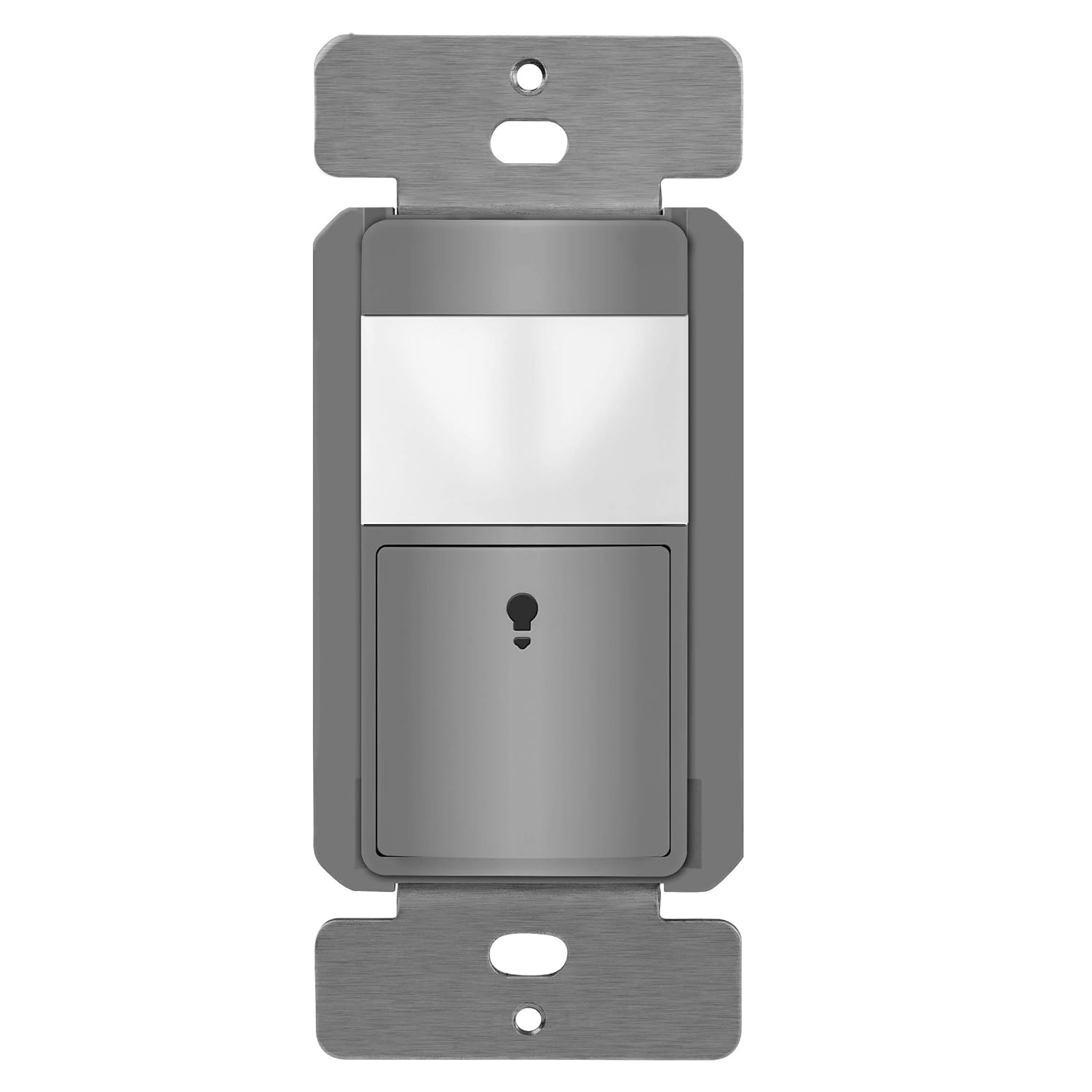

TOPGREENER PIR Passive Infrared Motion Sensor Switch, Ambient Light Level Detector, No Neutral Required, 150W LED/CFL, Occupancy Vacancy Modes, Ground Wire Required, Single Pole, TDOS5-JM, Gray

Overview

• Operation Mode : Auto
• Current Rating : 5 Amps
• Operating Voltage : 120 Volts
• Contact Type : Normally Closed
• Connector Type : Screw
• Brand : TOPGREENER
• Switch Type : Single Pole
• Terminal : 2p6t
• Material : Plastic
• Item dimensions L x W x H : 4.5 x 2.5 x 2.5 inches

About this item

• Passive infrared (PIR) sensor detects motion to automatically turn lights on and off based on the occupancy and vacancy in a room
• Features CDS technology, an automatic ambient light level sensing technology that remembers your on/off behaviors to turn your lights on at your preferred light level; for example, if you turn the switch off within 15 seconds of it turning on, the sensor will not turn on at that light level anymore

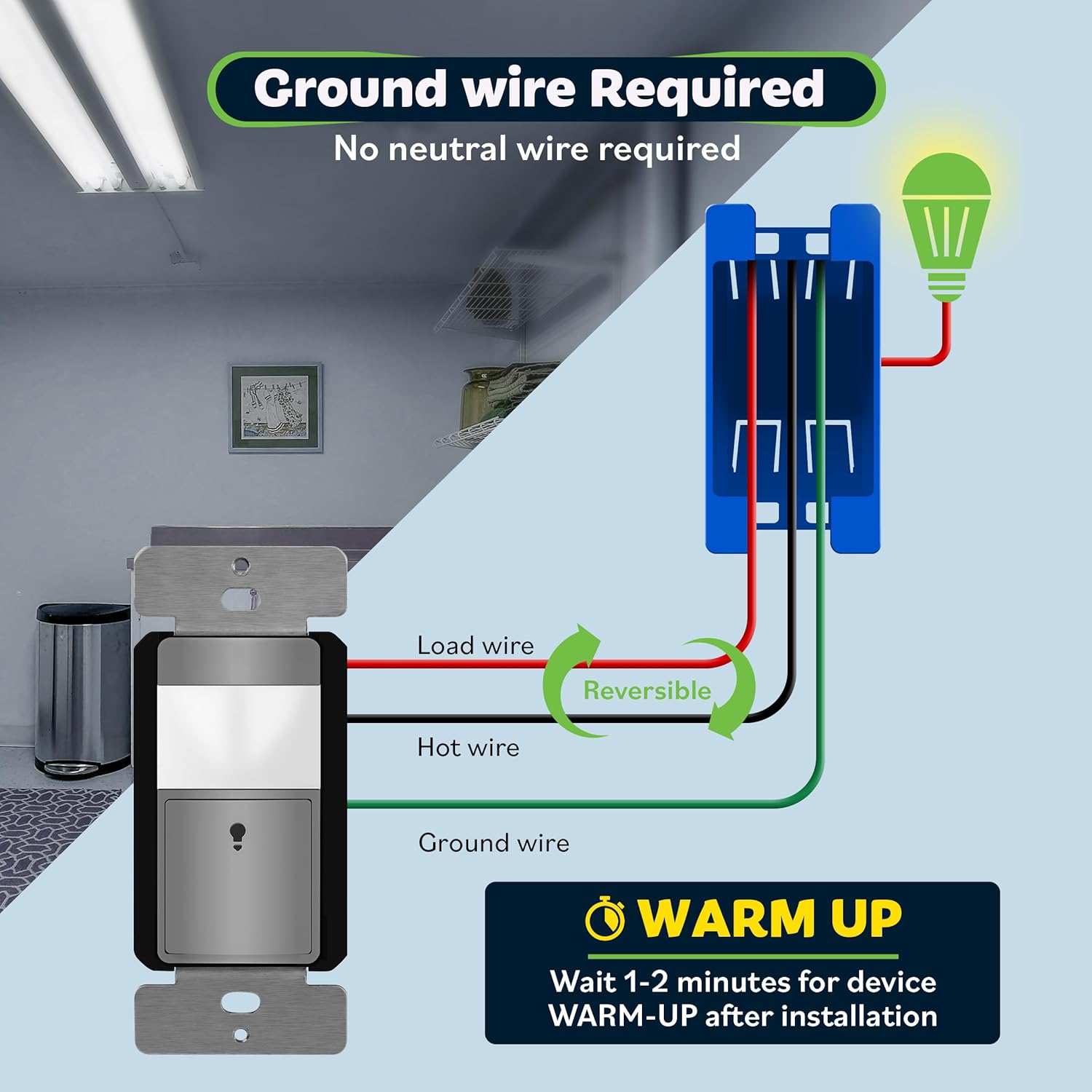

• Universal wiring design featuring interchangeable hot and load wires makes installation easier; no longer second guess which wire goes where

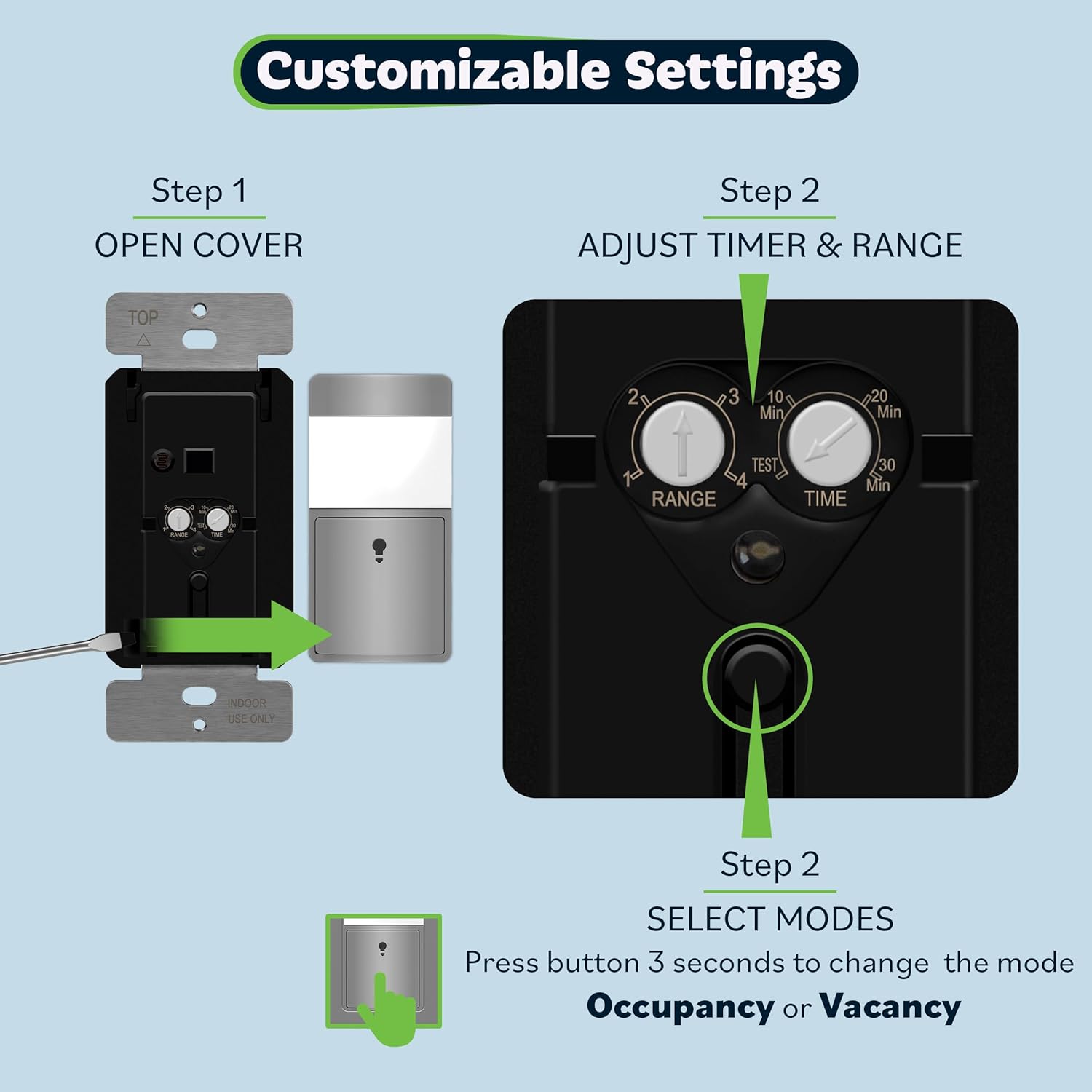

• Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; fixed time delays: 15 sec (Test), 5 min, 10 min, 20 min, 30 min; adjustable range
• Neutral wire not required, ground wire required for installation; 1200 square feet coverage area, 180-degree field of view; 5A, 120VAC, 1500W incandescent/halogen, 150W CFL/LED, 1/6HP motor; operating temperature (32 – 104°F); single-pole only; CA Title 20 & 24 compliant; UL listed; wall plate sold separately
