NanoVNA SAA-2N VNA Antenna Analyzer,SEESII 50KHz -3GHz Vector Network Analyzer with Bag & Testboard Kit,4" inch LCD,HF VHF UHF Measuring S Parameters, Voltage Standing Wave Ratio Smith Chart

Overview

• Brand : Seesii
• Power Source : Battery Powered
• Style : With Testboard Kit
• Color : Black
• Specification Met : Nist Traceable

About this item

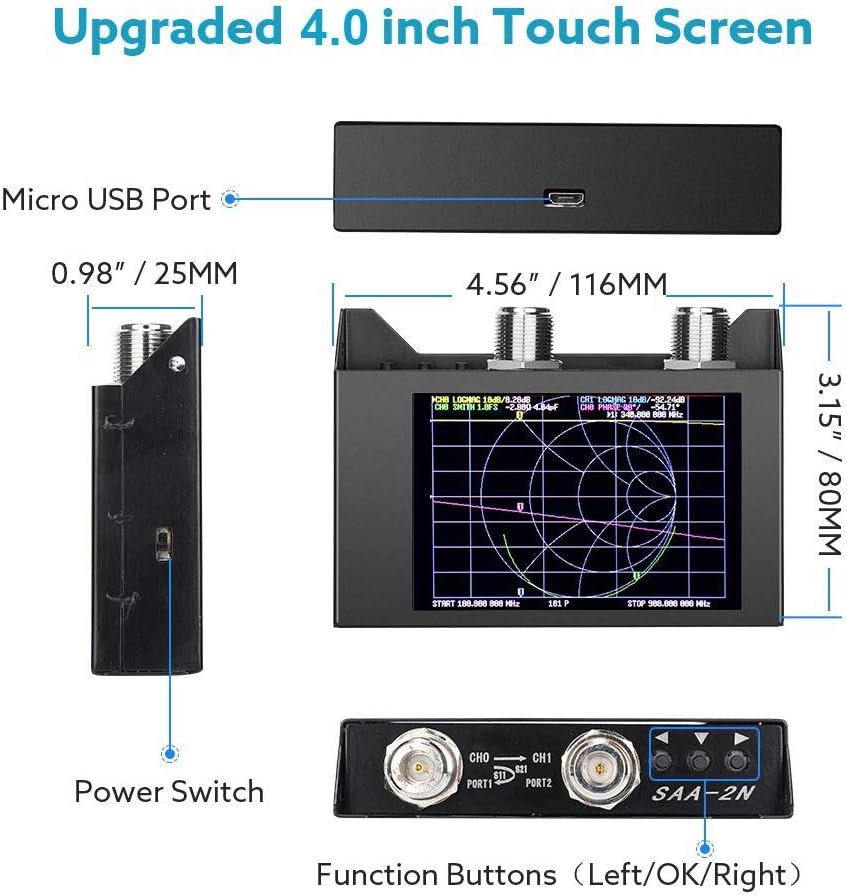

• Upgraded NanoVNA SAA-2N V2.2 Version: Not only testing standing wave impedance of the antenna, can also debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier.4.0 inch touch screen make it easier for you to read data and test
• Calibration :The SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or recall the calibration data (previously saved data) after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device

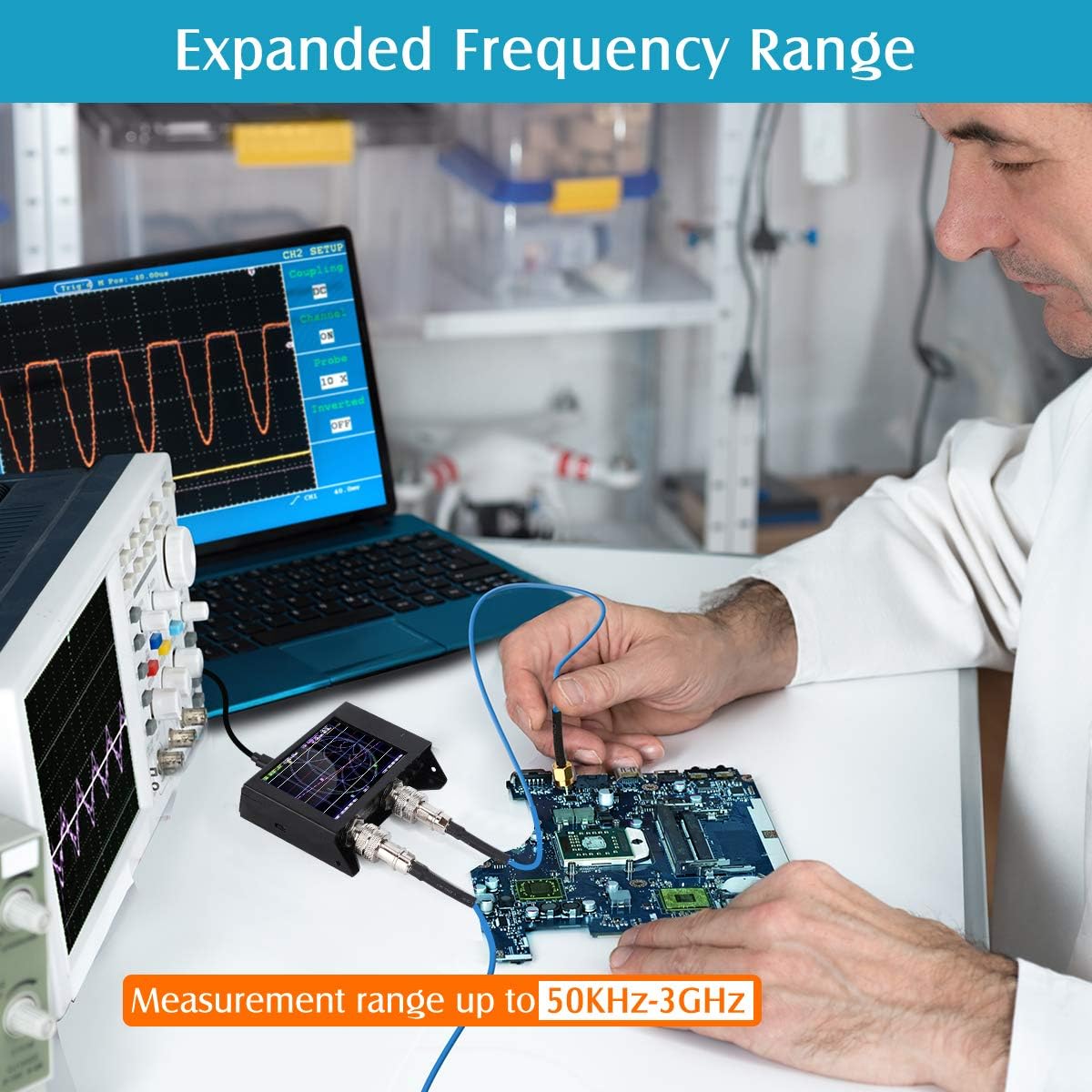

• Improved Frequency Range:transmission Mearsure S21: 70dB(50KHz-1.5GHz), 60dB(1.5GHz-3GHz). Reflection Measure S11: -50dB(50KHz-1.5GHz), -40dB(1.5GHz-3GHz); Antenna Analyzer: 1.005(50KHz - 1.5GHz), 1.02(1.5GHz-3GHz)

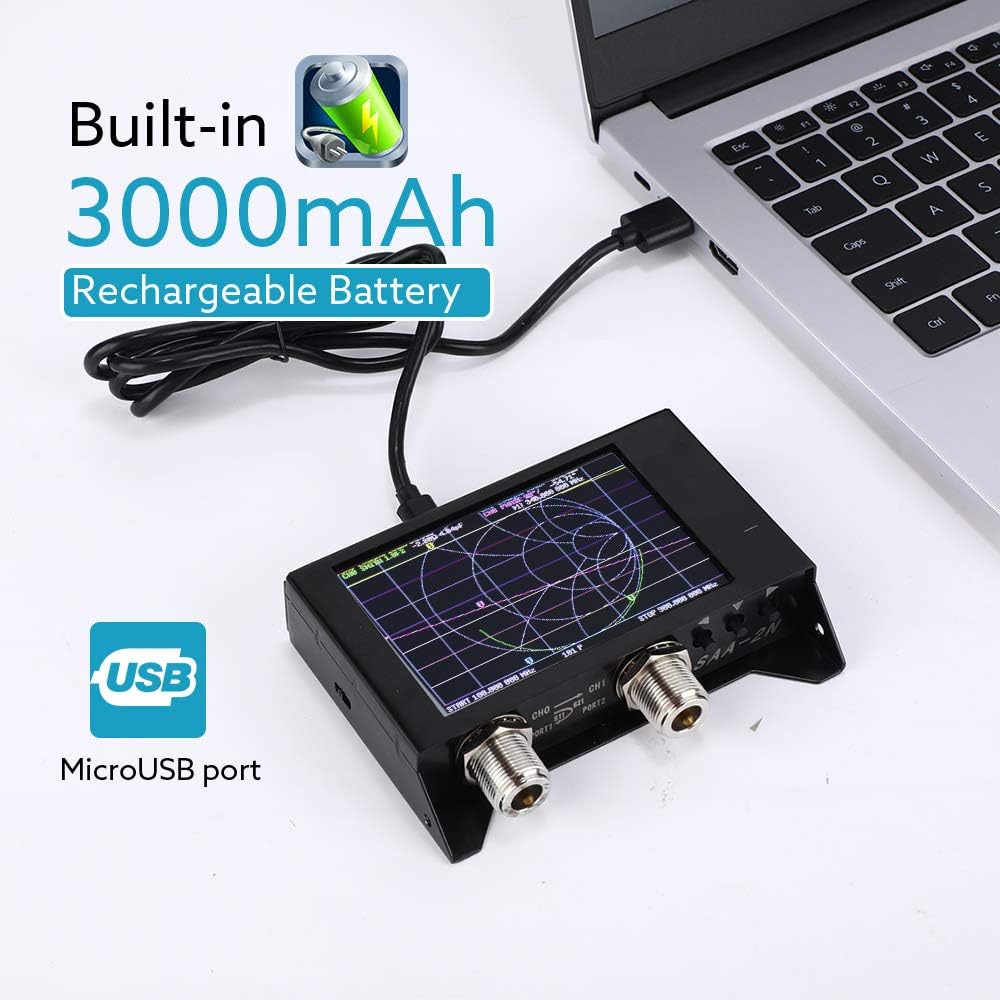

• Improved Performance: High stability, high sensitivity, high precision, improved performance.Made of high-quality aluminum protective case, strong practicability and long service life.Bulit-in 3000mAh rechargeable battery,USB powered

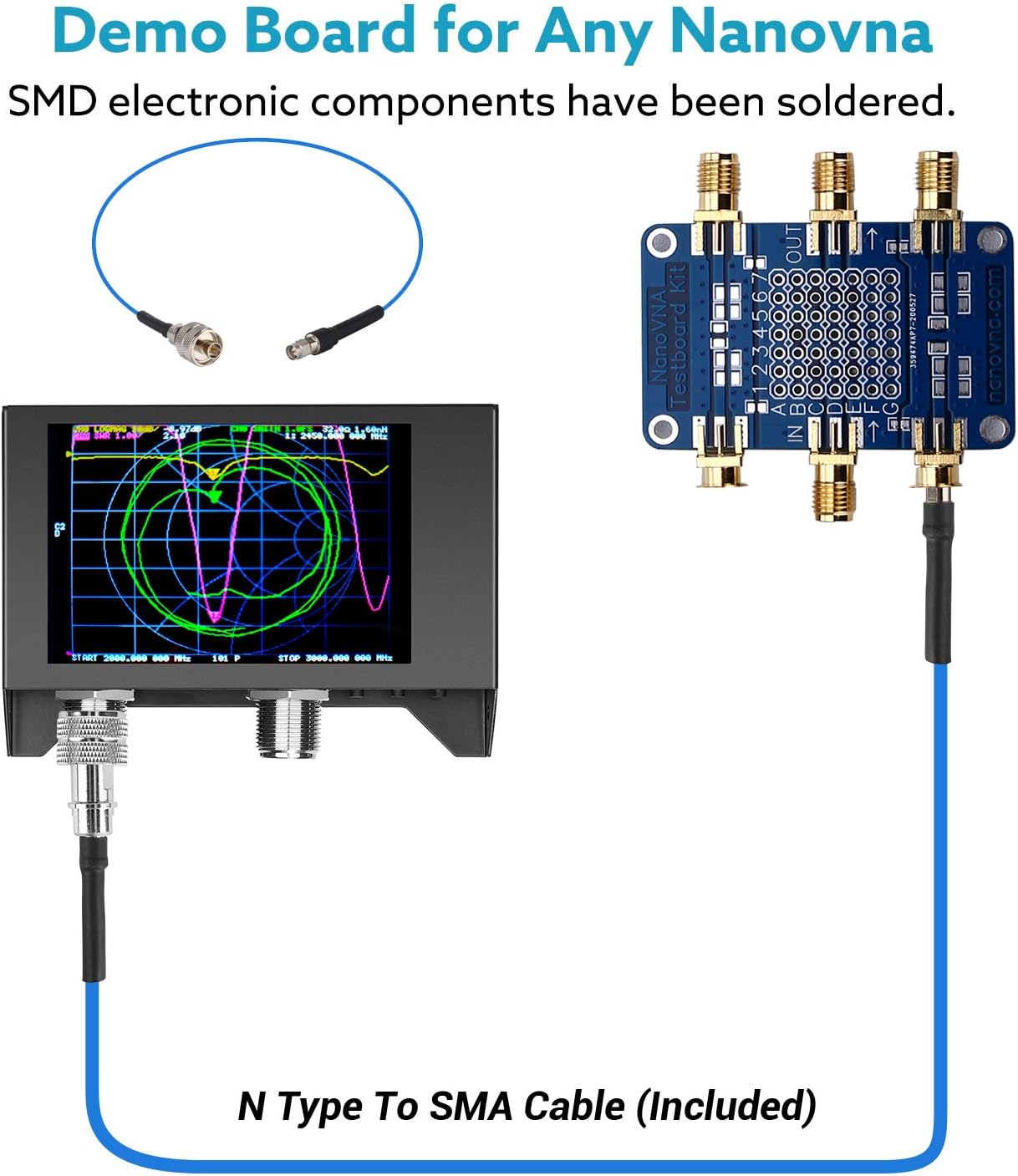

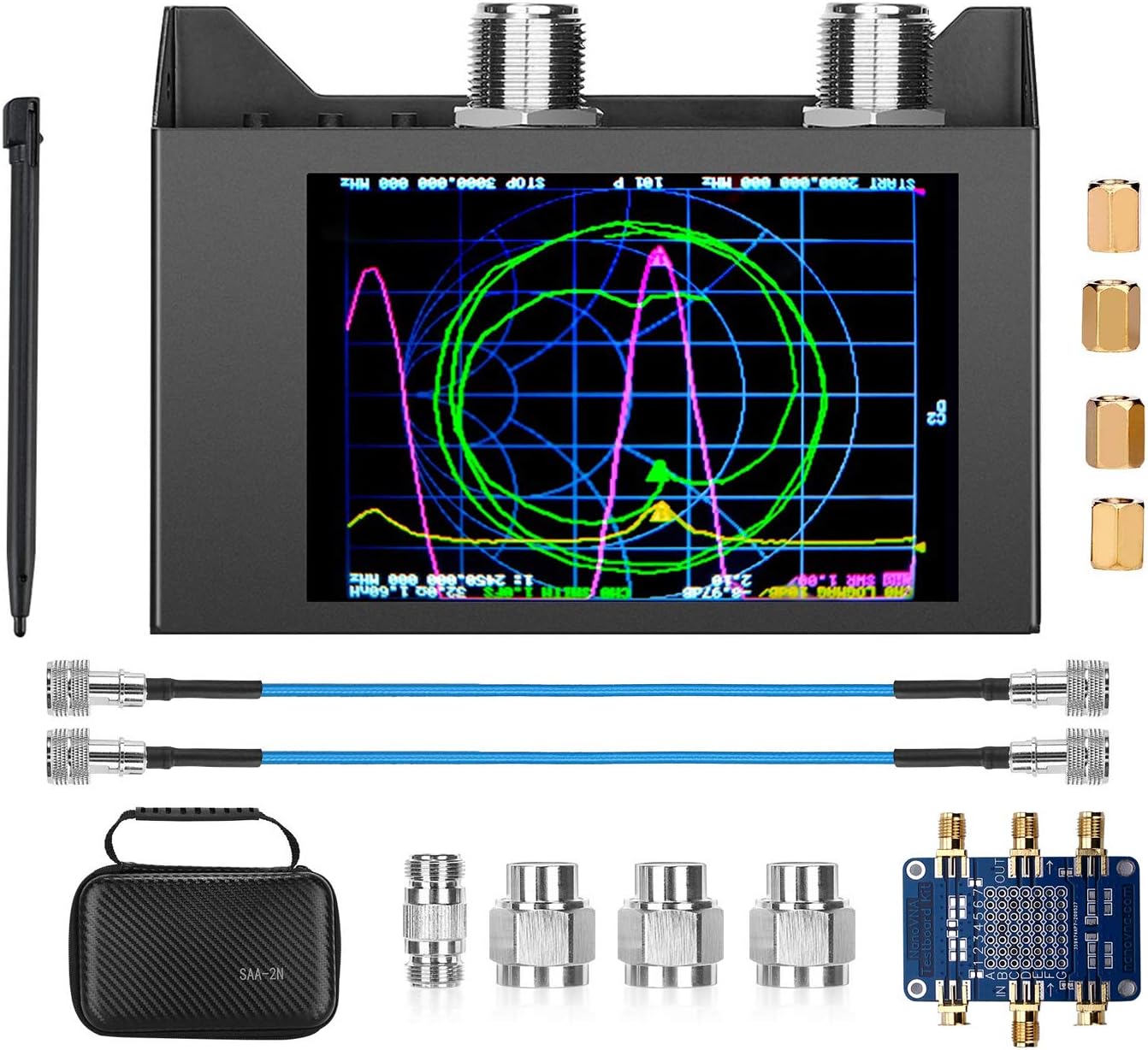

• What You Can Get: 1x NanoVNA SAA-2N VNA, 1x Micro USB Data Cable,2x 500mm N-type Male to Male RG142-PUR RF Cable,1x N-type Male Calibration Kit-OPEN,1x N-type Male Calibration Kit-SHORT,1x N-type Male Calibration Kit-LOAD,1x N-type Female to Female Connector,1x EVA Storage Bag, 1x Touching Screen Pen and Lanyard,1x Testboard ,1x Accessories Kit, 2x 12 hours services
