Maximum Operating Pressure : 116 Pound per Square Inch
Number of Ports : 5
Outlet Connection Size : 1/2"NPT Inches
Manufacturer : TAILONZ PNEUMATIC
About this item

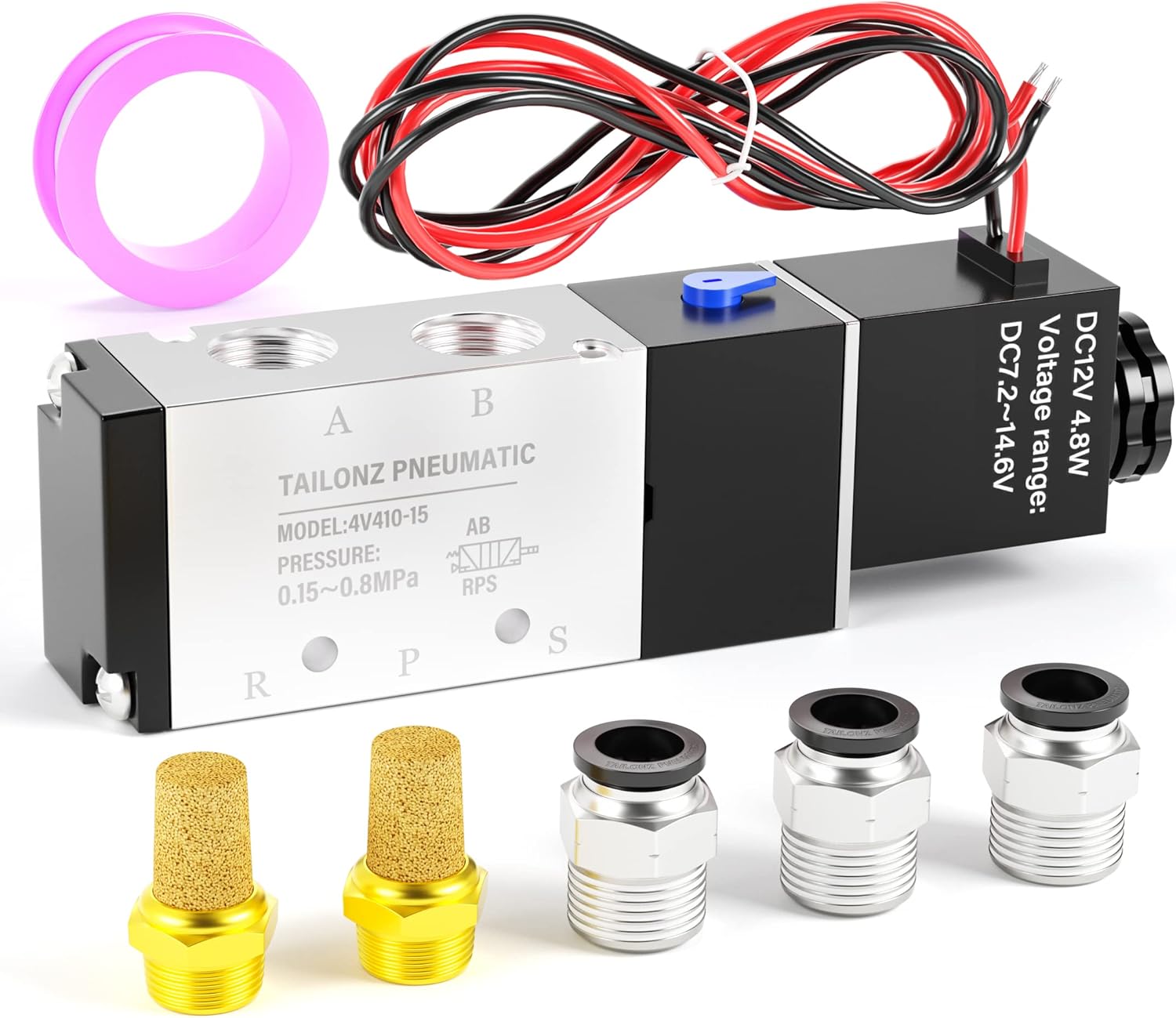

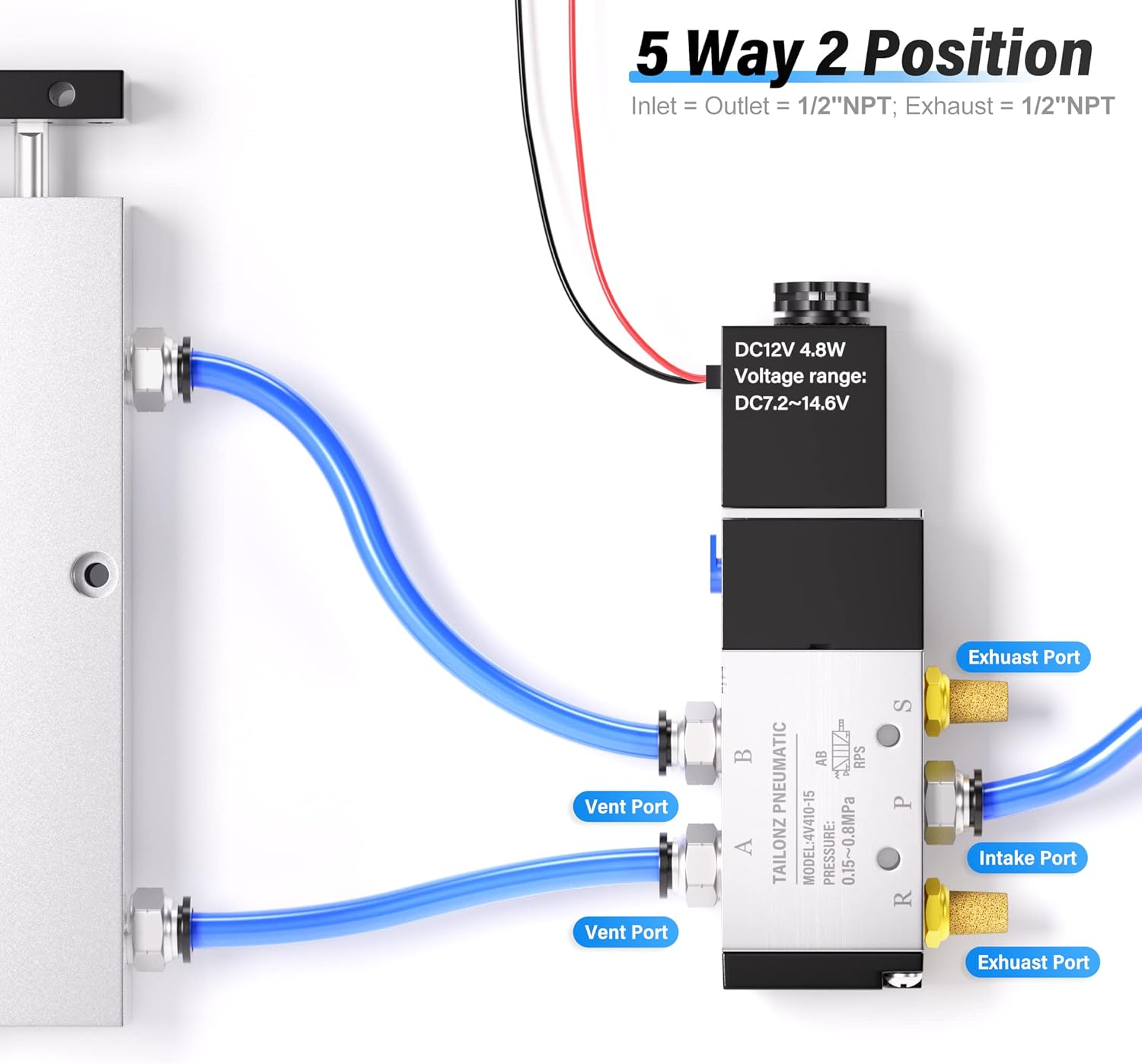

【Product Name】2 Position 5 Way Solenoid Valve（Outlet wire）
【Voltage】DC12V【Working Pressure】25~116Psi
【working principle】Valve stays open when the coil is de-energized- and it closes when energized.

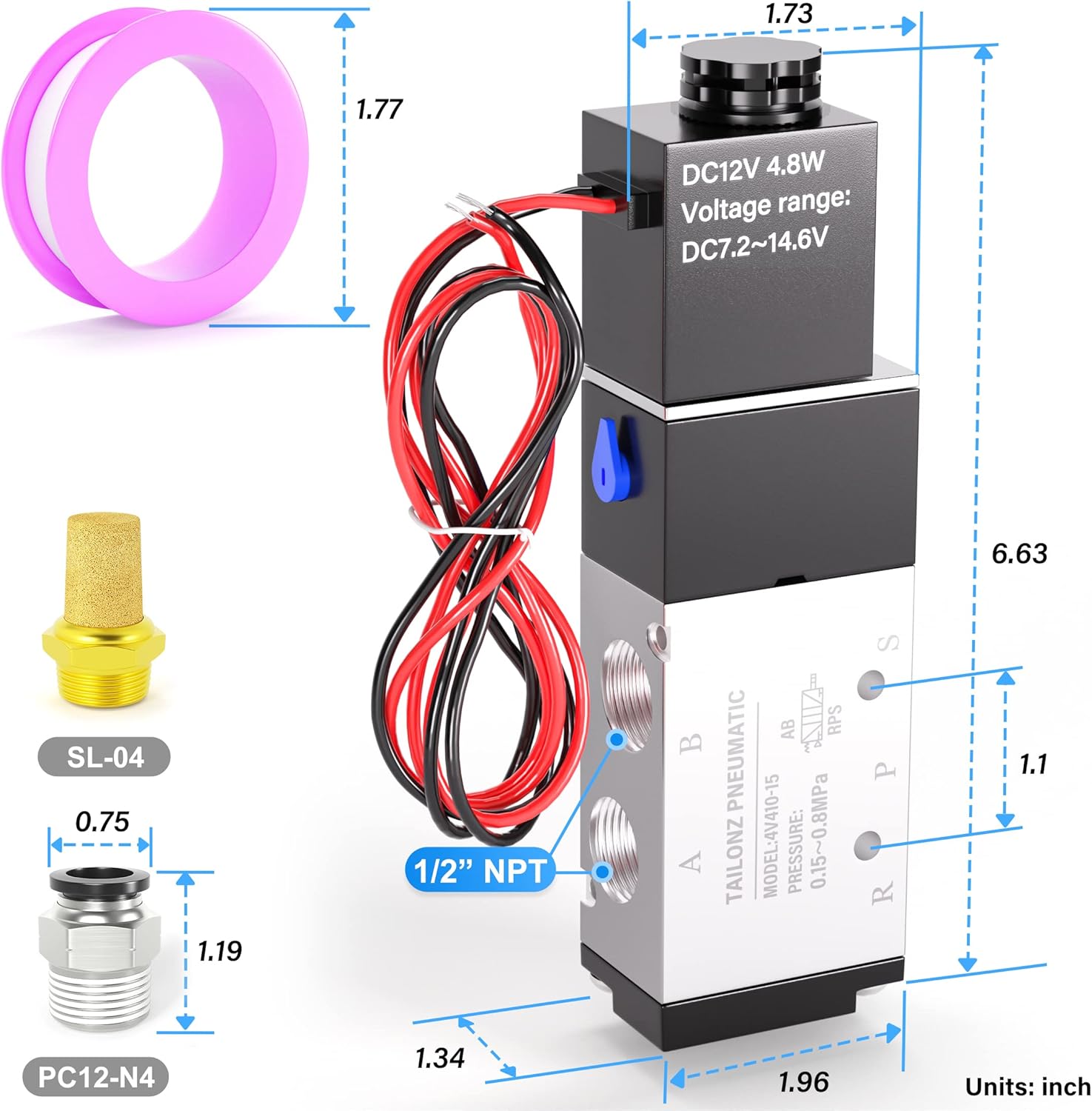

【SIze】Outlet Port：1/2"NPT；Inlet Port：1/2"NPT；Exhaust Port：1/2"NPT.We provide pneumatic fittings, which can be used by directly connecting 1/2 or 12mm air tubes.

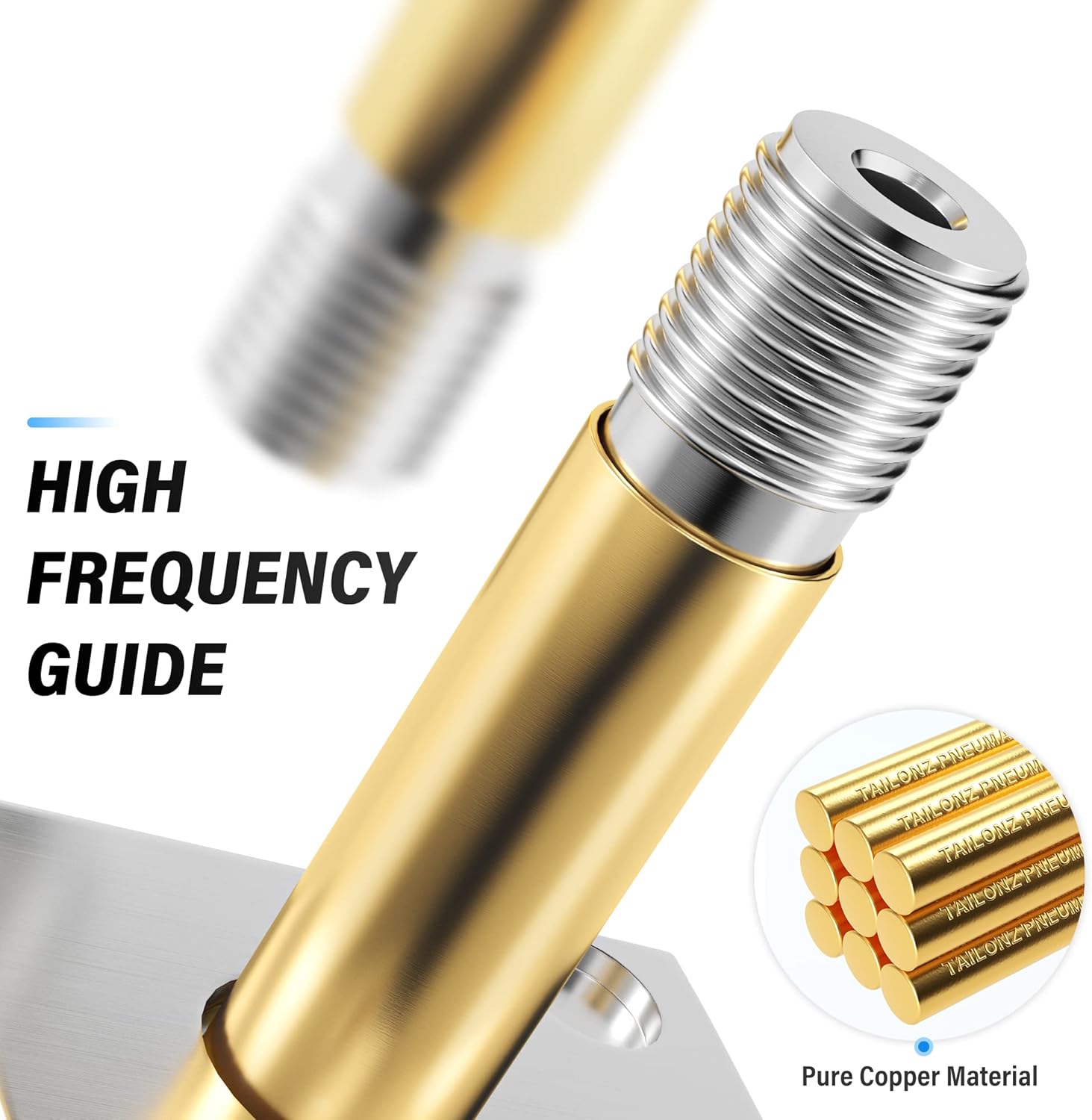

【Quick response 】High-quality solenoid valve pilot head, sensitive response, response speed 4 times per second, stable performance.
