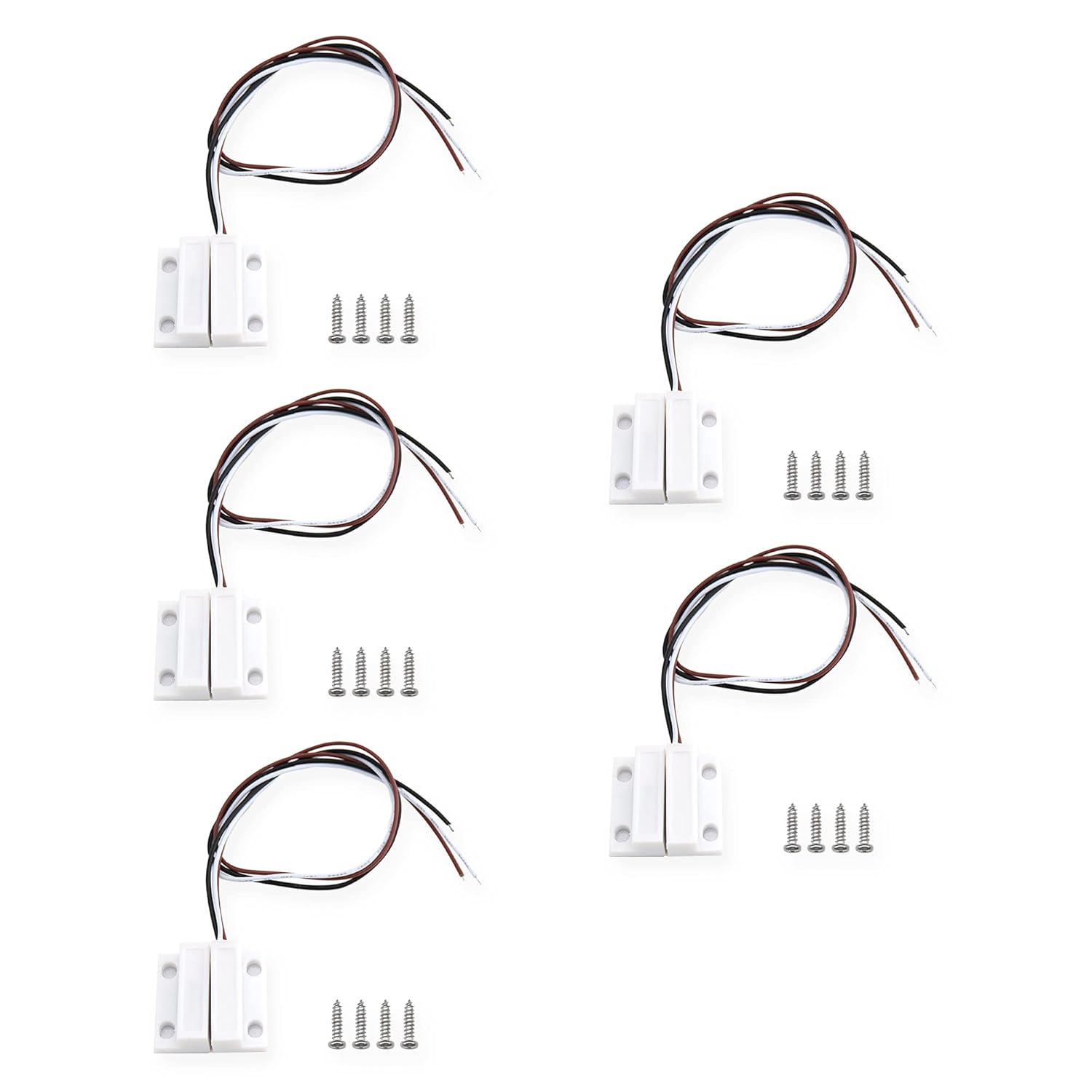

Magnetic Reed Switch NC NO COM Surface Mount Wired Door Window Contact Sensor with Adhesive Paper for Home Security and Burglar Alarm Systems MC-38 5pcs

Overview

• Operation Mode : Off
• Current Rating : 0.15 Amps
• Operating Voltage : 24 Volts
• Contact Type : Normally Closed, Normally Open
• Connector Type : Screws
• Brand : VictorsHome
• Switch Type : Reed Switch
• Terminal : Screw
• Material : Acrylonitrile Butadiene Styrene
• Item dimensions L x W x H : 6.3 x 4.72 x 0.59 inches

About this item

• MATERIAL - The switch housing is made of ABS flame retardant material and the reed switch is resistant to high temperature and deformation.
• NORMALLY CLOSED/NORMALLY OPENED - This switch has 3 contact types: NC/NO/COM, you can choose to connect two of the contacts according to your need.

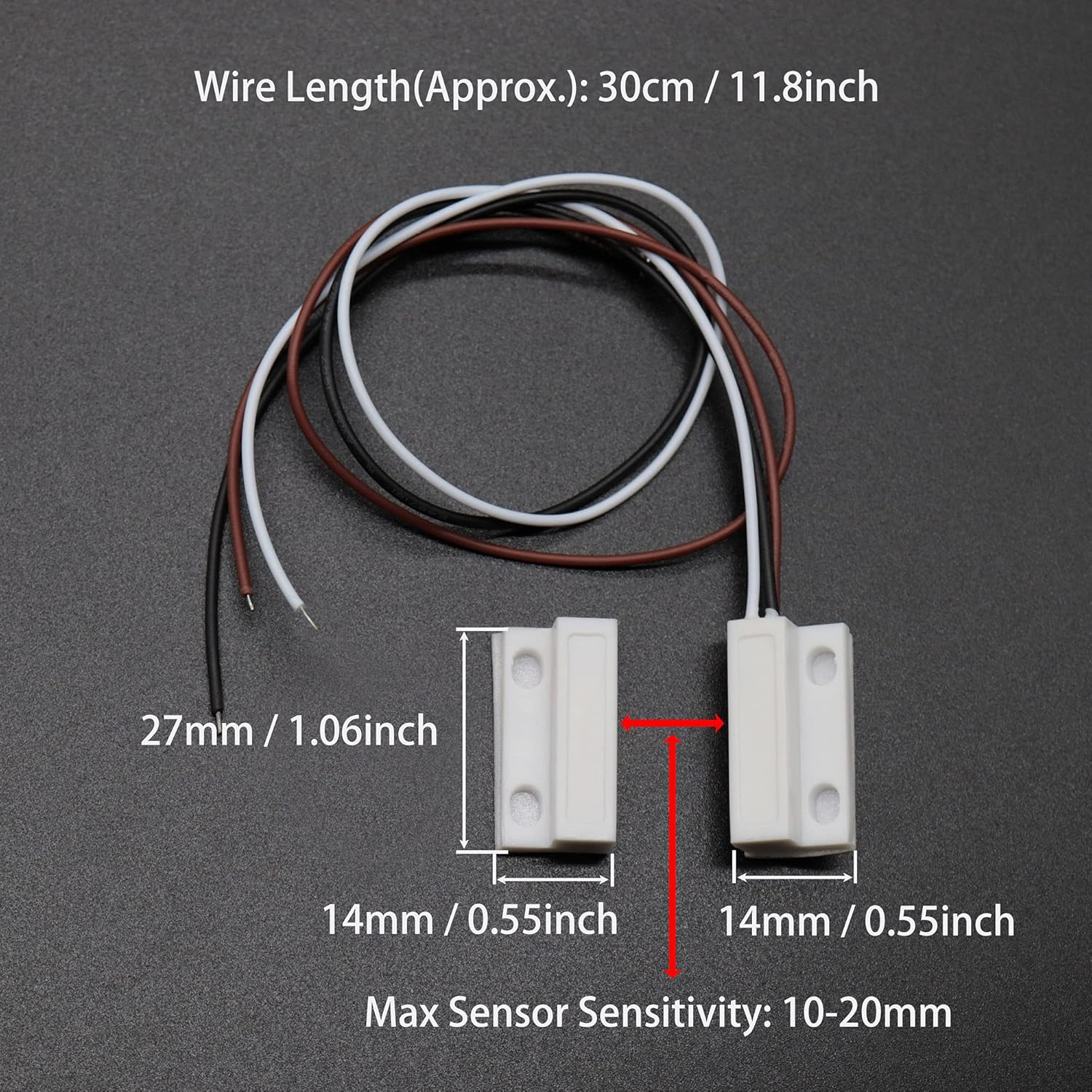

• ACTUATION DISTANCE - 10-20mm transmitting distance. The contact has fast reflection and accurate detection.
• WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the load current cannot exceed 150mA.
• WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
