GEYA Delay On Single Function Time Relay 1 Output 16A Electronic Adjustable Power ON Timer Delay Relay Rail Modular(GRT8-A1,AC/DC12V-240V)

GEYA Delay On Single Function Time Relay 1 Output 16A Electronic Adjustable Power ON Timer Delay Relay Rail Modular(GRT8-A1,AC/DC12V-240V)

$41.58 USD
$41.58 USD
Shipping calculated at checkout.

Overview

  • Contact Type : Normally Open, Normally Closed
  • Current Rating : 16 Amps
  • Mounting Type : DIN Rail Mount
  • Brand : GEYA
  • Operation Mode : Automatic

About this item

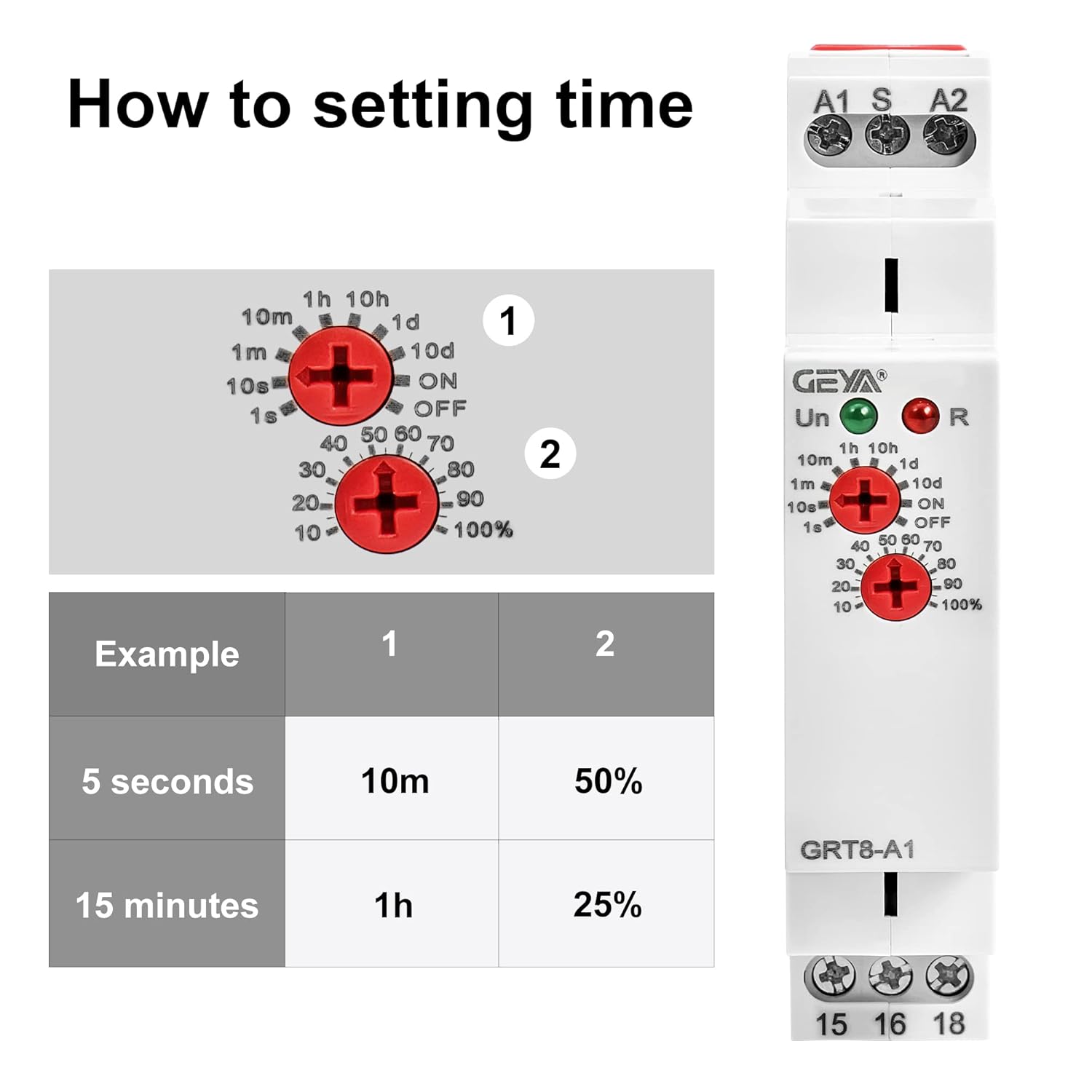

  • High Cost Performance:Delay can be set directly through the panel knob,convenient and intuitive.

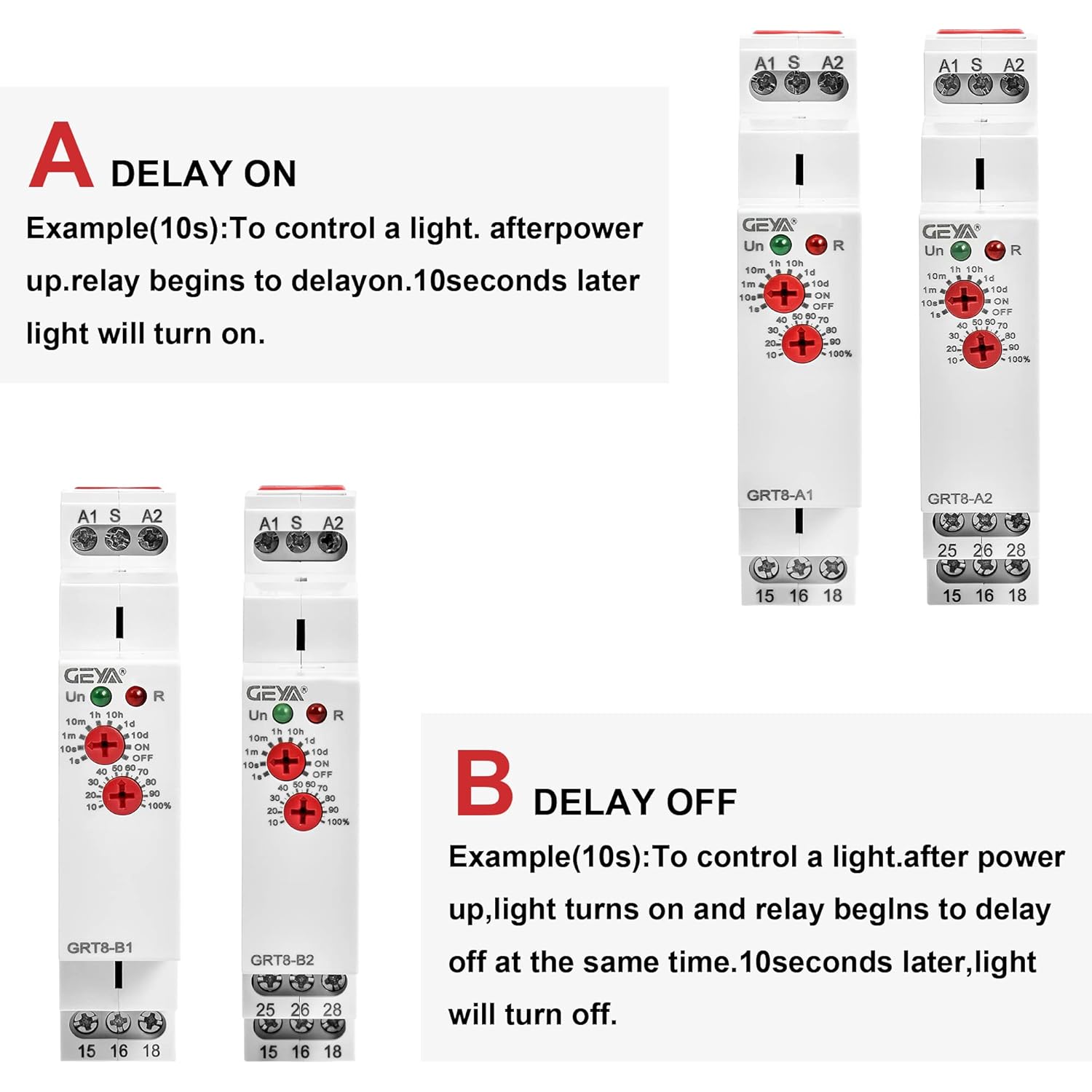

  • Function Mode:It has two optional modes, A Delay ON or B Delay OFF.
  • The Principle Of Use:Function can be controlled by supply voltage or time scale control input.Time scale 0.1s - 10days divided into 10ranges.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only ON,only OFF).
  • Support wide range voltage: AC/DC12-240V or AC230V.Output contact: 1SPDT(1NO1NC) or 2SPDT(2NO2NC).Relay status is indicated by LED.

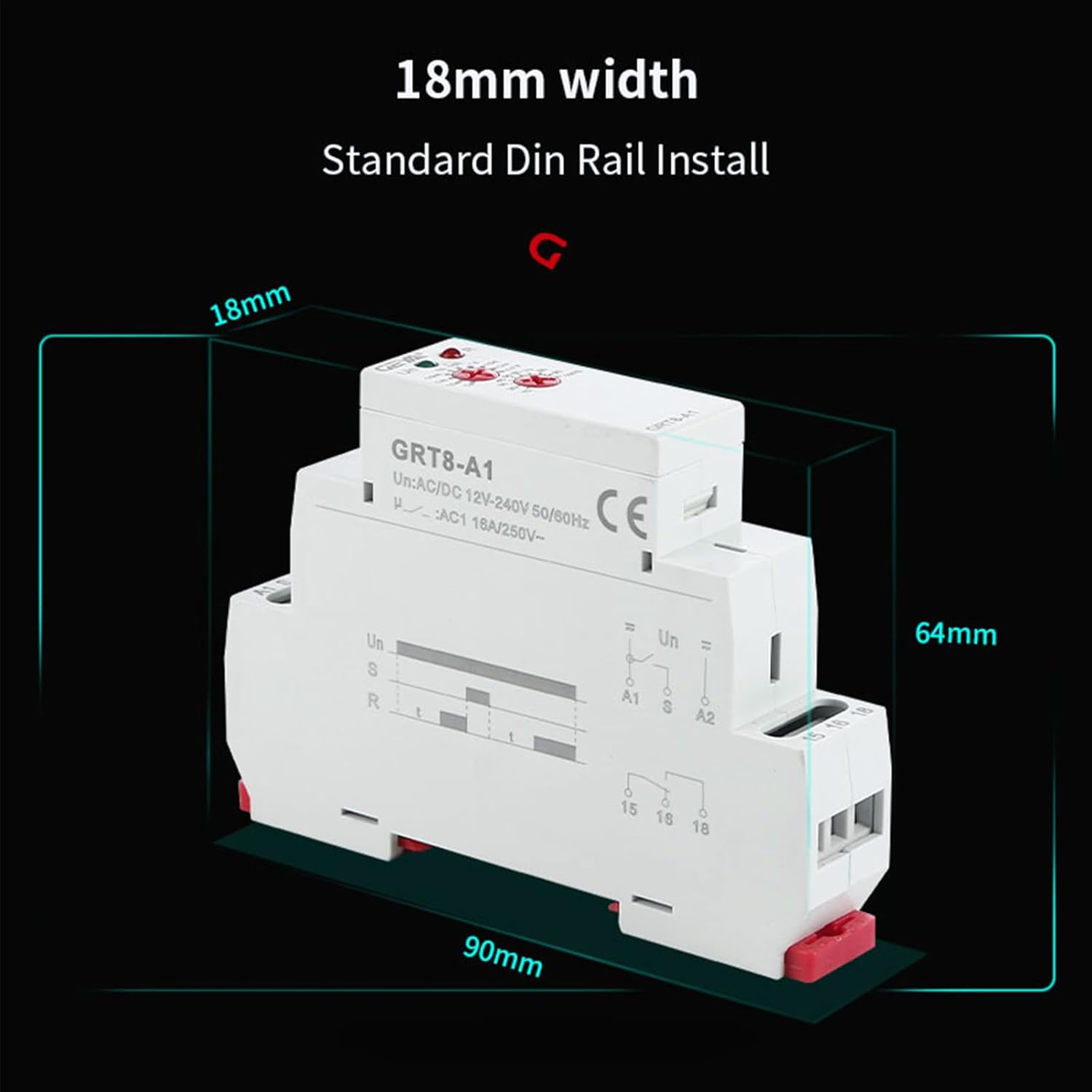

  • 1-MODULE,DIN rail mounting.Ultra-small size,only 18mm width,35mm rail mounting.
