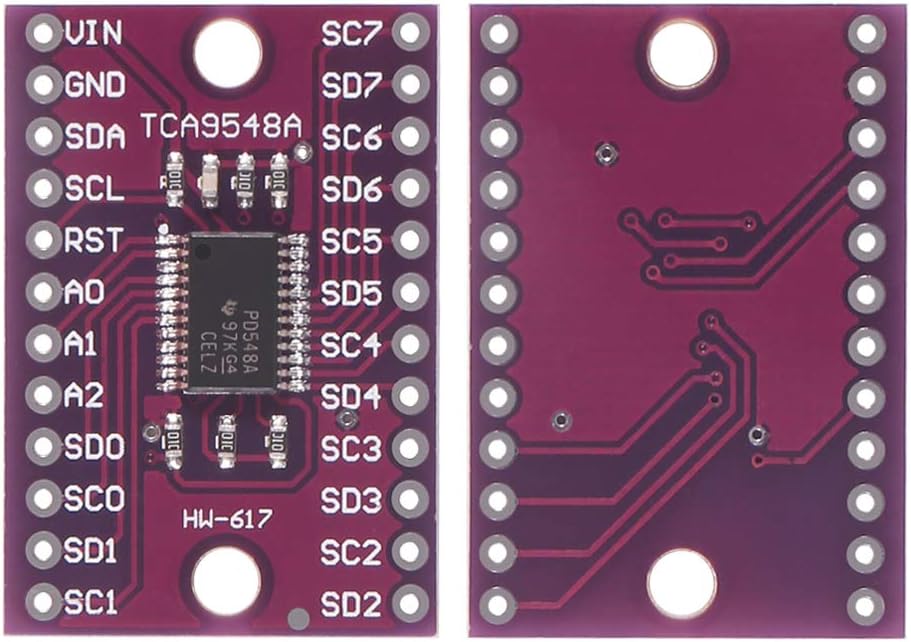

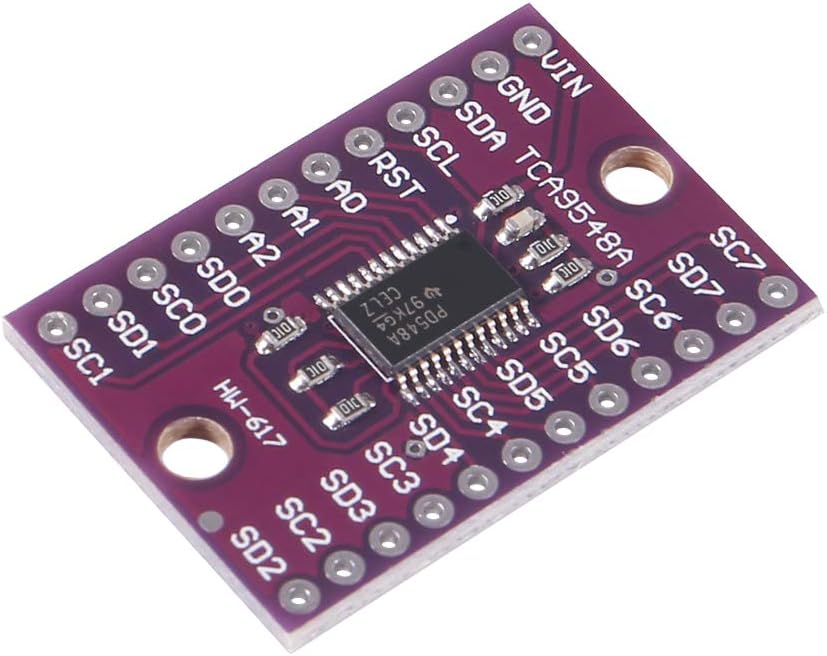

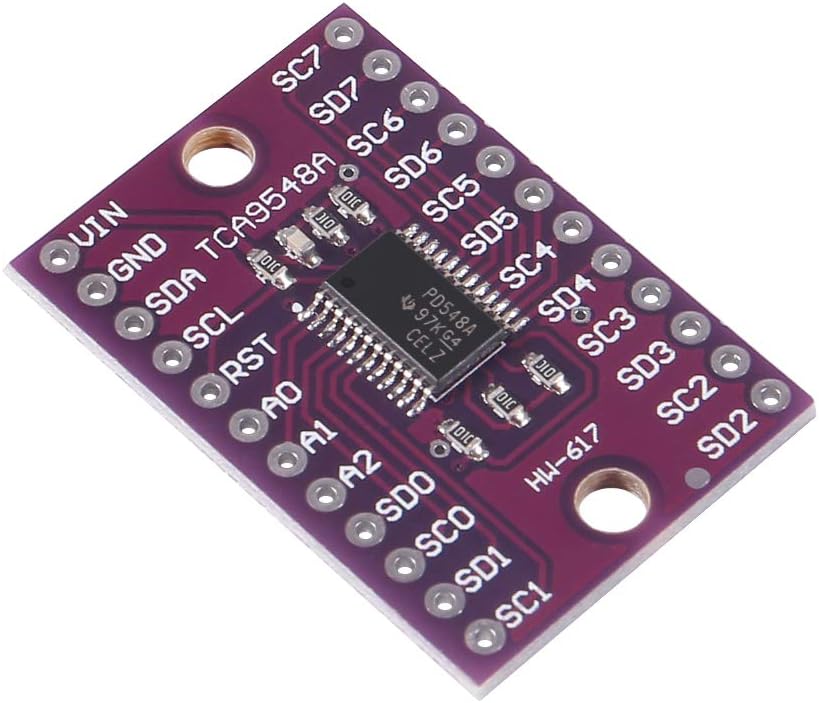

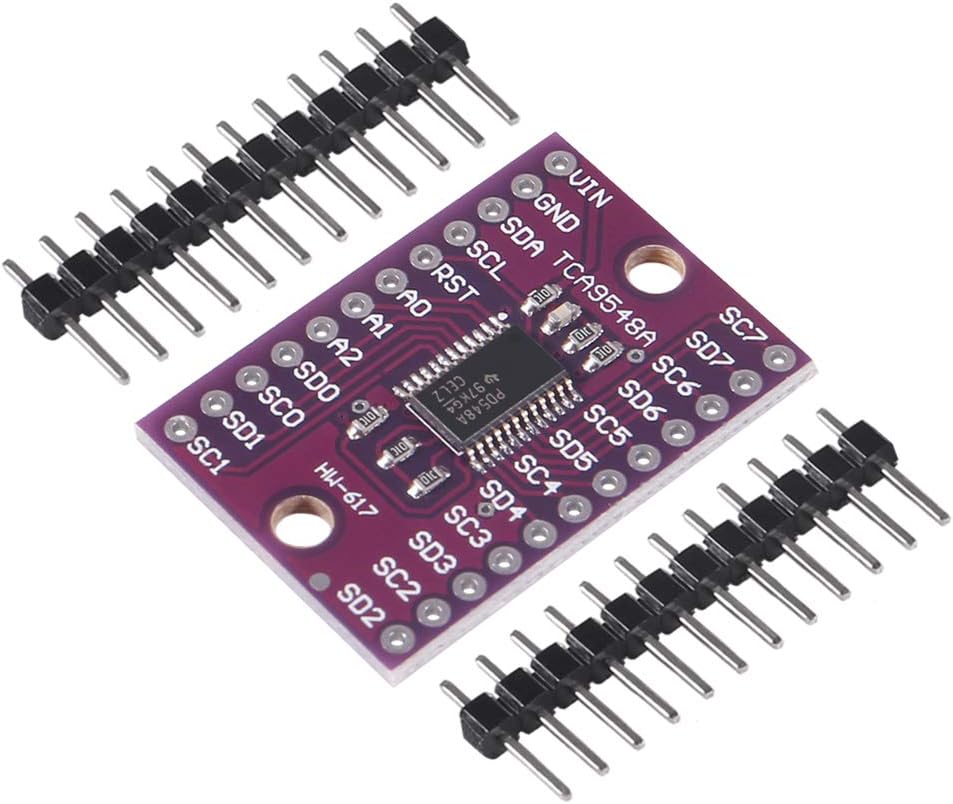

The TCA9548A adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus. This means that after 1 expander is transferred, 8 identical addresses can be connected to the same I2C port.
Max Clock Frequency: 400KHz
Expansion board TCA9548A compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion, low standby current, no glitch during power-up, support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting, TCA9548A I2C IIC multiplexer breakout board depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected.
