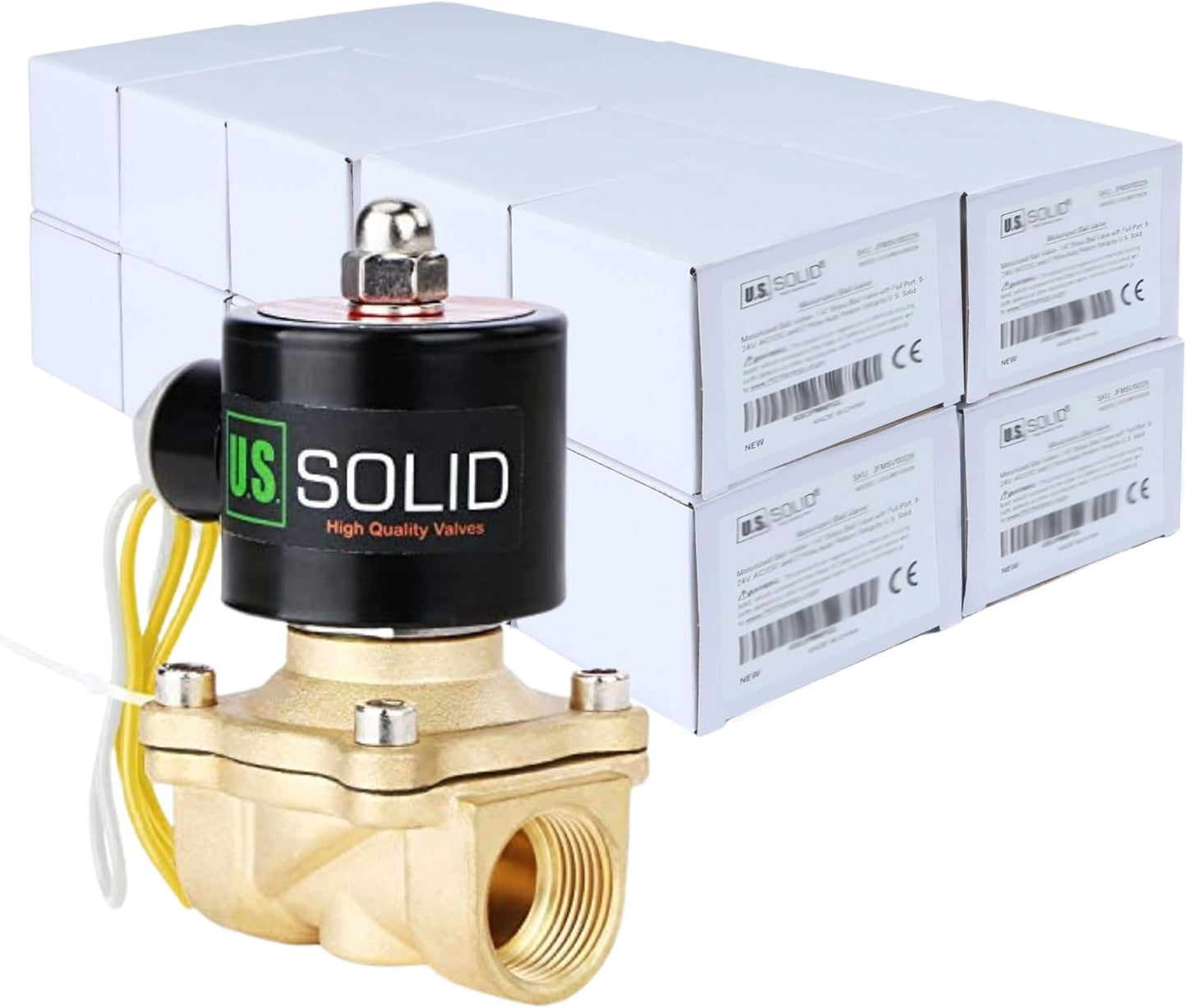

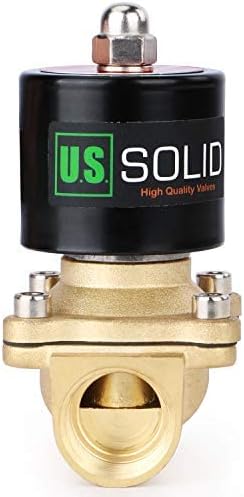

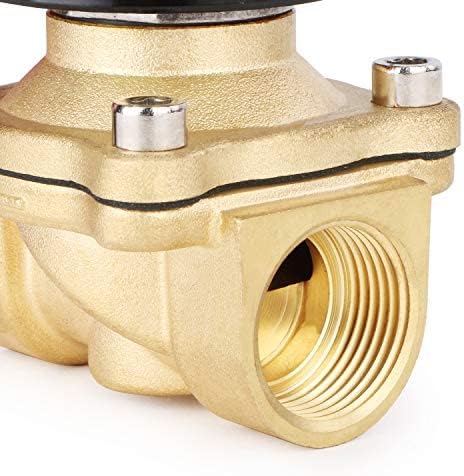

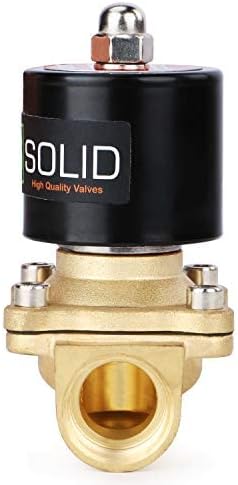

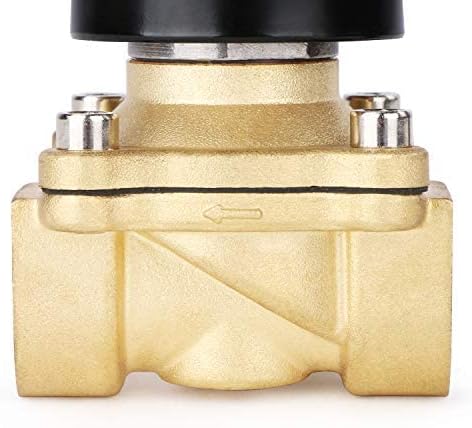

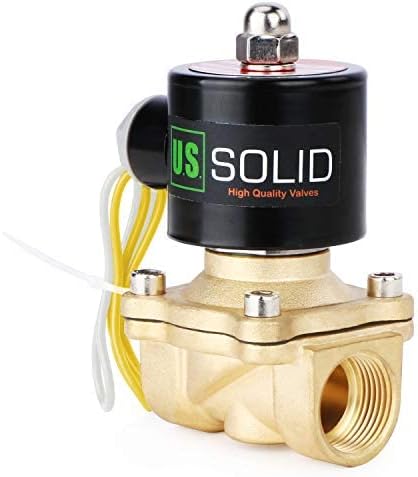

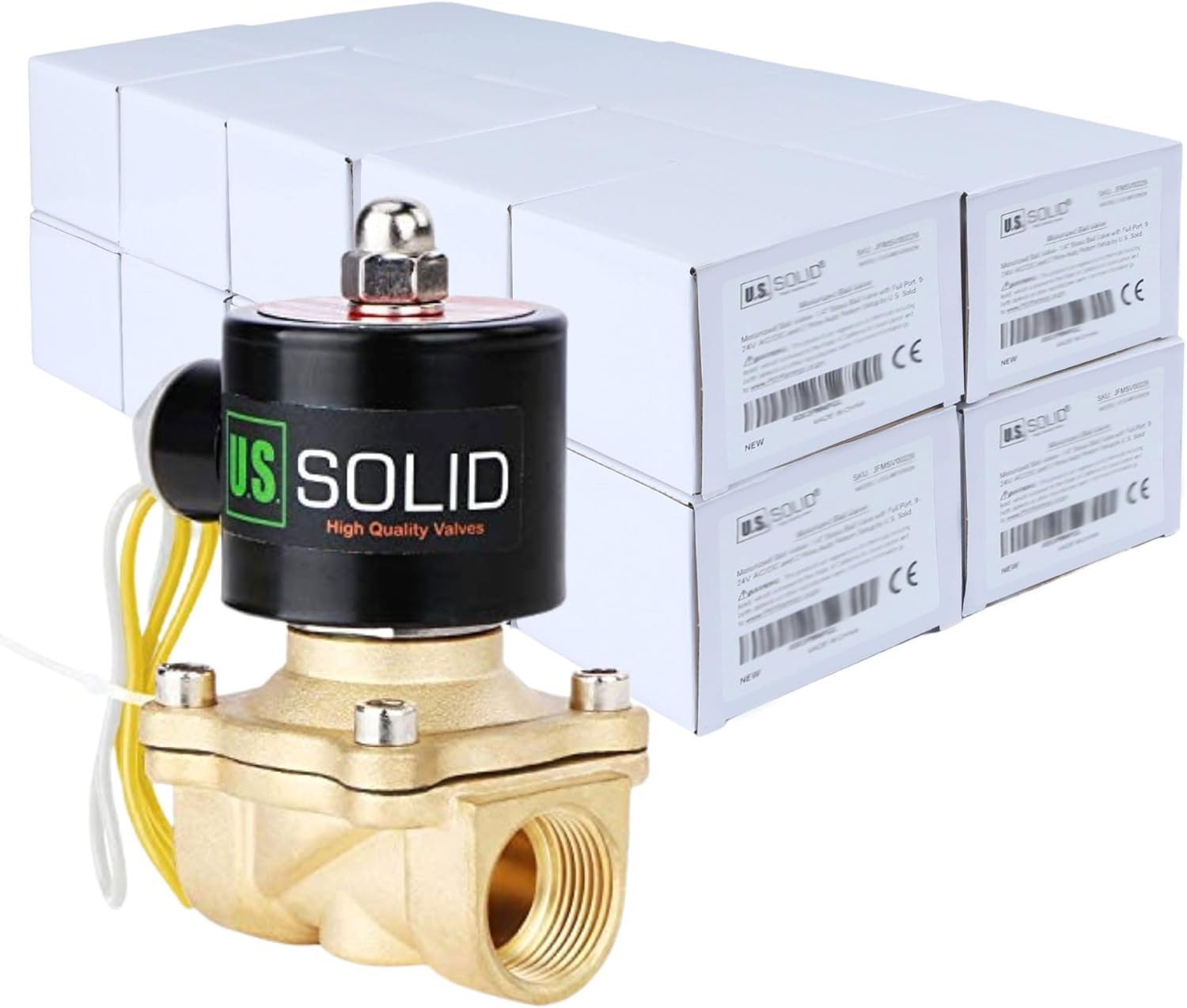

U.S. Solid 3/4" Brass Electric Solenoid Valve 110V AC Normally Closed Water, air, Diesel (20 Packs)

Overview

• Material : Brass
• Brand : U.S. Solid
• Item dimensions L x W x H : 3.15 x 2.24 x 4.46 inches
• Exterior Finish : Brass
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : FNPT
• Maximum Operating Pressure : 101 Pound per Square Inch
• Number of Ports : 2
• Specification Met : ASME B16.34, ETL, CSA, UL, IP65, RoHS, CE, ASSE, API 609
• Global Trade Identification Number : 00888107103363

About this item

• This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
• This highly responsive valve will open and close in less than 2 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
• PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.
