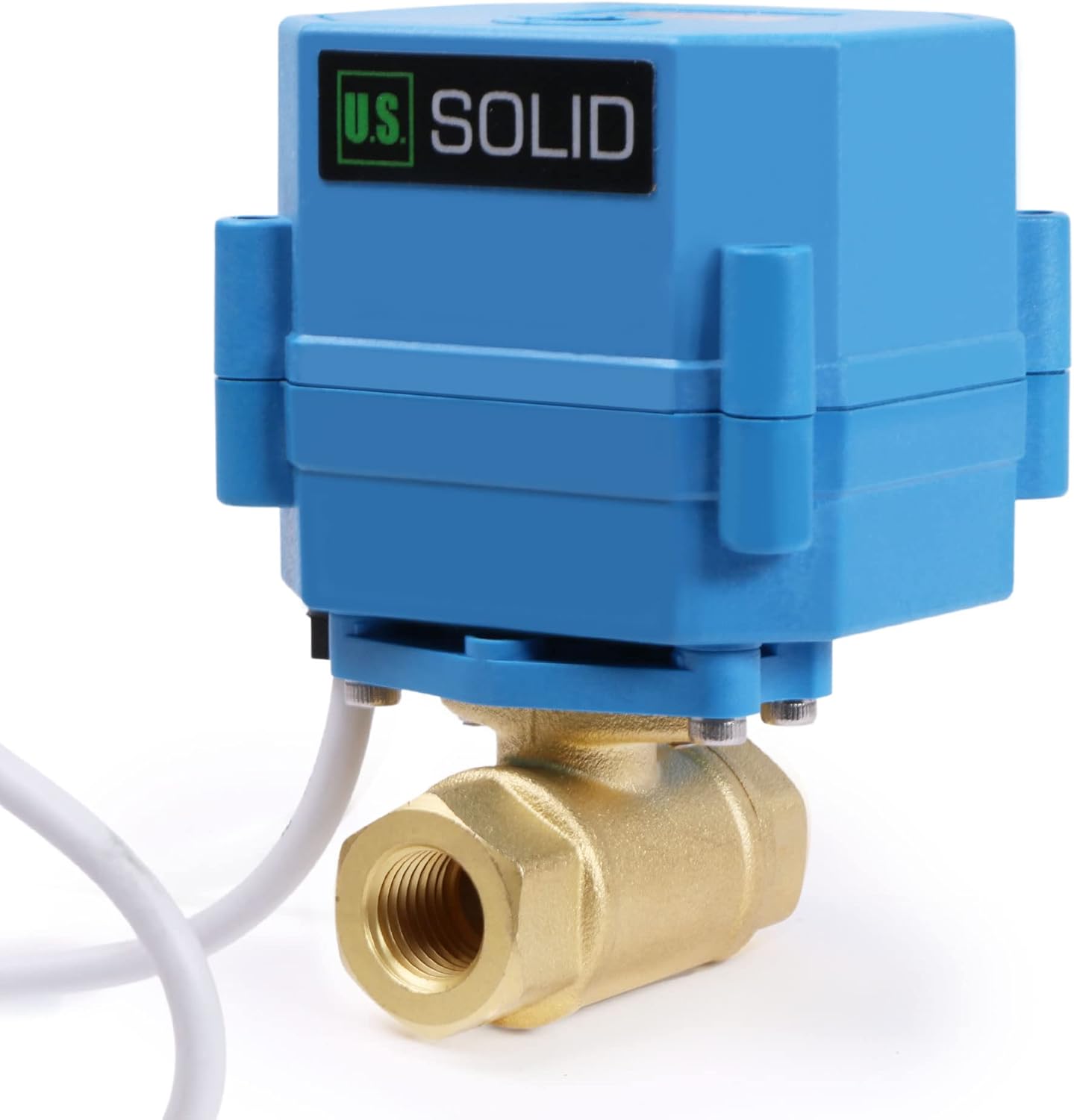

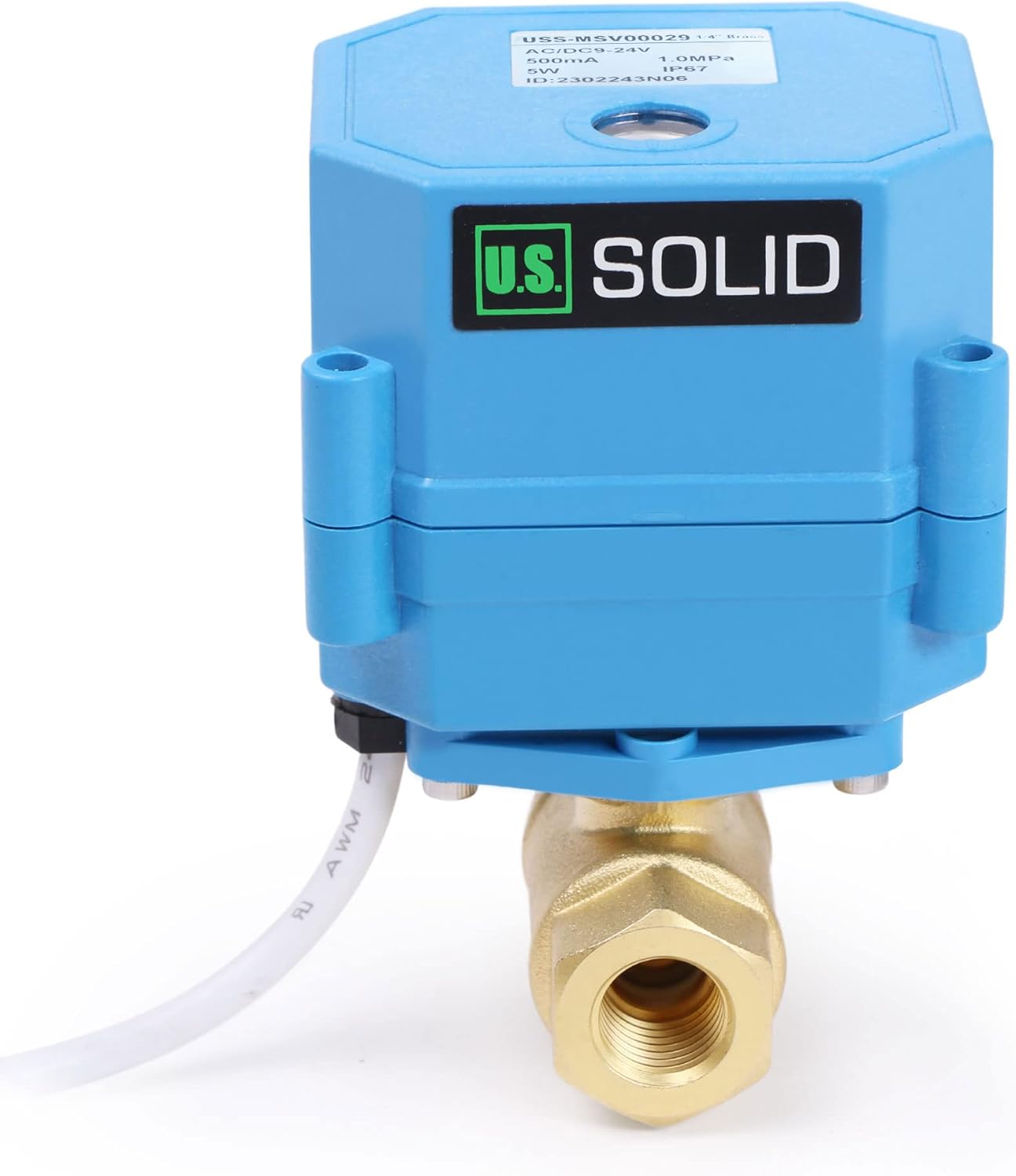

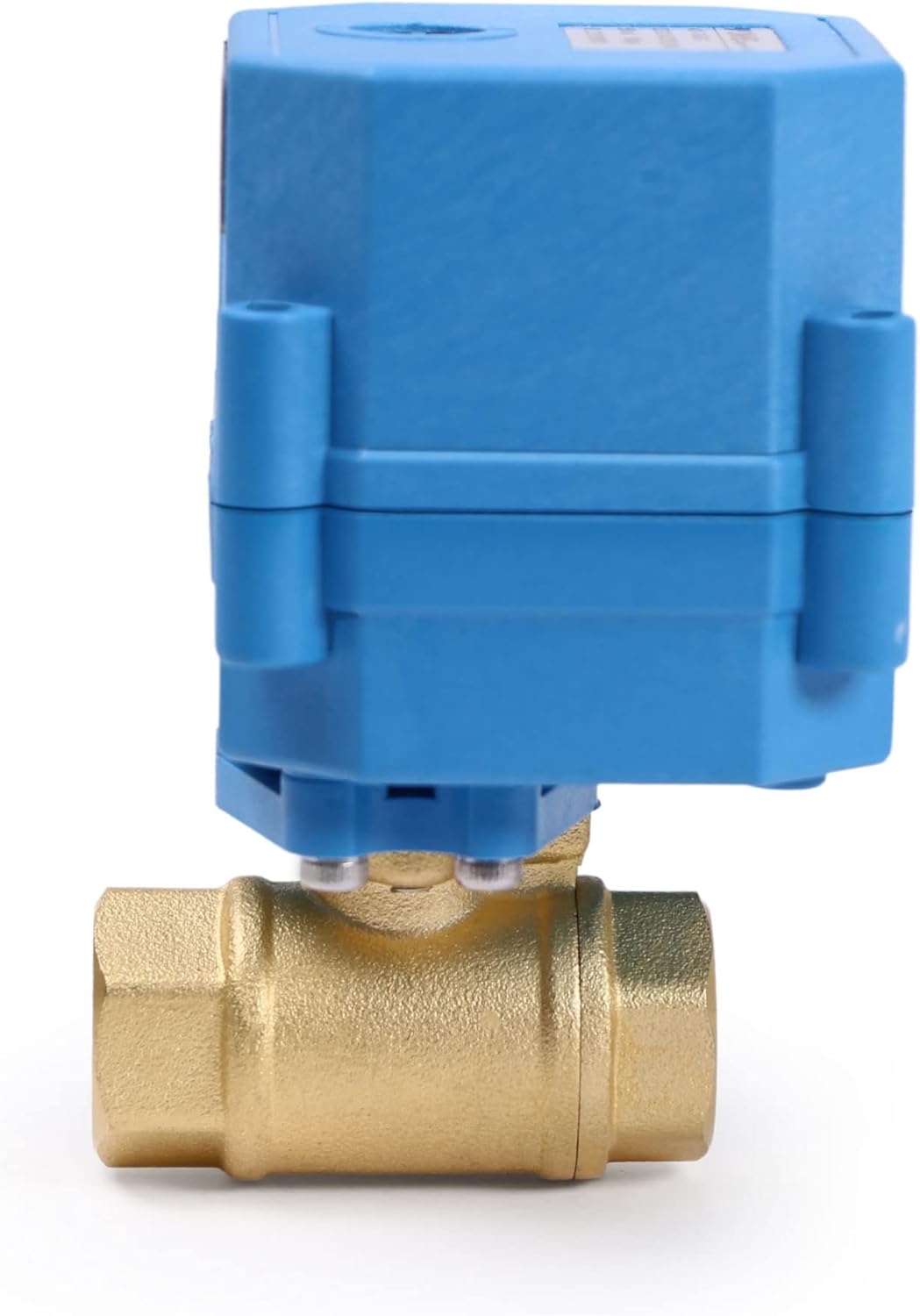

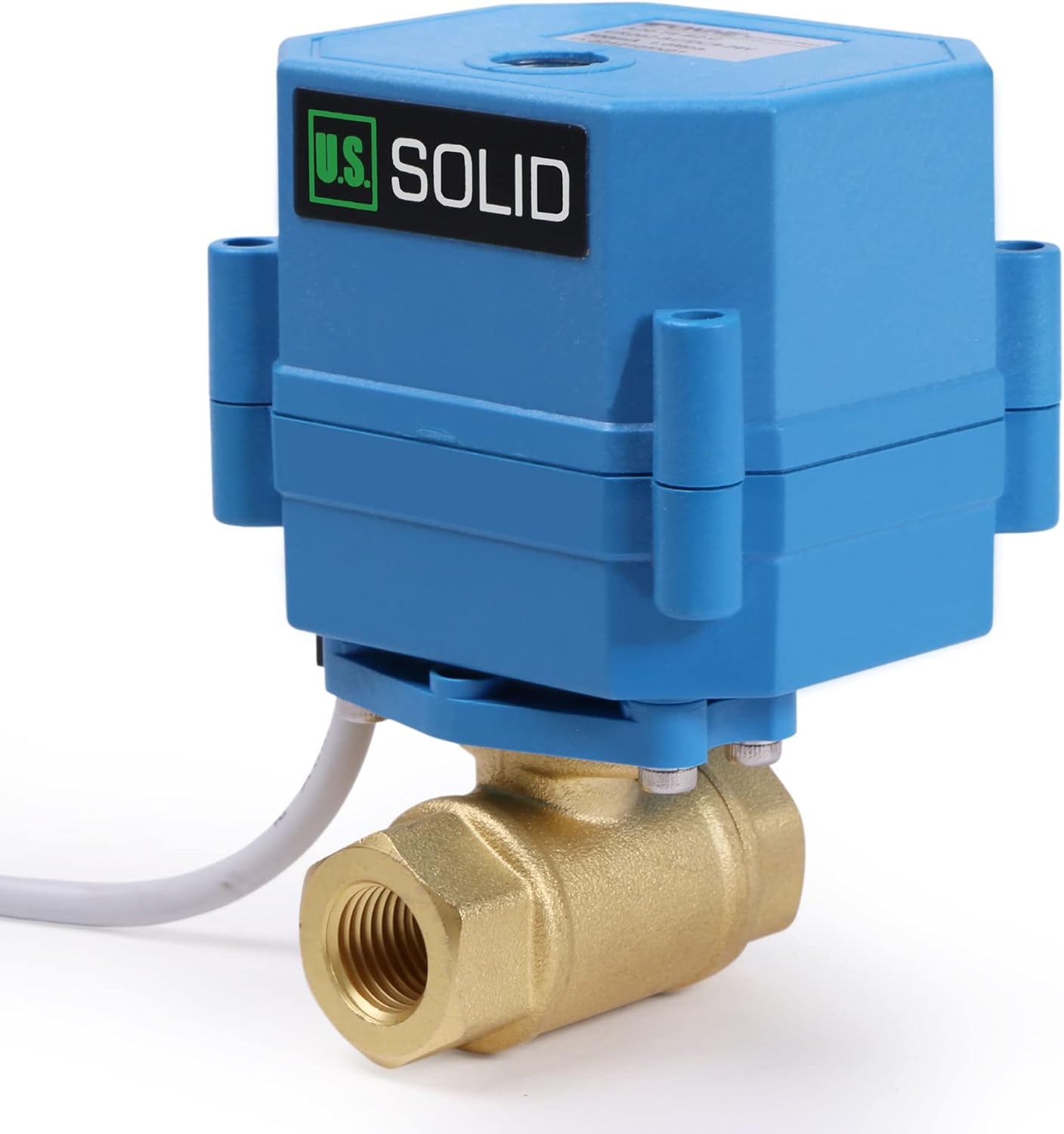

U.S. Solid Motorized Ball Valve- 1/4" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
U.S. Solid Motorized Ball Valve- 1/4" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
Regular price
$79.98 USD
Regular price
$79.98 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
- Material : Brass
- Brand : U.S. Solid
- Item dimensions L x W x H : 2.8 x 3 x 4 inches
- Exterior Finish : Brass
- Inlet Connection Size : 1/4 Inches
- Inlet Connection Type : National Pipe Tapered
- Outlet Connection Type : FNPT
- Maximum Operating Pressure : 10 Bars
- Number of Ports : 2
- Specification Met : ASME B16.34, IP67
About this item
- SAFE AND RELIABLE: Made of brass, this ball valve is strong but cannot be used for drinking water; Lifespan is at least 70,000 cycles.

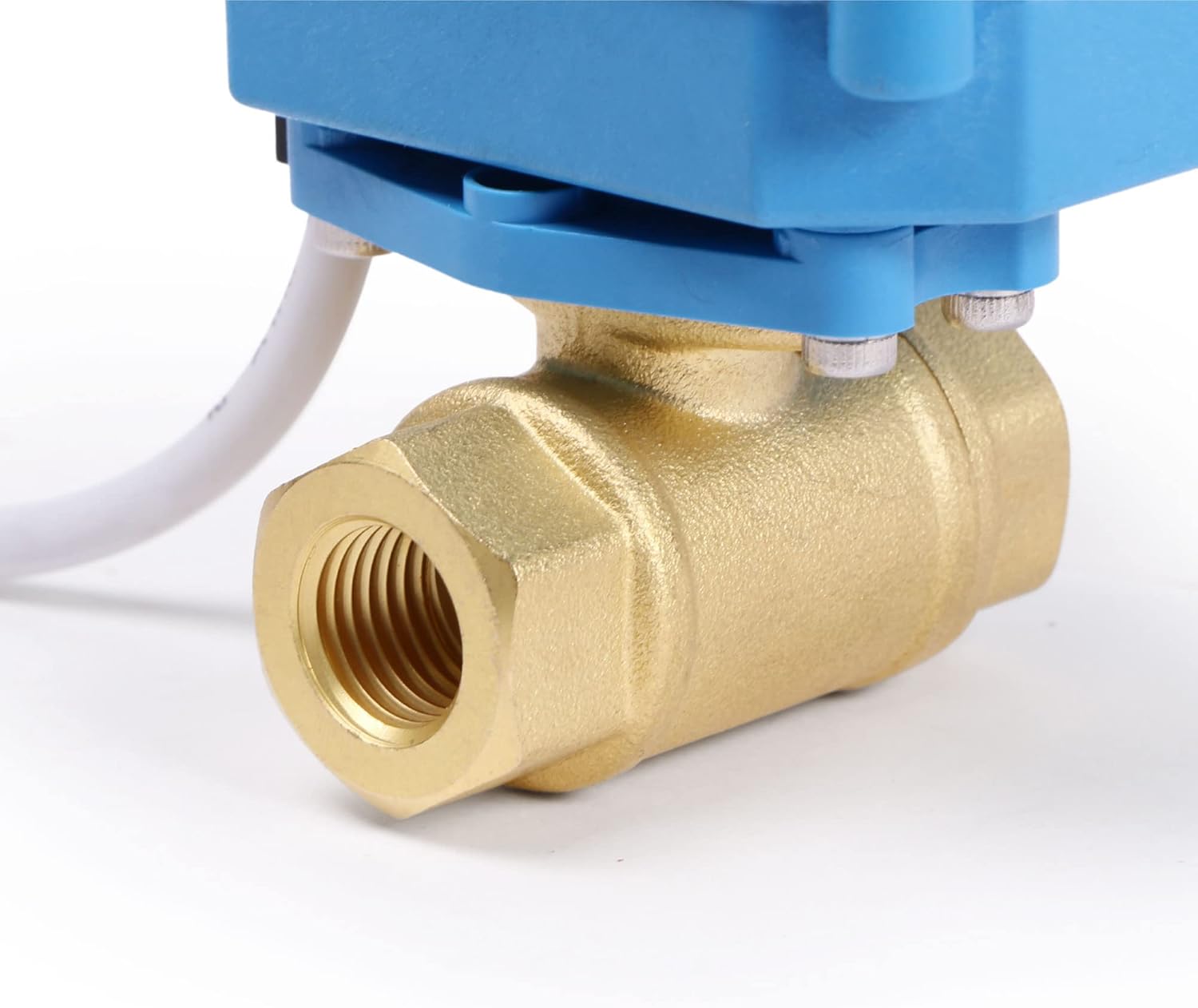

- NPT THREADING: 1/4" brass threading, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is full port, meaning the bore in the ball is a full 1/4"; This minimizes pressure loss through the valve; Perfect for home automation projects.
- 9V-24V AC/DC: Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; Limit switch minimizes power after valve is fully open; Ideal for projects where an automatic return is necessary.
- 2 WIRE AUTOMATIC RETURN SETUP: Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed.
- ALTERNATIVE TO SOLENOID VALVES: Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time
