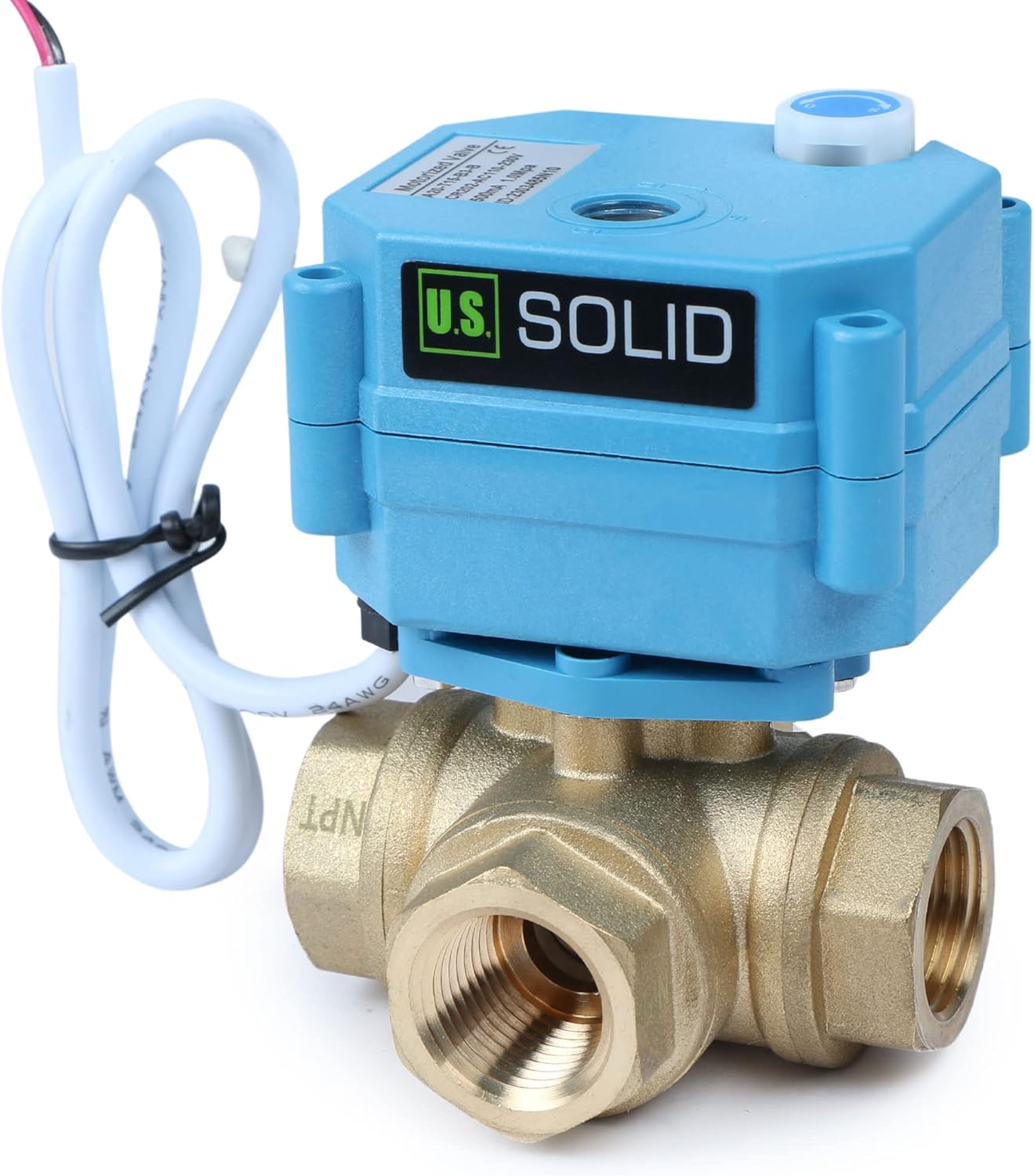

U.S. Solid 1/2" 3 Way Brass Motorized Ball Valve 110-230VAC, L Type Water Shutoff Valve with Manual Function, Standard Port, NOT for Drinking Water

Overview

• Material : Brass
• Brand : U.S. Solid
• Item dimensions L x W x H : 3.3 x 2.8 x 7 inches
• Exterior Finish : Brass
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : FNPT
• Maximum Operating Pressure : 145 Pound per Square Inch
• Number of Ports : 3
• Manufacturer : U.S. Solid
• UPC : 888107105244

About this item

• 1. Conserving Space: The 3-way motorized ball valve is smaller in size compared to multiple one-way valves or other valve types, enabling space-saving in pipelines.
• 2. Fluid Control: The motorized ball valve is used to control the direction of fluid flow, featuring one inlet and two outlets or two inlets and one outlet. This configuration allows for diverting the fluid into different pathways to meet various process requirements.
• 3. Heavy Duty Construction: The ball valve is constructed from long-lasting brass, which ensures safety and reliability. With an estimated lifespan of at least 70,000 cycles, it is designed to endure and last.
• 4. Easy Installation: The 3-way brass motorized ball valve is user-friendly and straightforward to install. It includes a built-in capacitor return and 2-wire control with installed position feedback wires. The valve only needs a simple two-wire connection and is mostly de-energized once it's open. Water flows through the left port when power is applied, and it switches to the right port when power is disconnected.
• 5. Dependable Leak-Free Flow: This ball valve has been meticulously designed to ensure a secure and reliable flow, completely free from any leaks. It is rated for a maximum working pressure of 145 PSI and is specifically engineered for bidirectional use. This valve is an ideal choice for applications that involve handling contaminants and prolonged periods of inactivity.
