Ewelink WiFi Wireless Smart Relay Module USB DC 5v/12v/24v/48v 2 Channel Switch for Garage Door, Rolling Shutter Door, Electric Curtain

Overview

• Connector Type : Wireless
• Contact Type : Normally Open
• Mounting Type : Wall Mount
• Brand : RODOT
• Operation Mode : Automatic

About this item

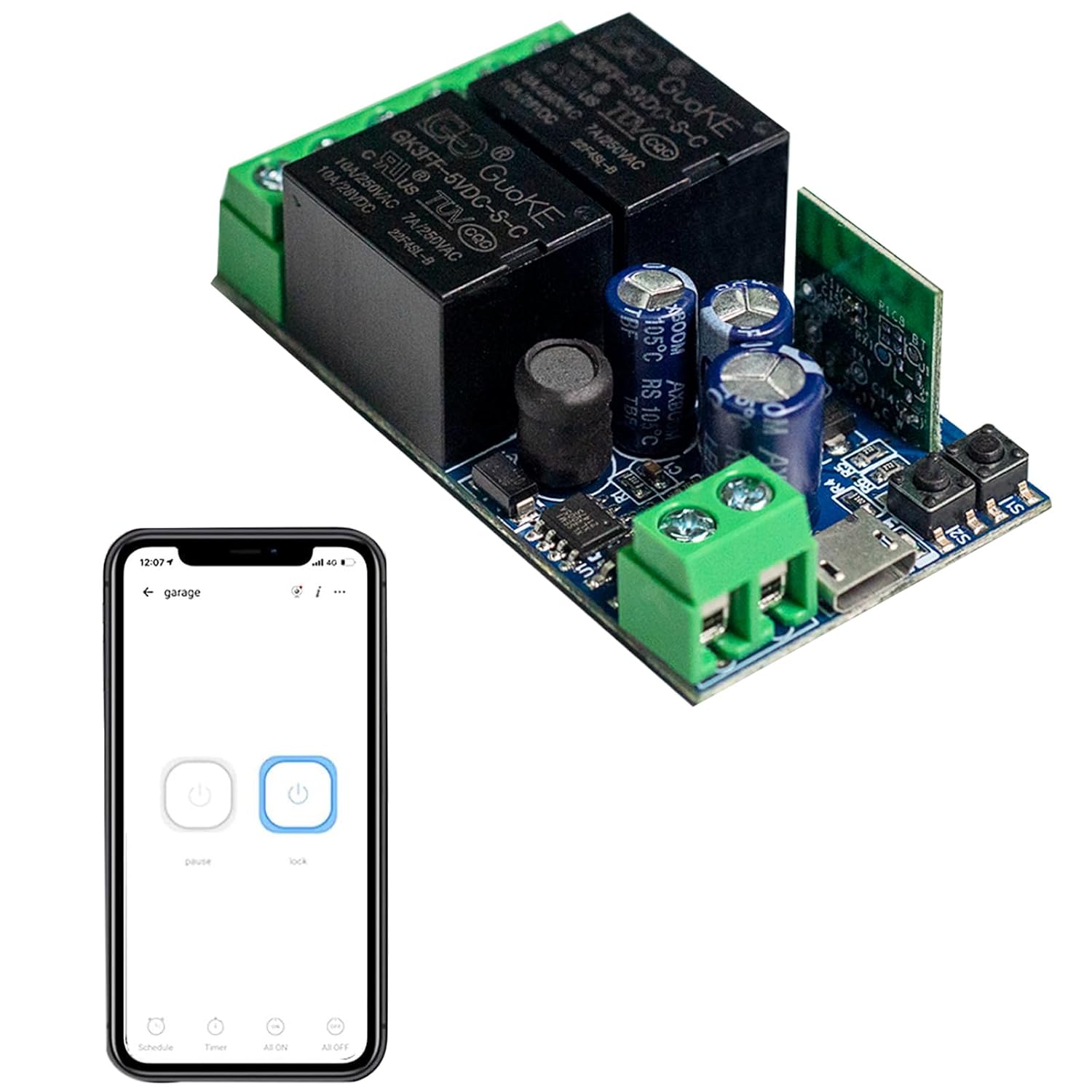

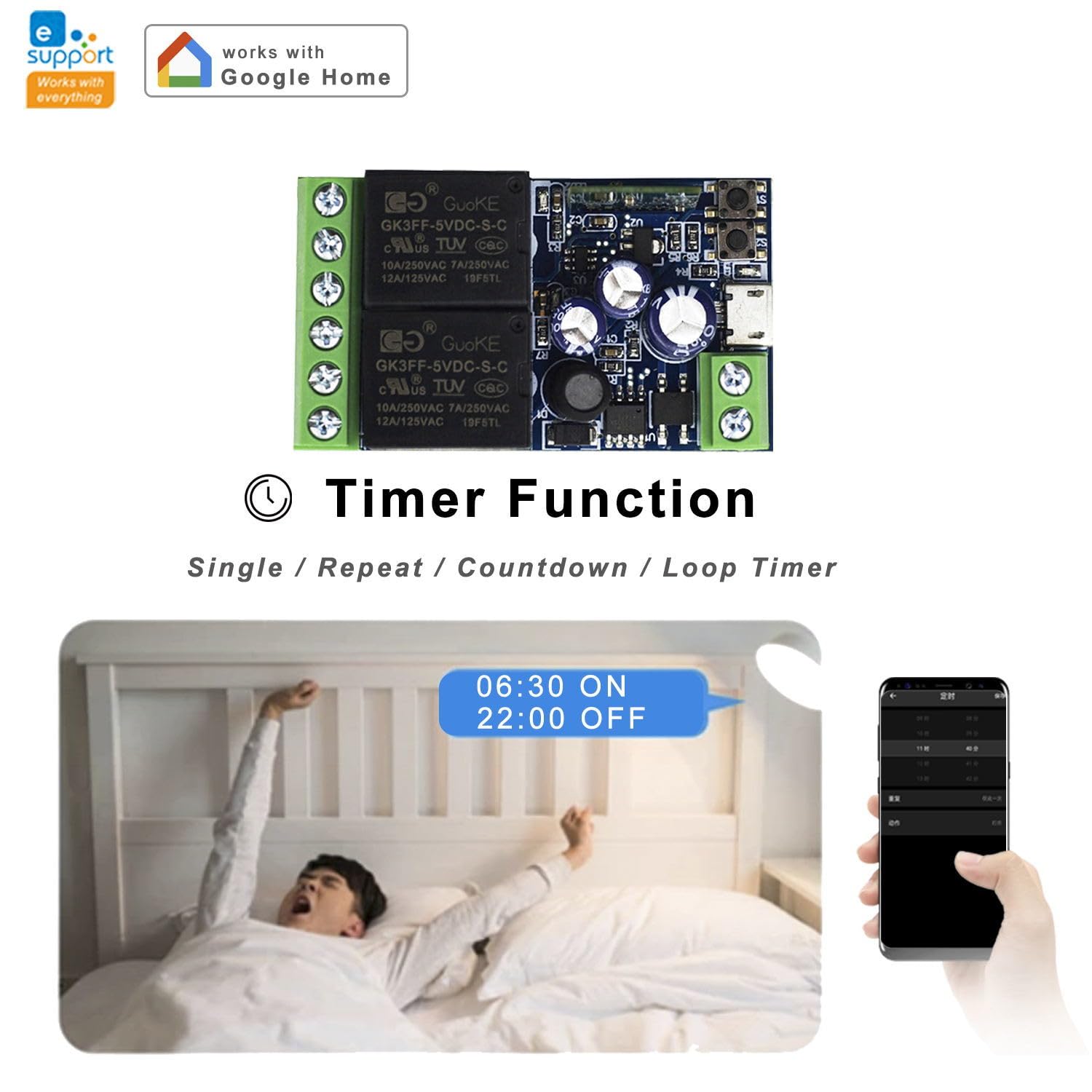

• 【Product Overview】This is a wifi smart switch, users can remotely switch connected home appliances or devices through ewelink APP, support third party voice control such as Amazon ECHO and Google Home and 2.4G light smart remote control, with timer on/off, scene linkage, power on setting, inching setting, sharing control and other functions

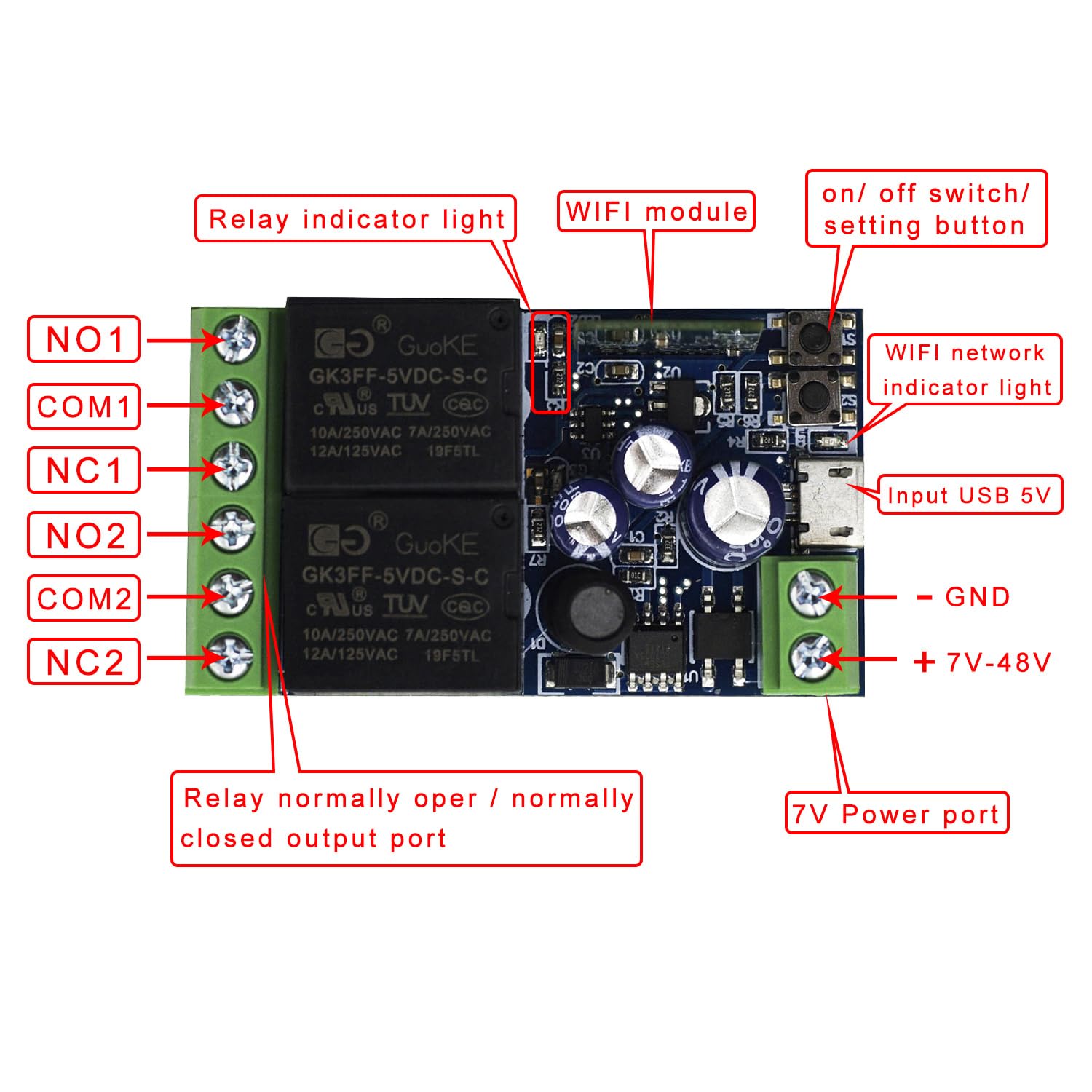

• 【Input/Output】Low voltage ewelink APP wifi dry contact relay/passive output, USB 5V input or DC 7~48V positive and negative input.

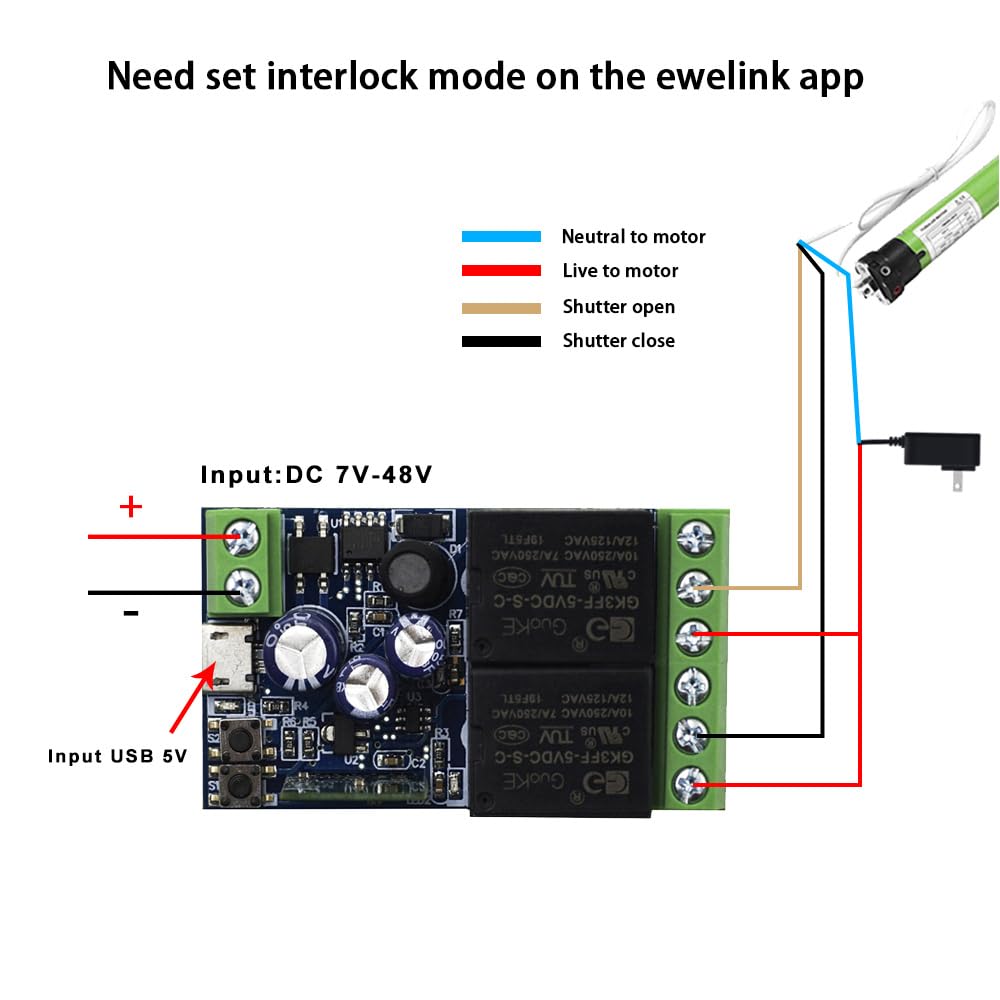

• 【Working Mode】 Self-locking mode by default, users can switch to inching mode in APP: for example, the device turns on and turns off automatically at 1 second intervals (interval time can be adjusted),it works as wireless button in inching mode,as wireless switch in self-lock latching mode
• 【Voice Control】 Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nes. You need to bind your eWeLink account and sync your device in the corresponding APP. Note: WIFI Relay Module only supports 2.4G WIFI network, 5G WiFi is not supported.
• 【Easy to setup】 with low voltage USB 5V or DC 7-48V,add Smart WIFI control to your home,support 2.4G wifi only,once powered on,please check if light will flash 2 short 1 long,if so,tap Ewelink app to configure directly
• PRODUCT MODEL : KR0548-2CH
