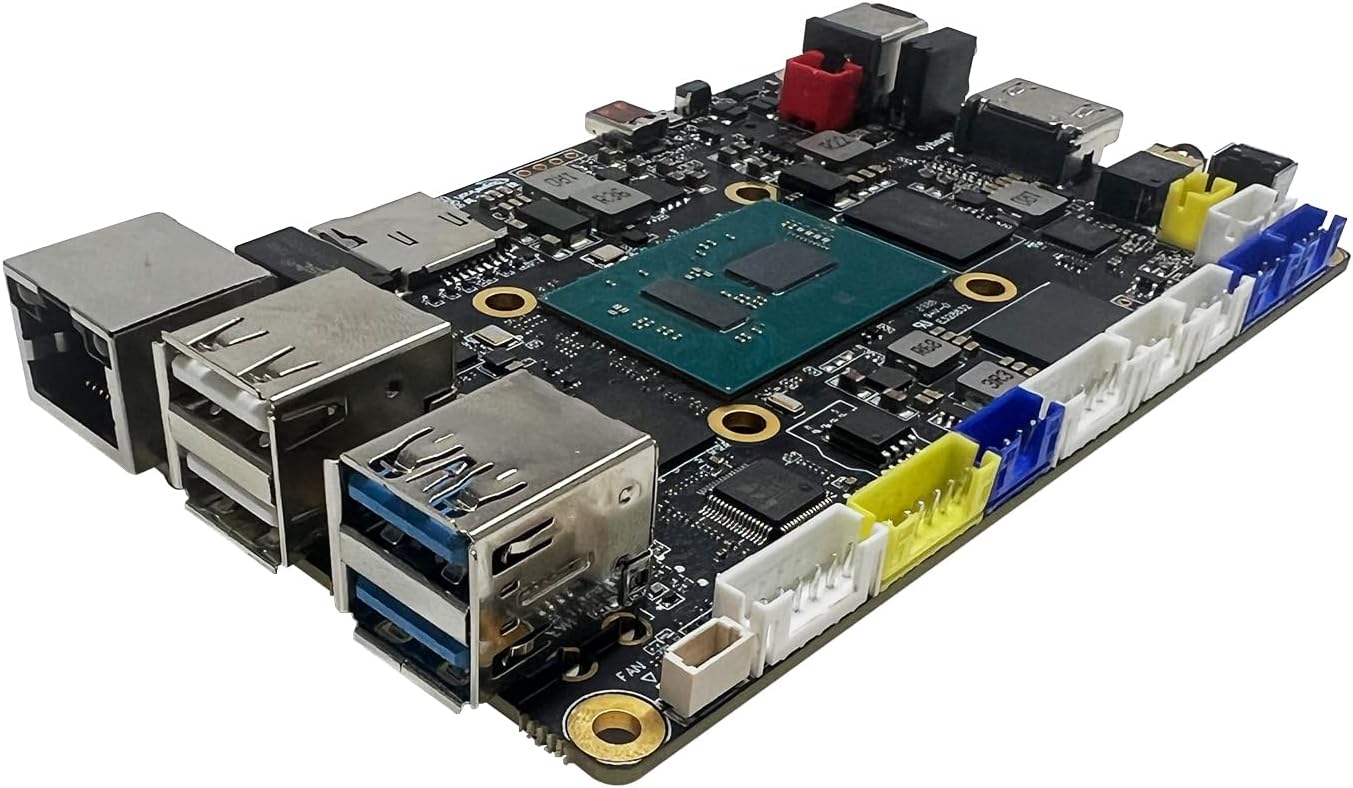

WayPonDEV youyeetoo X1 X86 Single Board Computer - A 64bit Windows 10/11/Linux Mini PC with Celeron N5105 CPU, Support Optional WiFi&BT NFC, PCIE 3.0 M.2 2280 NVMe or SATA SSD (16GB RAM+0GB Storage)

Overview

• Brand : WayPonDEV
• Operating System : Linux, Windows
• CPU Model : Celeron
• CPU Speed : 2 GHz
• Cache Size : 16 GB
• Graphics Card Description : Integrated
• Graphics Coprocessor : I-n#te-l UHD Graphics
• Specific Uses For Product : Business, Education, Everyday Use
• Personal computer design type : Mini PC
• Screen Size : 2.5 Inches

About this item

• [Kind Reminder] This youyeetoo X1 x86 SBC is currently currently in a pre-sale state.You can choose from optional System Memory – 4GB/8GB/16GB LPDDR4;optional eMMC flash with 64GB/128GB/256GB capacity (pls check the variant option from different Asin). We could provide customization services including whole machine customization,boot logo, BIOS features, operating system and more.
• [High-Performance X86 Mini PC] youyeetoo X1 is a complete low-cost Windows x86 single board computer with I-n#te-l Celeron N5105 11th Gen Jasper Lake processor up to 2.9GHz.You can use this mini computer as a media centre, support 4K video steaming and daily useage.

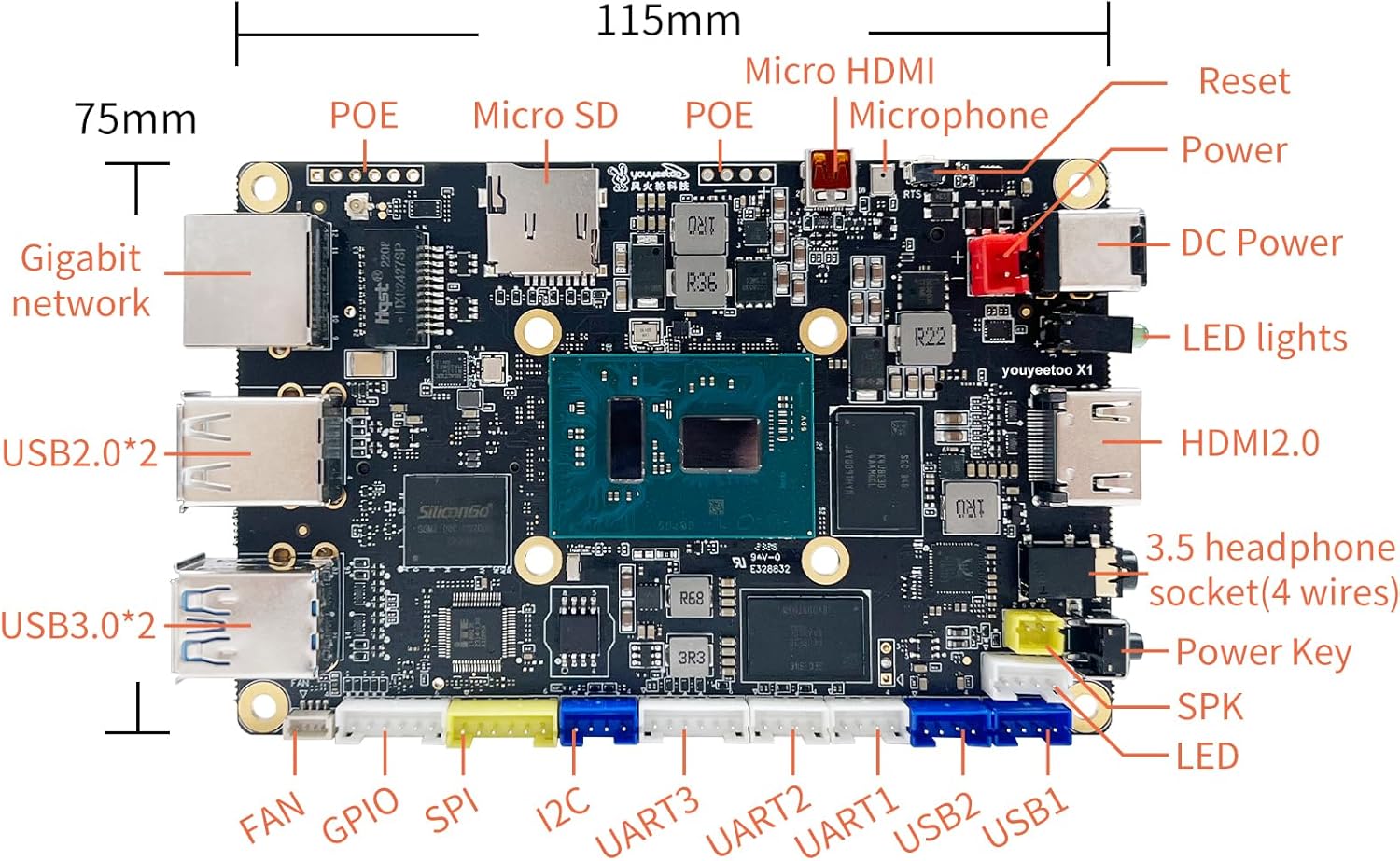

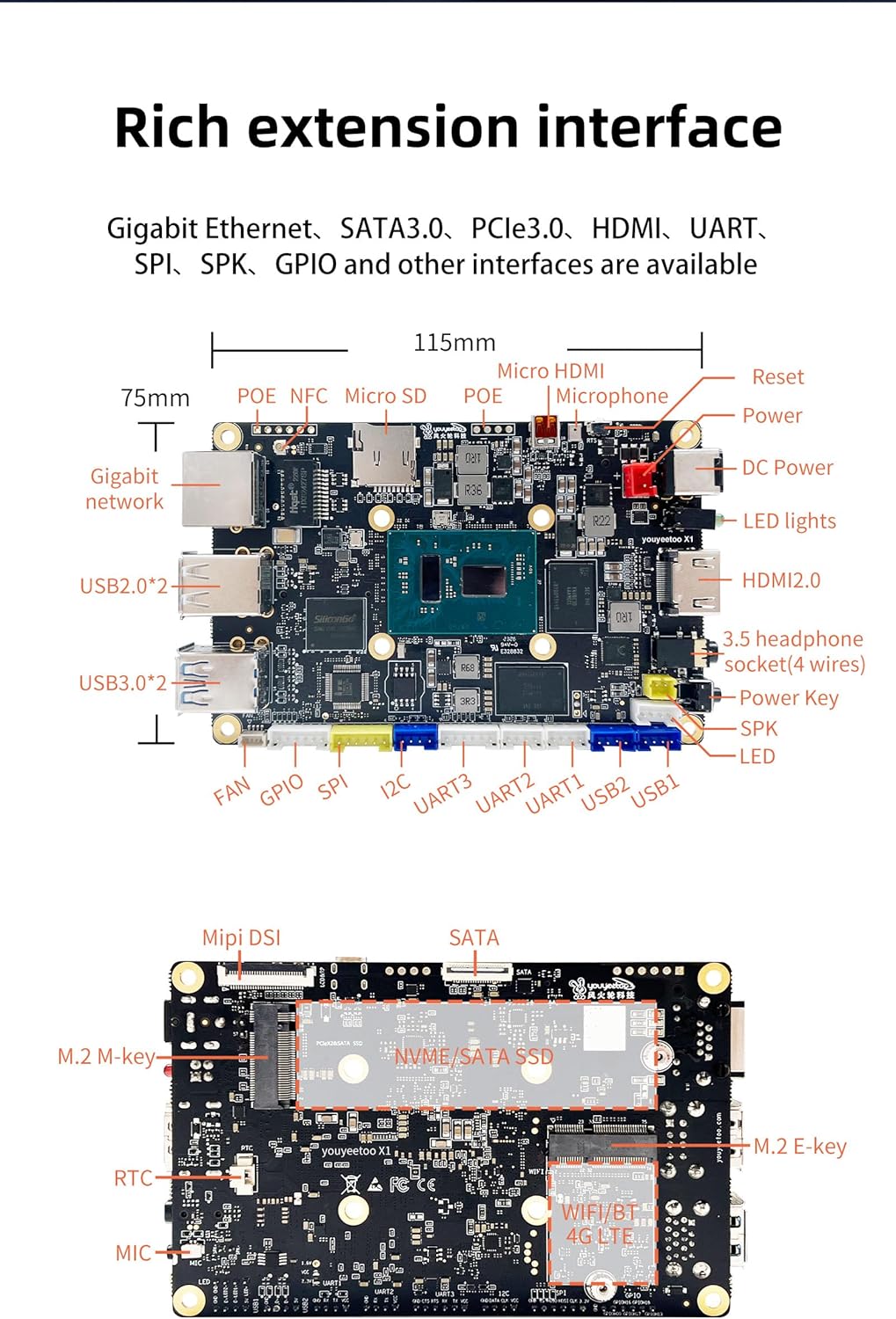

• [Expandible Onboard Interfaces] youyeetoo X1 SBC supports Dual 4K and 3-way video output, including full-size HDMI , Micro HDMI, Display interface over MIPI, M.2 2280 M-key socket for NVMe or SATA SSD,4-pin I2C header, 5-pin SPI header, 6-pin header with 5x GPIOs; I/O voltage: 3.3V.
• [Pre-insalled Windows OS] youyeetoo X1 x86 single board computer supports Windows 10/11, as well as Ubuntu and Debian Linux distributions with aming to provide sample code for both Windows and Linux for things like GPIOs. It would be pre-installed window OS out of box,plug and play.
• [Multiple Wireless Networks] youyeetoo X1 x86 single board computer with M.2 E key extension. Support WIFI(2.4G/5G) and Bluetooth dual-band. It adapted WIFI5 and BT5.0, WIFI6 and BT5.2. Support 4G LTE Module. Extreme scalability allows you to surf the web wirelessly both indoors and outdoors.
• [LAN and PoE Power Support] youyeetoo X1 x86 mini pcs onboard Gigabit WAN port ,Support 24W PoE (802.3AT) power supply (default).Optional 60W / 72W high power PoE power supply module (customised). Start with industrial applications to reduce the difficulty of deployment and streamline costs.

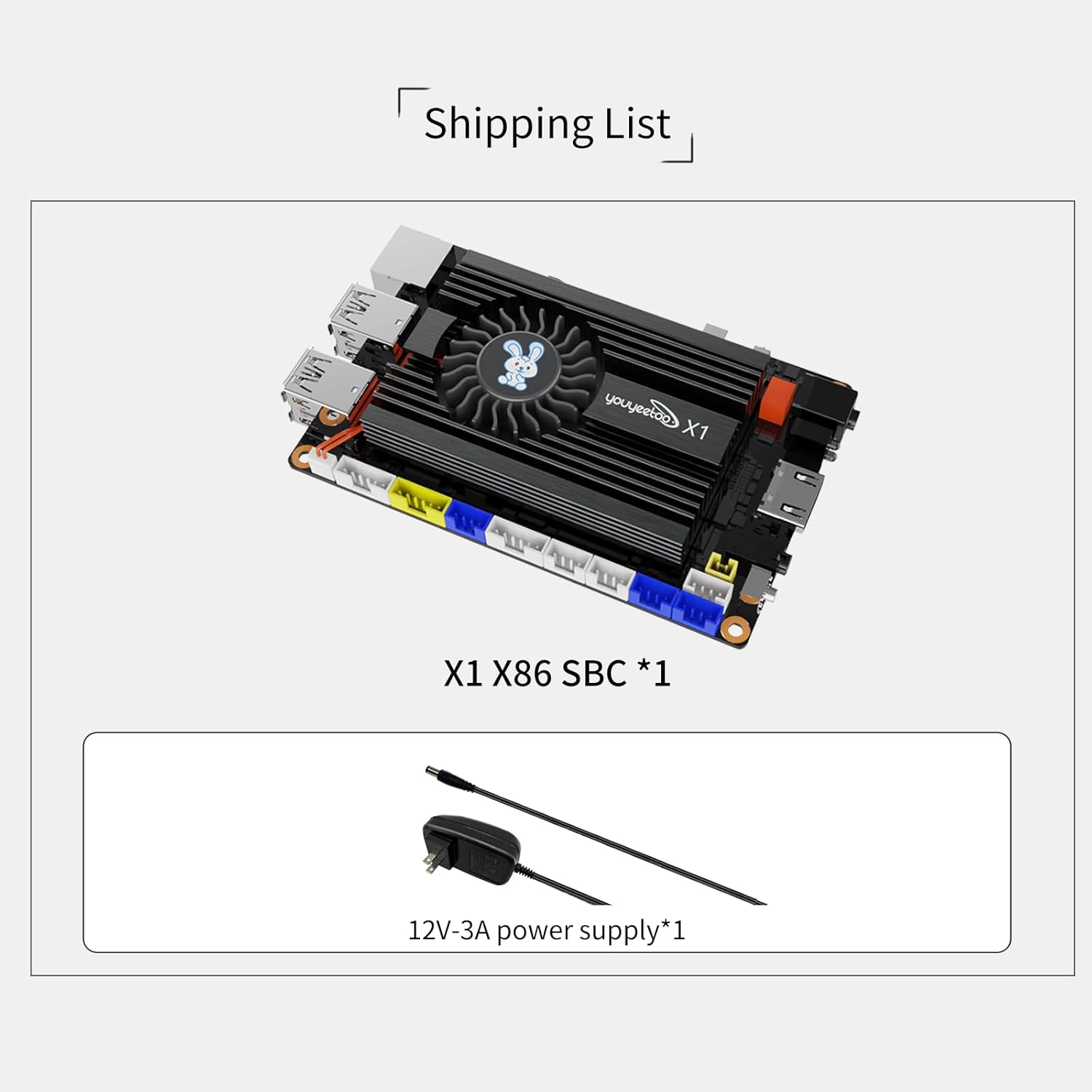

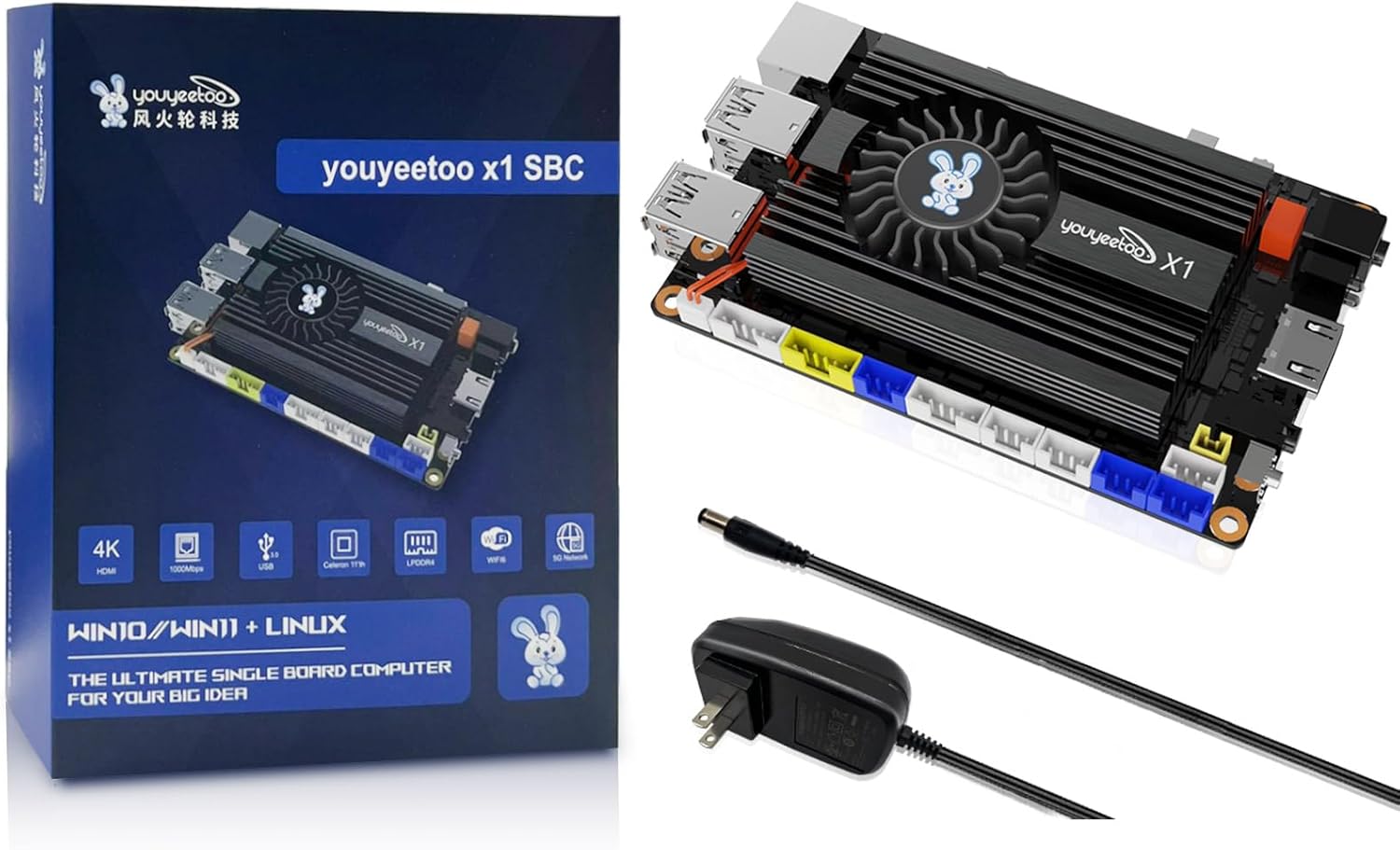

• [Packing list] In the box: youyeetoo X1 x86 single board computer*1(RAM/Strorage depend on your order),12V DC / 3A power supply *1, heat sink *1. If you have Any custimzation requirements or technical support please contact us by wpd#youeetoo.com (#------>@) or post your quesiton on “forum#youyeetoo&com/”(#------>@, &→.)
