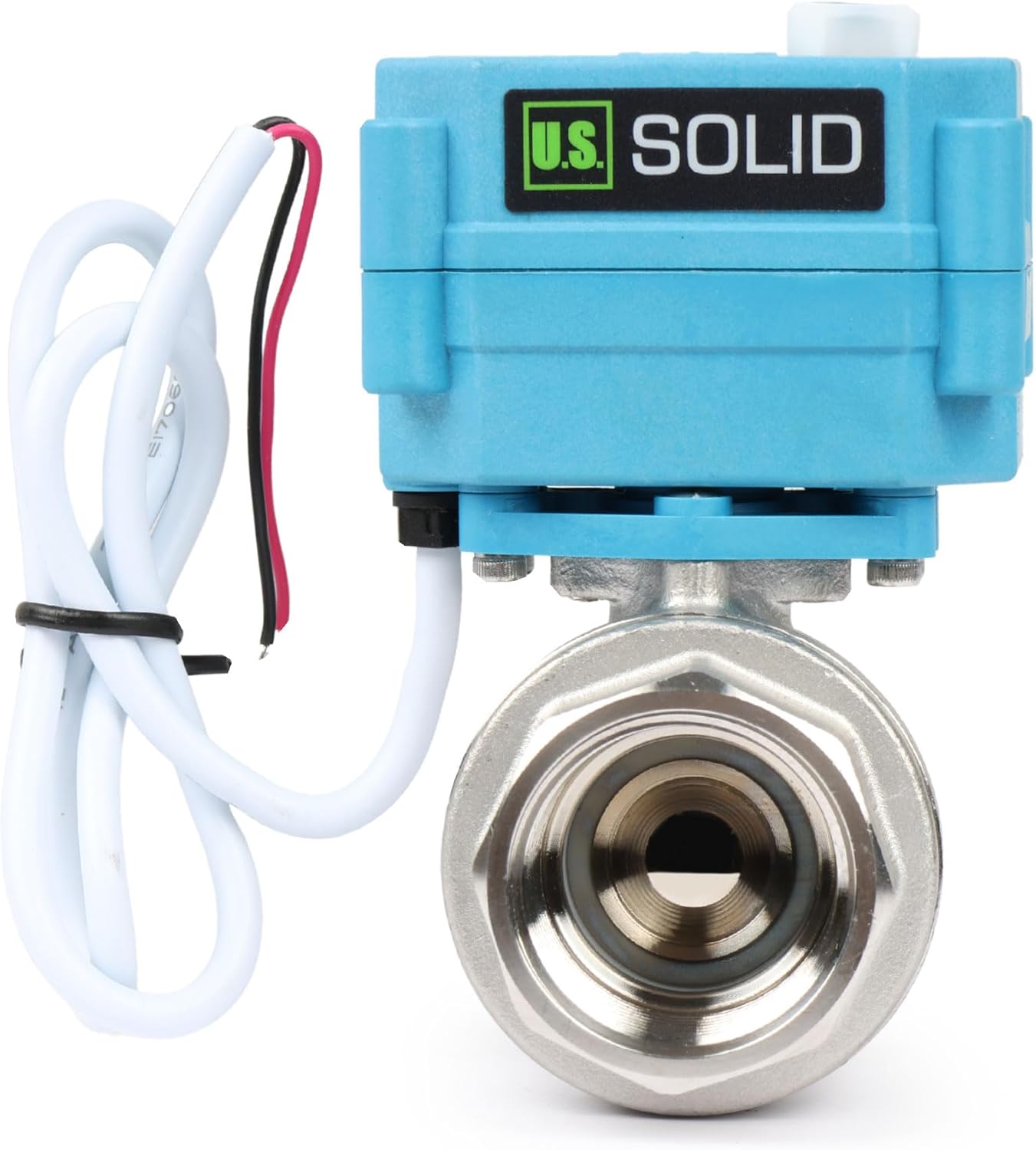

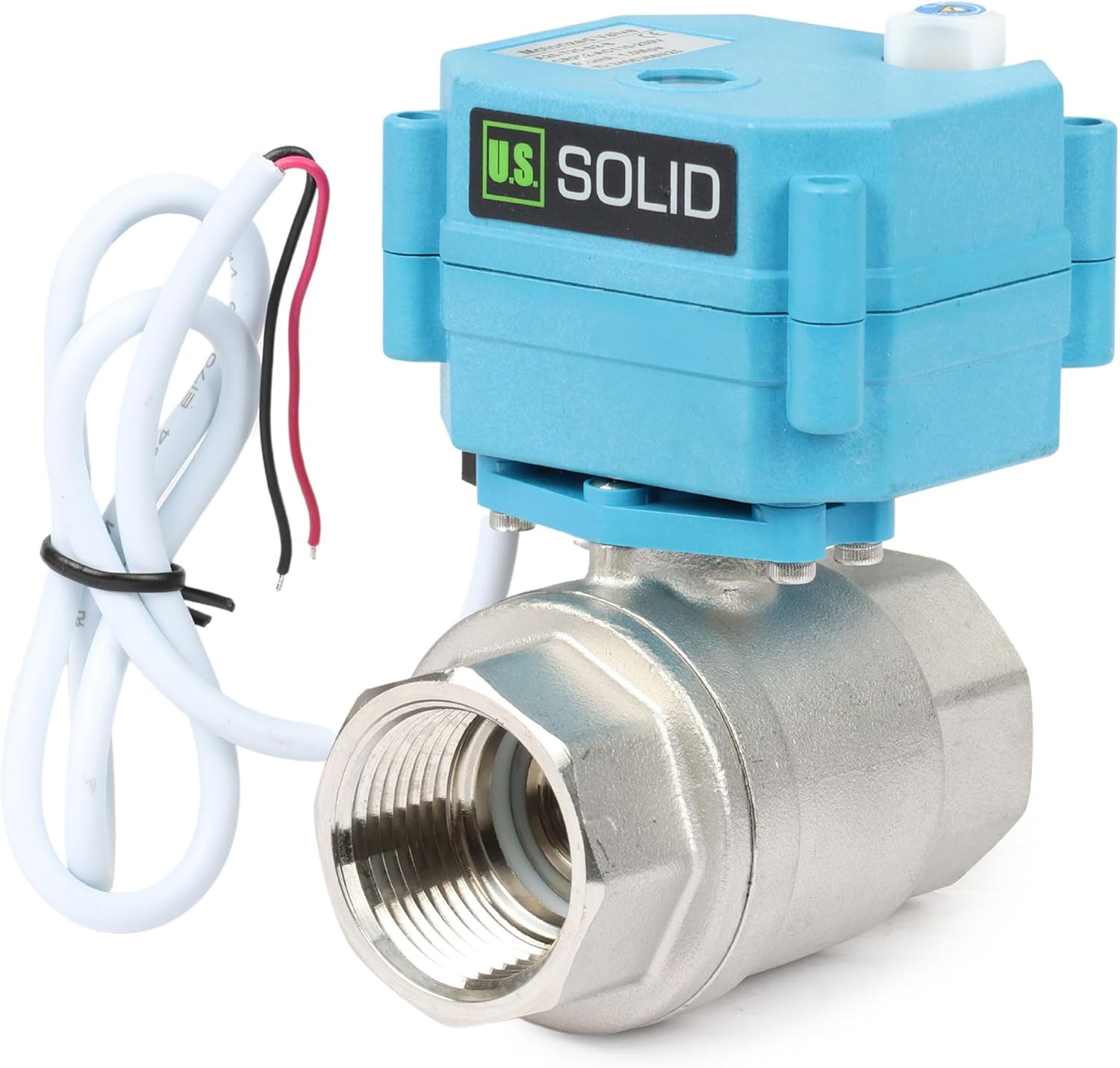

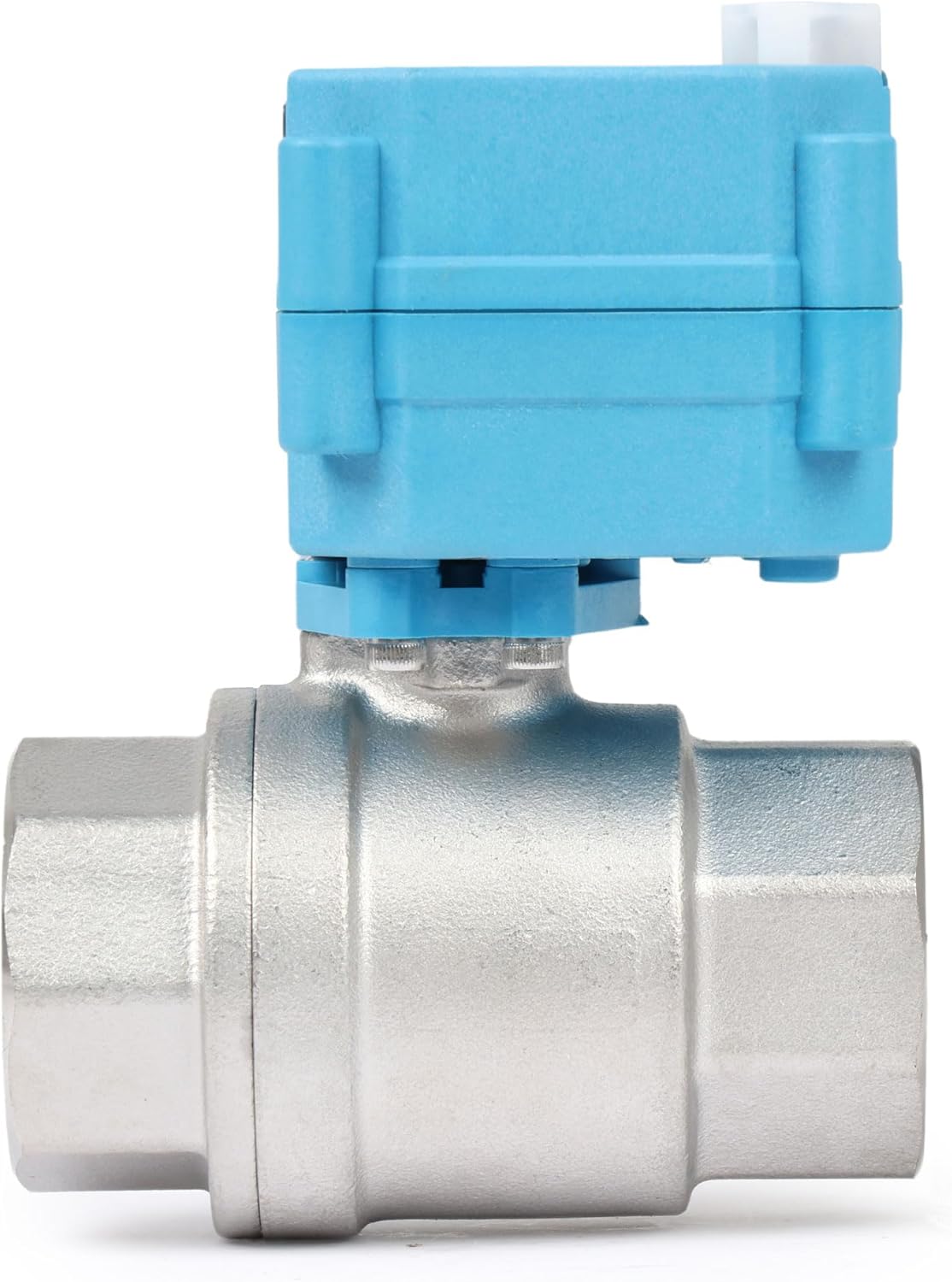

U.S. Solid Motorized Ball Valve - IP67 1inch Stainless Steel Ball Valve 110-230V with Waterproof Cover, Full Port, 2 Wire Auto Return, Normally Closed

U.S. Solid Motorized Ball Valve - IP67 1inch Stainless Steel Ball Valve 110-230V with Waterproof Cover, Full Port, 2 Wire Auto Return, Normally Closed

Regular price $150.70 USD
Regular price $150.70 USD Sale price
Shipping calculated at checkout.

Overview

  • Material : Stainless Steel
  • Brand : U.S. Solid
  • Item dimensions L x W x H : 4.5 x 3.5 x 3 inches
  • Exterior Finish : Stainless Steel
  • Inlet Connection Size : 1 Inches
  • Inlet Connection Type : National Pipe Tapered
  • Outlet Connection Type : NPT
  • Number of Ports : 2
  • Outlet Connection Size : 1 Inches
  • Specification Met : ASTM, MSS

About this item

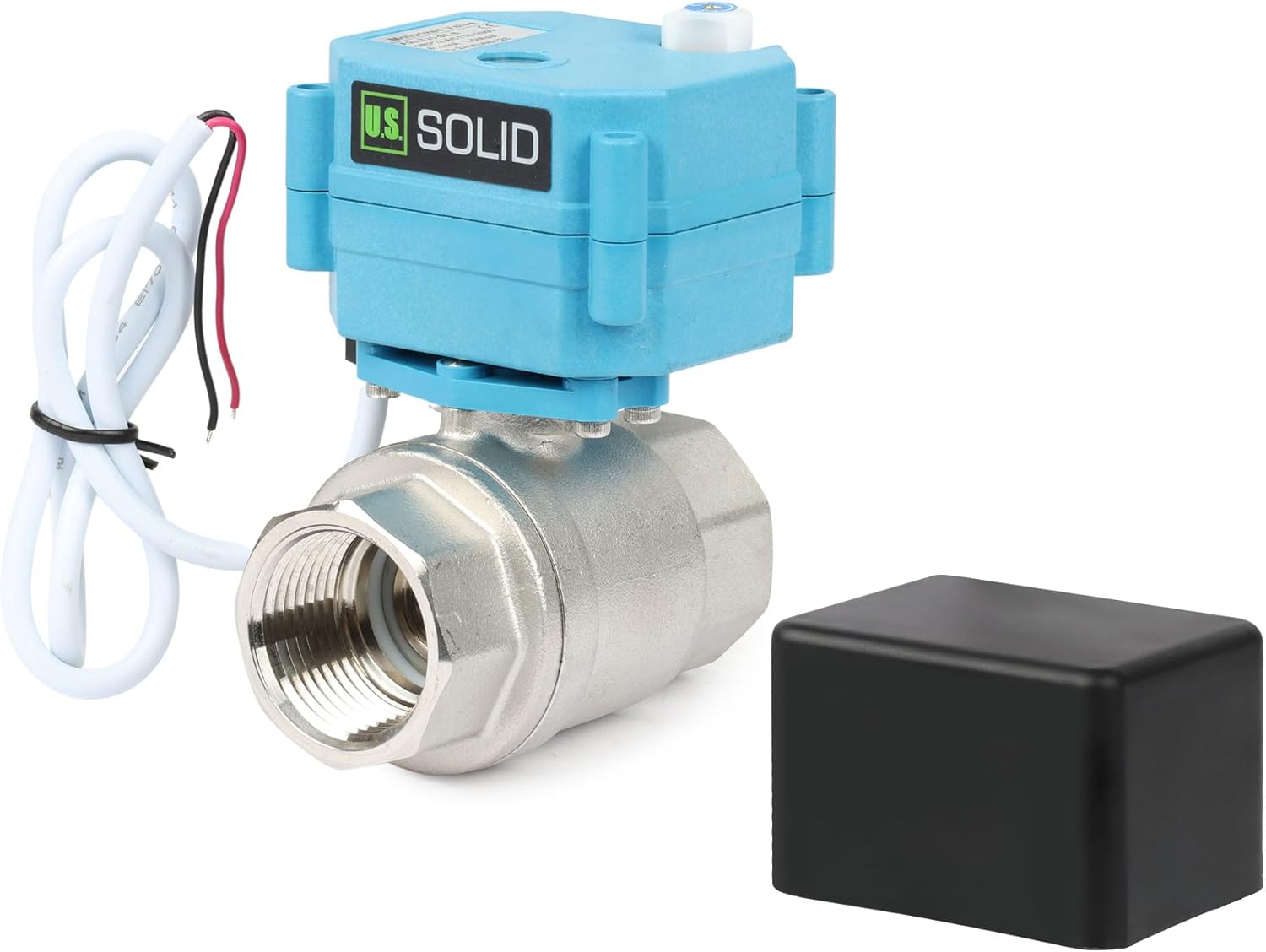

  • IP67 and Waterproof Cover: The motorized ball valve is rated IP67, indicating its waterproof capability, suitable for outdoor use. Additionally, a protective housing is included in the package to shield the valves from rain, thereby extending their lifespan.

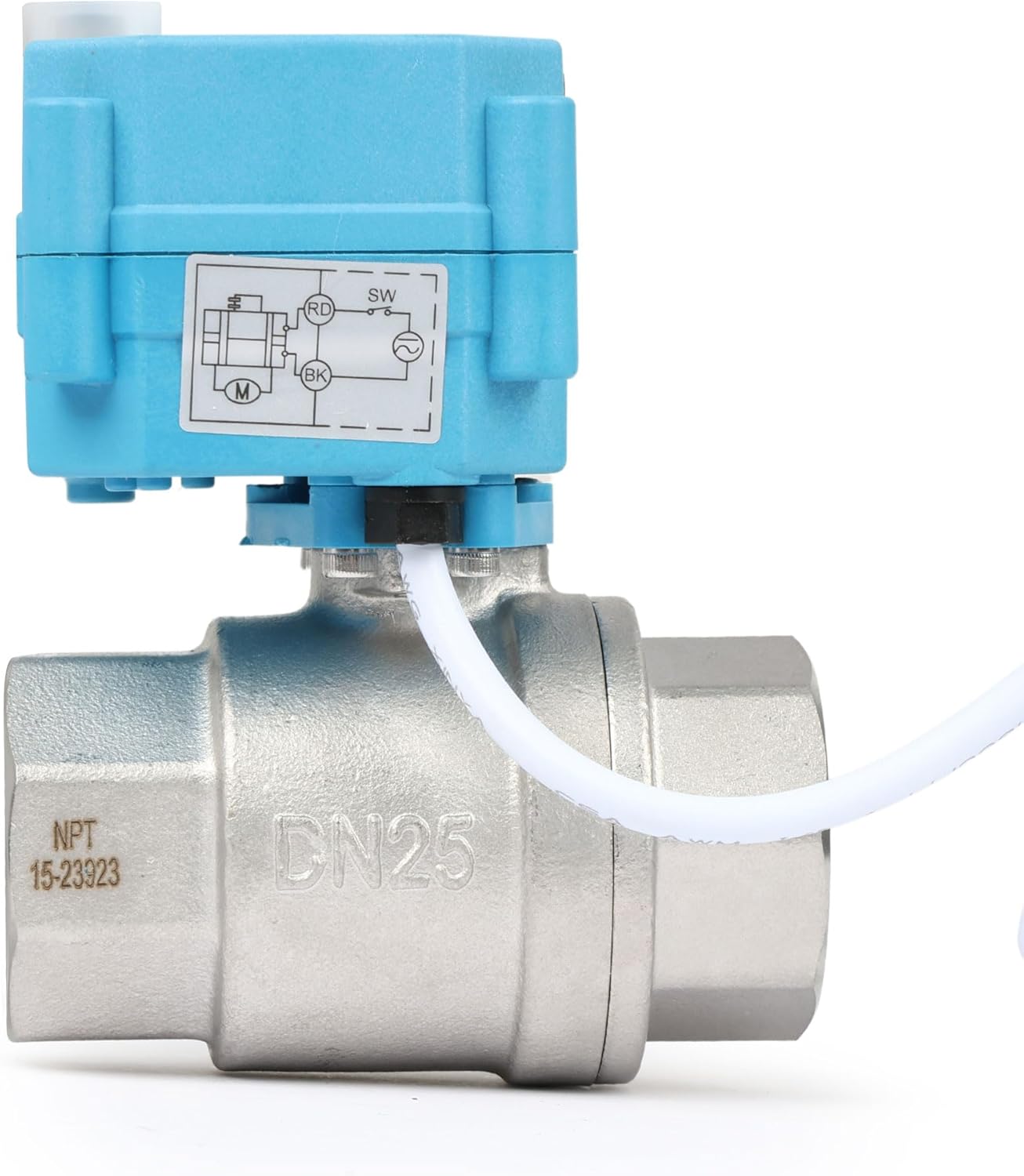

  • 2-Wire Automatic Return Setup: Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed when power is removed.
  • NPT THREADING: The threading on the ball valve adheres to the National Pipe Thread standards for manufacturing and measurement. This electrical ball valve is full port, effectively minimizing pressure loss through the valve, making it an ideal choice for home automation projects.
  • SAFE AND RELIABLE: The valve body is constructed from SS304 steel, ensuring safety for use with drinking water. With a lifespan of approximately 70,000 cycles, it offers long-lasting reliability.
