110VAC 120VAC 63A Over/Under Voltage Protection Device Voltage Current Protector, 2 Red LED Displays, Single Phase Low Voltage Monitor, Din Rail Installation in DB Home Usage

Overview

• Connector Type : Screw
• Contact Material : Copper
• Contact Type : Normally Closed
• Current Rating : 63 Amps
• Mounting Type : DIN Rail Mount

About this item

• Home usage over or under and current protection: It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment.
• Automatic recovery connecting: Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the protector can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal.
• Adjustable voltage current protector and reconnecting time: Overvoltage value, undervoltage value, overcurrent protection and fault recovery delay time are adjustable.

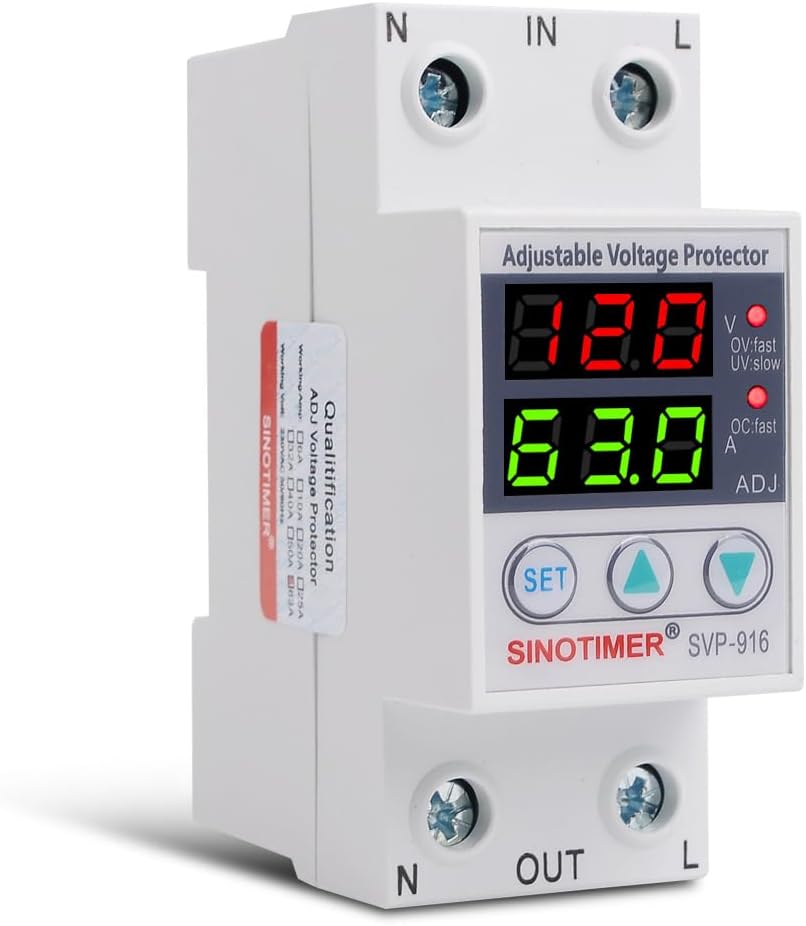

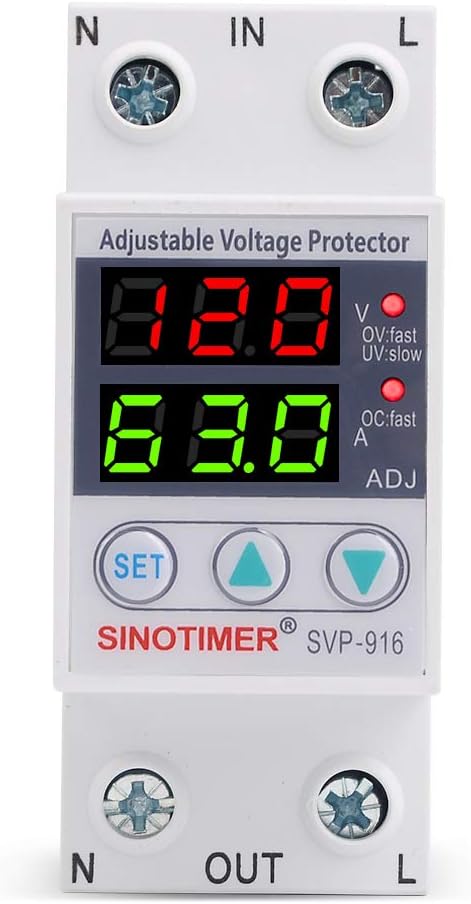

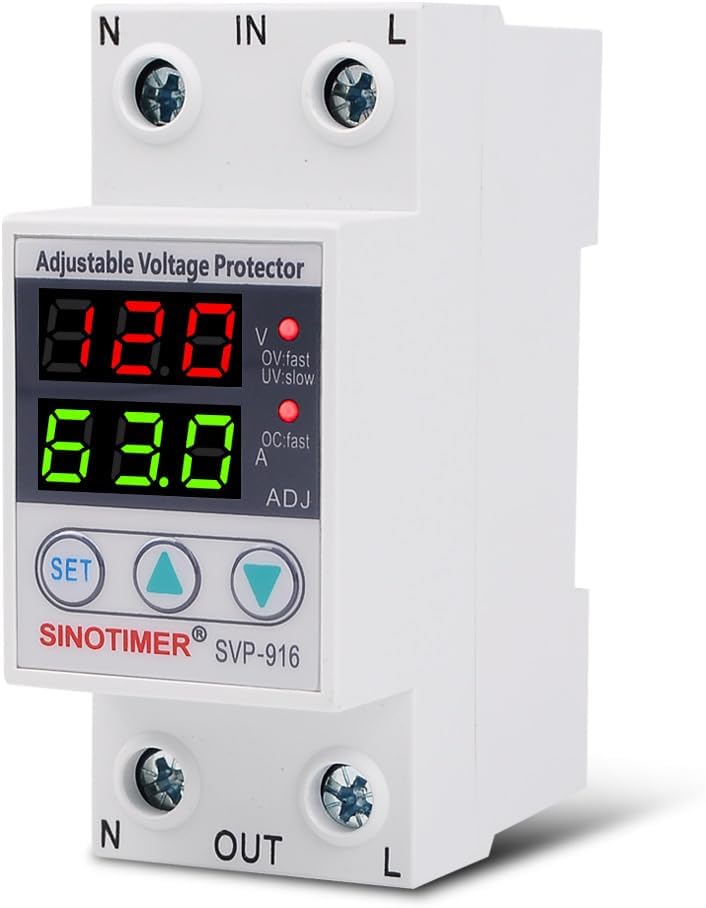

• Double LED display: SVP916 protector can display actual measured voltage and current. Protectors are available in 40A, 63A and 80A resistive load, not the same current load, depending on each customer's actual use need.
• Precautions for use: Please pay attention to the maximum protection current value of the protector, the zero line N of the protector is directly connected, and there is no disconnection function. When the undervoltage breaking time is greater than 0.3 seconds, the voltage protector will not open after power failure.
