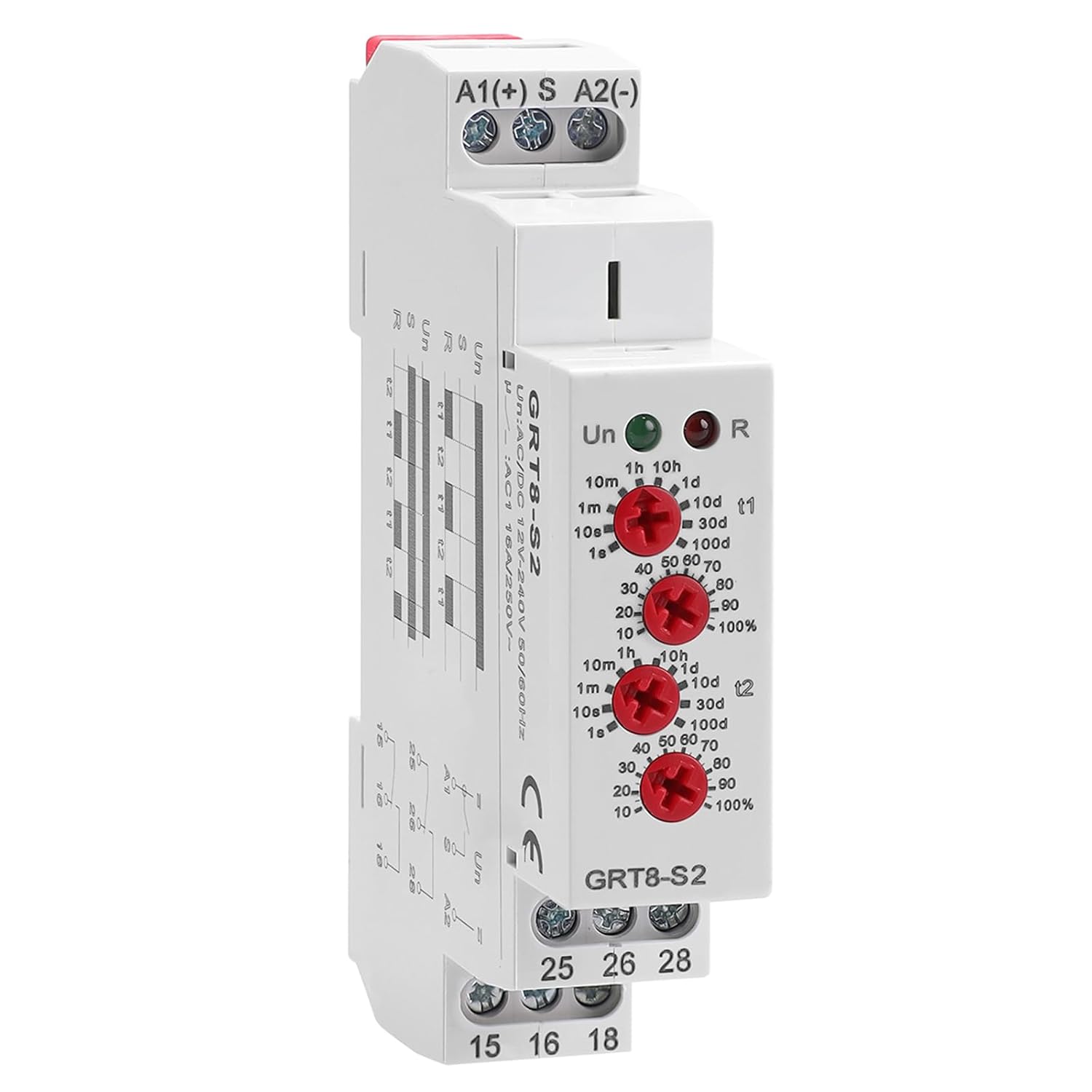

Asymmetric Cycle Timer Relay 2SPDT 16A GRT8-S2 Long or Short Period Repeat Cycle Tntermittent Timer Electronic Relay in Din Rail Wide Voltage Range AC DC 12V to 240V

Overview

• Connector Type : Screw
• Contact Material : Brass
• Contact Type : Normally Open
• Current Rating : 16 Amps
• Mounting Type : DIN Rail Mount

About this item

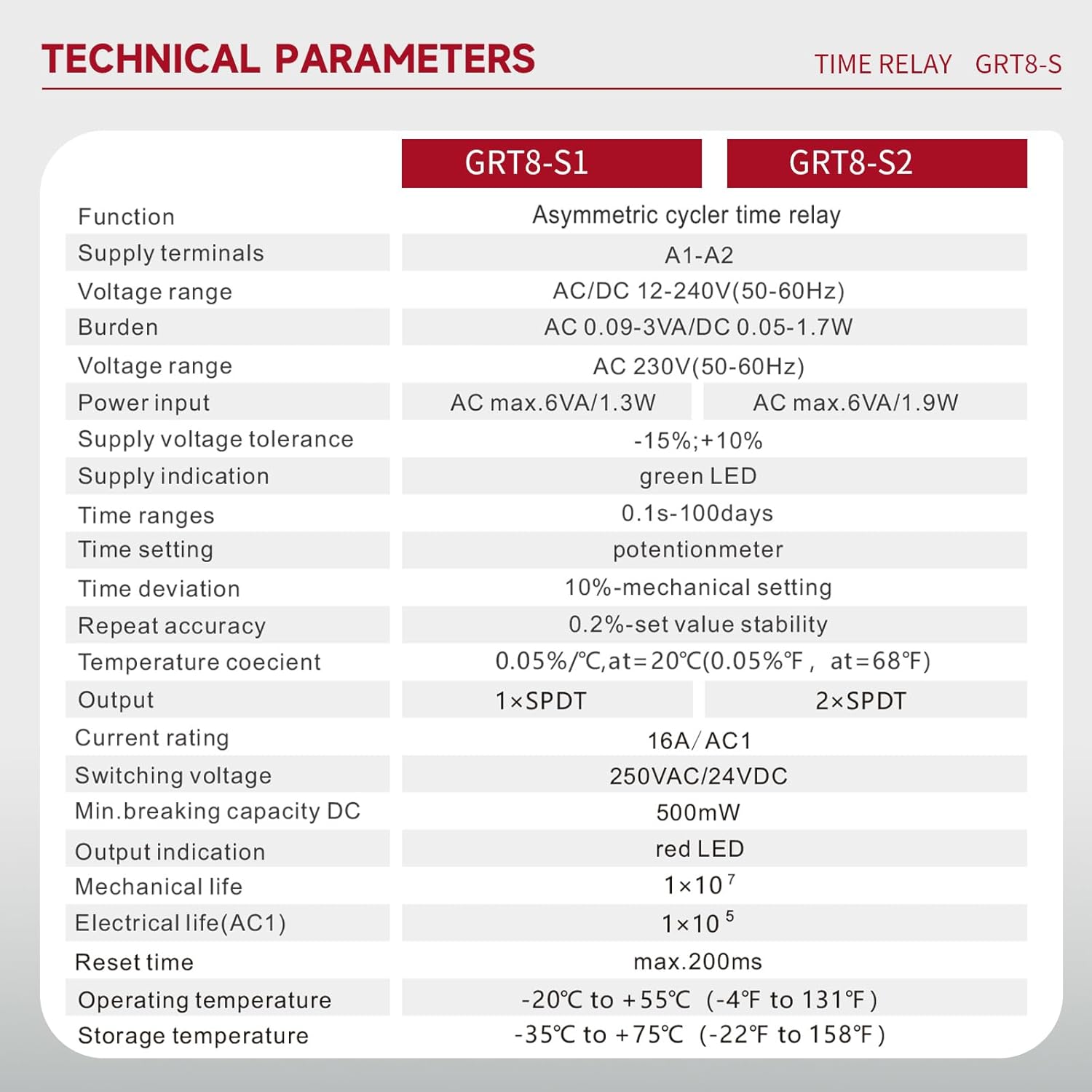

• TEN SPECIAL FUNCTION & APPLICATION: grt8-s2 ac dc 12v 110v 230v 240V cycle delay timer relay, can preset the machine start time, repeat cycle timing relay has a wide delay setting range from 0.1 seconds to 100 days, working voltage is AC DC 240V (50-60Hz), output contact: 2SPDT (2NO 2NC), rated current is 16A. This 12V cycle delay timer delay relay can be used in motors, elevators, air conditioning systems, power systems, etc., for electrical equipment overvoltage, emergency/backup power switching control; prevent equipment reversal; normal/emergency power switch

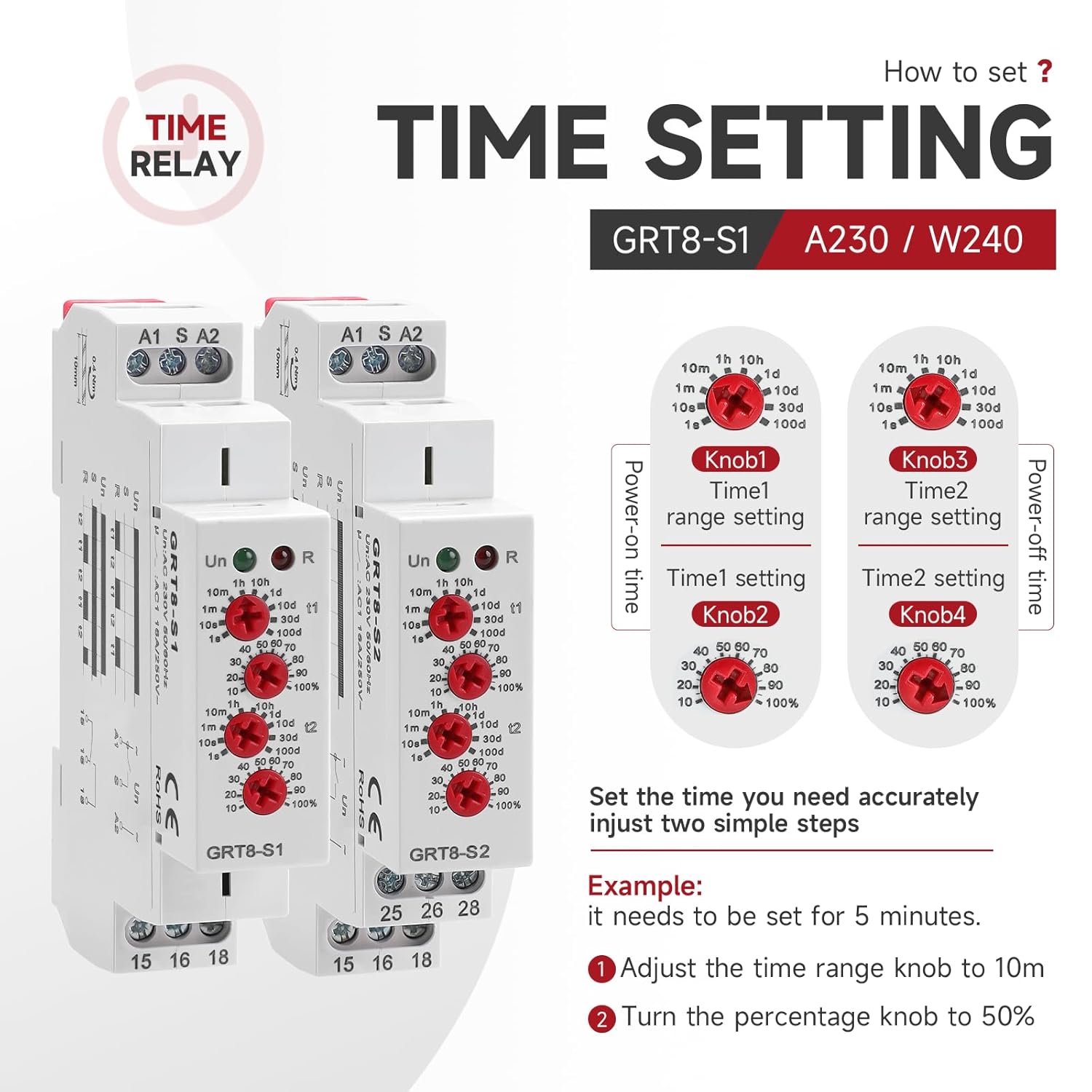

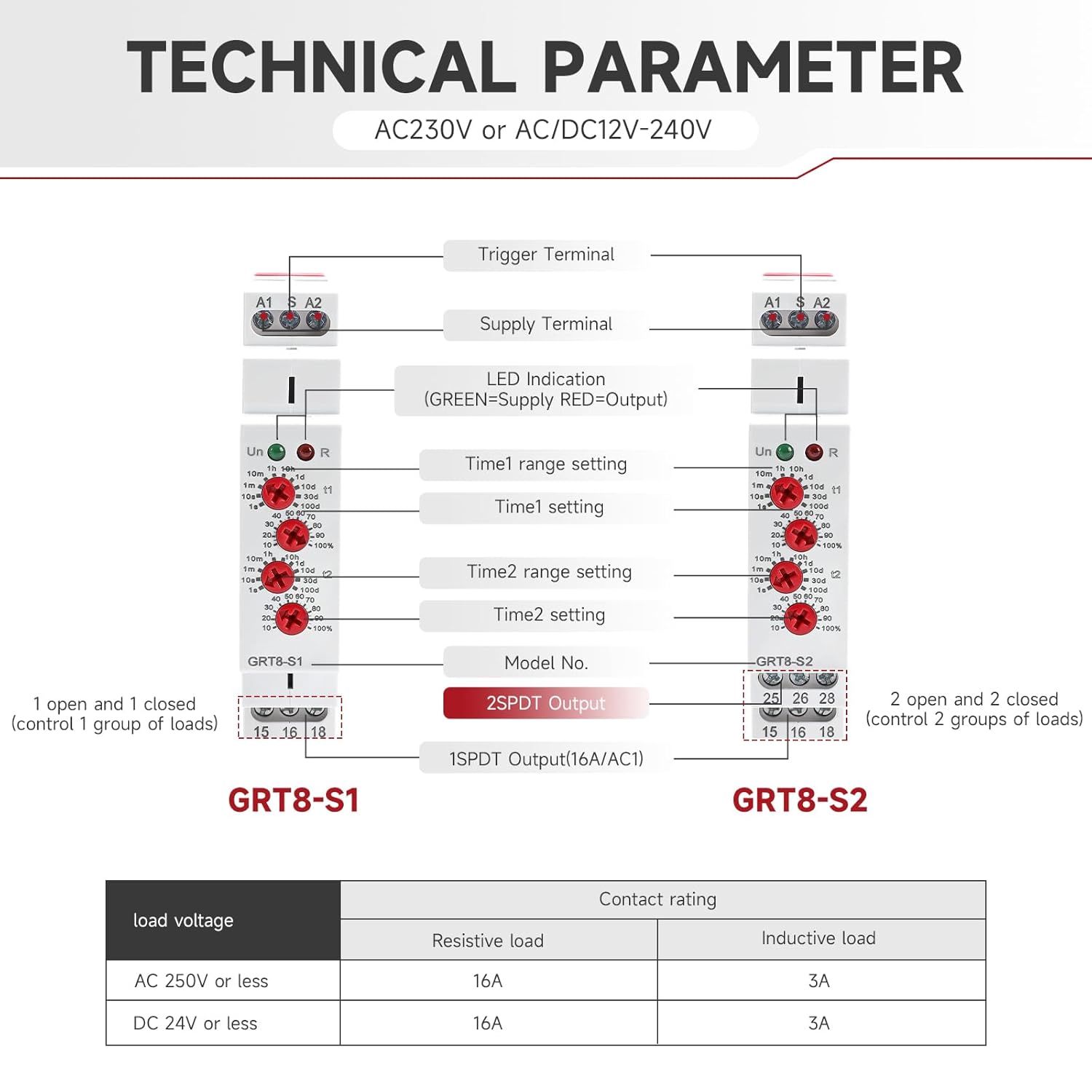

• INDICATOR BUTTON: grt8 s2 ac dc 12-240v asymmetric periodic timing relay, working status is indicated by LED indicator: green LED is always on (power on), green LED is off (power supply abnormality); red LED flashes (indicates starting to work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicates stopping working). If you want to set the delay to work for 5 days and then work for 1 day: turn the first knob to 10d; turn the second knob to 50%, the circuit is connected after 5 days; turn the third knob to 10d; turn the fourth knob to 10%, the circuit is connected for 1 day, then disconnected for 5 days, and then repeat

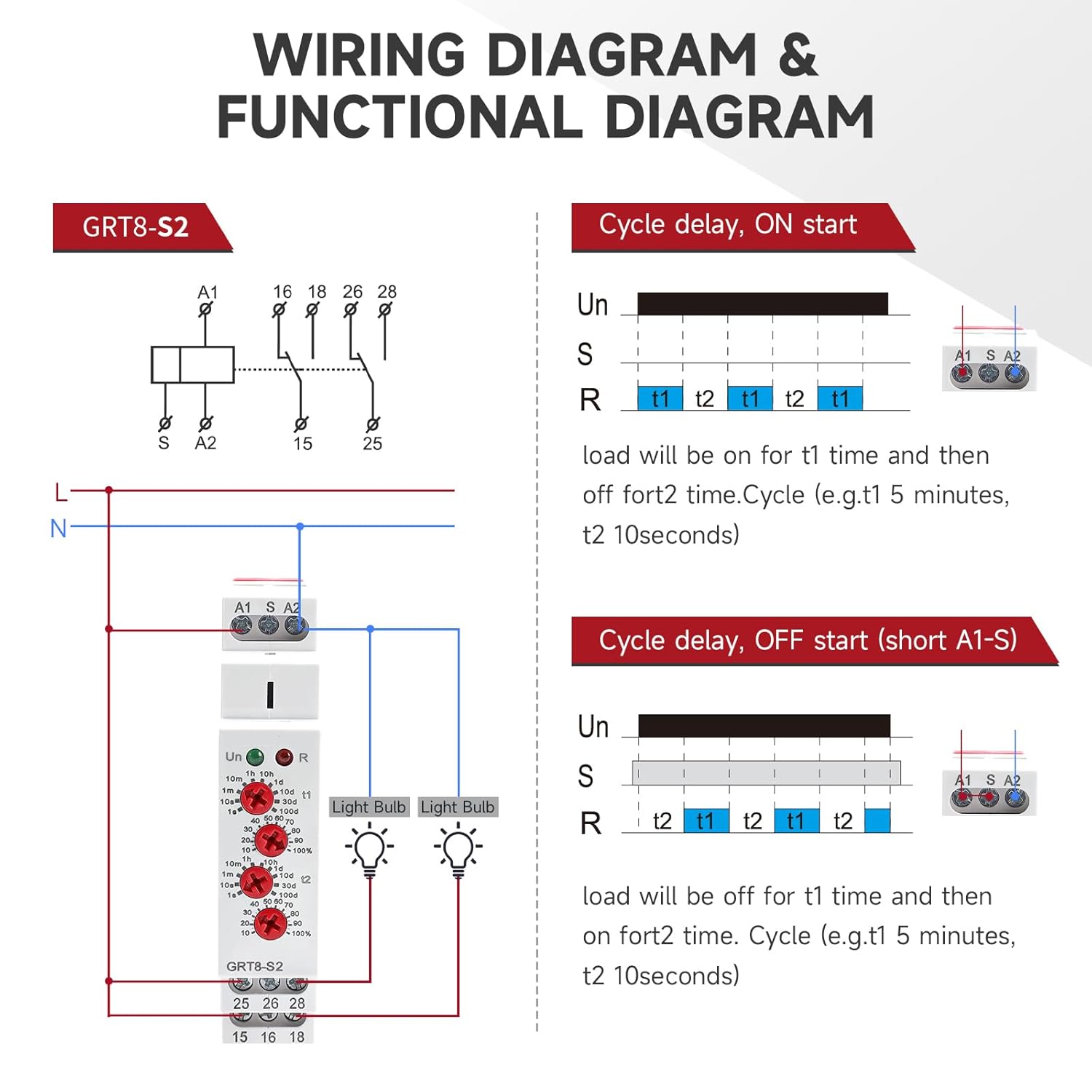

• Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON），and function E as shown in the figure, F,G,H,I,J

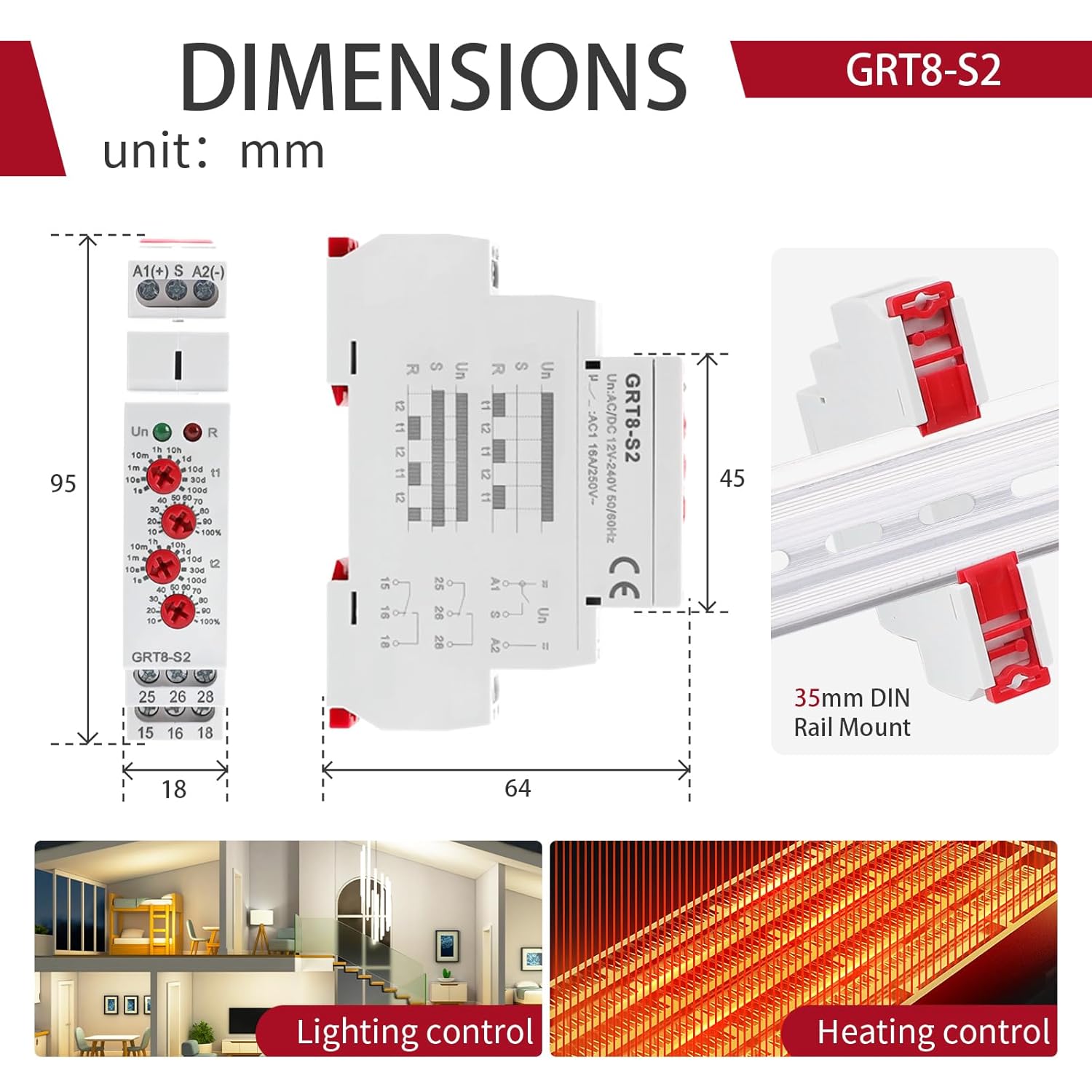

• Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.39 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
• WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time. Please check the instructions and videos before operation, which can help you better use the relay
