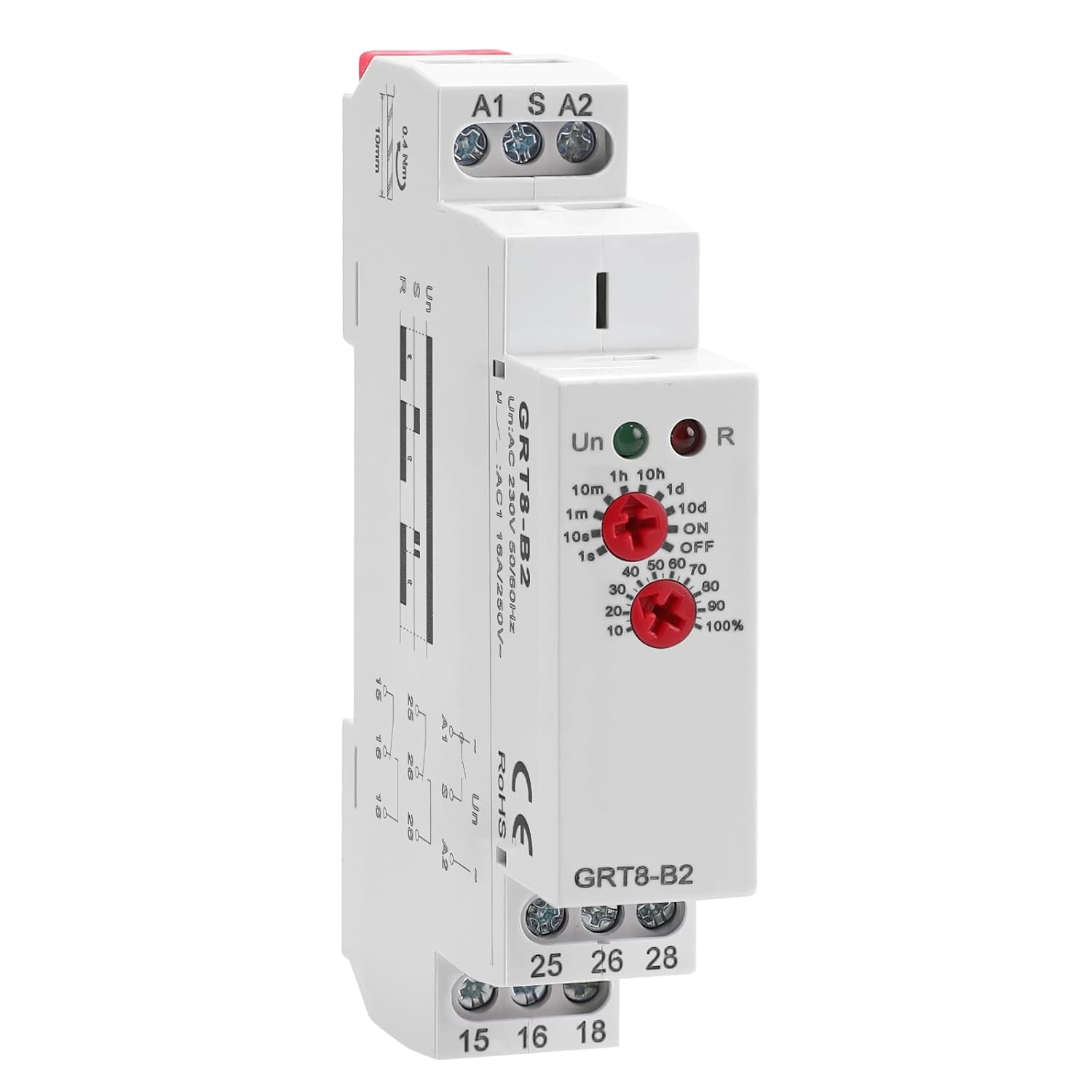

Delay Turn Off Time Relay 16A Delay Timer Relay 2SPDT GRT8 B2 DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days Voltage Range AC 230V

Overview

• Connector Type : Screw
• Contact Material : Copper
• Contact Type : Normally Open
• Current Rating : 16 Amps
• Mounting Type : DIN Rail Mount

About this item

• FUNCTION& APPLICATION: 230v timer relay, preset the machine to work for a predetermined time and then turn off the time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide working voltage of AC230v (50-60Hz), output contact: 2SPDT (2NO 2NC), rated current is 16A. This ac230V timer delay relay can be used in industrial equipment, lighting, manufacturing industries to accurately control the delay time of changing lighting, heating, motors, machines, etc
• INDICATOR BUTTON: grt8s1 asymmetric periodic timing relay, working status is indicated by LED indicator: green LED is always on (power on), green LED is off (power supply abnormality); red LED flashes (indicates starting to work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicates stopping working). If you want to set the delay to work for 5 days and then work for 1 day: turn the first knob to 10d; turn the second knob to 50%, the circuit is connected after 5 days; turn the third knob to 10d; turn the fourth knob to 10%, the circuit is connected for 1 day, then disconnected for 5 days, and then repeat
• Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON），and function E as shown in the figure, F,G,H,I,J

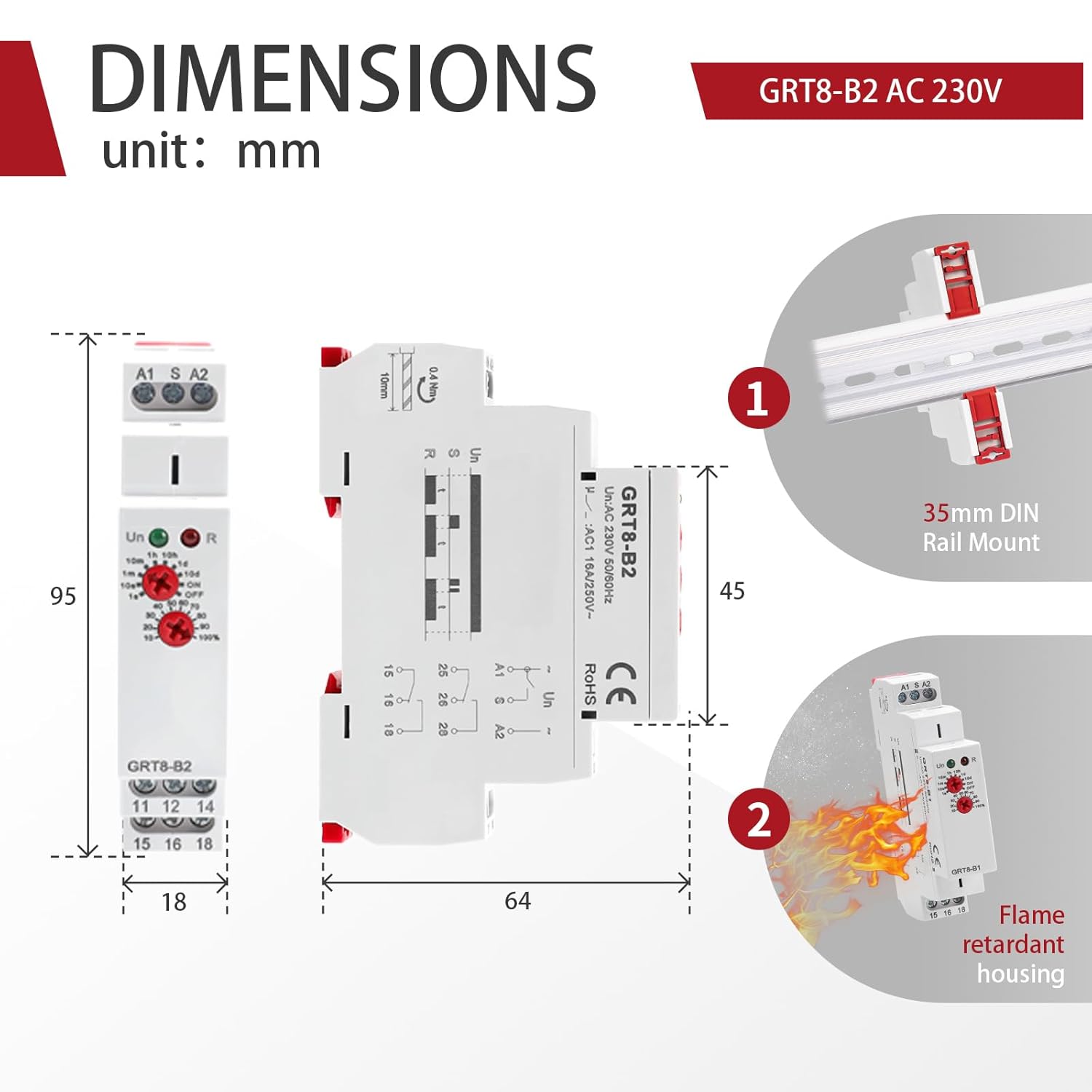

• Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
• WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
