GRT8 M2 Multifunction Time Relay 2 Outputs 16A Adjustable Relay 12V Electronic Timer Relays in Din Rail, 0.1s-10 Days Wide Range Delay On Off Automation Universal Voltage Range ACDC 12V to 240V

Overview

• Connector Type : Screw
• Contact Material : Copper
• Contact Type : Normally Open
• Current Rating : 16 Amps
• Mounting Type : DIN Rail Mount

About this item

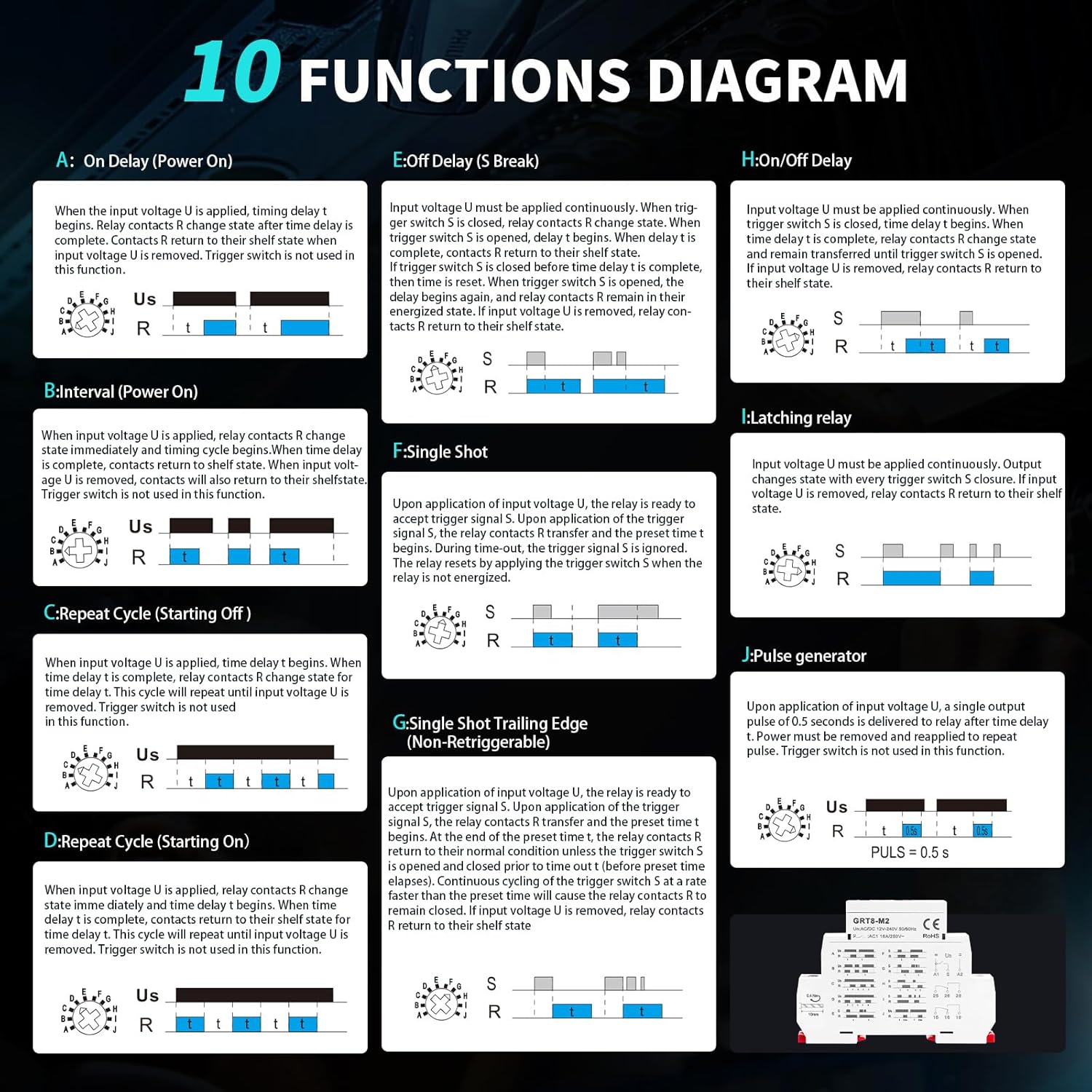

• FUNCTION MODE: GRT8-M2 multi function time delay relay, can preset the machine start or stop time, 5 time functions are controlled by the power supply voltage, 4 time functions are controlled by the control input, and 1 latch relay function
• PARAMETER RANGE: number of outputs：2SPDT（2NO 2NC） rated current: 16A rated voltage: AC DC 12to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay on off range: 0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1hrs - 1h/ 1hs - 10hrs / 0.1day - 1day /1day - 10days

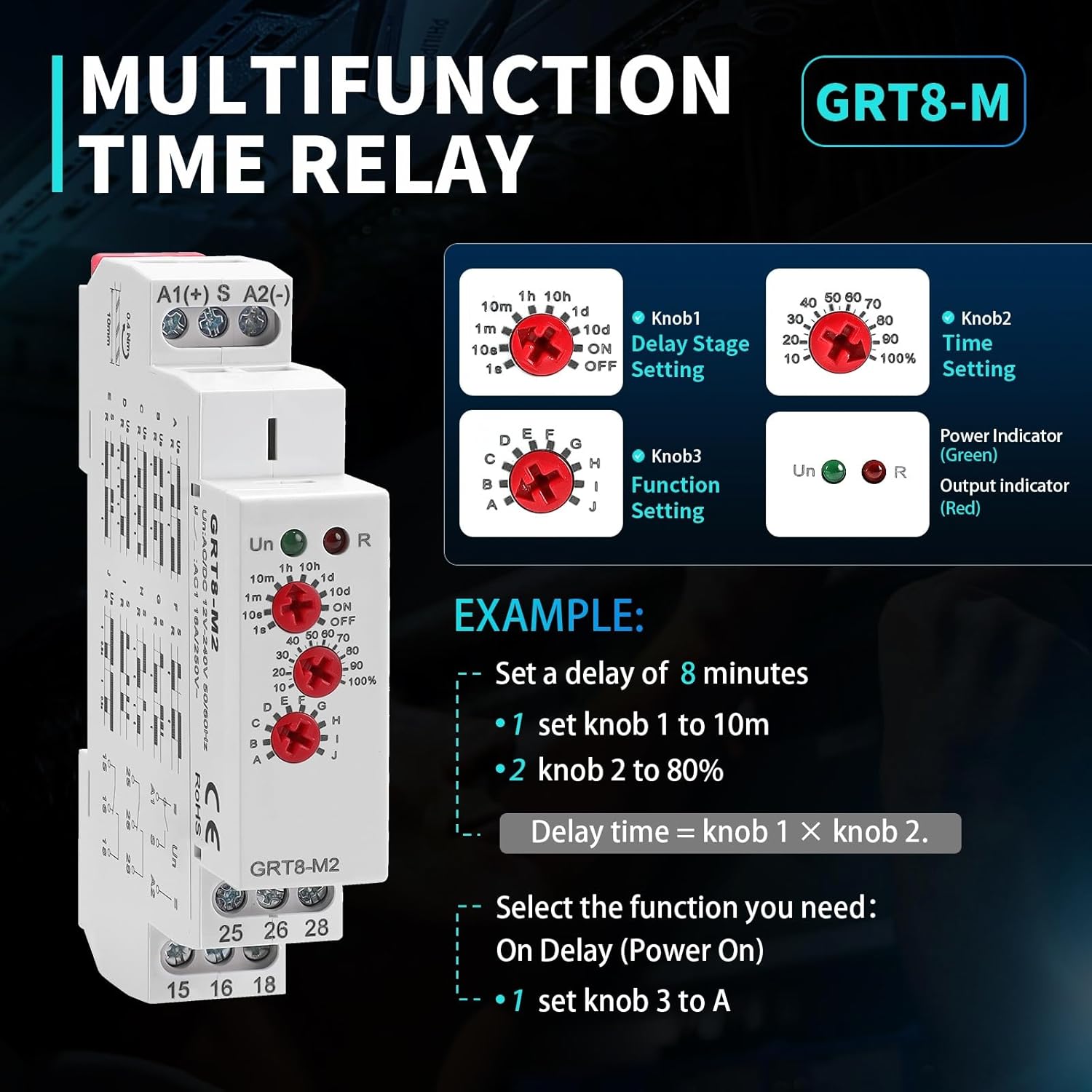

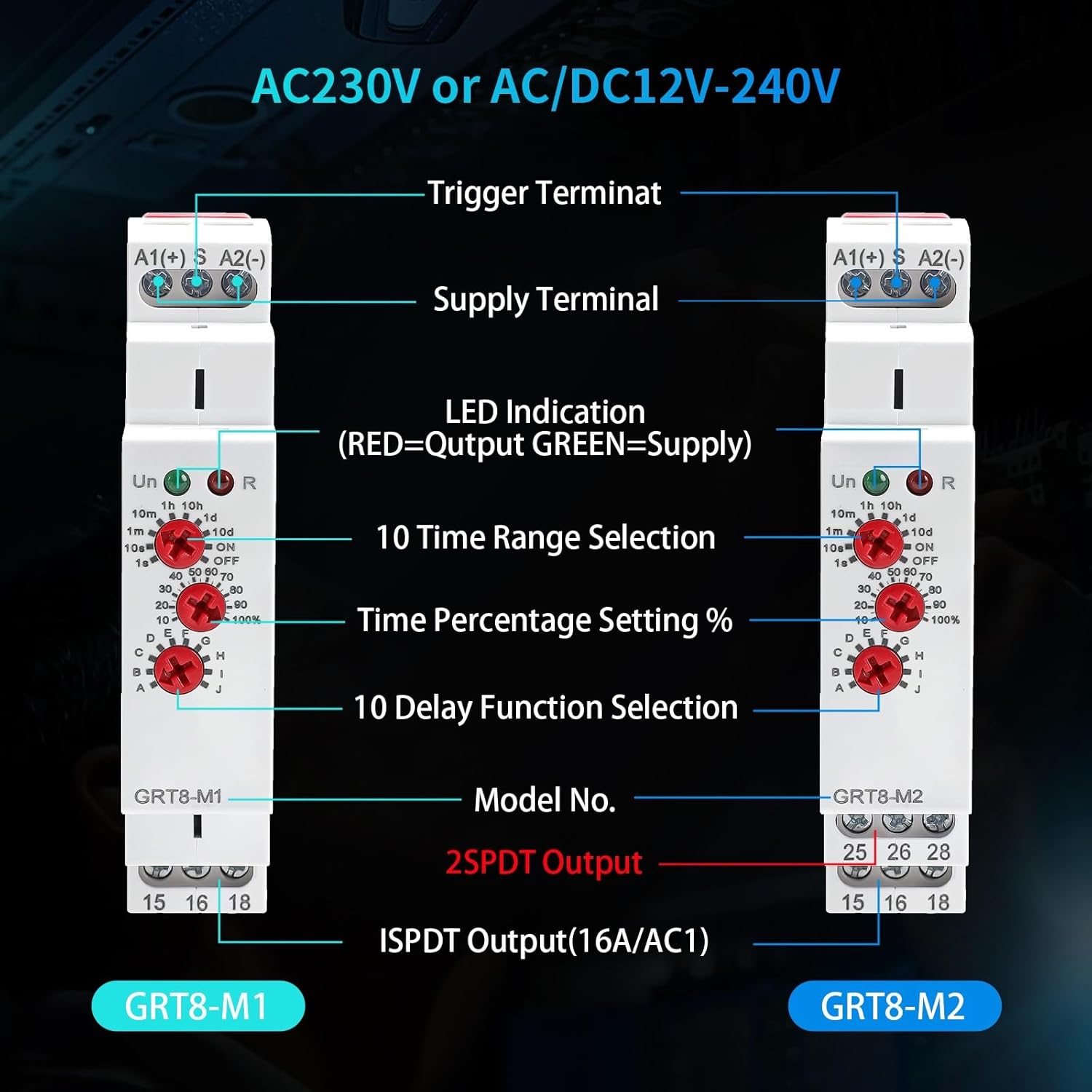

• USE & STATUS: The first knob of the multifunction timer relay is for delay time gear selection, the second knob is for time percentage multiples, and the third knob is for function mode. The green indicator light of the relay delay indicates the relay power supply, and the red indicator light indicates the delay and contact status

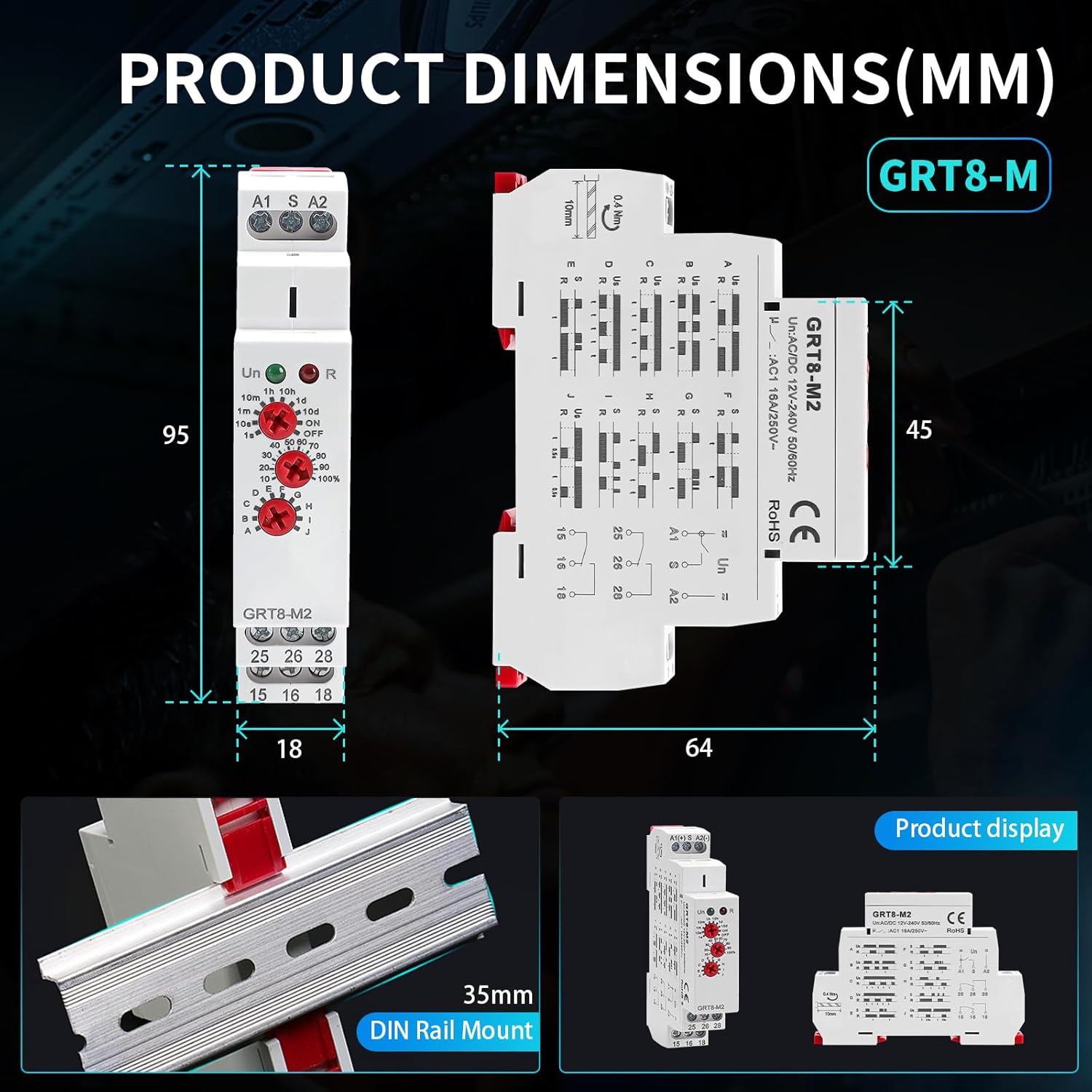

• MATERIAL & SIZE: din rail 120v timer relay uses an ABS plastic sealed housing, timer relay module measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.38 ounces, and is mounted on a 35 mm Din rail
• WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
