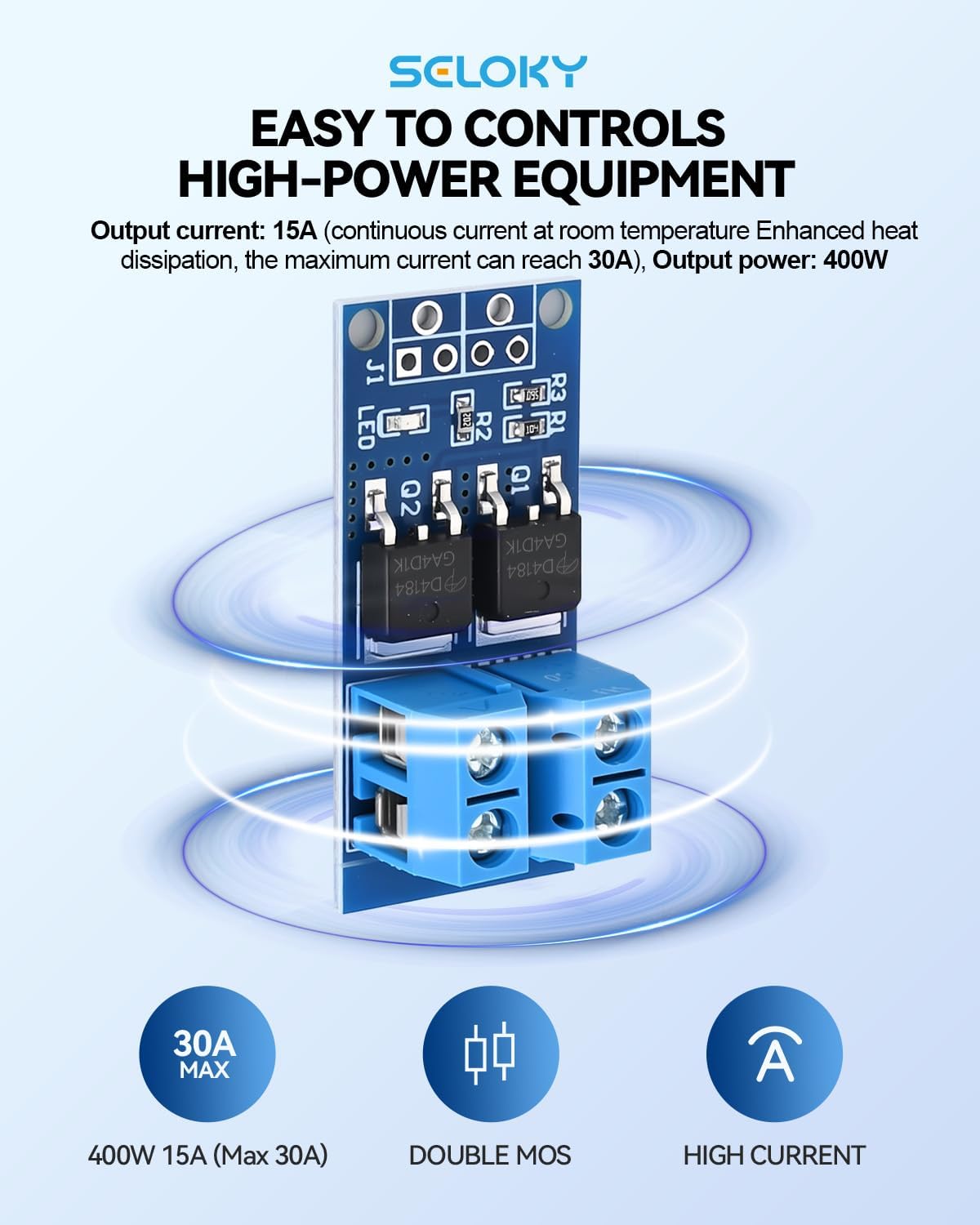

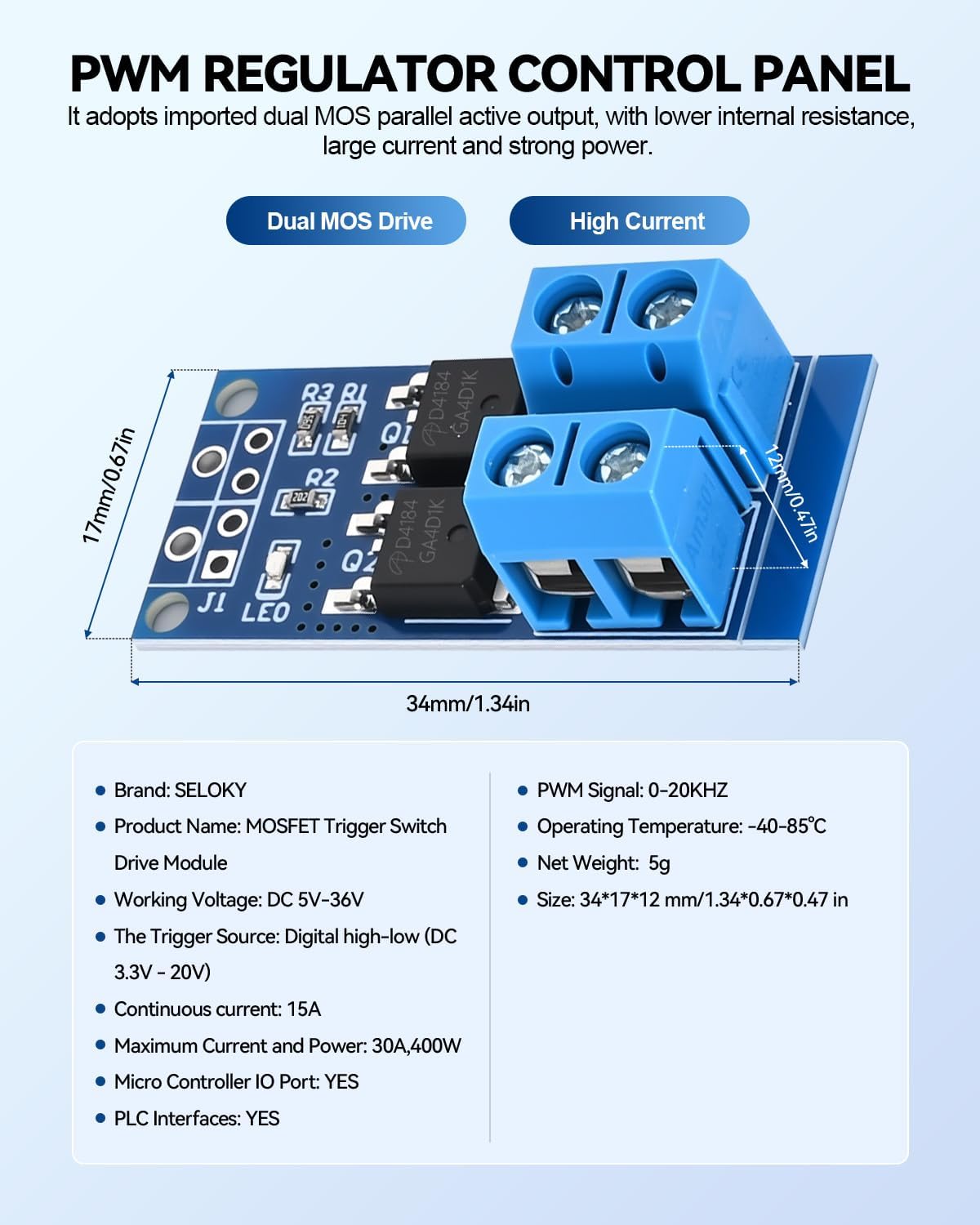

Electrical Specifications: Operating Voltage: DC 5V - 36V; Trigger Signal: Digital high/low level (DC3.3V - 20V compatible); Current Handling: 15A continuous (upgradable to 30A with enhanced cooling) | Power Rating: 400W

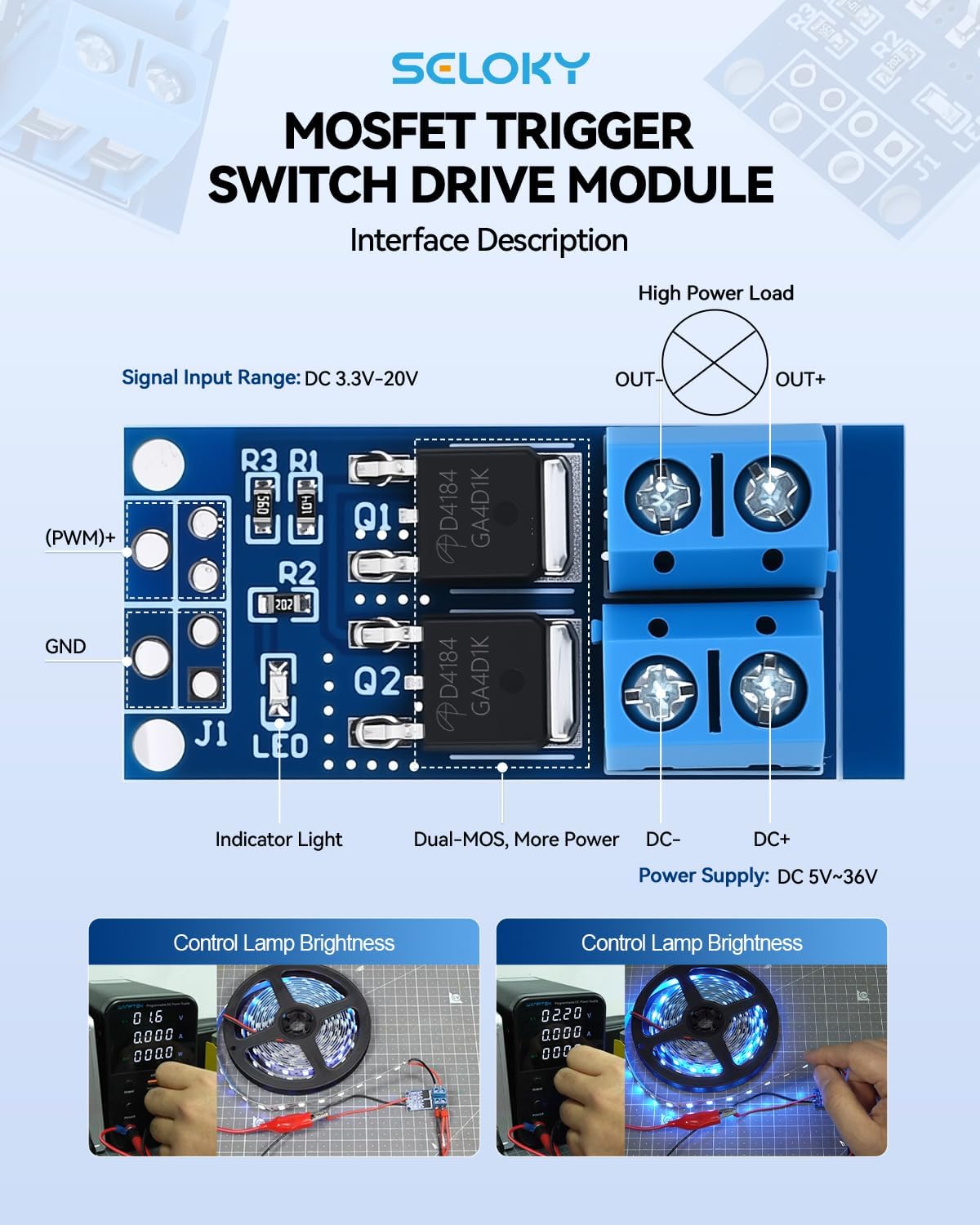

Multi-Protocol Trigger Compatibility: Accepts control signals from microcontroller GPIO pins, industrial PLC interfaces, and direct DC power sources
PWM Optimization: Full-spectrum PWM compatibility (0-20kHz frequency range) for precision modulation

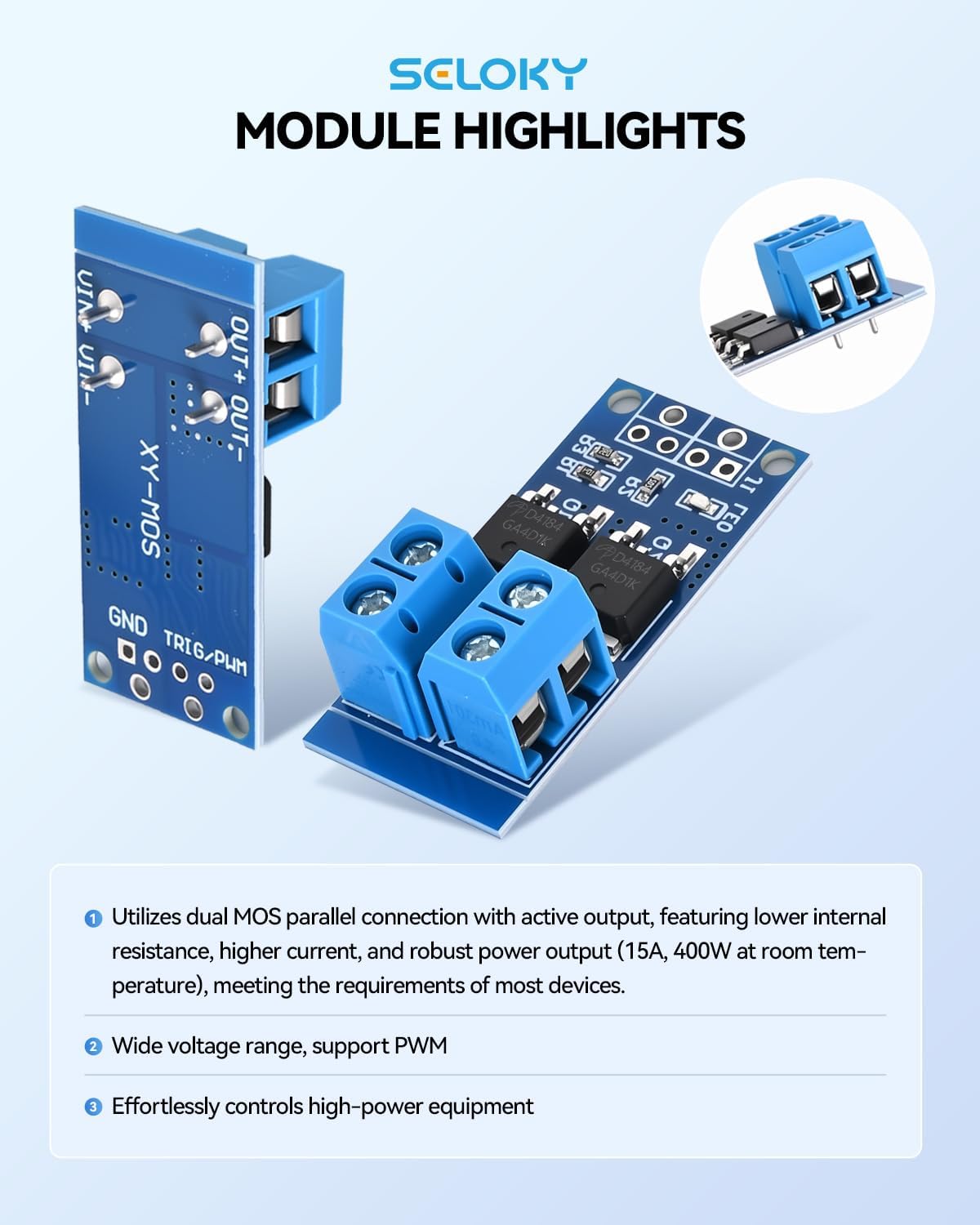

Enhanced Performance Design: Dual-MOSFET parallel architecture ensures high reliability and low internal resistance, enabling superior current/power throughput. Maintains stable 15A/400W operation under standard thermal conditions, effortlessly driving high-power loads for diverse applications
Versatile Load Control: Regulates power equipment, motors (including DC types), lighting systems (incandescent/LED), micro-pumps, and solenoid valves. Supports PWM-based motor speed tuning and luminance adjustment
