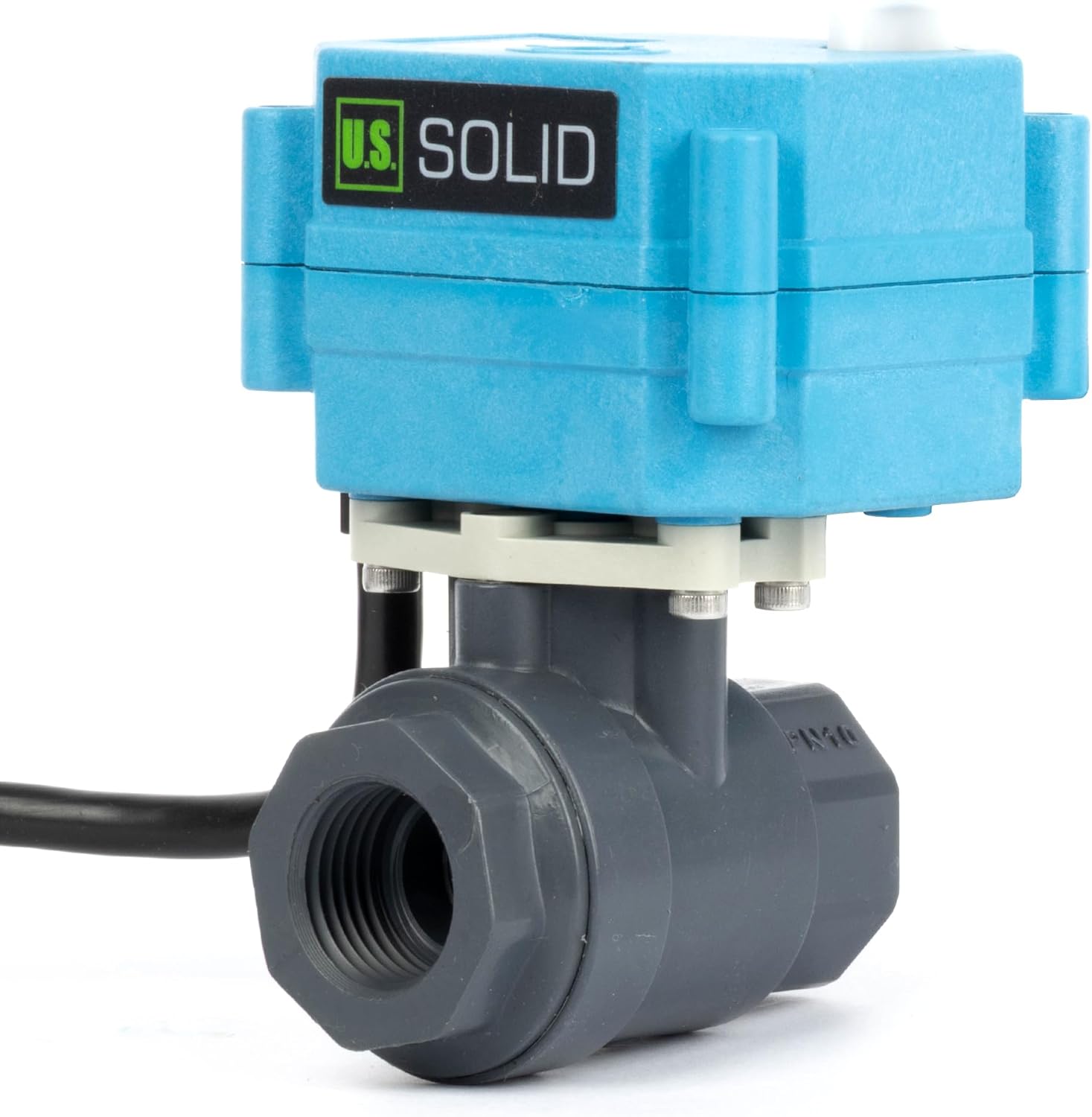

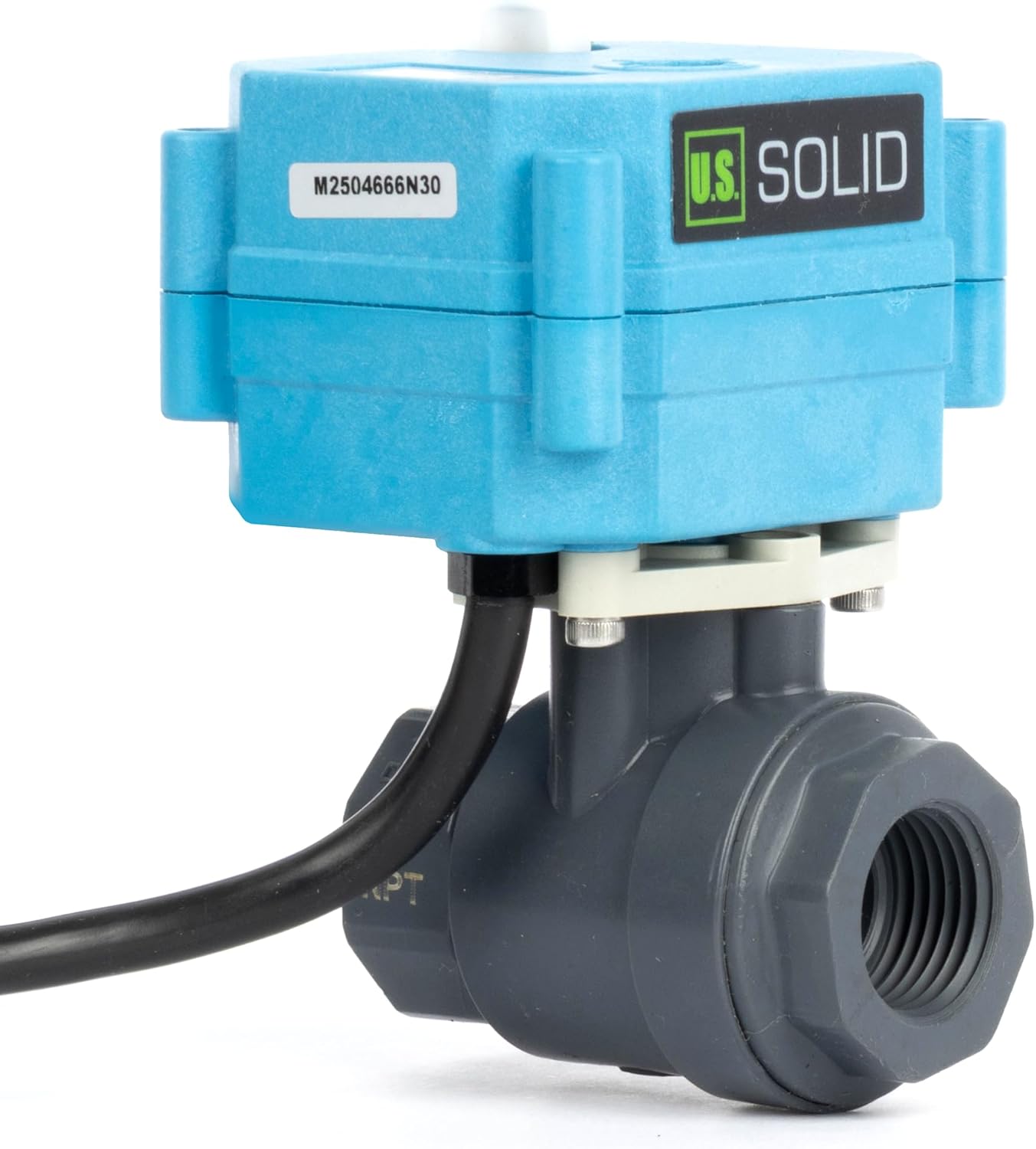

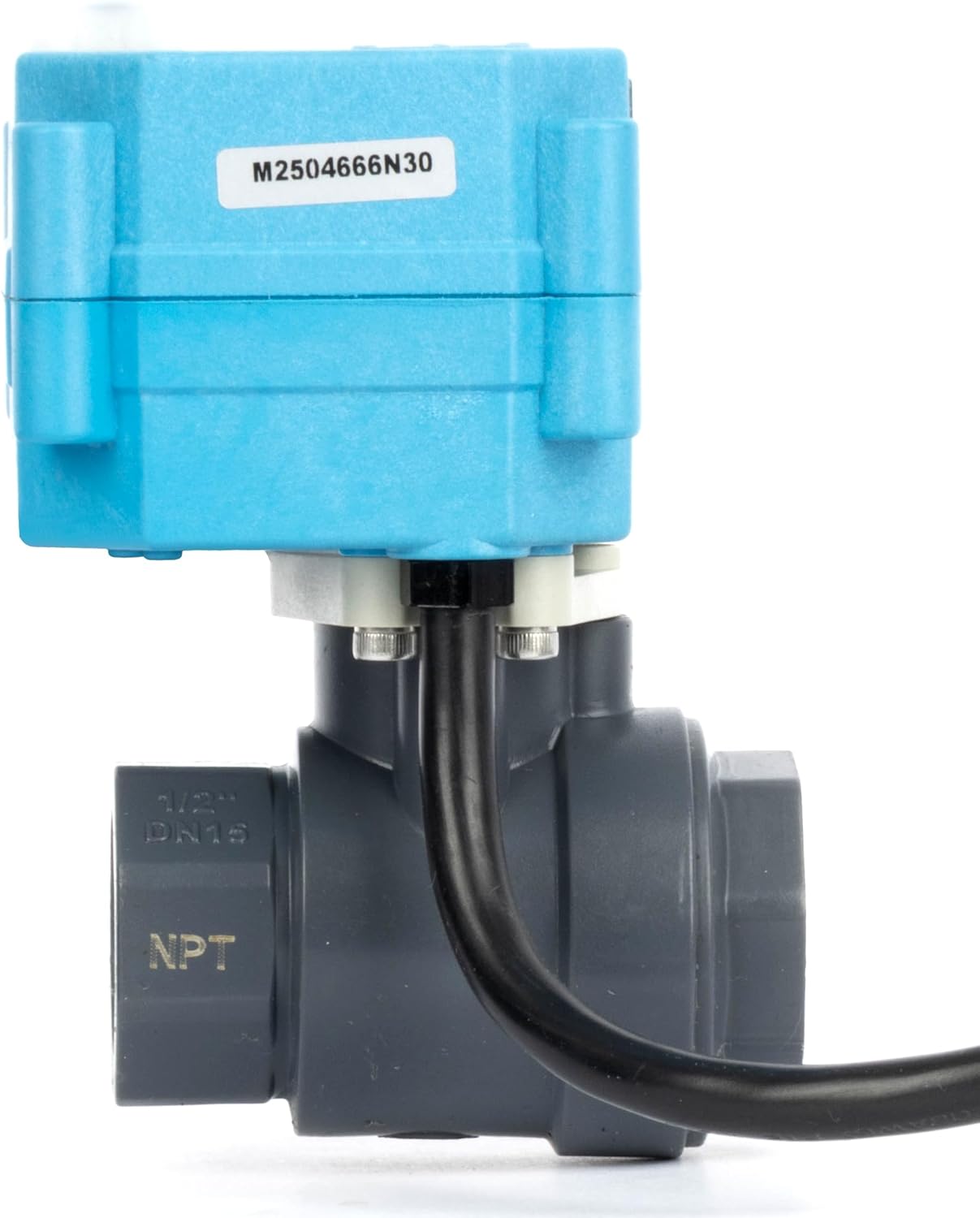

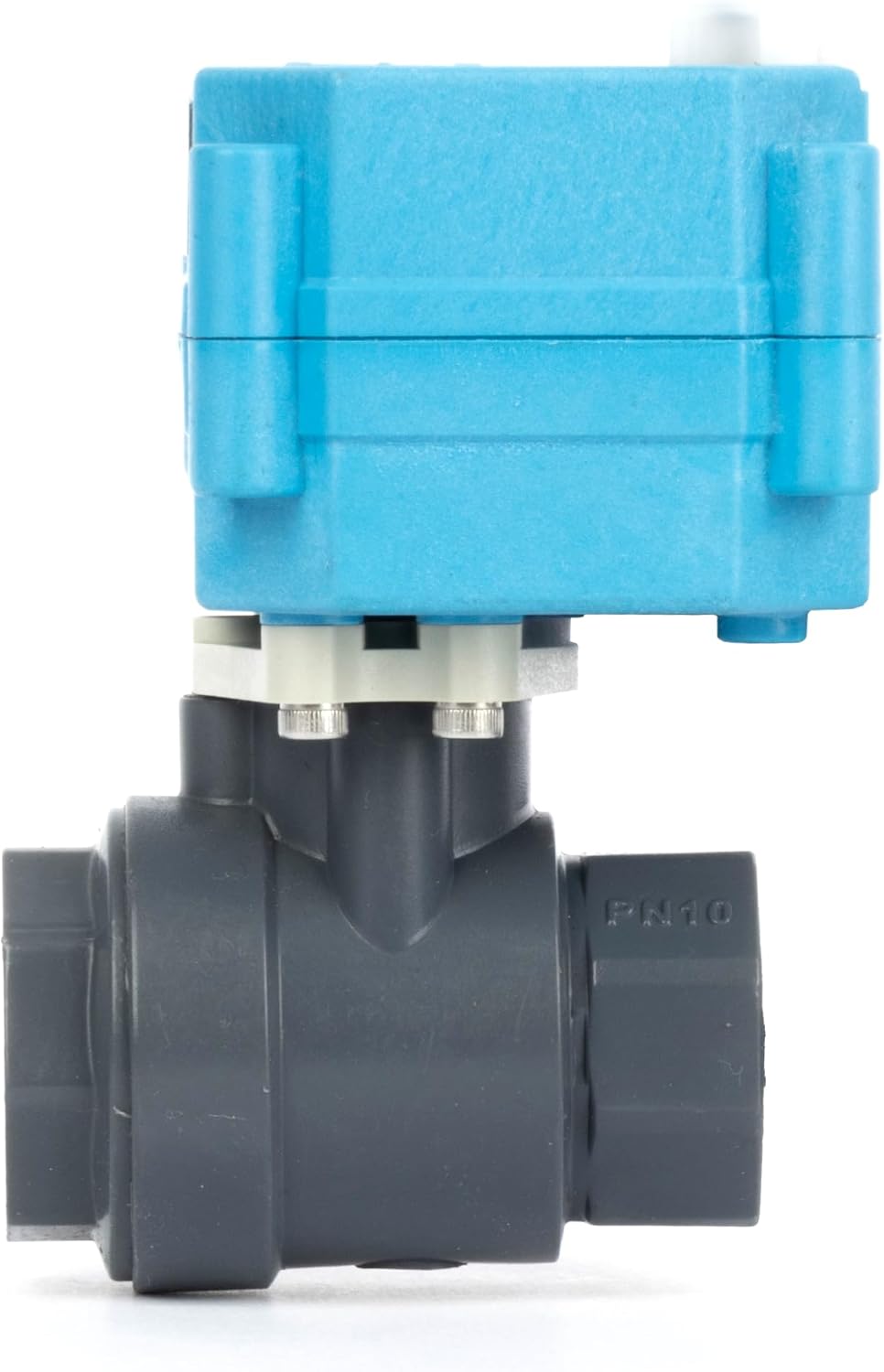

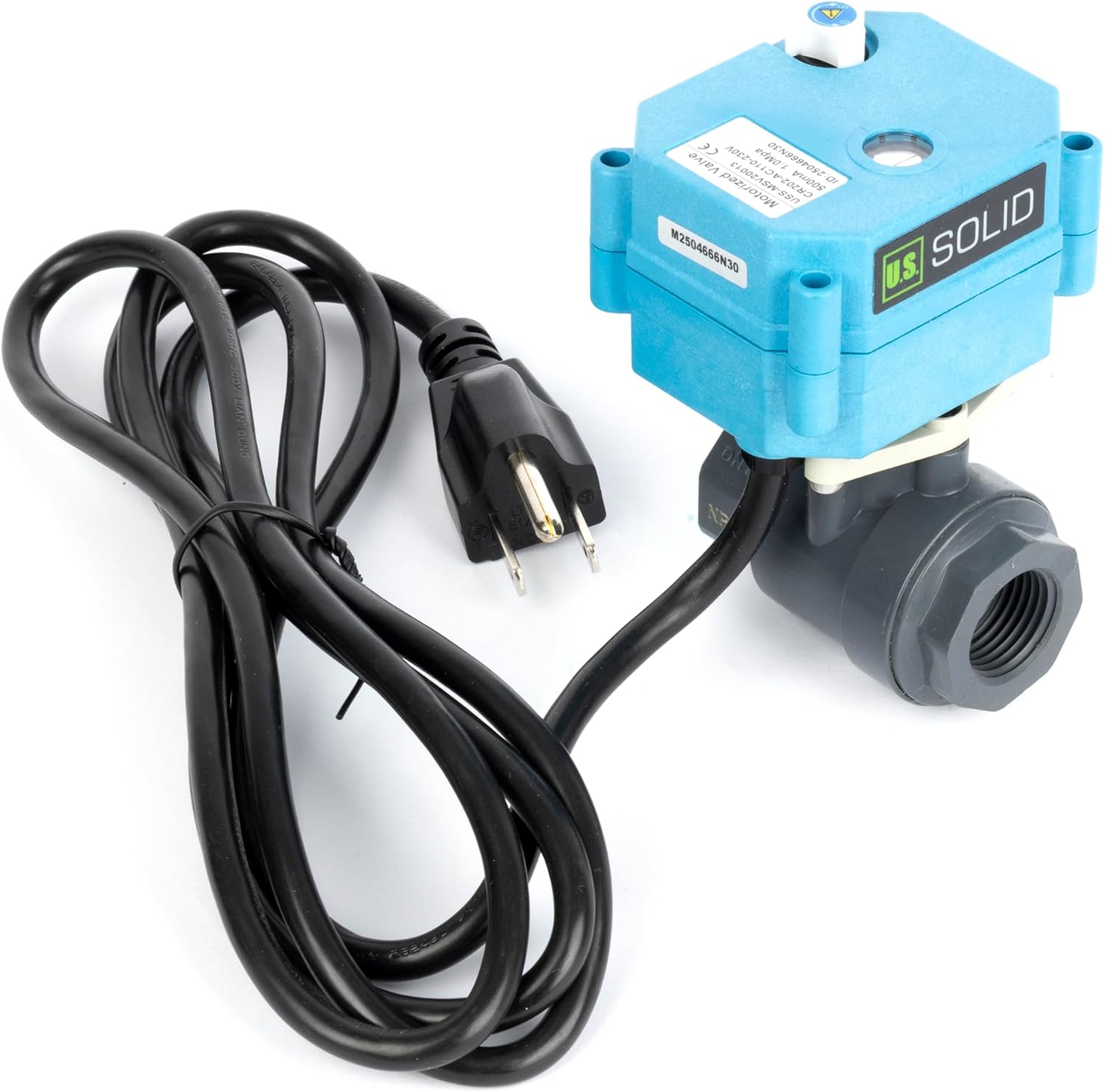

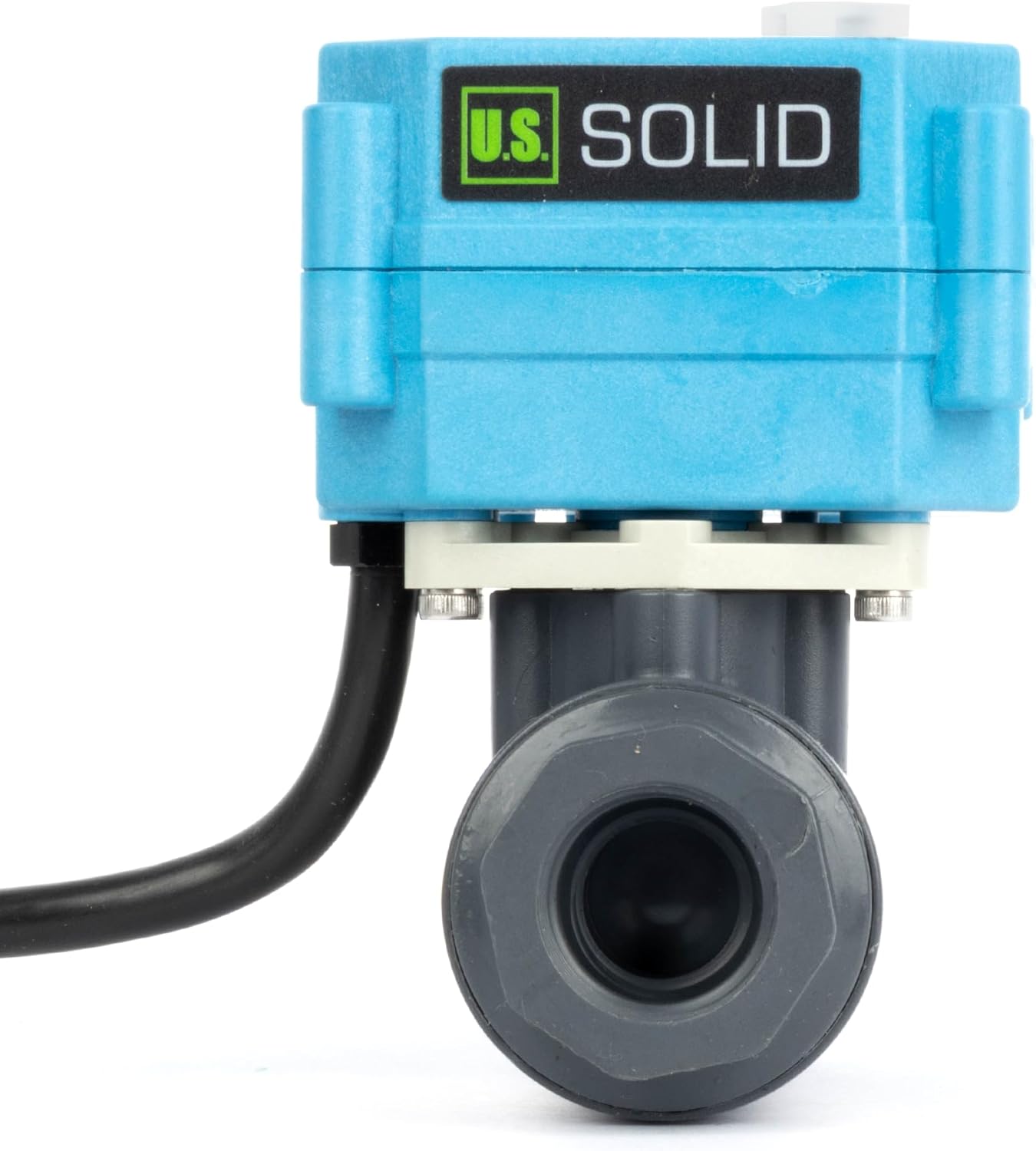

U.S. Solid 1/2 inch PVC Motorized Ball Valve - Plastic Electrical, US Plug, 2 Wire Auto Return, AC 110~230V, IP67, Manual Override, Normally Closed

Overview

• Material : PPO
• Brand : U.S. Solid
• Item dimensions L x W x H : 3.94 x 2.56 x 2.76 inches
• Exterior Finish : Polyphenylene Ether (PPE)
• Inlet Connection Size : 1/2 Inches
• Inlet Connection Type : National Pipe Tapered
• Maximum Operating Pressure : 145 Pound per Square Inch
• Number of Ports : 2
• Specification Met : API 609, ASME B16.34, ASSE, ASTM, CE, CSA, ETL, IAPMO, ISO 9001, MSS SP 25, MSS SP 72, MSS SP 80, NEMA, NSF, OSHA, RoHS, UL, WaterSense API 609, ASME B16.34, ASSE, ASTM, CE, CSA, ETL, IAPMO, ISO 9001, MSS SP 25, MSS SP 72, MSS SP 80, NEMA, NSF, OSHA, RoHS, UL, WaterSense
• Global Trade Identification Number : 00888107117759

About this item

• UPVC Body: The motorized ball valve is equipped with a UPVC valve body, providing superior durability when compared to traditional PVC bodies. This ensures a longer lifespan and reliable performance, making it a dependable choice for various applications.
• Lightweight Design: The motorized ball valve is thoughtfully designed to be lightweight, making it incredibly easy to handle and install. This advantage simplifies the installation process and ensures a hassle-free experience for users.
• Lead-Free Option: Unlike brass motorized ball valves, the plastic material used in this valve is completely lead-free. This ensures the safety of the drinking water when installed in water pipe systems.
• 2-Wire Auto Return: The valve operates with a 2-wire auto return system, which means that it will automatically open when wired and close when unwired. This simplifies the wiring process and ensures convenient and reliable operation of the valve.
