IGEYAPA

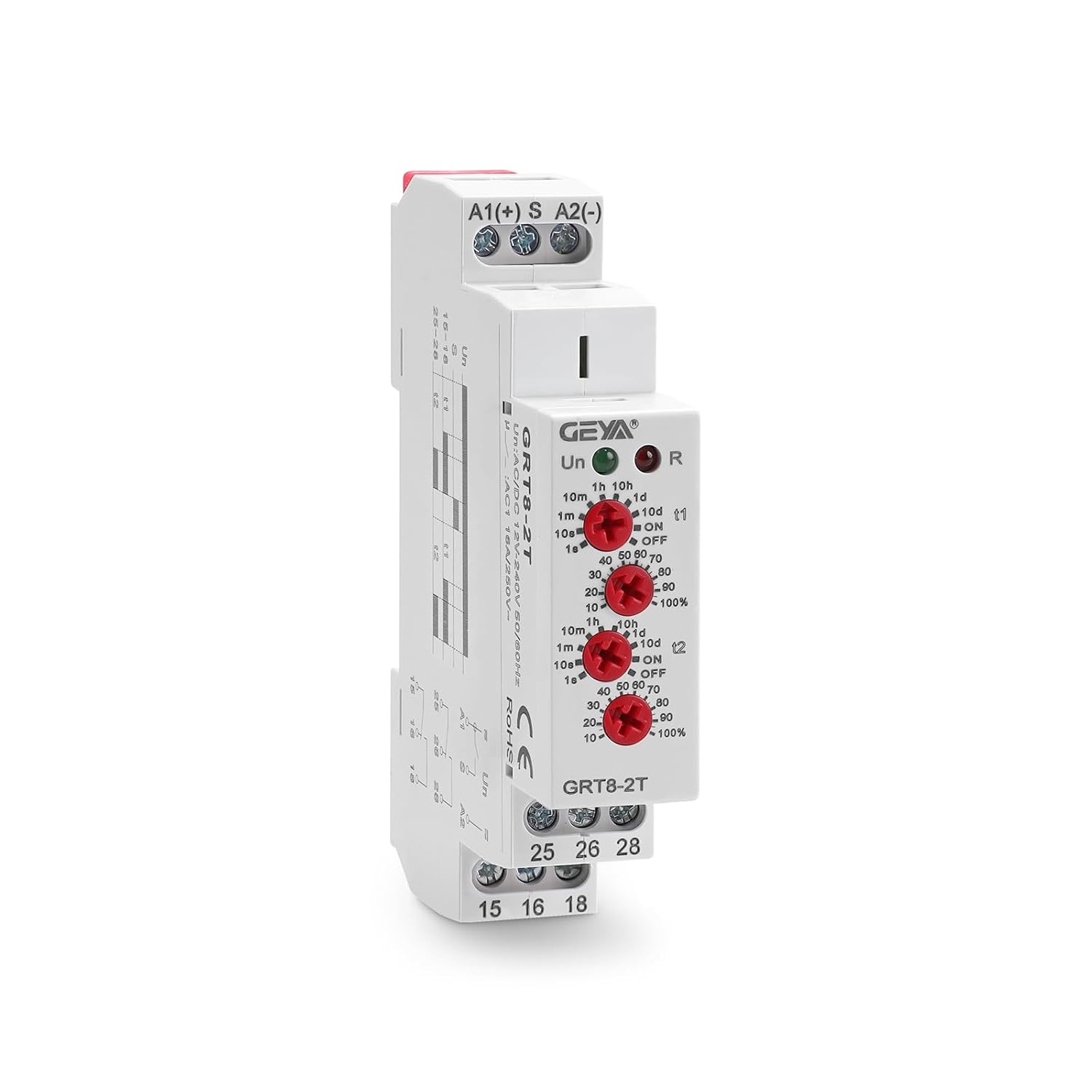

GRT8-2T Double Delay On Timer Relay，16A AC/DC12V to 240V Adjustable Two Groups of Output terminals with Different delay on Times Relay of Wide Time Delay Range for 0.1 Seconds to 10 Days
GRT8-2T Double Delay On Timer Relay，16A AC/DC12V to 240V Adjustable Two Groups of Output terminals with Different delay on Times Relay of Wide Time Delay Range for 0.1 Seconds to 10 Days
Regular price
$44.78 USD
Regular price
$44.78 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
- Connector Type : Screw
- Contact Material : Copper
- Contact Type : Normally Open
- Current Rating : 16 Amps
- Mounting Type : DIN Rail Mount
About this item
- FUNCTION MODE: GRT8-2T delay on time relay control the closing of the circuit through the time delay function of the relay, 12v to 240v delay on time relay supports delayed opening of two groups of output terminals, and the two groups support different delay time settings to prevent the main circuit current peak from being too large (in some cases, it can replace two time relays to save costs).

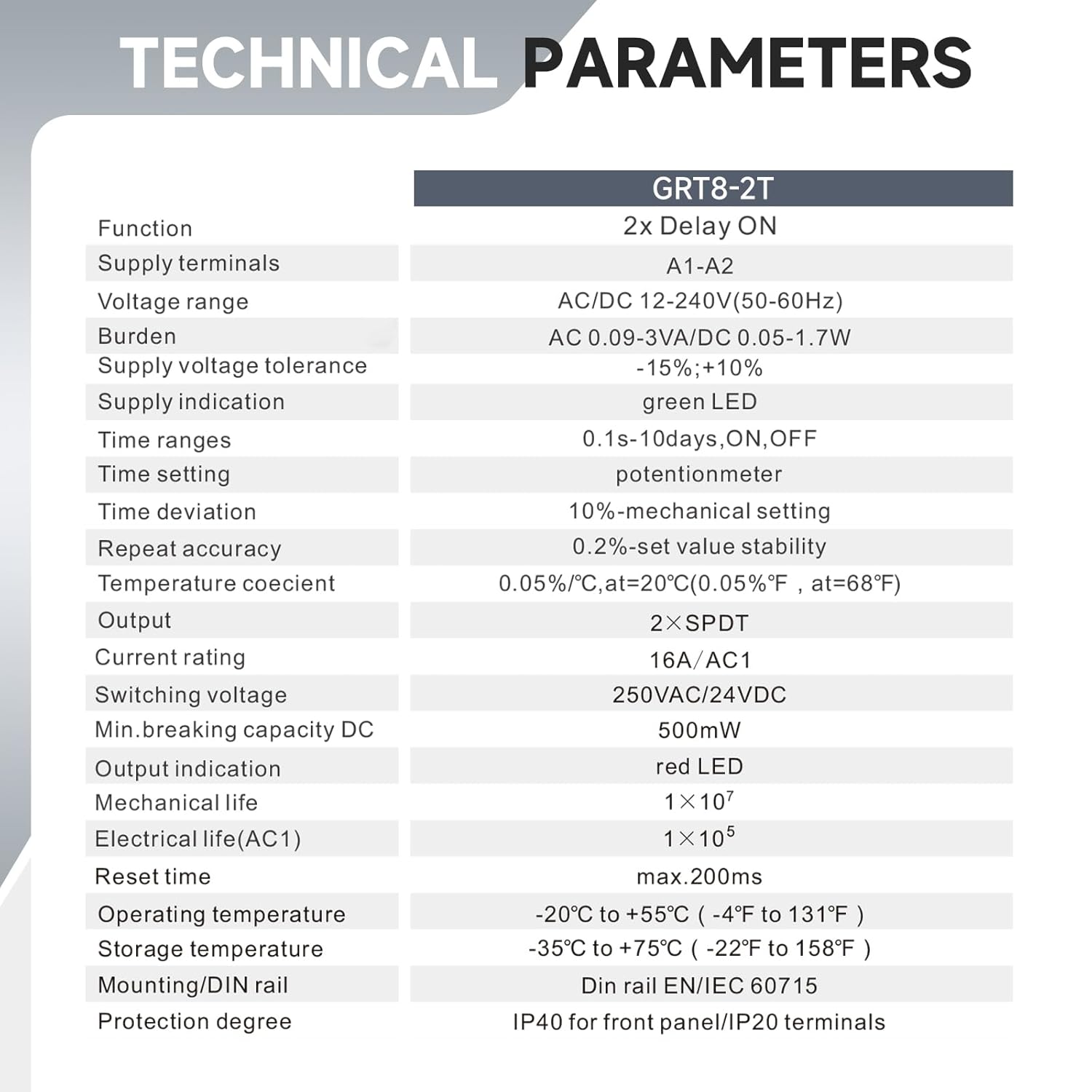

- PARAMETER RANGE: number of outputs：2SPDT（2NO 2NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay on range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d

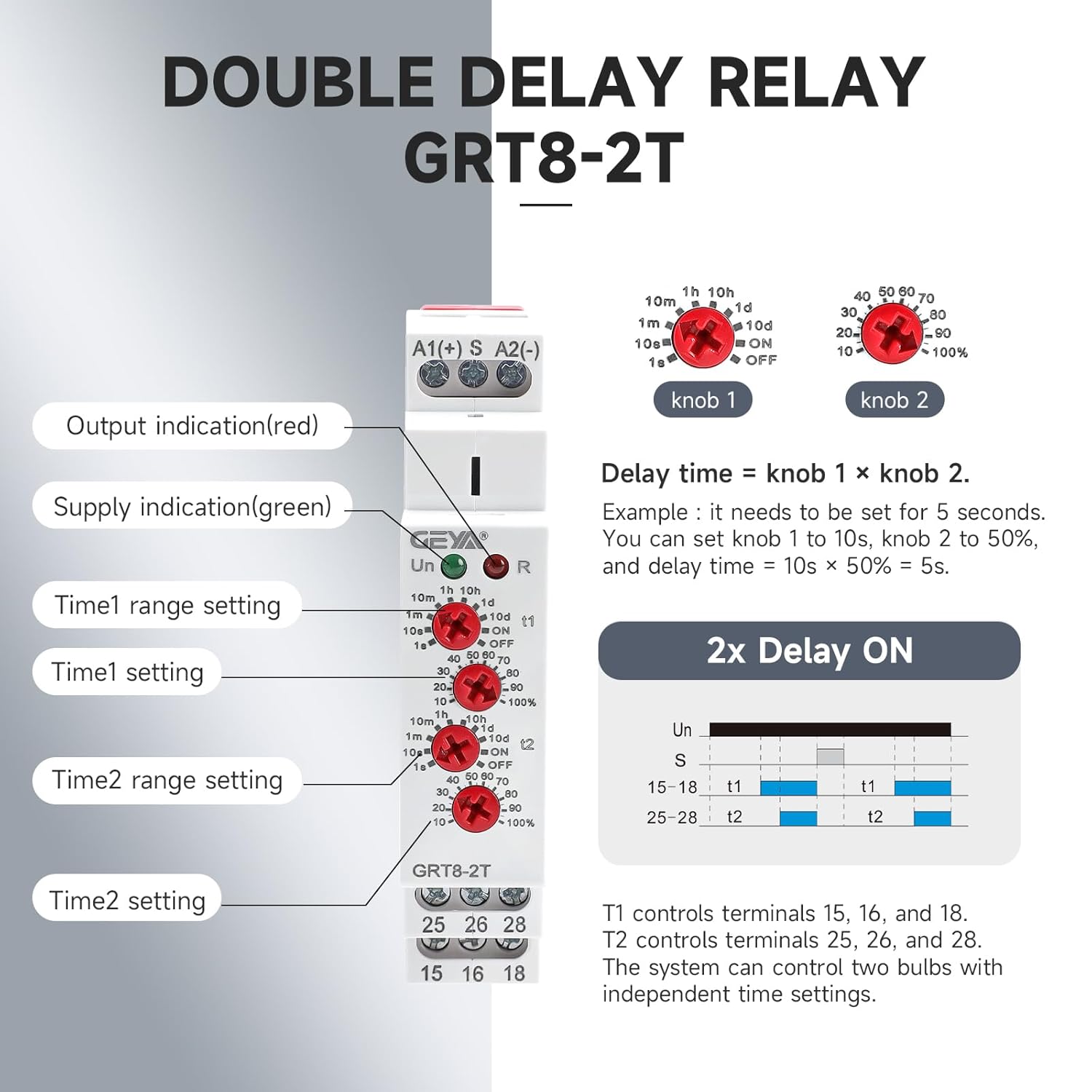

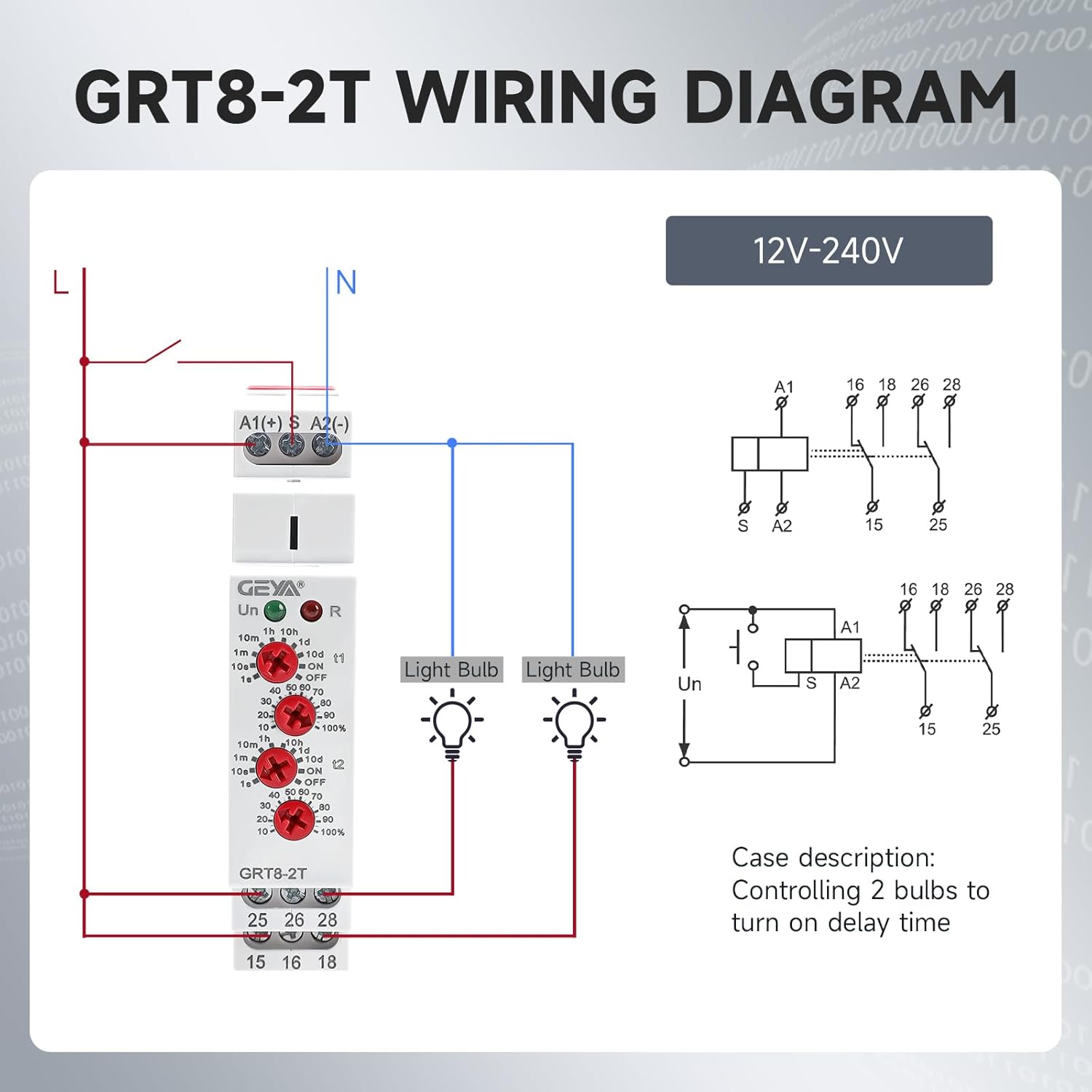

- USE & STATUS: electrical timers delay on relay terminals 15-18 are controlled by the t1 group knobs, and terminals 25-28 are controlled by the t2 knobs, t1 group and the t2 group do not affect each other, they work independently; the first knob of each group of operating knobs of the AC DC delay on relay is used to select the delay time gear, and the second knob is used for the time percentage multiple. The green delay indicator on the relay indicates the relay power supply, and the red indicator indicates the delay and contact status.

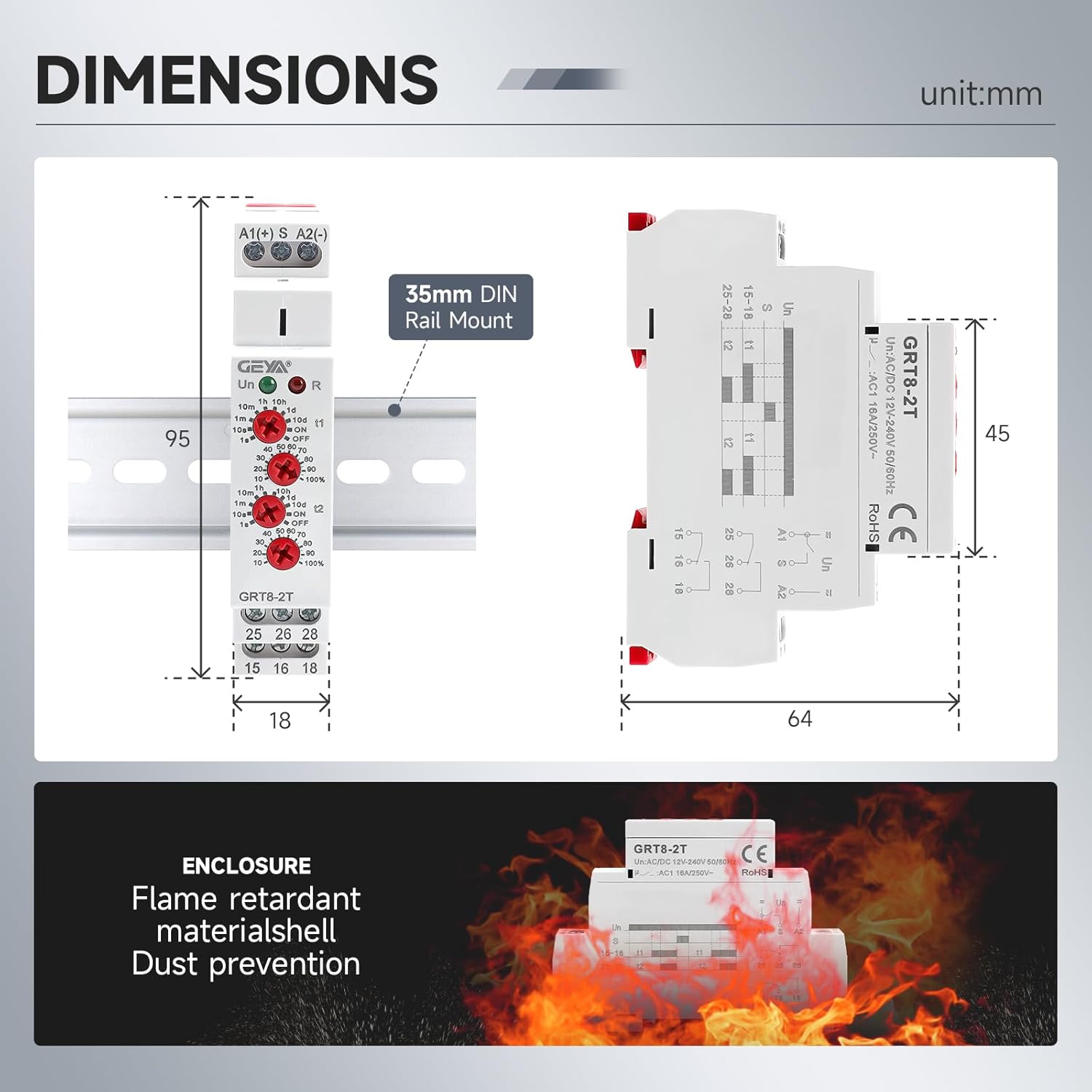

- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay module measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.4 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
