Polymaker Fiberon PPS-GF20 Filament 1.75mm 3kg Spool, Extreme Heat Resistance, Electrically Insulating, UL94 V0 Flame Retardant, Chemical Resistant, Ideal for Housings, Fixtures & Automotive Parts

Overview

• Brand : POLYMAKER
• Material : Polyphenylene Sulfide
• Color : 314 - Fiberon Pps-gf20 1.75mm Grey 3kg (Hex Code: #75787b)
• Item Weight : 3 Kilograms
• Manufacturer : Polymaker

About this item

• Built for Extreme Heat: Withstands temps over 230 °C (HDT @0.45MPa), making it ideal for automotive, aerospace, and high-voltage enclosures exposed to continuous heat. Outperforms PA6-GF in thermal stability.
• Electrically Insulating & Safe: Engineered with 20% glass fiber, PPS-GF20 delivers 6.05 kV/mm dielectric strength—making it perfect for housings, insulators, and ADAS components that require non-conductive materials.
• Flame Retardant & Reliable: UL94 V0 certified at 1.5 mm with excellent mechanical retention after annealing. Ideal for applications where flame resistance is non-negotiable, including fan housings and control boxes.
• Strong and Reliable: Reinforced with glass fiber to boost strength and rigidity. Achieves over 4,000 MPa bending modulus and 100+ MPa flexural strength—perfect for brackets, structural parts, and enclosures.
• Exceptional Chemical Resistance: PPS-GF20 resists strong acids, bases, oils, and solvents—ideal for labs, industrial plants, aerospace fixtures and automotive parts exposed to harsh environments.

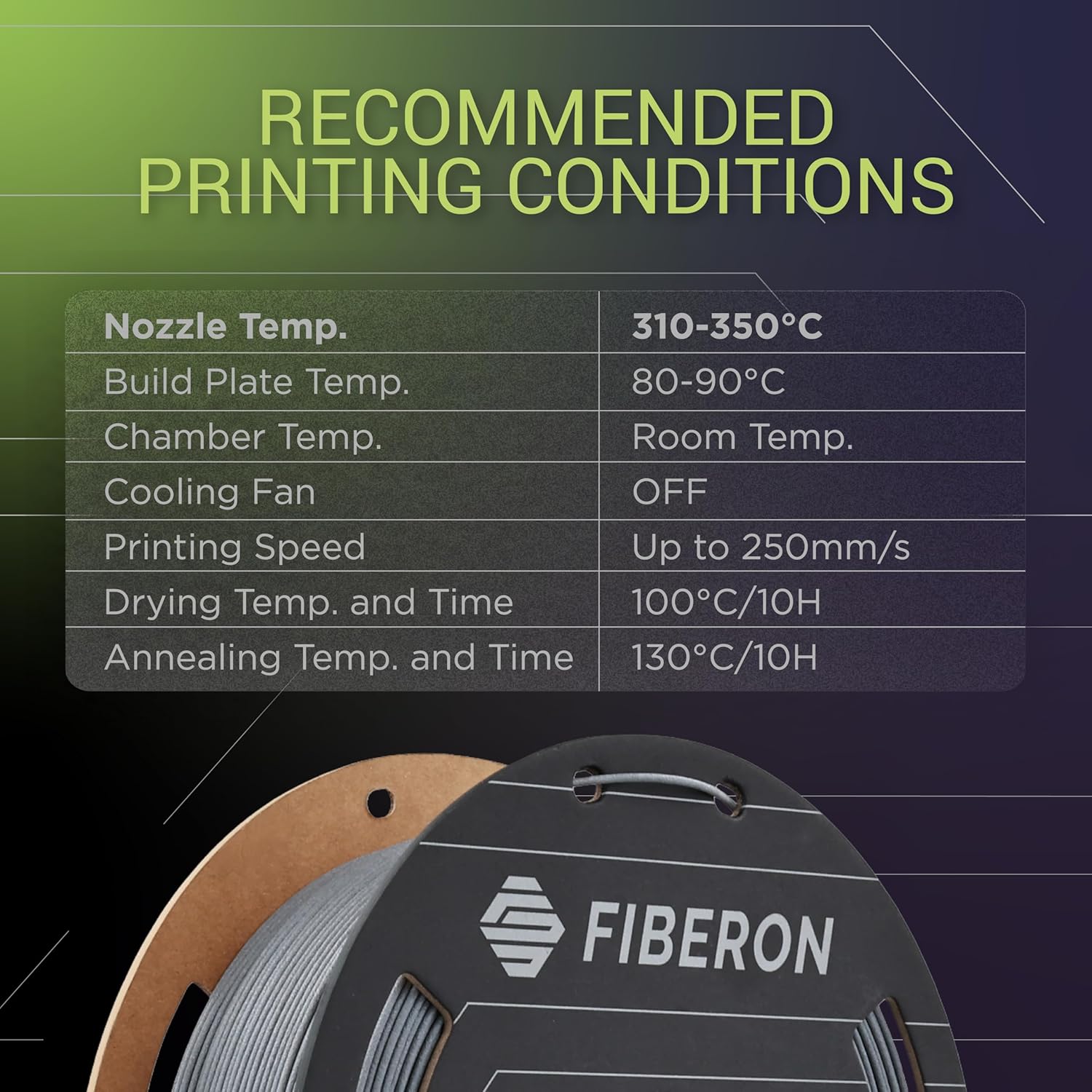

• Print-Ready for Professionals: Supports speeds up to 250 mm/s with hardened nozzles. Easy to print on industrial machines like Bambu X1E or QIDI Plus4. Great for users upgrading from CF-based materials.
• Excellent Dimensional Accuracy: Retains form after annealing—91.8 °C unannealed HDT becomes 236.3 °C after 130 °C/10h cycle. Minimal shrinkage, ideal for precision applications like sensor housings or mountings.
• AMS-Compatible & Moisture Free: Vacuum-sealed and neatly wound for smooth feeding. Low moisture absorption (0.11%, 70%RH, 23°C) reduces warping, making it perfect for high-precision automated workflows.

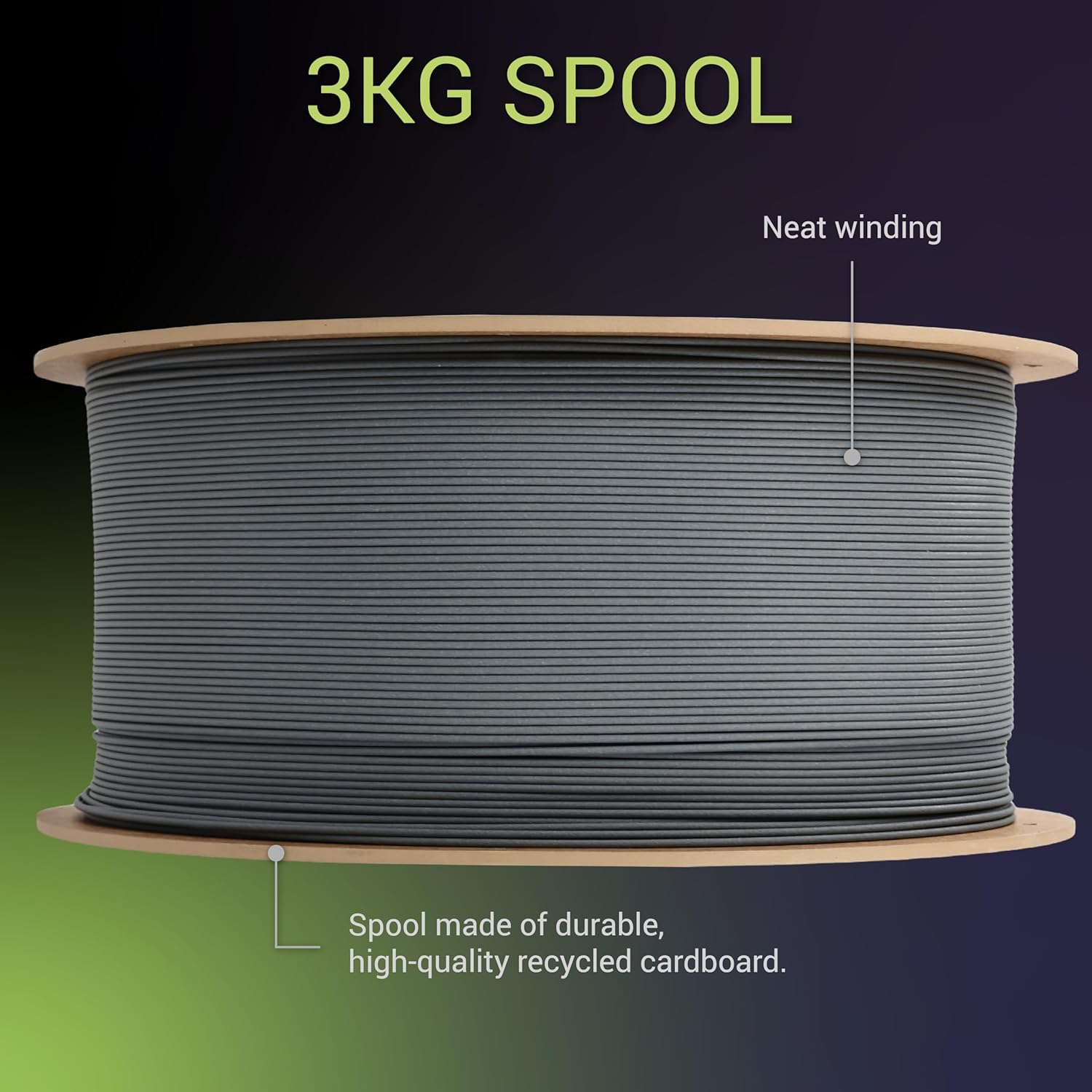

• Multiple Sizes for Scalable Production: Available in 0.5kg and 3kg spools to fit everything from trial runs to full-scale manufacturing—maximize throughput while reducing cost per part.
• Trusted by Industrial Leaders: From aerospace fixtures to automotive radar housings and high-temp antenna mounts—PPS-GF20 delivers consistent results in mission-critical applications.
