Push to Exit Button，12V DC Push to Exit Switch with LED Light, IP67 Waterproof,NC/NO/COM Outputs, Surface Mount Request-to-Exit Device for Access Control Systems (86X50-A)

Overview

• Operation Mode : ON-OFF-ON
• Current Rating : 3 Amps
• Operating Voltage : 12 Volts (DC)
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : yogisu
• Switch Type : Push Button
• Terminal : Through Hole
• Material : Stainless Steel
• Item dimensions L x W x H : 4 x 3 x 1.5 inches

About this item

• Durable & Stylish: Constructed from 1.8mm thick, brushed 304 stainless steel, this exit button offers long-lasting durability and a sleek, modern look suitable for any commercial or residential setting.1 Ideal for hollow doors.

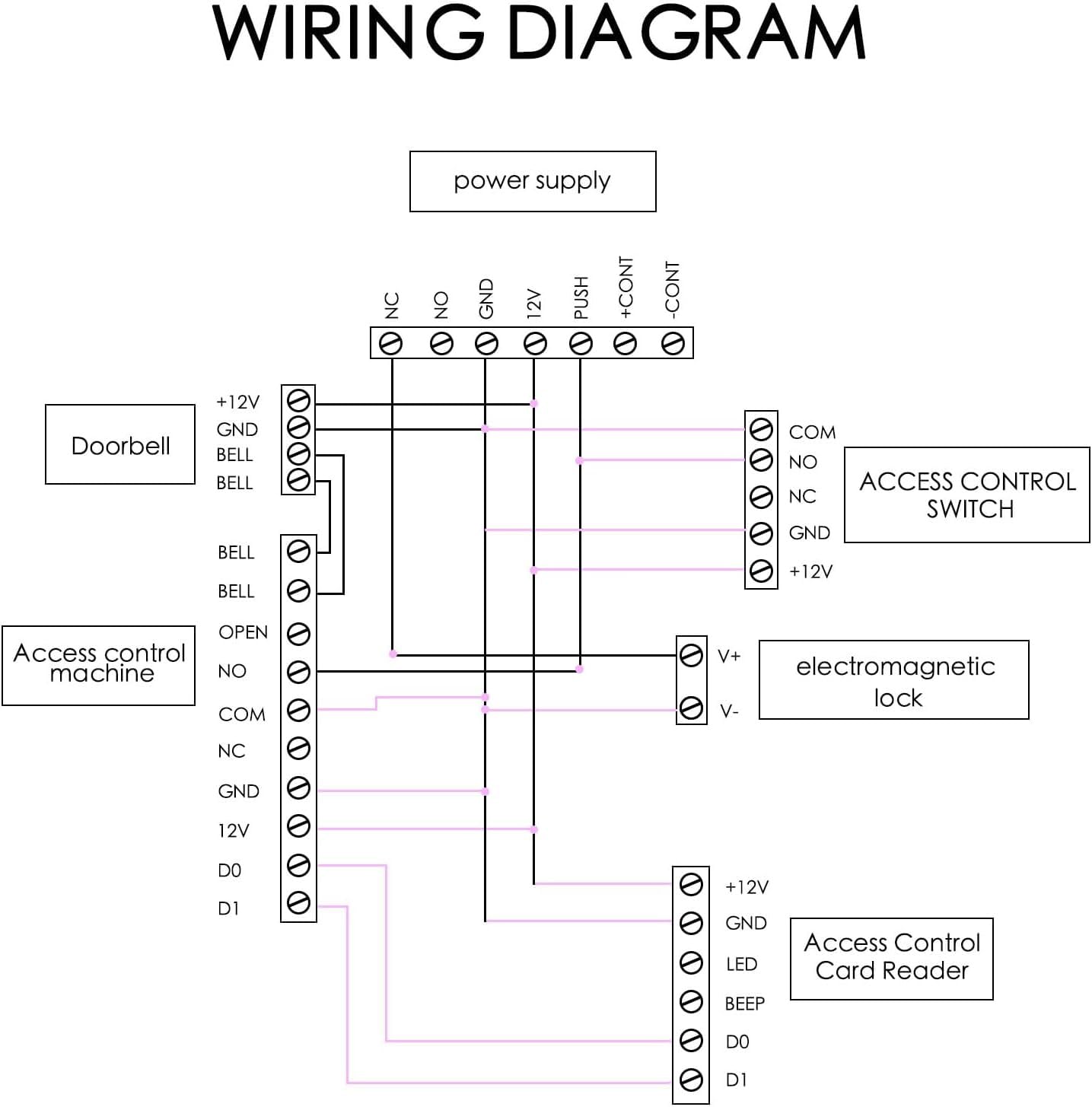

• Versatile Compatibility: With NC/NO/COM output and a 3A/12VDC contact rating, this button seamlessly integrates with a wide range of access control systems. The standard 19mm (0.75-inch) diameter ensures easy installation in most door preps.
• Simple Surface Mount: Designed for easy surface mounting. (Professional installation is recommended for optimal performance.) Compact dimensions: 4.52 x 1.57 inches (115 x 40 mm).
• Built to Last: Rigorously tested to 500,000 cycles, this exit button provides reliable performance and peace of mind for years to come, even in high-traffic environments.
• Wide Range of Applications: Perfect for offices, banks, retail stores, gas stations, hospitals, schools, and any location requiring secure and convenient access control.
