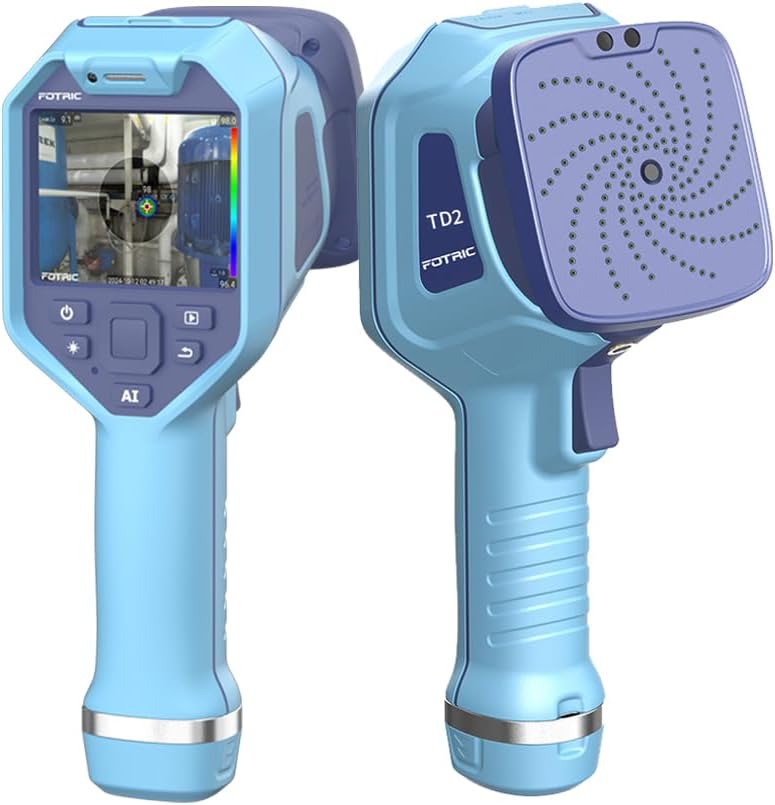

TD2 Acoustic Imager,64 MEMS Digital Microphones,Industrial Acoustic Imaging Camera,Compressed Air Leak Detection,66°×52°FOV,13 Megapixel,2~100kHz Frequency Range, 3.5" Touch Screen

Overview

• Shooting Modes : Burst
• Exposure Control Type : Automatic
• Color : blue
• Video Capture Resolution : 4160x3120
• Media Type : SD Card

About this item

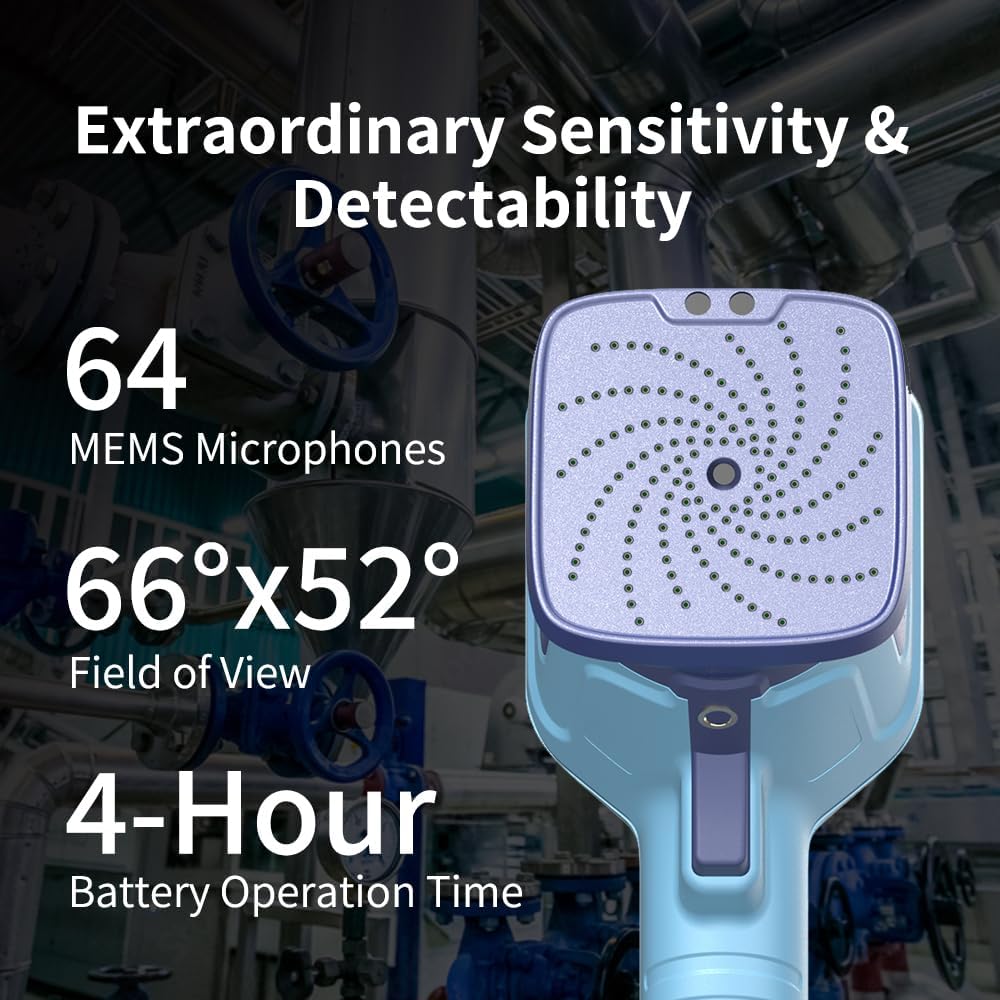

• 【Advanced Acoustic Imaging Technology】Equipped with 64 high-sensitivity MEMS digital microphones and a 66°×52° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2 to 100kHz, ideal for detecting both audible and ultrasonic leaks or mechanical anomalies. Also features a 13-megapixel digital camera for detailed visual reference.
• 【Quickly Locate Various Industrial Leaks & Vibration Problems】FOTRIC TD2 acoustic imaging camera enables Compressed Air Leak Detection, Vacuum Leak Identification, Fastener Looseness Checks, and Seal Integrity Verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.

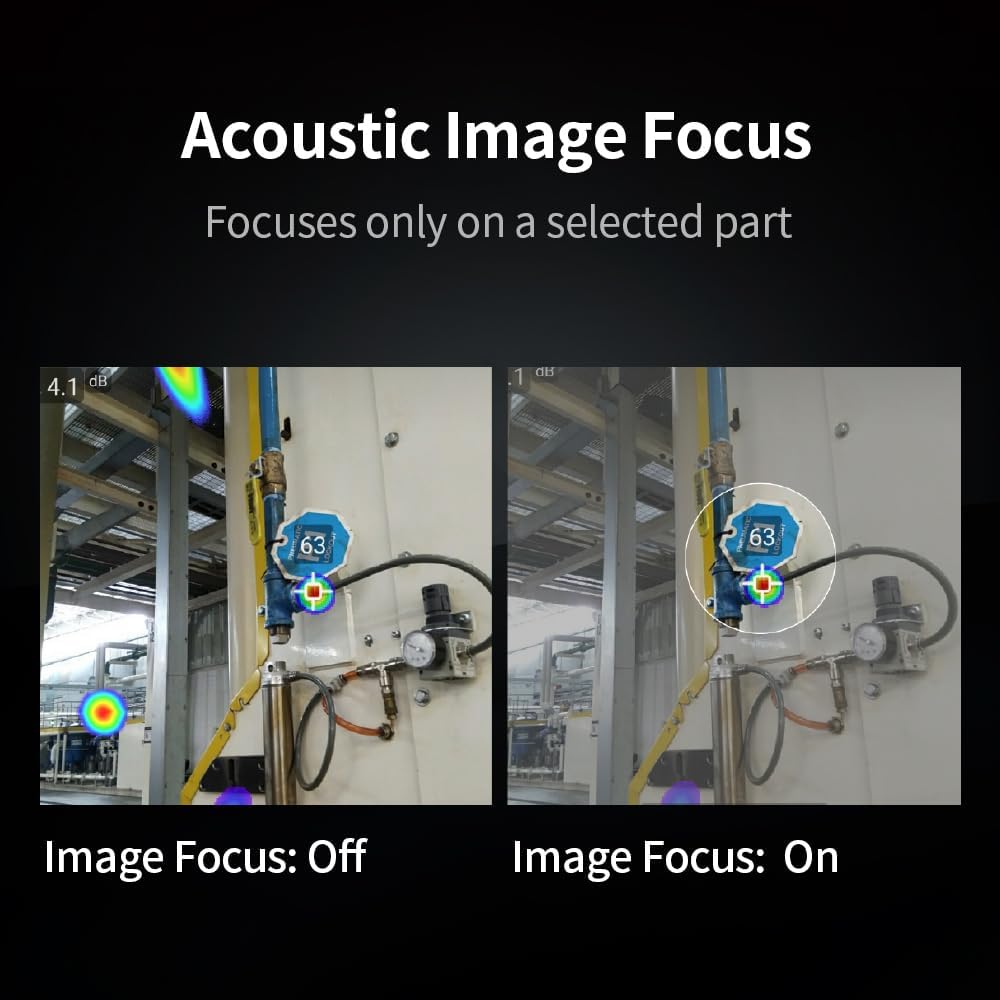

• 【Acoustic Image Focus & Sound Pressure Level Measurement】Combines adaptive dynamic noise reduction algorithms to achieve focused localization of sound sources. By combining acoustic images with dB-level data output, it is well-suited for locating and diagnosing a wide range of industrial sound sources.

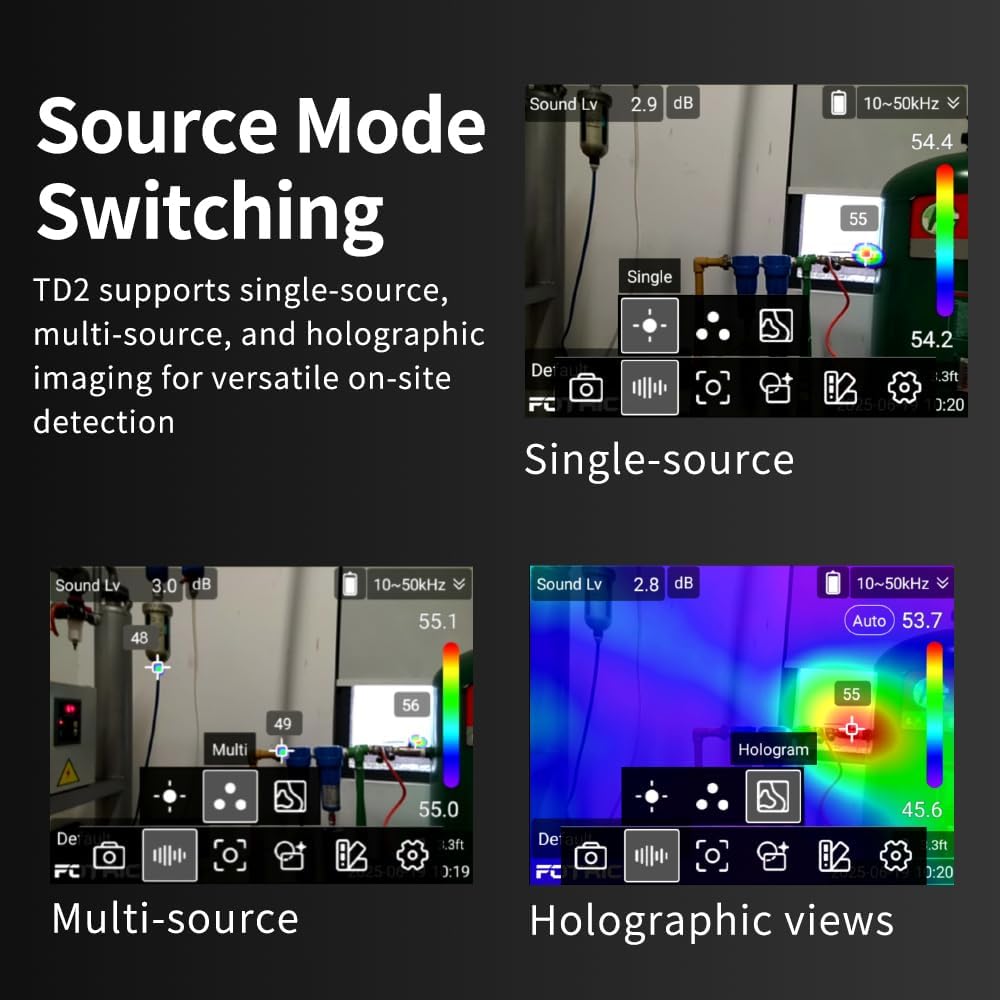

• 【High-Resolution Touch Screen & Multiple Display Modes】The 3.5" high-resolution IPS touchscreen (640×480), protected by tough Gorilla Glass, supports single-source, multi-source, and hologram modes. Instantly overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
• 【Portable & Durable Design】Lightweight (770g) and rugged (IP54 rated, 2m drop resistance). FOTRIC TD2 acoustic imager includes a 5000mAh rechargeable battery for 4+ hours of continuous operation, perfect for field inspections in industrial, HVAC, or energy sectors.
