Motor Driver Board for Arduino, 4 DC/Encoder Motors, 2 Stepper Motors, 8 Servo Motors, PCA9685 Expansion Shield with PS2 Interface, Compatbile with UNO R3, Mega2560

Overview

• Brand : NULLLAB
• Connectivity Technology : PS2X, UART, NRF24L01+, I2C, Ultrasonic
• Included Components : Board
• Operating System : Linux, Windows

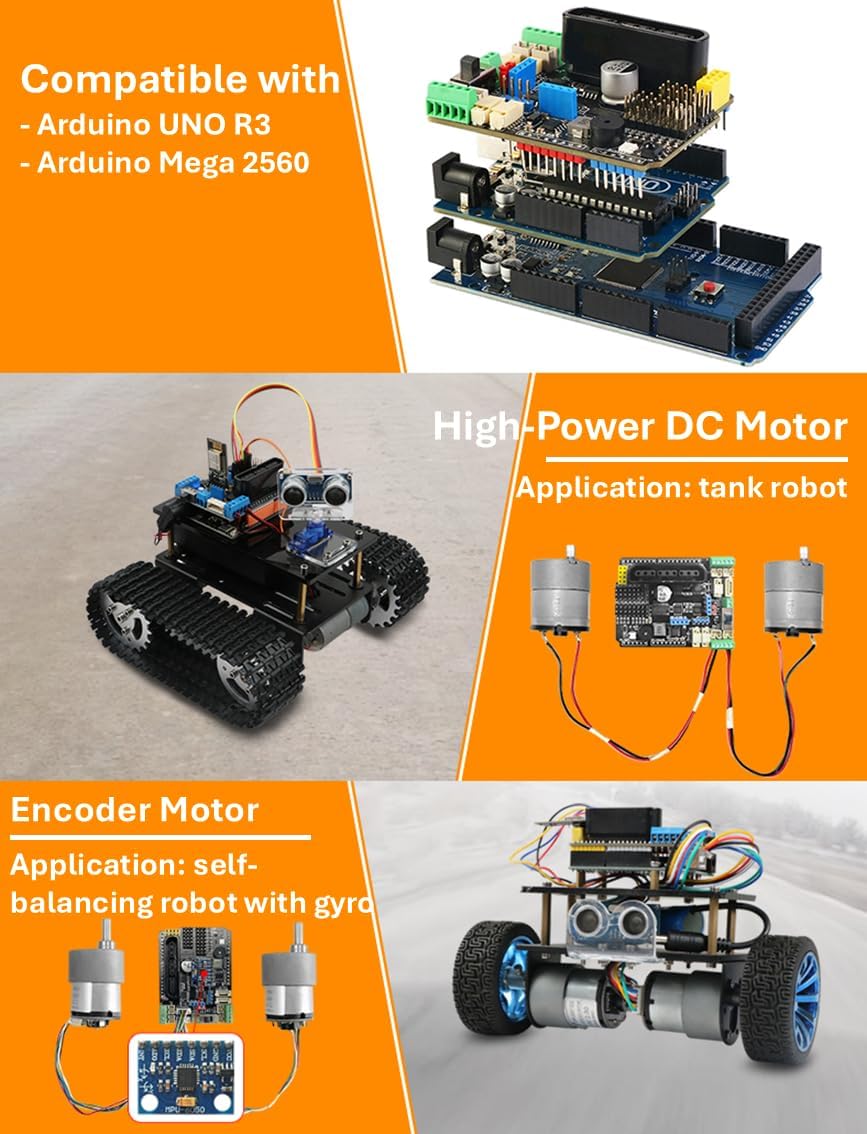

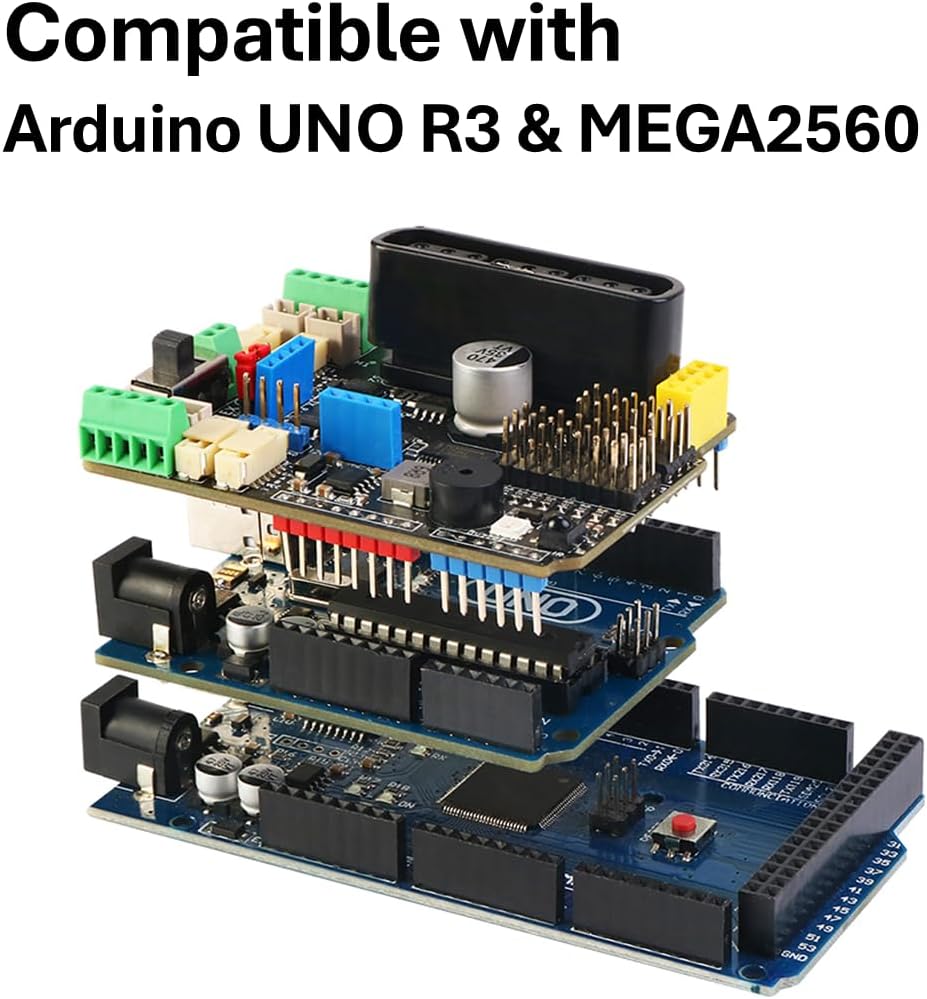

• Compatible Devices : Arduino UNO R3, Mega2560, PS2 controllers, Bluetooth/Wi-Fi modules, NRF24L01+ modules, Ultrasonic modules Arduino UNO R3, Mega2560, PS2 controllers, Bluetooth/Wi-Fi modules, NRF24L01+ modules, Ultrasonic modules

About this item

• Bulit-in PCA9685 servo motor driver, with I2C mode control.
• Motor shield designed for Arduino UNO R3 / Mega2560. Docs: github.com/nulllaborg/MotorDriverBoard
• Support 4 DC/encoder motors, 2 stepper motors, 8 servo motors simultaneously. Max 3A current for DC motor.
• Power supply for servo motors can be switched to an external power source. Equipped with a self-resetting fuse to prevent servo stall.

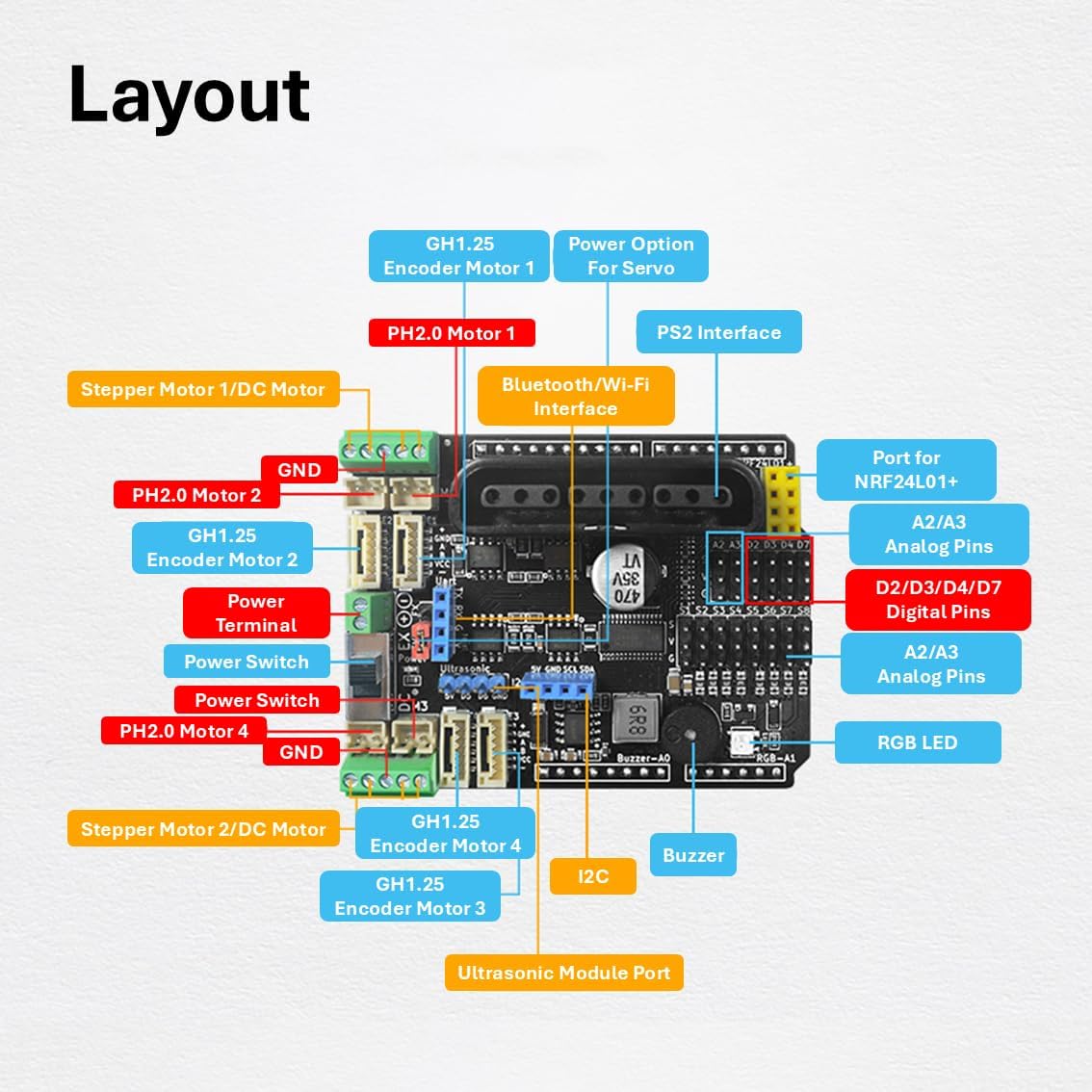

• Addtional interface: 1 x PS2X port; 1 x UART for Bluetooth/Wi-Fi; 1 x NRF24L01+ port; 1 x I2C port, 1 port for ultrasonic module.
