Hollow Rotary Actuator Ratio 10:1 Hollow Rotating Table Precision Rotary Reducer High Accuracy Hollow Rotary Platform for NEMA23 6.35mm 8mm Shaft/60 mm Servo Motor 14mm Shaft Alternative Cam Indexer

About this item

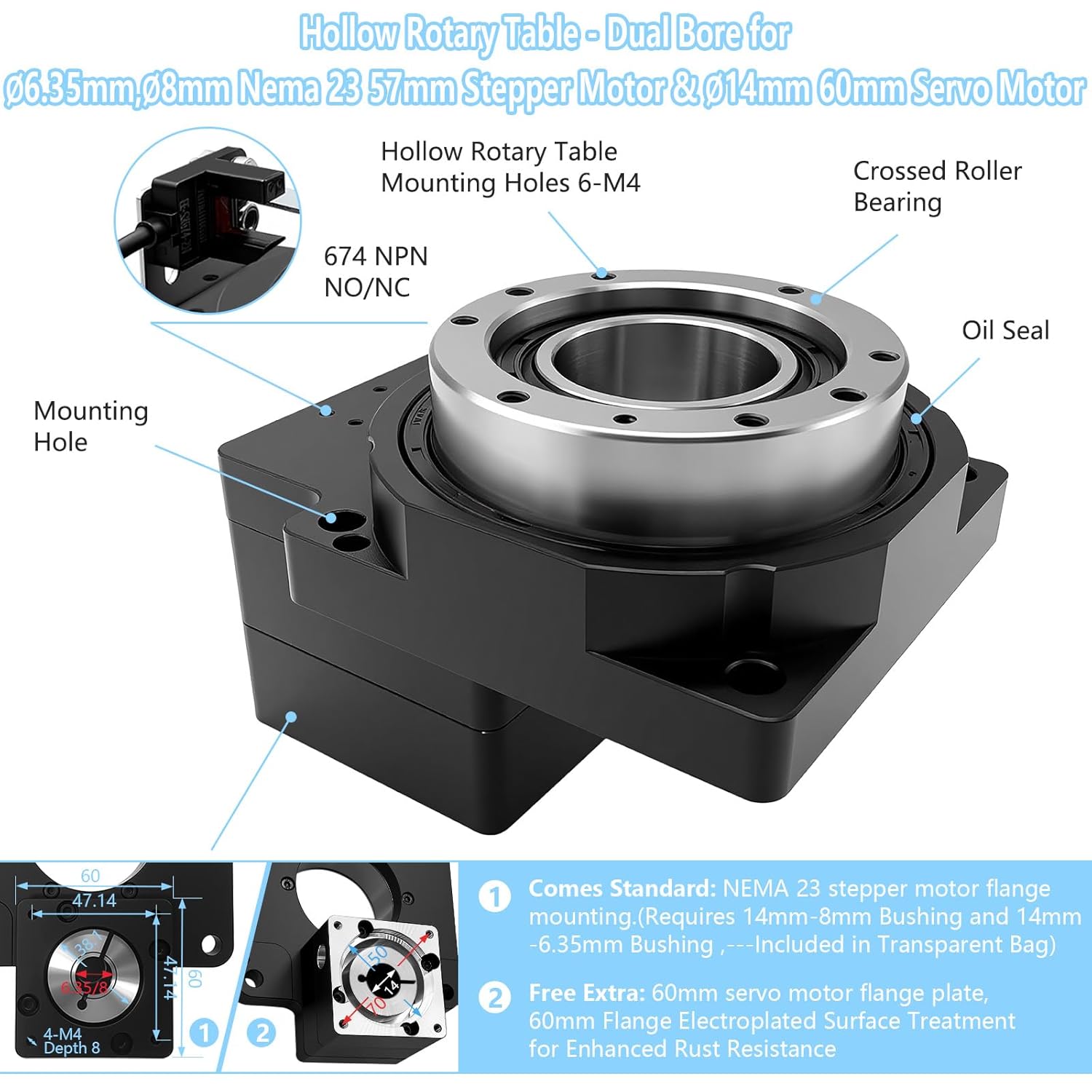

• 【Hollow Rotary Table - Fits NEMA 23 stepper motor/60mm servo Motor Compatibility】 This platform arrives pre-configured with a NEMA 23 flange for stepper motors (use included 14-to-8mm or 14-to-6.35mm shaft adapters). It also includes a 60mm servo flange, allowing you to easily upgrade for 60mm servo motors (14mm shaft).【Note: The flange unit is preset for NEMA 23. For 60mm servo compatibility, please install the provided 60mm flange.】

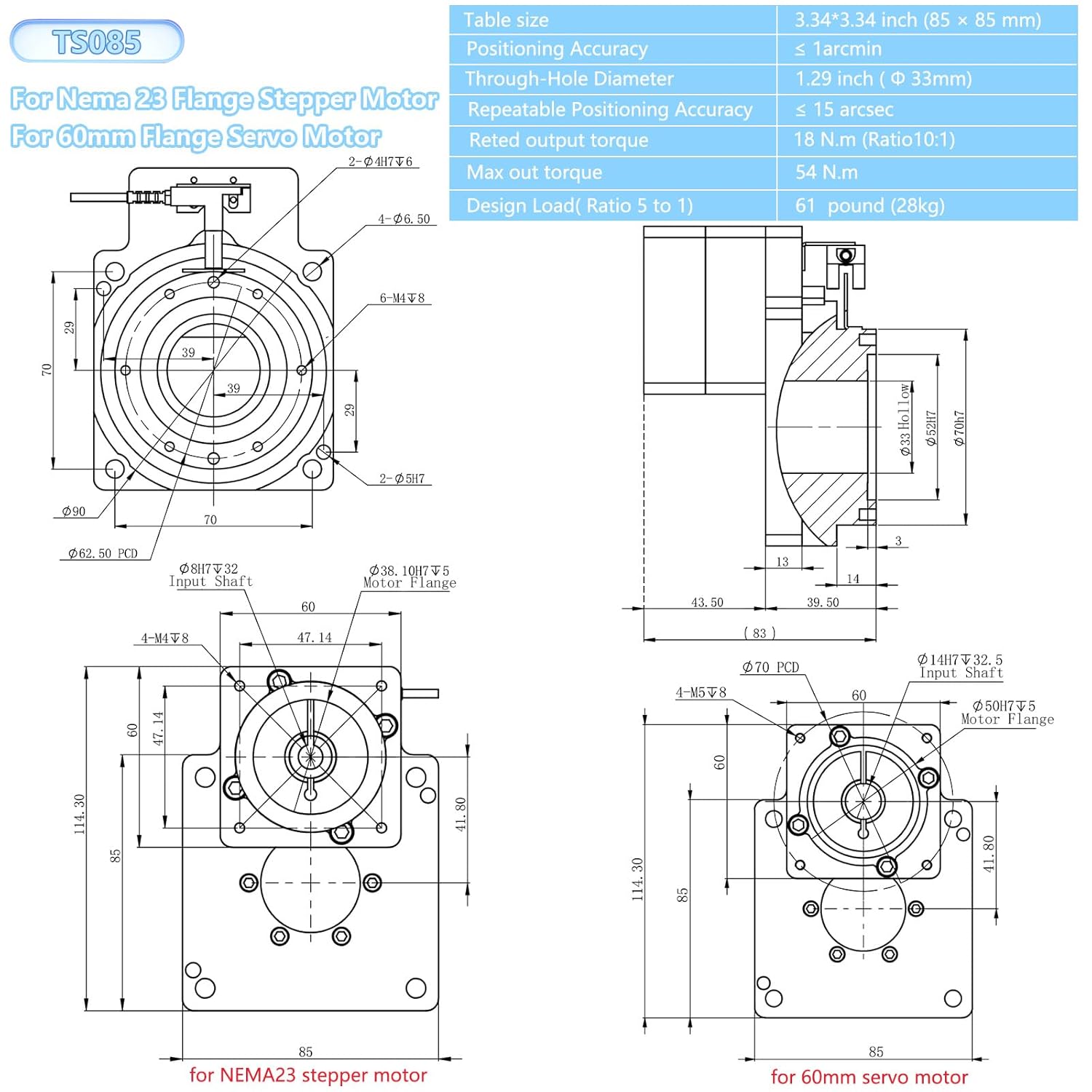

• 【High Accuracy Rotating Platform Specifications】Ratio：10 to 1;Positioning accuracy: ＜=1 arc-min; Repeated positioning accuracy:≤15 arc-sec;Transmission efficiency: 96%;Design load:Ratio 10 to 1=28 Kg(61 pounds).
• 【Rotating Platform For Cnc&High Precision Rotating Platform】Achieve precise positioning with a ≤1 arc-min accuracy,ensuring reliable and repeatable results for CNC applications;(Reted output torque:18 N.m;Max out torque:54 N.m)High Torque Output:Experience a 3 times rated torque output,allowing for the handling of heavy loads and powerful cutting tools.

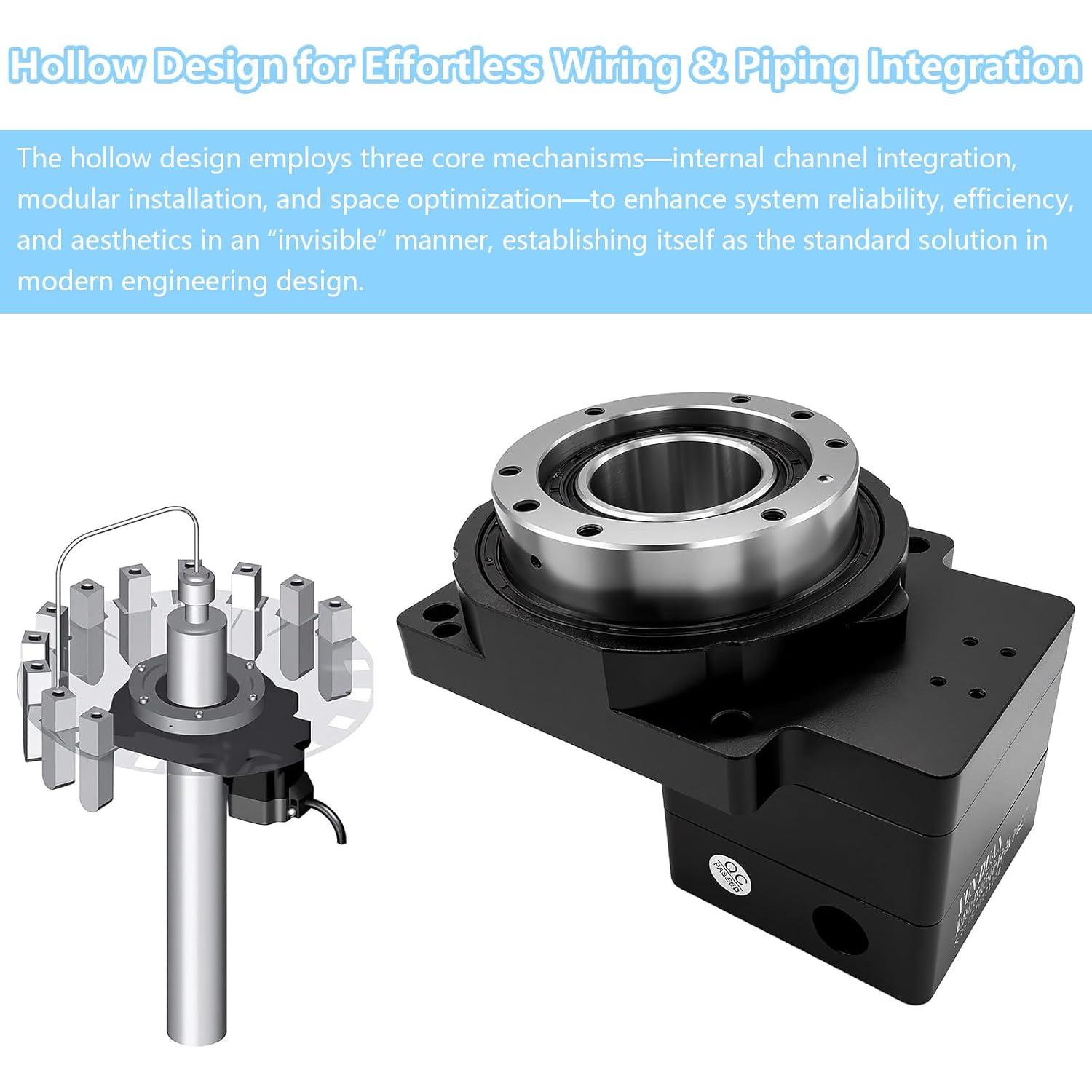

• 【Compact &Quiet & Highly Flexible】This space-saving platform integrates easily into tight spaces,operates with minimal noise for a better work environment, and features a hollow design for effortless cable routing and direct mounting to streamline installation.

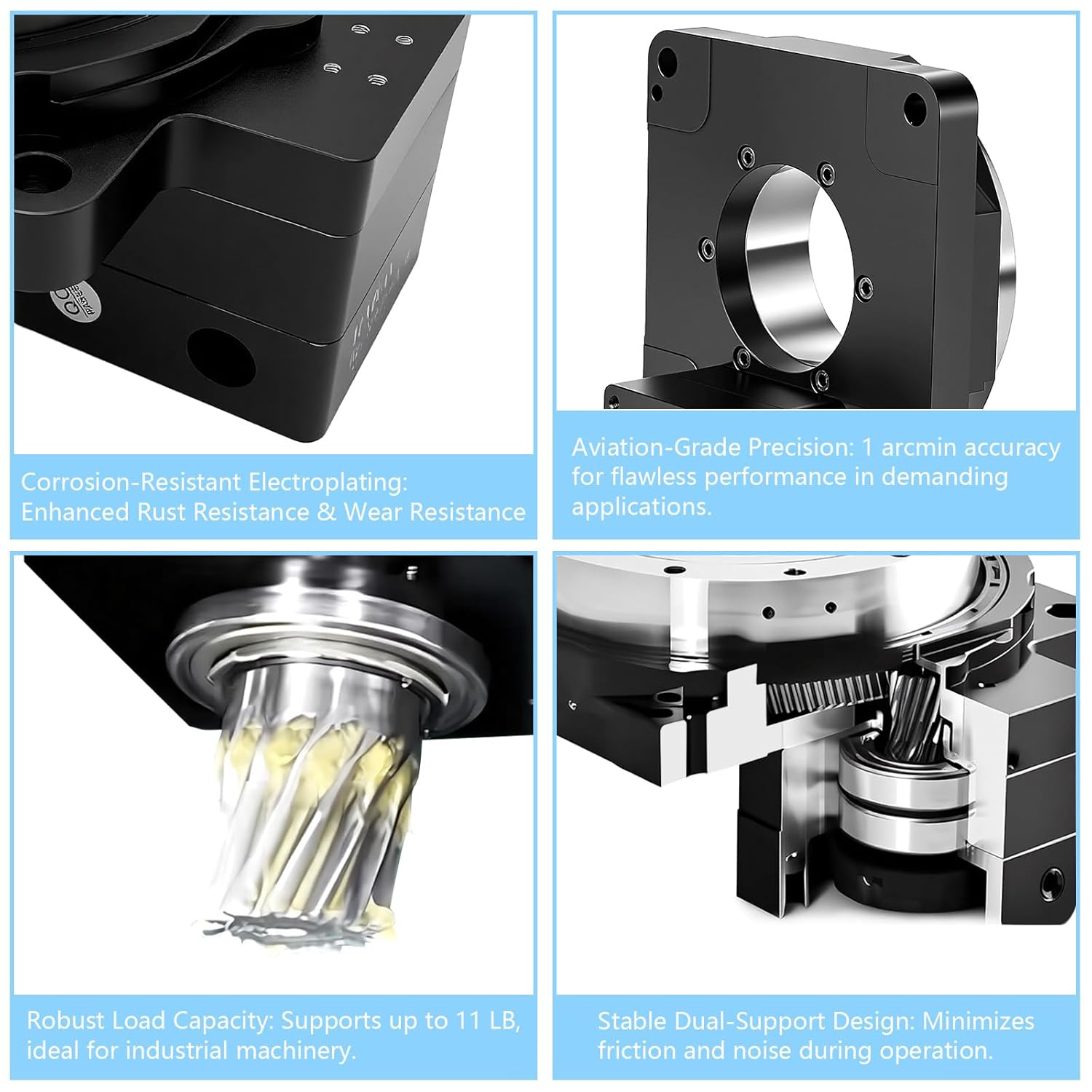

• 【360-Degree Rotating Table-Robust Construction】Constructed with a high-strength aluminum alloy and carburized gearing, the platform withstands heavy loads and rigorous use. This versatile hollow rotary platform is engineered for a wide range of automated applications,from providing precise rotation in robotic arms and CNC indexing tables to enabling high-accuracy positioning in laser cutting systems, automated assembly stations, and precision inspection equipment.

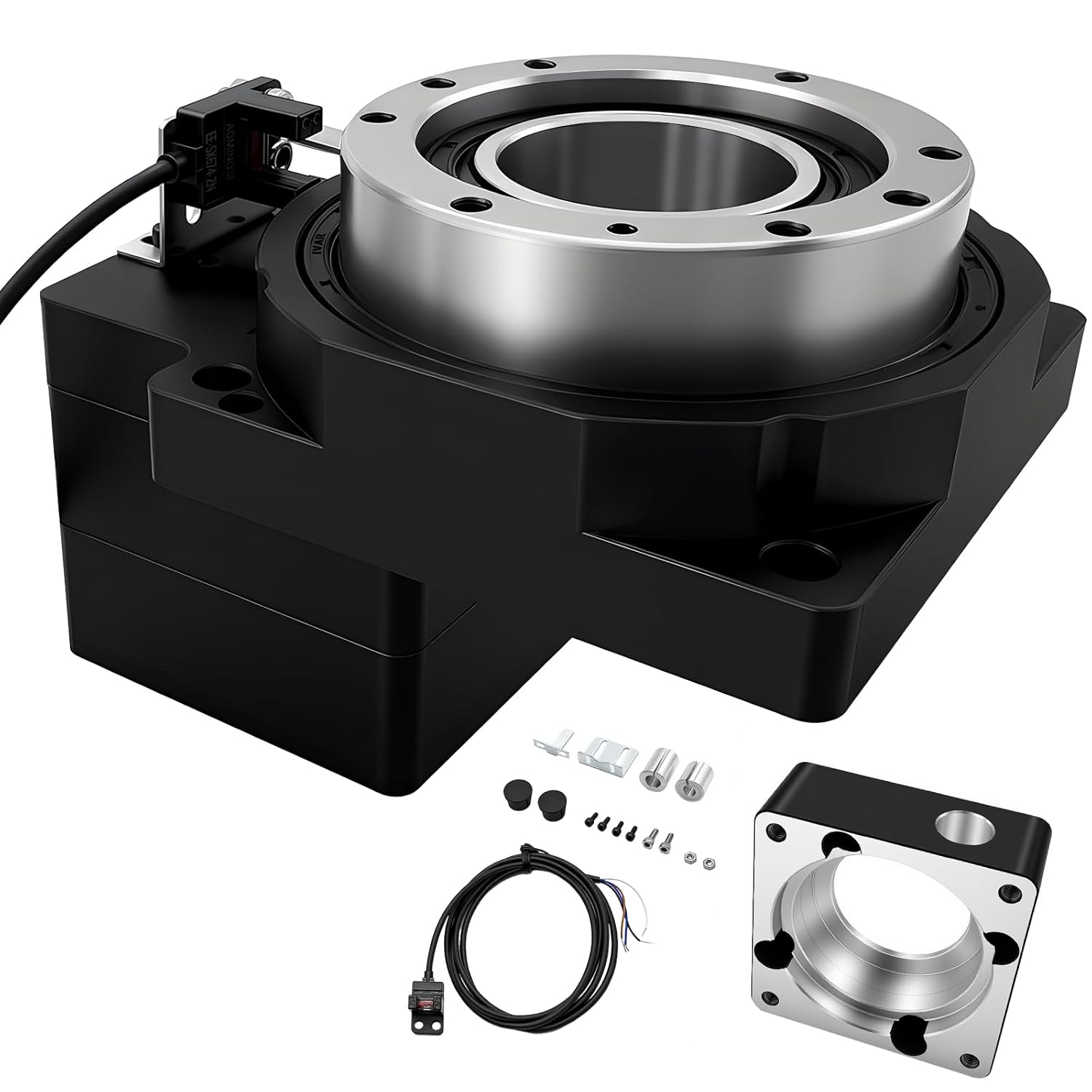

• 【Package Includes】One Hollow Rotary Platform,one 14-to-8mm shaft sleeve adapter,one 14-to-6.35mm shaft sleeve adapter,one 60mm servo motor flange,and one Photoelectric sensor[Photoelectric Sensor 674,NPN NO/NC].（Motor is not included.）
