CNC Hollow Rotating Platform Gear Ratio 10:1 360 Degree Electric Rotary Table Positioners Substitutable for Direct Drive Motor and Cam Indexer Fitting Nema 23 Stepper 60mm Servo Motor

About this item

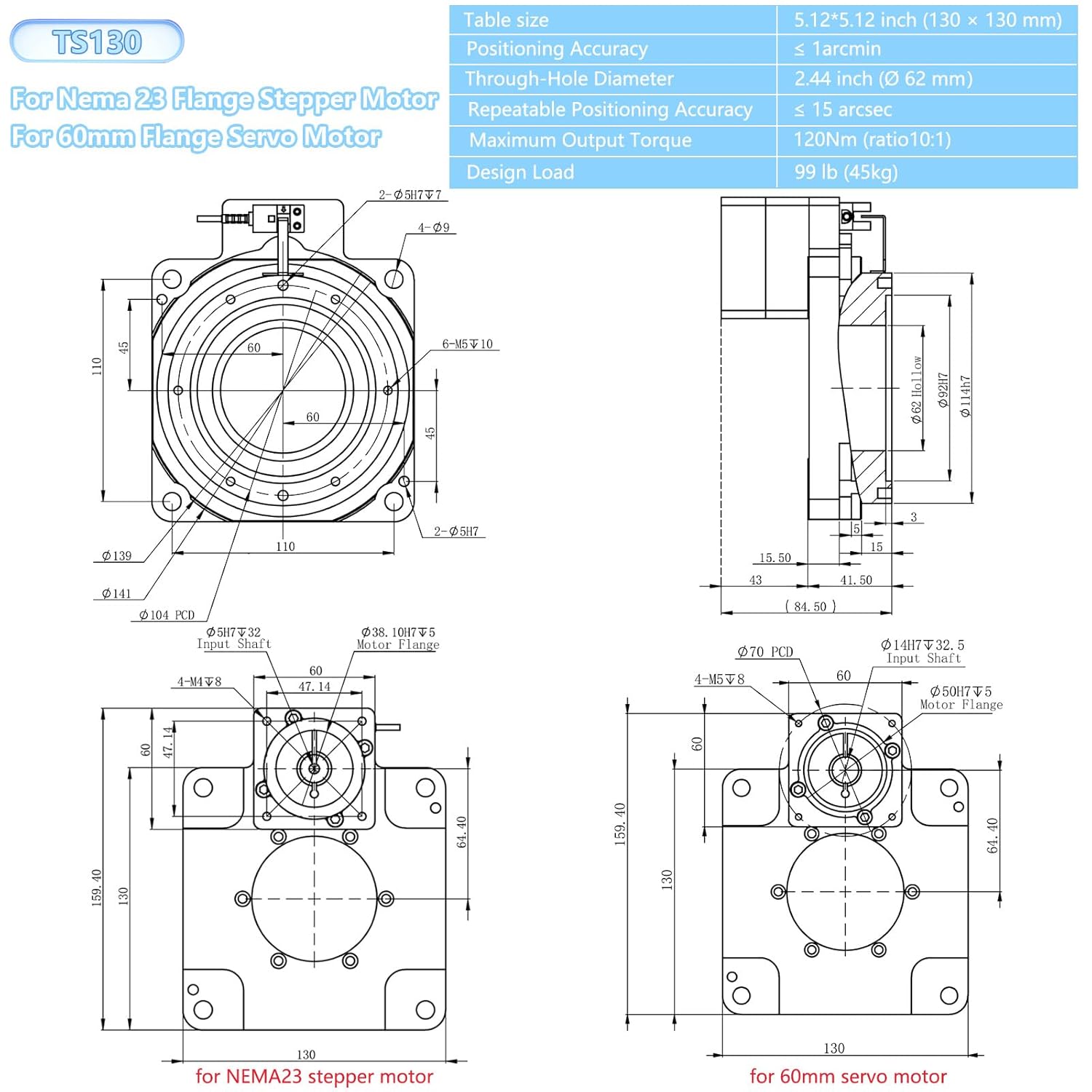

• High Accuracy Hollow Rotary Platform Specifications: Ratio: 10 to 1; Positioning accuracy: ＜=1 arc-min; Repeated positioning accuracy:≤15 arc-sec; Transmission efficiency: 96%; Load: 99 pounds (45 Kg).

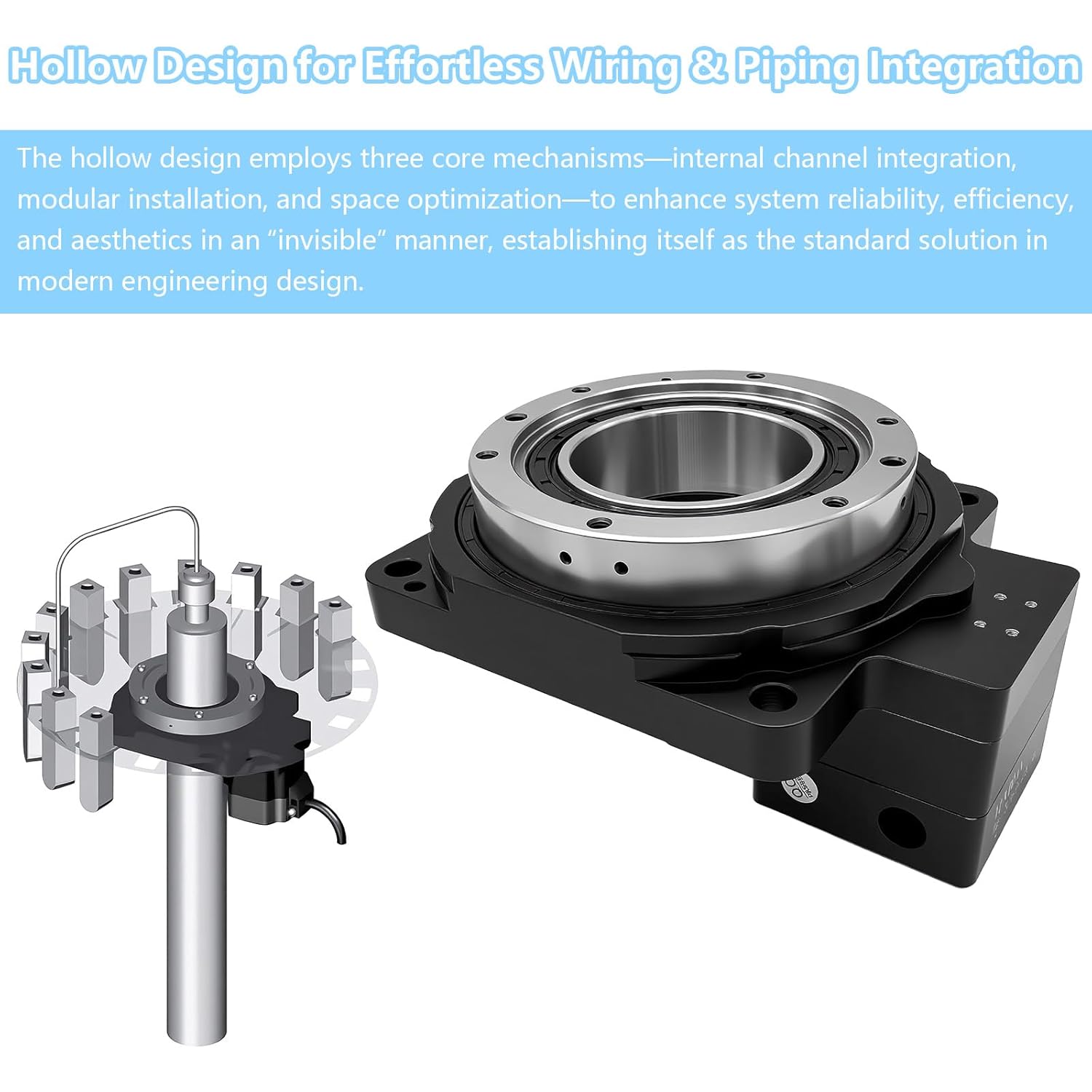

• Compact Quiet & Highly Flexible: This space-saving platform integrates easily into tight spaces,operates with minimal noise for a better work environment, and features a hollow design for effortless cable routing and direct mounting to streamline installation.

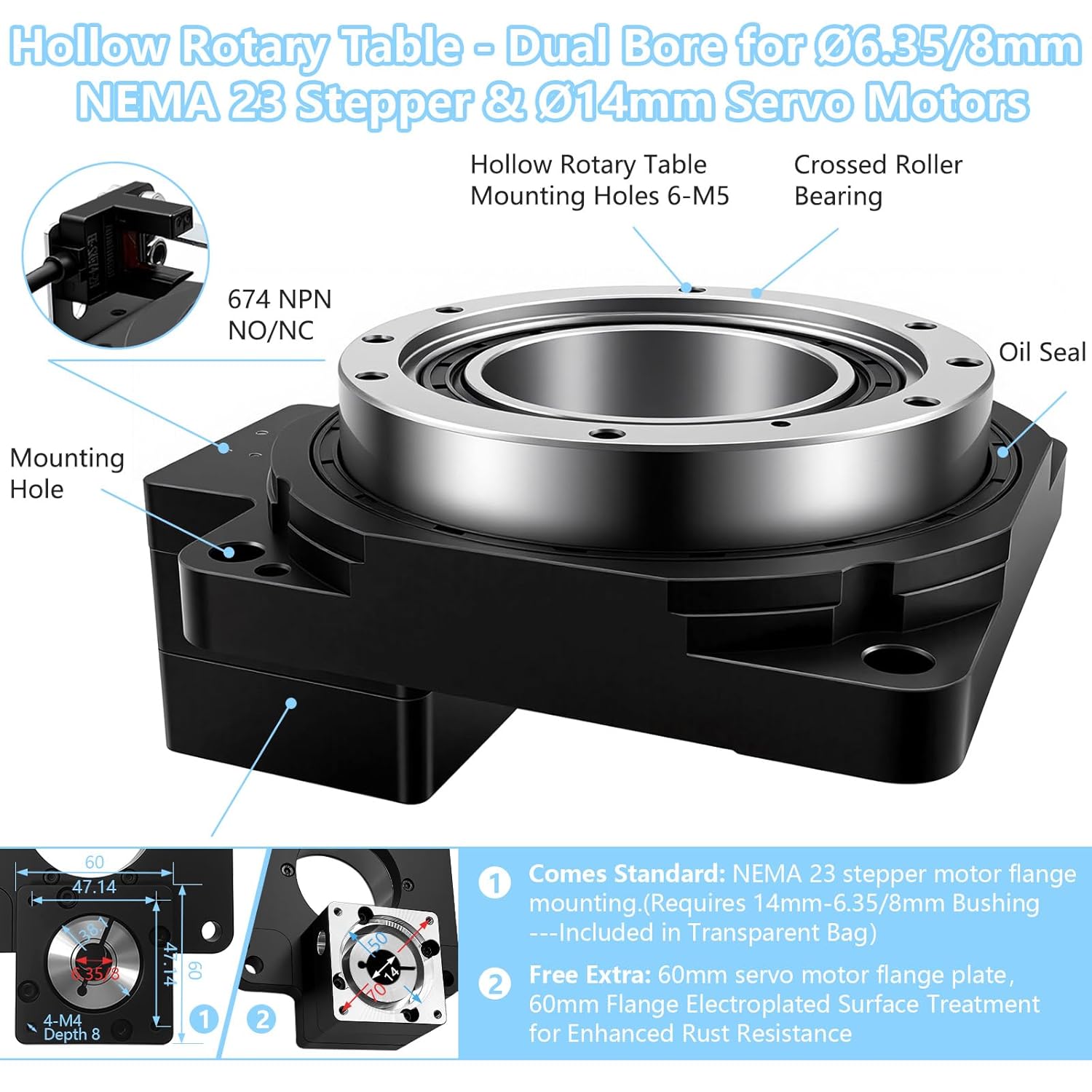

• Universal Motor Compatibility: This platform arrives pre-configured with a NEMA 23 flange for stepper motors (use included 14-to-8mm or 14-to-6.35mm shaft adapters). It also includes a 60mm servo flange, allowing you to easily upgrade for 60mm servo motors (200W, 400W, 14mm shaft).

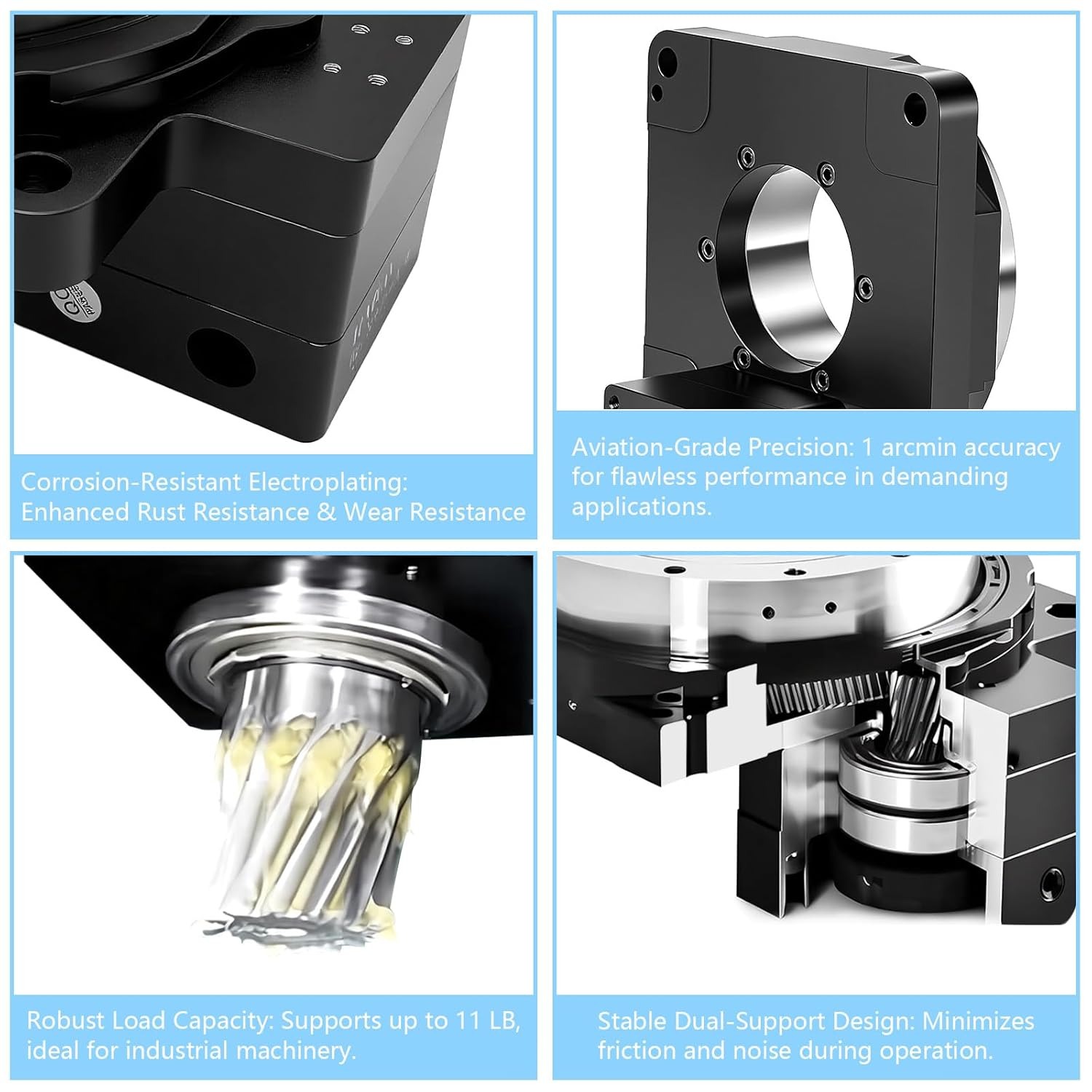

• 360-Degree Rotating Table: Constructed with a high-strength aluminum alloy and carburized gearing, the platform withstands heavy loads and rigorous use. This versatile hollow rotary platform is engineered for a wide range of automated applications,from providing precise rotation in robotic arms and CNC indexing tables to enabling high-accuracy positioning in laser cutting systems, automated assembly stations, and precision inspection equipment.
• Package Includes: One Hollow Rotary Platform, one 14-to-8mm shaft sleeve adapter, one 14-to-6.35mm shaft sleeve adapter,one 60mm servo motor flange, and one sensor.[Photoelectric Sensor 674,NPN NO/NC].（Motor is not included.）
