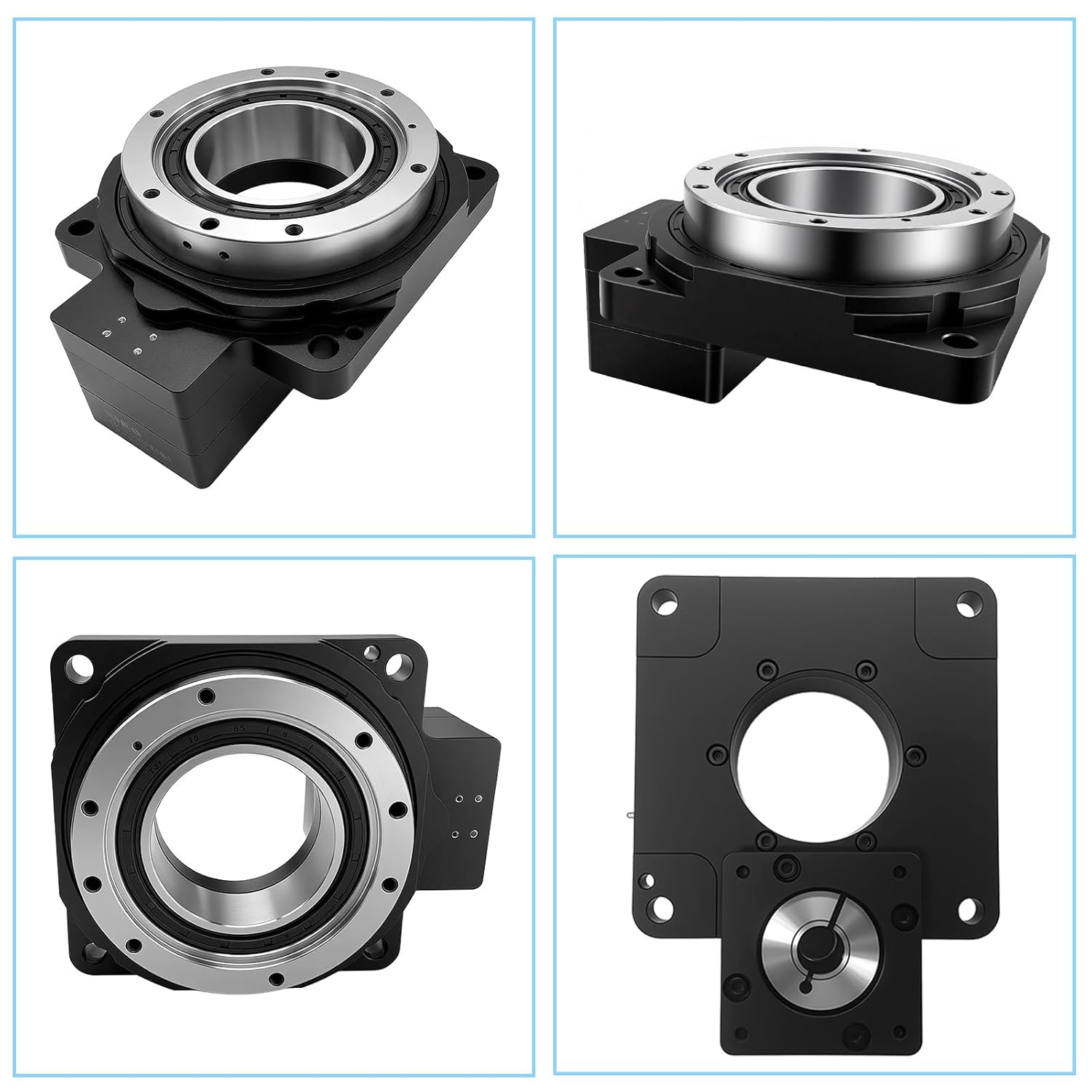

Hollow Rotary Platform Positioner Actuator High Accuracy 360 Degree Electric Indexing Table Rotating Table for NEMA34 Stepper Motor / 80mm Servo Motor Replace DD Motor Cam Indexer

About this item

• High Accuracy Rotating Platform: The precision hollow rotary actuator achieve precise positioning with a ≤1 arc-min accuracy and repeatability of 15 arcmin. Integrated photoelectric sensor guarantees consistent results in CNC operations. Gear Ratio: 10:1.
• Integrated Hollow Design: The hollow design of the turntable allows pneumatic tubes and electrical cables to be routed directly through its center. This central pass-through eliminates complex external cable management and prevents cable wrap issues. Direct coupling to a motor enables easy positioning at 360 Degree.

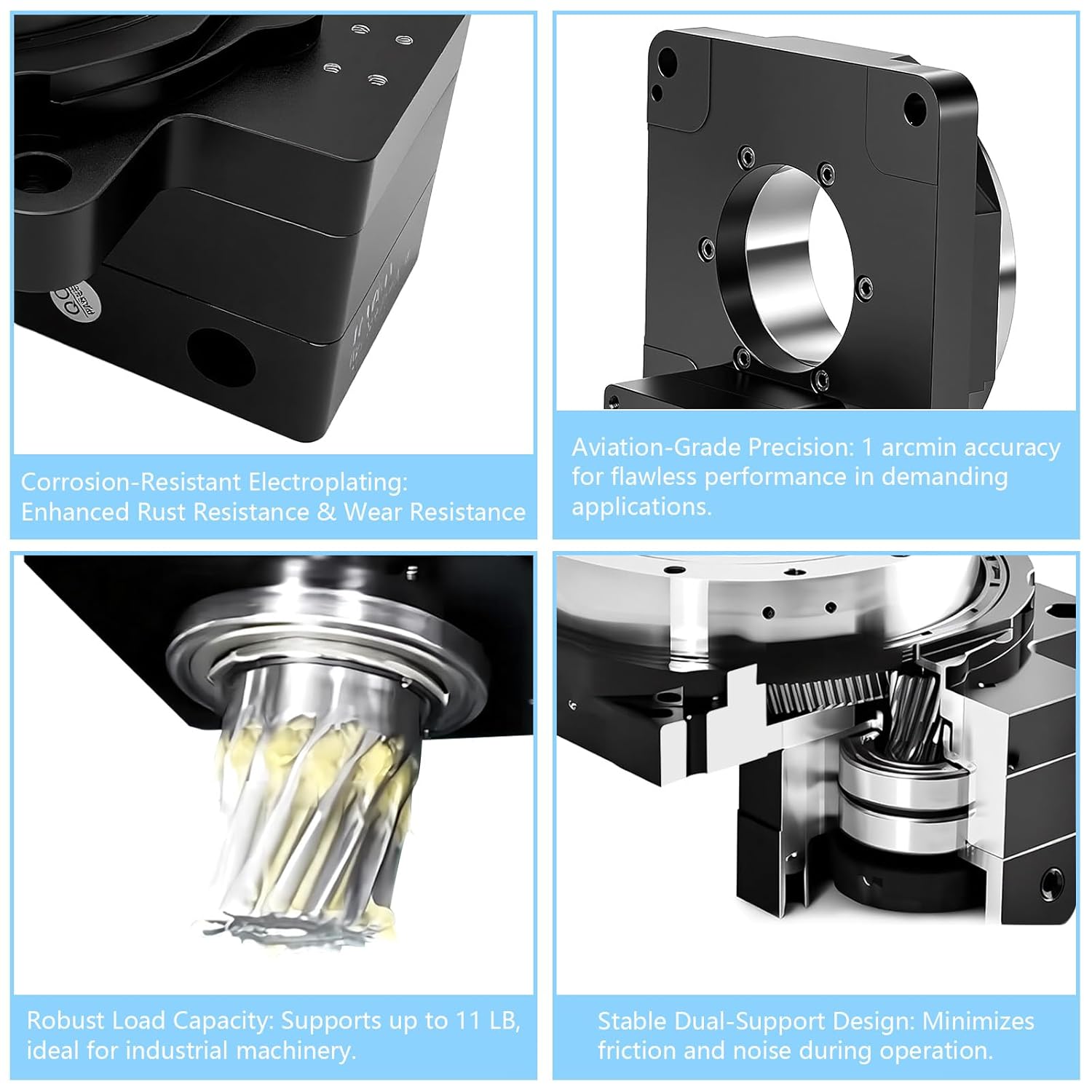

• Equipped with Crossed Roller Bearing: considering the accuracy and stability that may be affected by the lateral force from different directions, the high rigidity crossed roller bearing was adopted, which features high rotational accuracy, stable rotational torque, and high loading capacity, which can ensure the stability and high precision of the rotating platform.

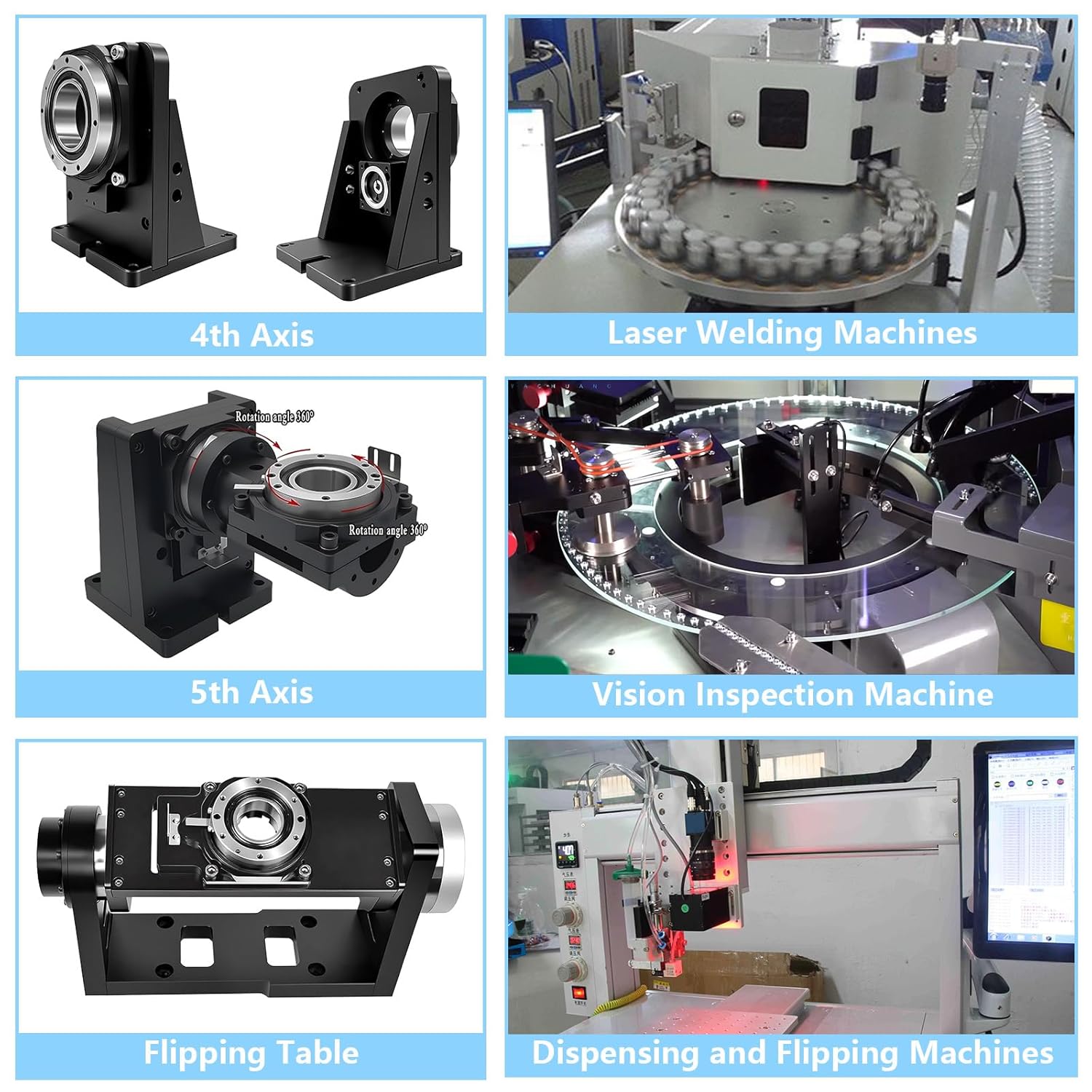

• Application Fields: The hollow rotary platform finds broad application in high-precision industrial automation, including but not limited to: CNC cutting table, dispensing machines, machine tool 4th/5th axis, packaging machines, opto-electronic vision inspection systems, indexing tables, laser printers, sorting machines, and robotic joints, etc.

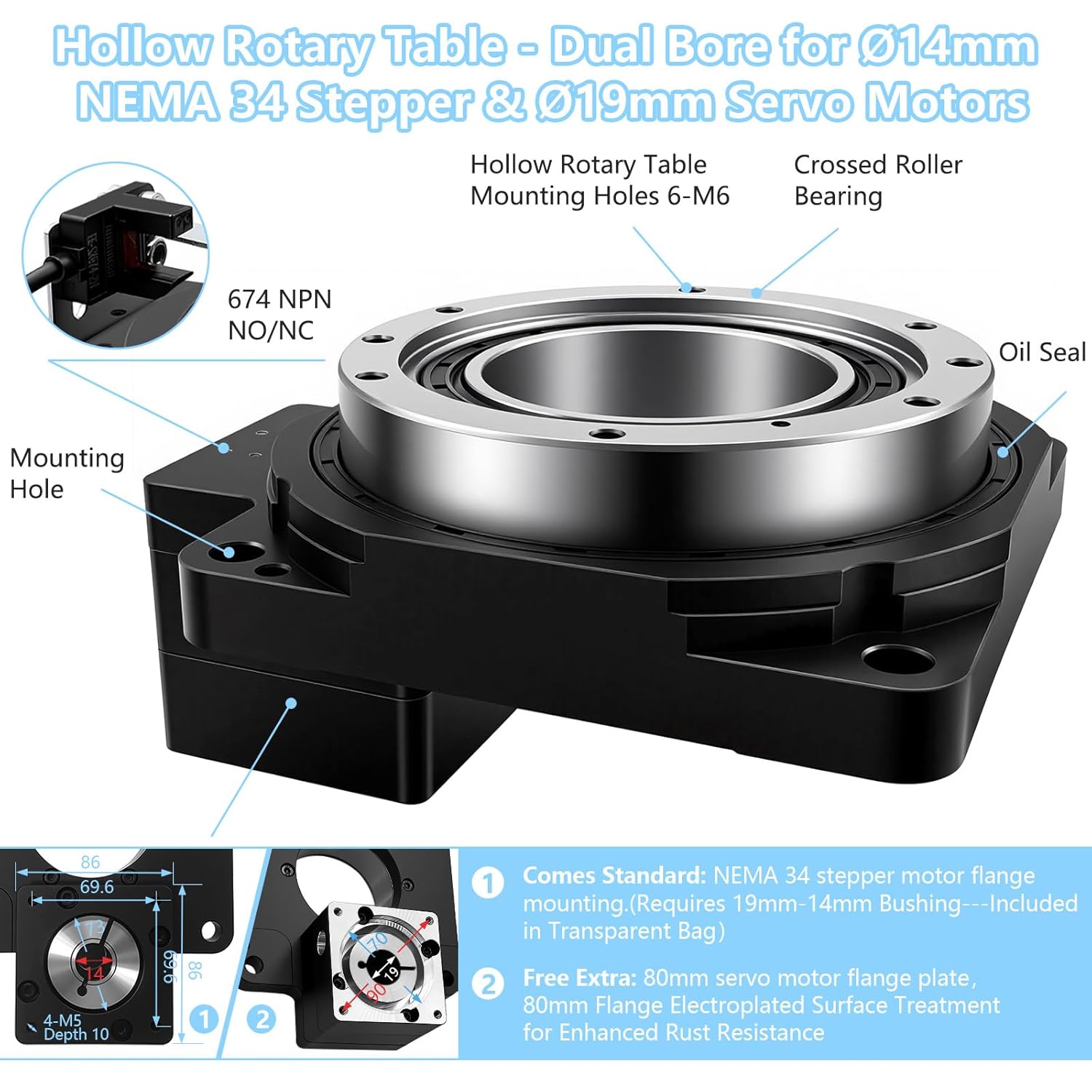

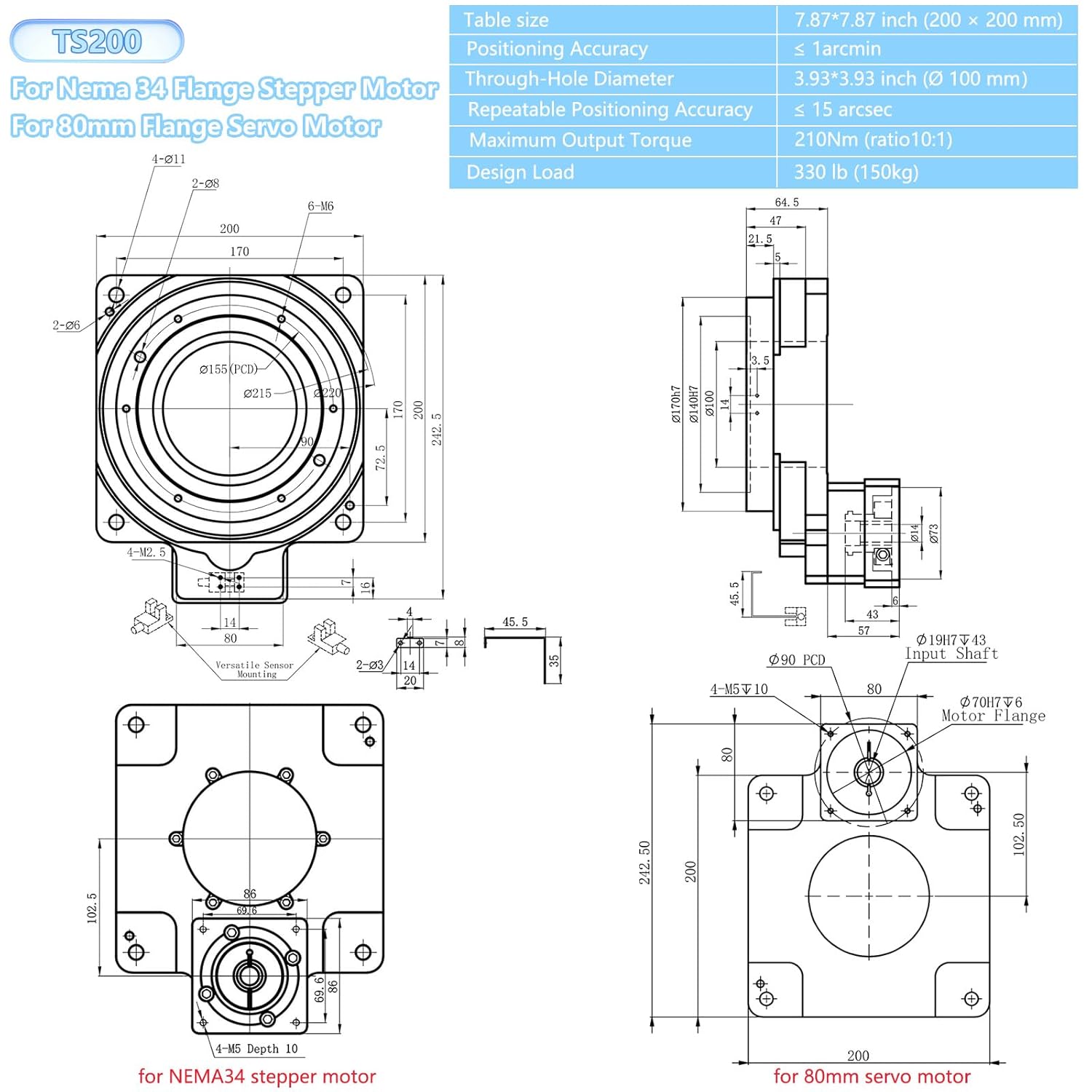

• Any configuration of motor: The hollow rotating table can flexibly adapted change the size of the interface by featuring the flange and input shaft hole, which is suitable for connecting of 80mm servo motor(19mm shaft) or nema34 stepper motor(14mm shaft).

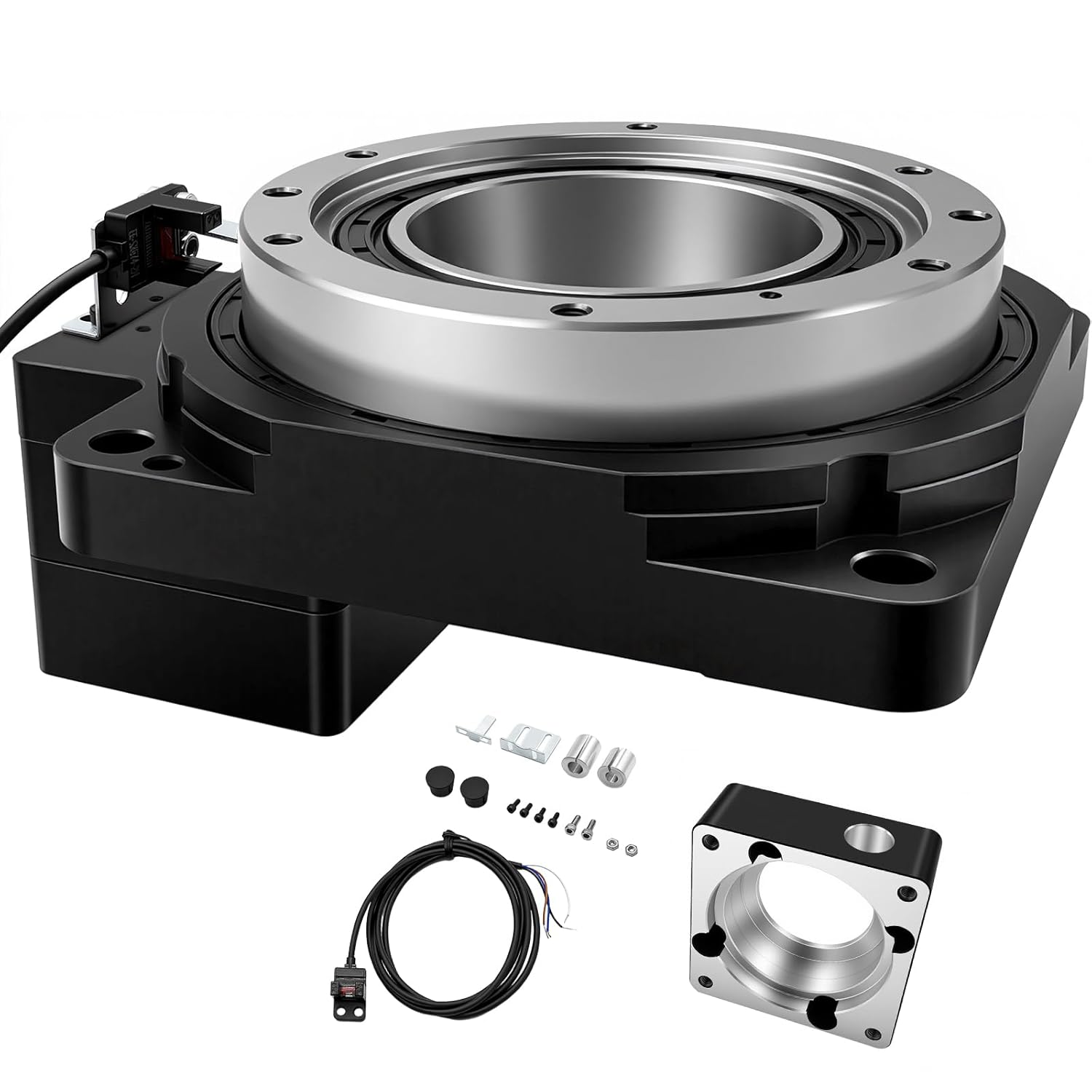

• Package Includes:One Hollow Rotary Platform,one 19-to-14mm shaft sleeve adapter,one 80mm servo motor flange,and one Photoelectric sensor[Photoelectric Sensor 674,NPN NO/NC].（Motor is not included.）
